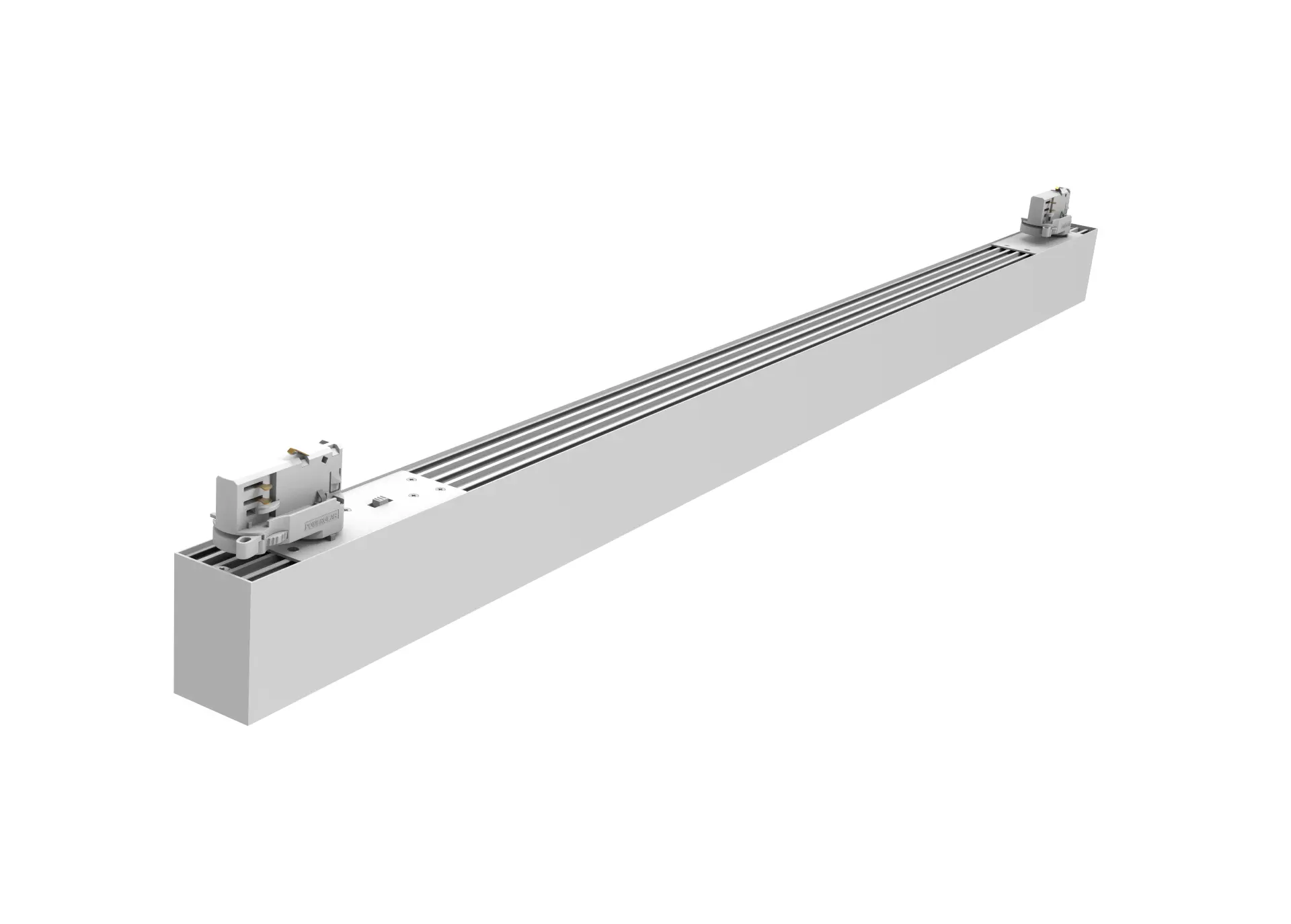

1200Luz Linear de Trilha LED MM | 3Luz de Trilha de Economia de Energia do Interruptor Dip CCT
Código do produto: PS-TL30-40WL50
Modern LED track linear light, slim 1200mm aluminum body with dual-track adapter, minimalist black and white finish, architectural commercial lighting design, suspended on ceiling track system, soft uniform linear illumination, anti-glare lighting effect, premium retail and office environment, realistic product rendering, clean background, ultra detailed, high-end industrial design style.
Certificado:
40-50Em
Poder
83/92Ra
CHORAR
110-140lm/w
Eficiência do lúmen
Lumileds/Osram SMD 2835
LED Chip
Osram / Tridônico / BOKE
LED Driver
Tabela de especificações
| Modelo | PS-TL40-50WL50 | |
| Poder | 40-50Em | |
| Tamanho do produto(milímetro) | L1200*W49.7*H75mm | |
| Tensão de entrada | AC220-240V 50/60Hz | |
| Tipo de LED | Lumileds/Osram SMD 2835 | |
| Fonte de alimentação | Osram / Tridônico / BOKE | |
| Eficácia(lm/W) | 110-140LM/W | |
| Ângulo de feixe | 120° | |
| CCT (K) | 3000/4000/5700 K (DIP Adjustable) | |
| CHORAR | Ra83/Ra92 | |
| PF | >0.9 | |
| Diagnóstico | <5 | |
| UGR | <22 | |
| Material | Alumínio de fundição | |
| THD | <15 | |
| Taxa de IP | IP20 | |
| Escurecimento | Sem escurecimento (Inadimplência) /1-10V / Escurecimento Dali/BLE | |
| Certificado | CE/RoHS/CB/TUV/SAA/C-Tick | |
| Garantia | 5 Anos | |
Aplicativos
This LED Track Linear Light is widely used in commercial and architectural lighting applications. With high efficiency, Apresentação sem cintilação, and uniform light distribution, it is ideal for supermarkets, lojas de varejo, boutiques de moda, Escritórios, car showrooms, e shoppings. The adjustable CCT function allows the lighting atmosphere to be customized for different spaces, while the modern linear design easily integrates into contemporary interiors. Whether used for general illumination or enhancing product displays, it helps create a comfortable, Profissional, and visually appealing environment.

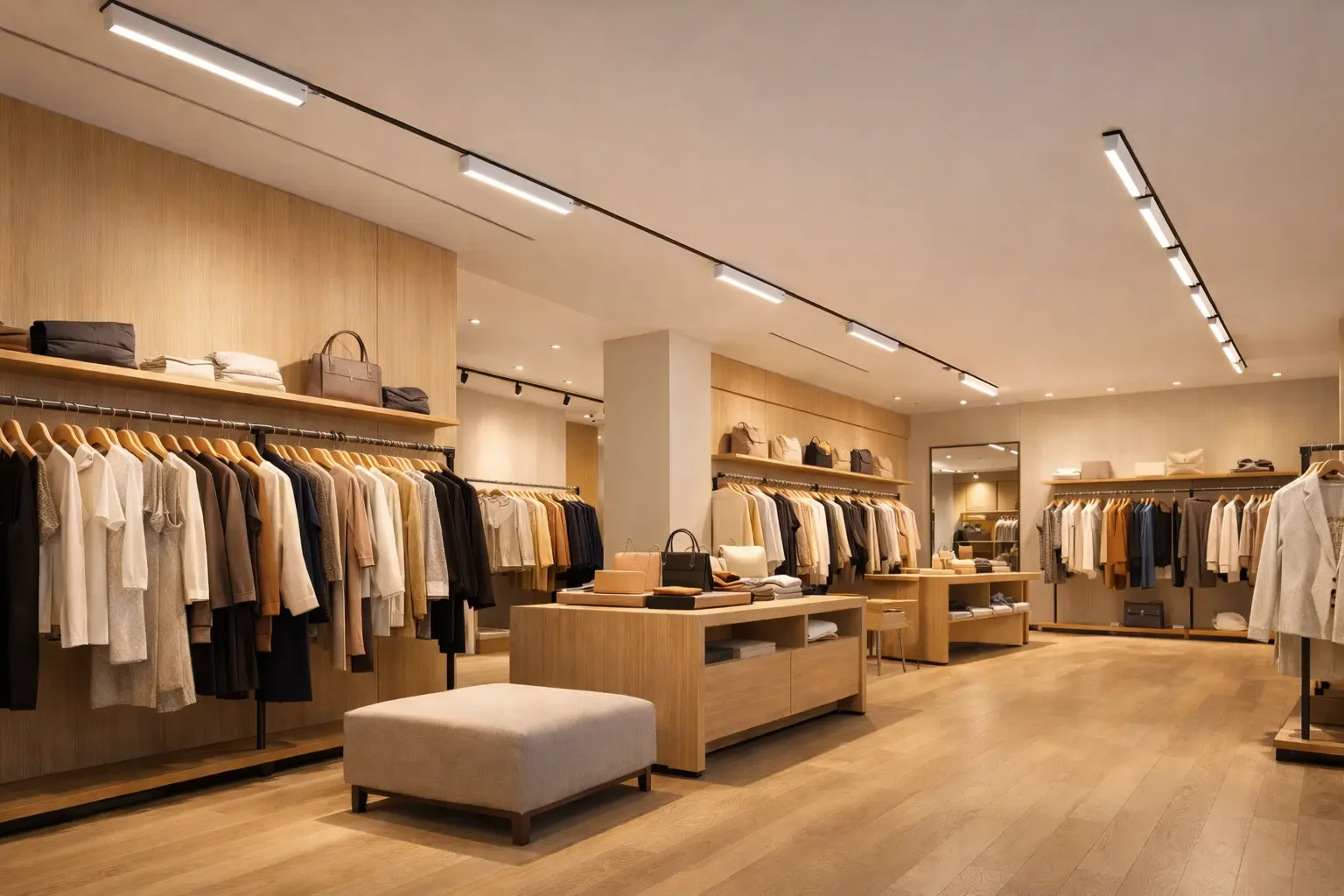

Fashion Retail Store
Enhance garment texture and color with soft, uniform linear lighting.

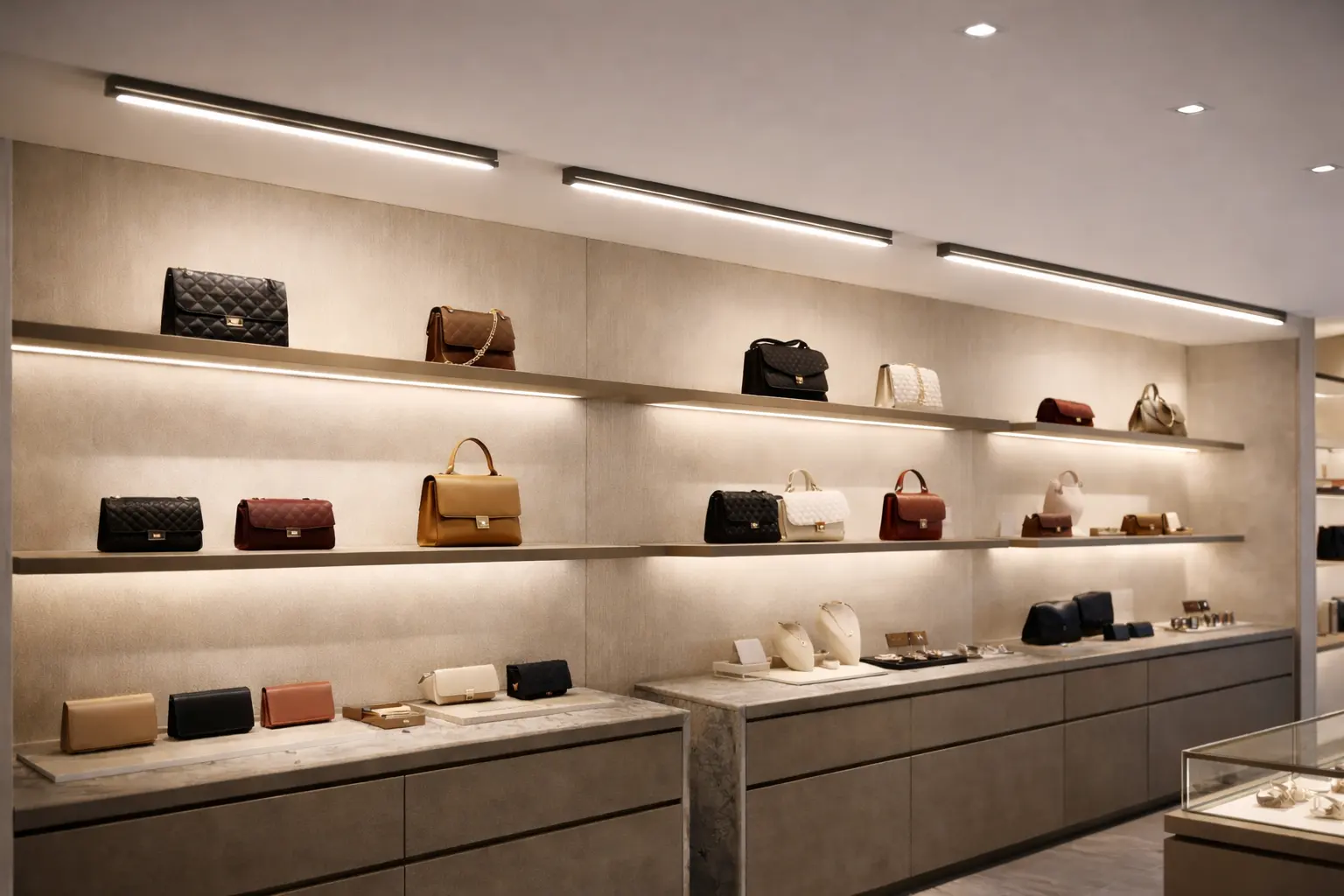

Boutique Store
Highlight premium products with precise and elegant lighting.
Modern Office
Delivers comfortable and balanced lighting for daily work. Reduces glare and eye strain, improving focus and productivity
in professional environments.

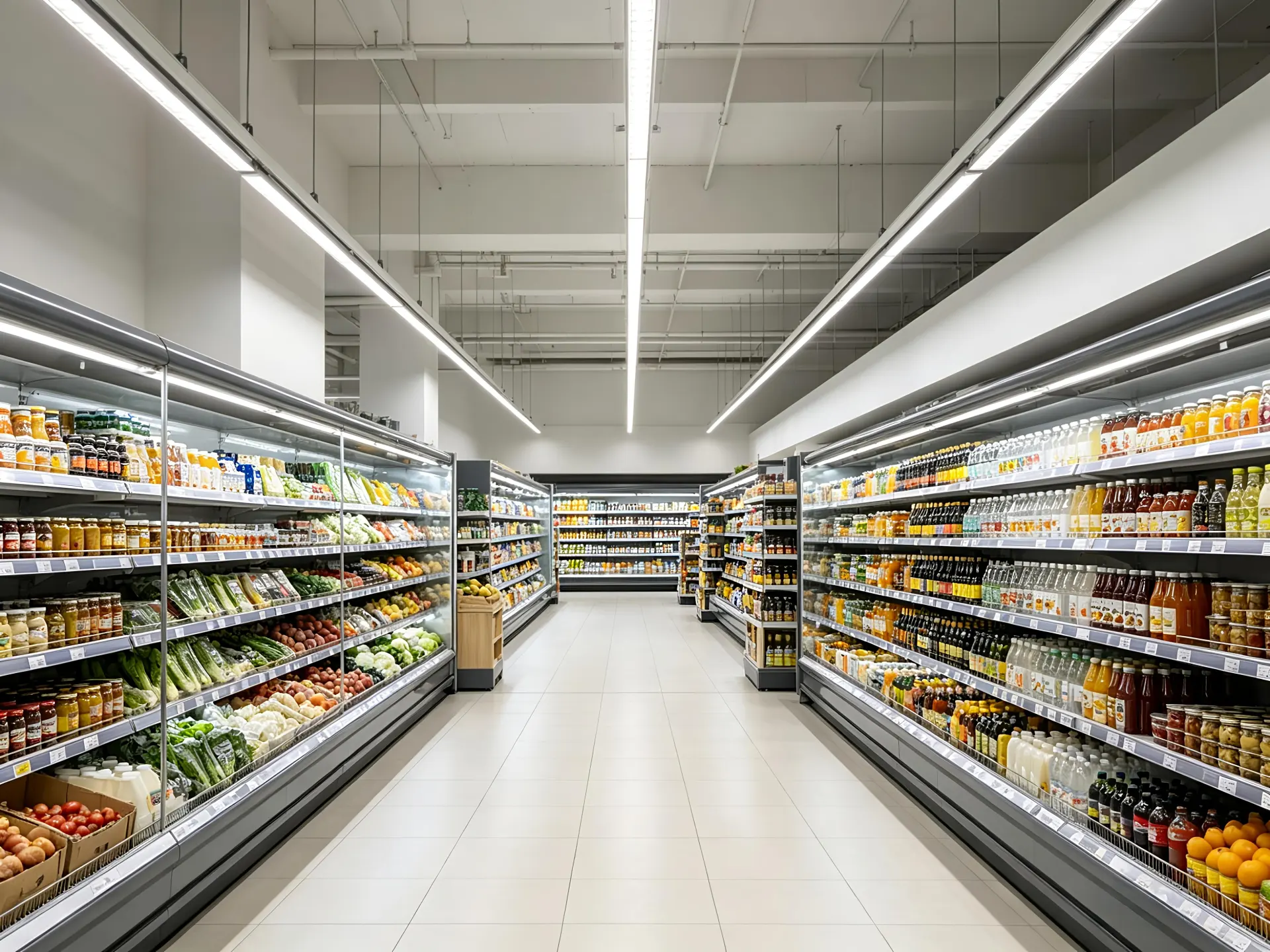

Supermercado
Deliver bright, even illumination for a clear and comfortable shopping experience.
Documentos
2026.05.11
1871.33KB
Perguntas frequentes
-
Q.Can the color temperature be adjusted after installation?
A. Sim. The fixture features a built-in DIP switch that allows you to easily select between 3 color temperatures according to different project requirements.
-

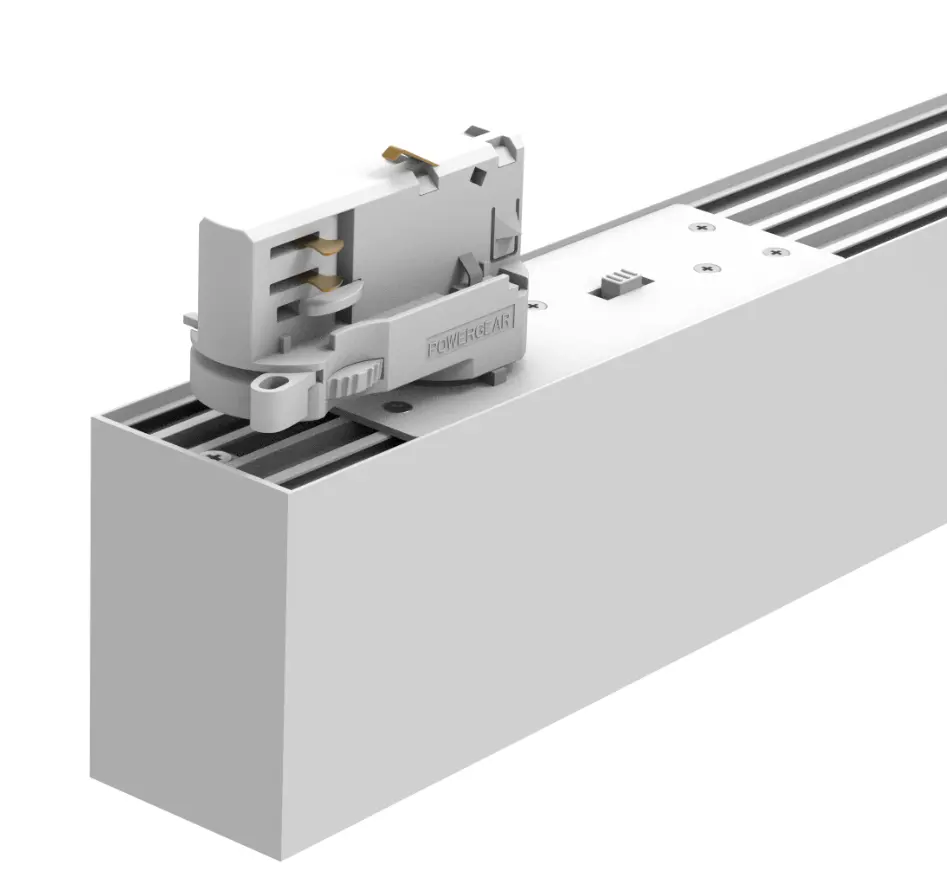

Q.What track systems is this linear light compatible with?
A.The light is designed with a dual-track adapter for secure and stable installation on standard track rail systems. Please contact us to confirm compatibility with your local track standard.
-
Q.What is the lifespan of this track linear light?
A.The lifespan is over 50,000 hours under normal working conditions, helping reduce maintenance and replacement costs.
-
Q.Can I choose different beam angles?
A. Sim. Multiple beam angle options are available to meet different lighting needs, from general illumination to focused commercial lighting applications.
-
Q.What color options are available?
A.The housing is available in both black and white finishes to match different interior styles and project designs.
-
Q.Is this light suitable for damp or outdoor environments?
A.No. This model is rated IP20 and is designed for indoor commercial applications only.
-

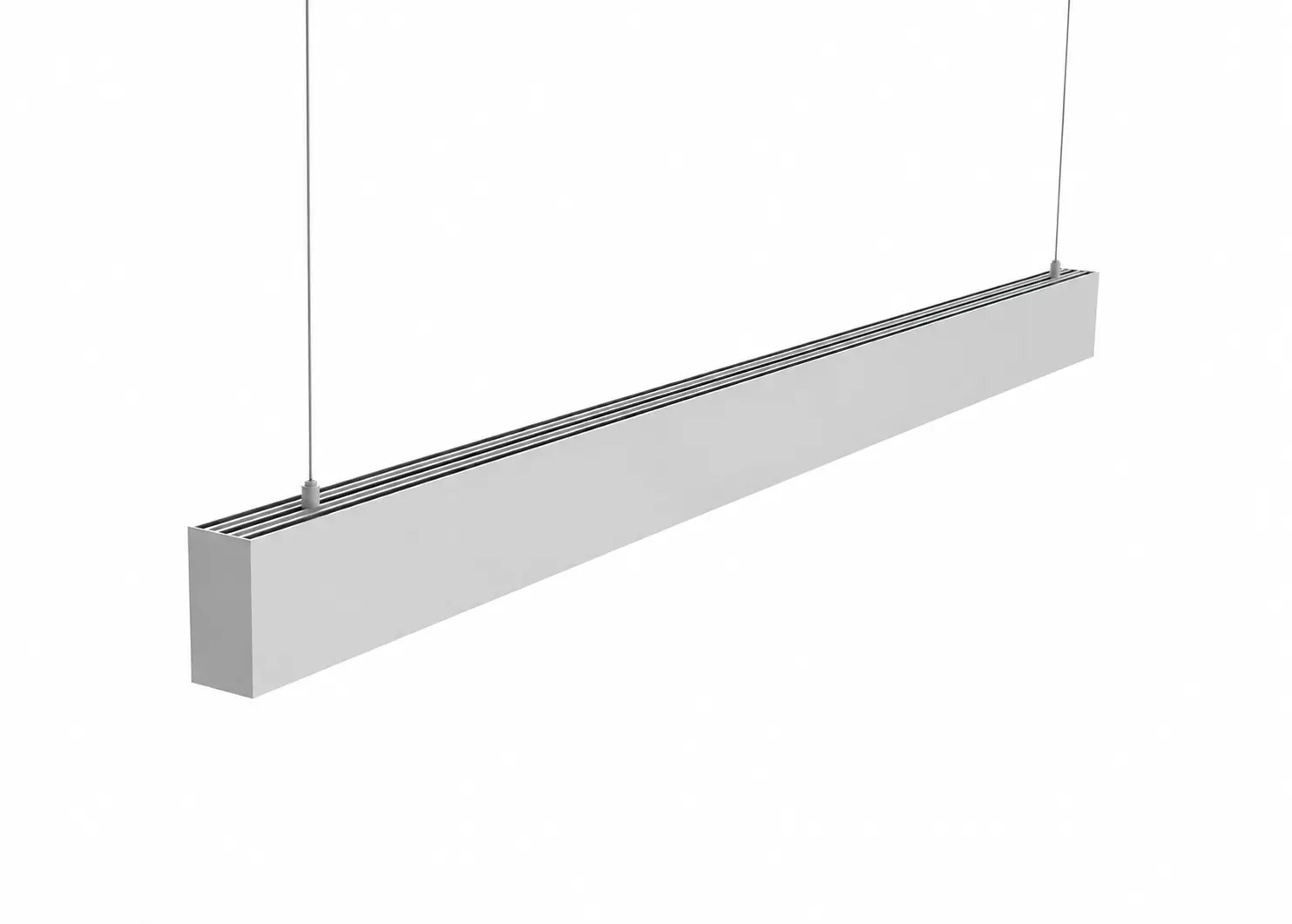

Q.Does the product support suspension or ceiling installation?
A. Sim. Besides track installation, suspension installation and surface ceiling installation options are also available.
-
Q.What applications is this product suitable for?
A.It is ideal for supermarkets, lojas de varejo, boutiques de moda, Escritórios, car showrooms, Shoppings, and other modern commercial spaces.
