130 LM/W 150 Lm / W Iluminação de trilho LED comercial
Código do produto: PS-TL20/25-X16A80H
Certificado:
20/25Em
Poder
83/92Ra
CHORAR
150LM/W
Eficiência do lúmen
Cidadão
LED Chip
Tridônico
LED Driver
Descrição
| Característica | Benefício | Vantagem |
|---|---|---|
| Até 150 lm/W high efficiency LED chip | Reduces energy consumption and lowers long-term operating costs | Delivers higher brightness with less power compared with conventional track lighting |
| 130 lm/W efficiency option available | Offers flexible solutions for different project budgets and requirements | Allows customers to balance performance and cost according to project needs |
| 20° / 30° / 45° / 60° beam angle options | Enables precise light distribution for different applications | Supports both accent lighting and general illumination with one product series |
| Dimmable function with multiple control options | Creates flexible lighting scenes and improves energy management | Compatible with modern commercial lighting systems and smart controls |
| 1-10V / DEU / BLE dimming options | Provides convenient lighting adjustment for different environments | Suitable for retail stores, Escritórios, Galerias, Hotéis, e projetos arquitetônicos |
| UGR<19 low glare optical design | Improves visual comfort and reduces eye strain | Creates a more comfortable lighting environment for customers and staff |
| Flicker-free lighting performance | Protects visual comfort during long-term exposure | Ensures stable and high-quality illumination for commercial spaces |
| Opções de CRI alto (Ra80 / Ra90) | Enhances color accuracy and makes products look more natural | Ideal for retail displays, Showrooms, Museus, e galerias |

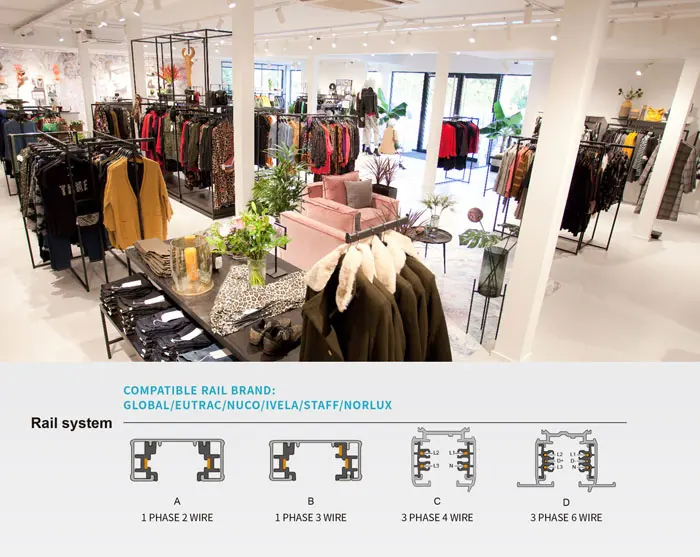

| Compatível com 2 / 3 / 4 / 6-wire track systems | Simplifies installation and replacement for existing projects | Works with various commercial track systems worldwide |
Tabela de especificações
| Modelo | PS-TL20/25A80Z |
| Poder | 20/25 Em |
| Tamanho do produto(milímetro) | D80*H155 mm |
| Tensão de entrada | C.A. 220-240V 50/60Hz |
| Tipo de LED | Citizen / Luminus / Cree COB |
| Fonte de alimentação | Tridônico / Osram / Philips / Boke |
| Eficácia(lm/W) | 120-150 LM/W |
| Saída de lúmen±5% | 2400-3750 LM |
| Ângulo de feixe | 20/30/45/60° |
| CCT (K) | 2700/3000K/4000K/5000K/5700 K |
| CHORAR | Ra83/Ra92/RA97 |
| PF | >0.9 |
| Diagnóstico | <3 |
| UGR | <19 |
| Adaptar a Faixa | 2/3/4/6 Fios |
| Material | Alumínio de fundição |
| THD | <15 |
| Taxa de IP | IP20 |
| Choque de Tensão de Entrada | <380VAC |
| Iniciar/Alternar/Desligar | <0.5s(Partida do ar-condicionado),<0.5s(DCstart),<0.3s(Troca AC/DC),<0.5s(Desligue) |
| Ciclos de Comutação | >100,000 Ciclos de comutação |
| Resistir à VoItage | 1/P-0/P:3750VAC |
| Capacidade de Mobilização de Rede | L-N:2KV(90%/270°, 5 vezes cada uma com intervalos de 60) |
| Vida | Vida útil nominal até 100.000 horas |
| Temperatura de operação | -20~50°C |
| Umidade de Operação | 5-85% RH, Não condensantes |
| Temperatura/Umidade de Armazenamento | -40~80°C, 5-85% RH, Não condensantes |
| Escurecimento | Sem escurecimento (Inadimplência) /1-10V / Escurecimento Dali/BLE |
| Certificado | CE/RoHS/CB/TUV/SAA/C-Tick |
| Garantia | 5 Anos |
| Tamanho QTY/CTN | 15 PCS / 445*275*250 milímetro |
| NW/GW | 10.8 /12.5 História médica |
Aplicativos

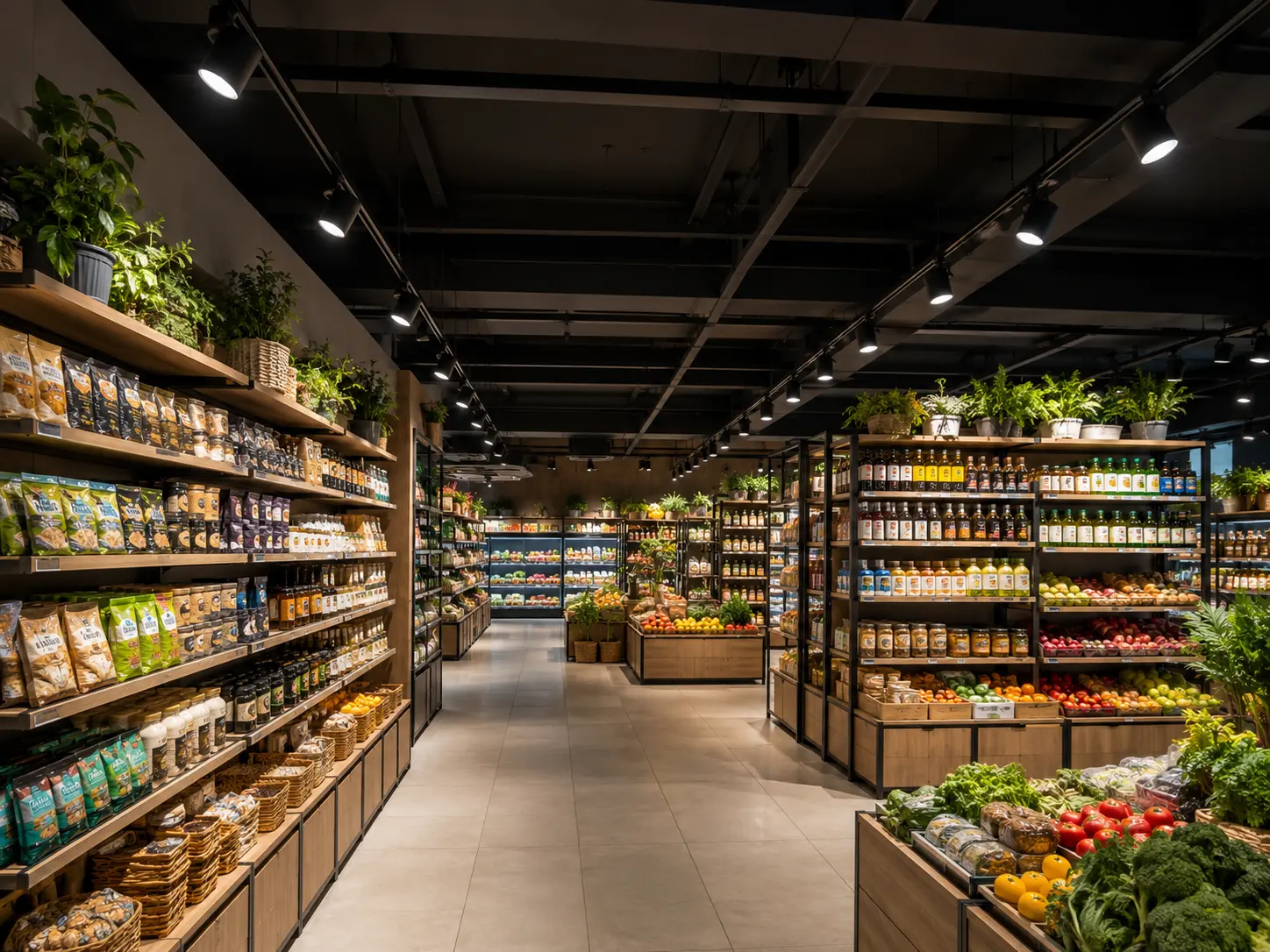

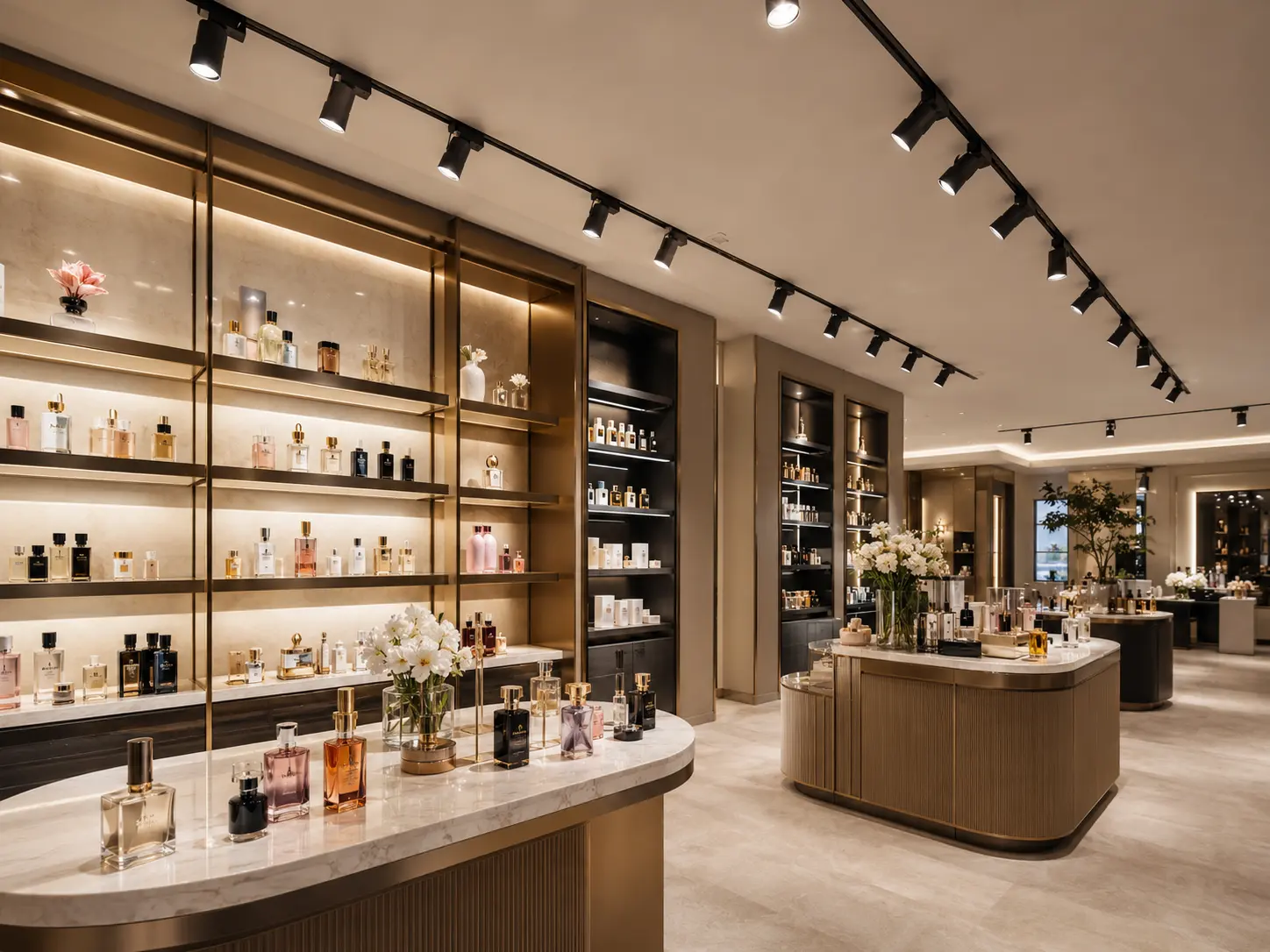

Englumia LED track lighting enhances product displays with bright, confortável, and high-quality illumination.
Featuring excellent color performance and flicker-free technology, it creates an attractive shopping environment for retail stores, Shoppings, Showrooms, e espaços comerciais.
Perguntas frequentes
-
Q.What makes the Englumia A80H LED track light energy efficient?
A.The Englumia A80H ledtrack light uses a high-efficiency 180lm/W LED light source with optimized optical design, achieving up to 150lm/W system efficiency. Combined with a high-reflectivity reflector, it delivers higher brightness with lower power consumption, helping reduce energy costs in commercial lighting projects.
-
Q.What beam angles are available for the A80H LED track spotlight?
A.This product offers multiple beam angle options, including 20°, 30°, 45°, e 60°. Different beam angles allow precise light distribution for various applications, from retail displays to wider illumination for commercial spaces.
-
Q.Is the A80H track light compatible with different track systems?
A. Sim. The A80H track light is designed with high compatibility and supports 2 / 3 / 4 / 6 wires 3-phase track systems. It can be integrated with different track rails used in commercial lighting projects worldwide.
-
Q.Does the A80H LED track light support dimming control?
A. Sim. The A80H supports multiple dimming solutions, incluindo 0-10V, DEU, and DMX512 control options. It can be easily integrated into smart lighting systems for flexible brightness adjustment and customized lighting scenes.
-
Q.Does the A80H track spotlight provide comfortable lighting without flicker?
A. Sim. The A80H uses a high power factor (PF) flicker-free driver to provide stable light output and reduce visual discomfort caused by light fluctuations. It is designed for long-term commercial use where lighting quality and visual comfort are important.
-
Q.Can the installation method of the A80H track light be customized?
A. Sim. The A80H features a patented modular design supporting multiple installation methods, including surface mounting, recessed installation, and track mounting. Customized solutions can be provided according to different project requirements.
-
Q.6. Does the A80H track spotlight provide comfortable lighting without flicker?
A. Sim. The A80H uses a high power factor (PF) flicker-free driver to provide stable light output and reduce visual discomfort caused by light fluctuations. It is designed for long-term commercial use where lighting quality and visual comfort are important.
