Beyond Illumination: How DALI Smart Supermarket Lighting Transforms Retail Spaces
By Powerstar
DALI Smart Supermarket Lighting is becoming a key lighting solution for modern retail spaces, especially for supermarkets that require flexibility, visual comfort, and precise product presentation. Unlike traditional lighting approaches that focus mainly on control systems, DALI smart supermarket lighting emphasizes the performance of luminaires themselves—such as linear lights, track lights, and panel lights—working together to adapt to different retail zones. From shelf aisles to fresh food areas and checkout zones, well-designed DALI-compatible luminaires help supermarkets achieve better illumination quality, improved energy efficiency, and a more comfortable shopping experience.
This article explores how different DALI smart supermarket lighting fixtures—linear lights, track spotlights, and panel lights—serve specific supermarket zones and collectively transform retail spaces beyond illumination.
DALI Smart Supermarket Lighting: A Fixture-Centric Retail Approach
Traditional supermarket lighting typically applies the same brightness and color temperature across all areas. While functional, this approach ignores the fact that supermarkets are highly segmented environments with very different visual and commercial requirements.
With DALI Smart Supermarket Lighting fixtures, each luminaire becomes an intelligent, addressable lighting unit. Performance is determined not by software alone, but by the physical quality of the fixture itself:
- Optical distribution design
- LED color rendering and spectrum
- DALI driver dimming depth and stability
- Sensor integration at luminaire level
This fixture-centric model allows lighting to respond precisely to each functional zone within the supermarket.
Zoned Lighting in Supermarkets: Fixtures and Functions
| Supermarket Zone | Recommended DALI Fixture | Primary Lighting Purpose | Key Fixture Benefits |
|---|---|---|---|
| Shelf Aisles | DALI Linear Light | Uniform vertical illumination | Even brightness from top to bottom shelves |
| Fresh Food Area | DALI Track Light | Product accent & color enhancement | High CRI, tunable white, flexible aiming |
| Checkout Area | DALI Panel Light | Comfortable task lighting | Low glare, flicker-free performance |
| Corridors & Walkways | DALI Panel Light with Sensors | Safe, energy-efficient circulation lighting | Daylight harvesting, occupancy detection |
This zoning strategy ensures that lighting performance aligns with both visual comfort and commercial intent.

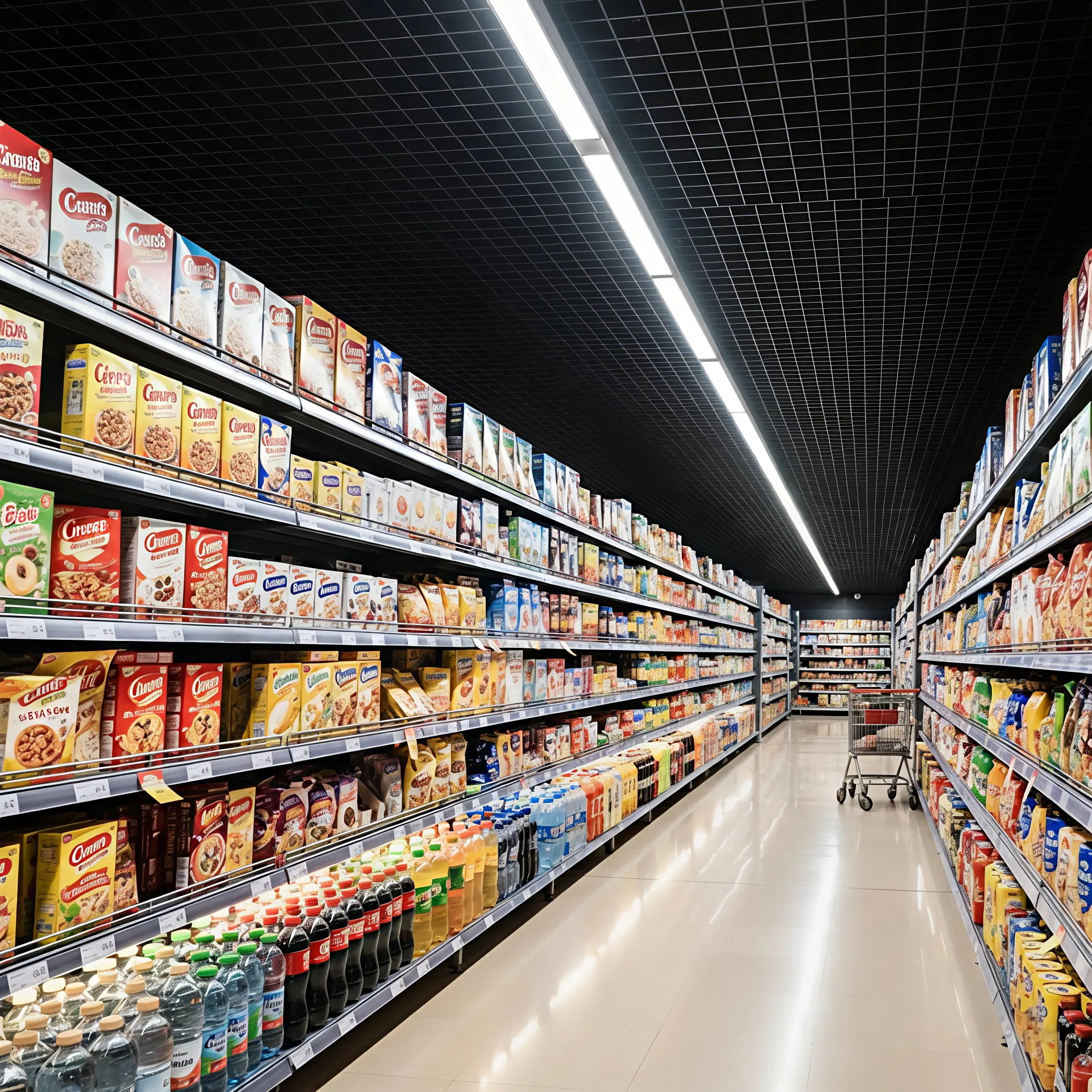

Shelf Areas and DALI Linear Lighting for Supermarkets
More than 60% of supermarket products are displayed on shelves, making shelf lighting one of the most critical elements of retail illumination.
Optical Design in DALI Linear Light Fixtures
Conventional linear lights often use wide, symmetrical beam angles, resulting in excessive brightness on upper shelves and insufficient light at lower levels. High-quality DALI Linear Light fixtures address this issue through advanced optical engineering.
| Optical Feature | Practical Benefit in Shelf Lighting |
|---|---|
| Asymmetric or Double-Asymmetric Lenses | Direct light onto vertical shelf faces |
| Controlled Beam Distribution | Reduce wasted light on floors |
| Optimized Vertical Illuminance | Improve label readability on lower shelves |
This makes DALI linear lighting for supermarket shelves ideal for long aisles requiring consistent visual quality.
Digital Dimming with DALI Linear Lights
With integrated DALI drivers, linear lights support smooth, flicker-free dimming:
- Reduced brightness during restocking or low-traffic hours
- Independent control of different aisles
- Temporary brightness increases for promotional shelving
Shelf lighting becomes a flexible merchandising tool rather than a fixed infrastructure.

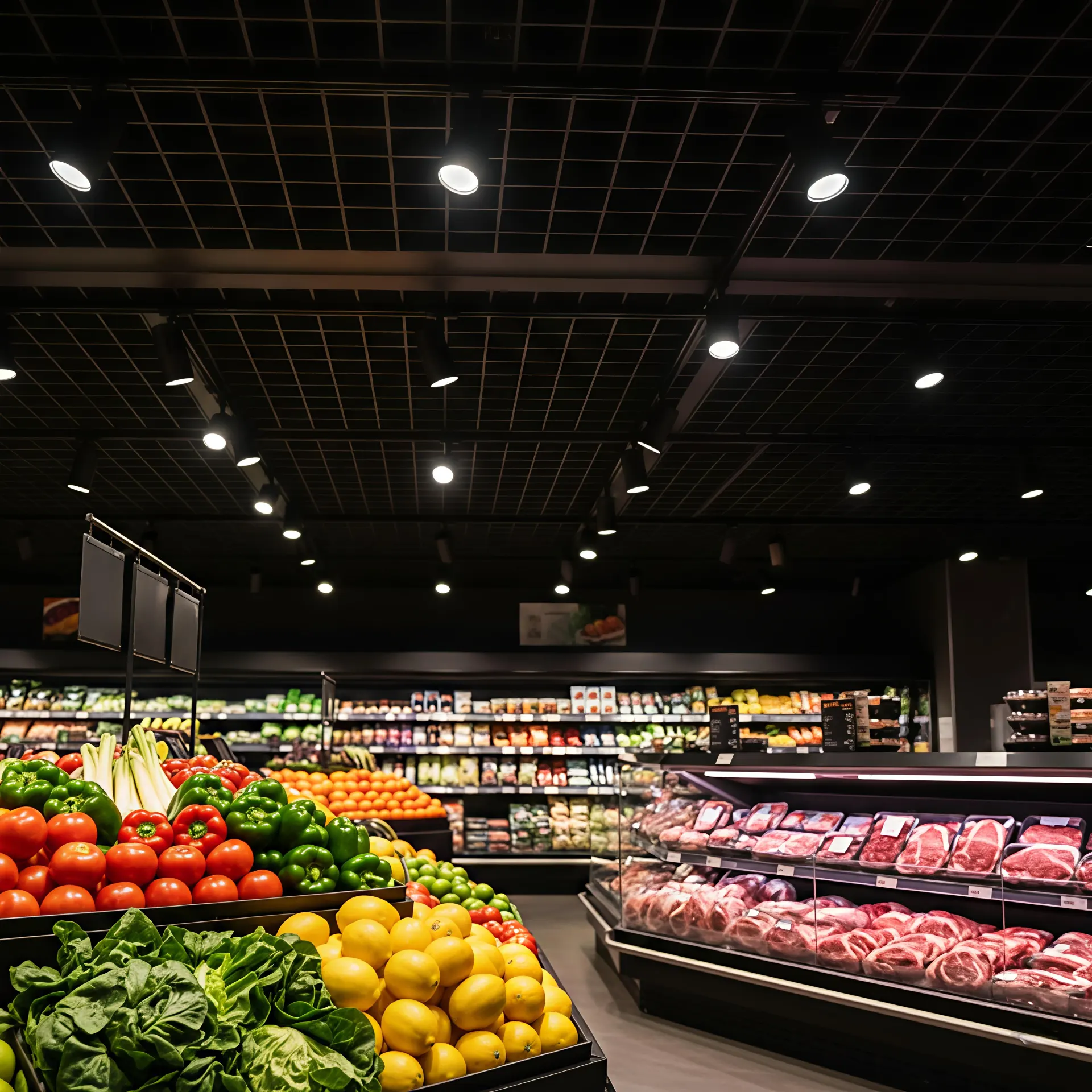

Fresh Food Zones with DALI Track Lights
If linear lighting establishes the visual baseline, DALI Track Lights define focal points—especially in fresh food areas where color accuracy directly affects purchasing decisions.
High CRI Performance for Food Presentation
| Product Category | Lighting Objective | DALI Track Light Advantage |
|---|---|---|
| Meat & Seafood | Enhance natural reds | High CRI LEDs with optimized R9 values |
| Fruits & Vegetables | Emphasize freshness | Balanced spectrum with vivid greens |
| Bakery & Prepared Foods | Create warm, inviting tones | Tunable white and focused beams |
With CRI values above 90, DALI track spotlights for supermarkets ensure products appear natural rather than artificially enhanced.

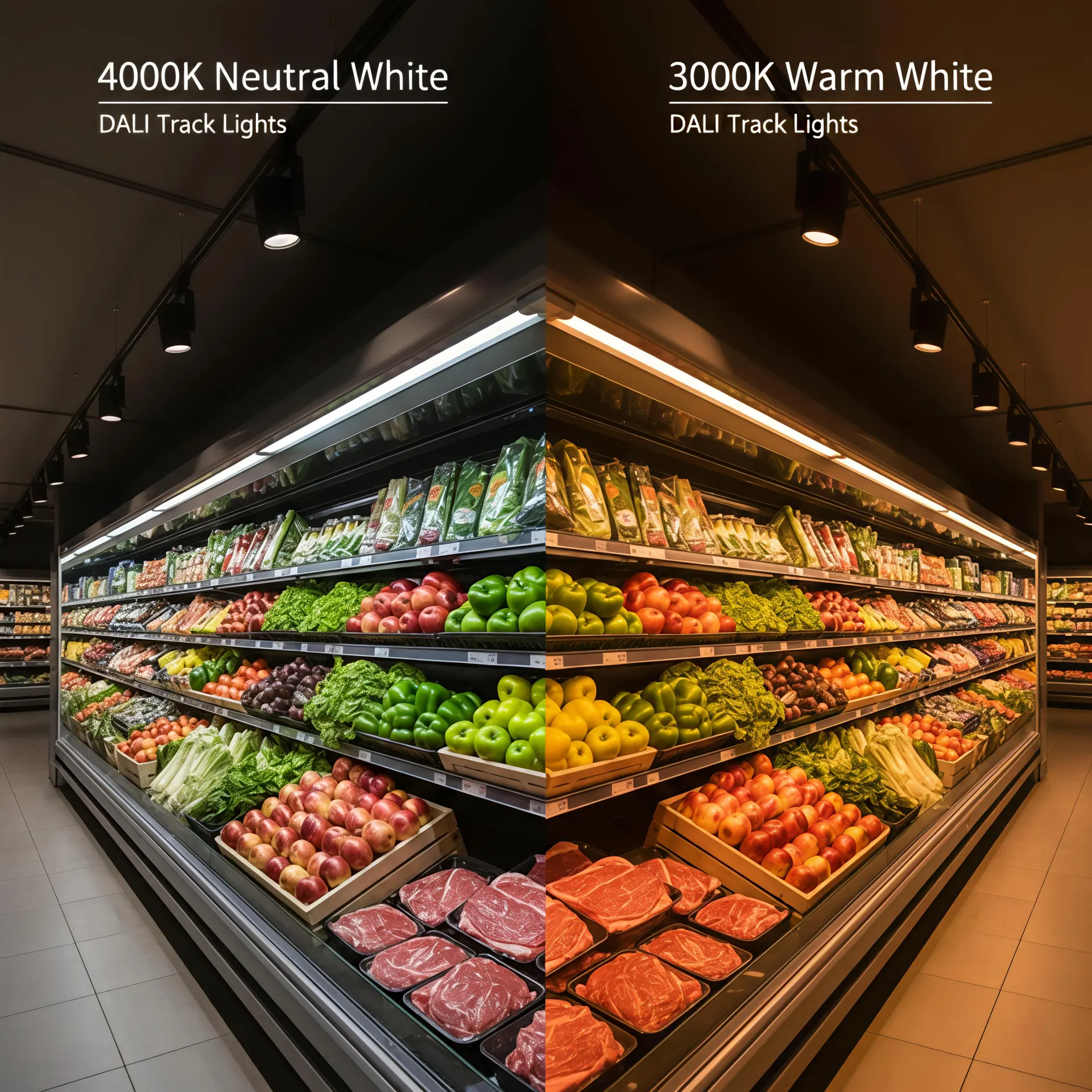

DALI-2 DT8 Track Lighting for Tunable White
Track fixtures supporting DALI-2 DT8 allow color temperature adjustment within a single luminaire:
- Neutral white during daytime for a clean, professional look
- Warmer tones in the evening to create a welcoming market atmosphere
This flexibility enables retailers to adapt lighting scenes without replacing fixtures.

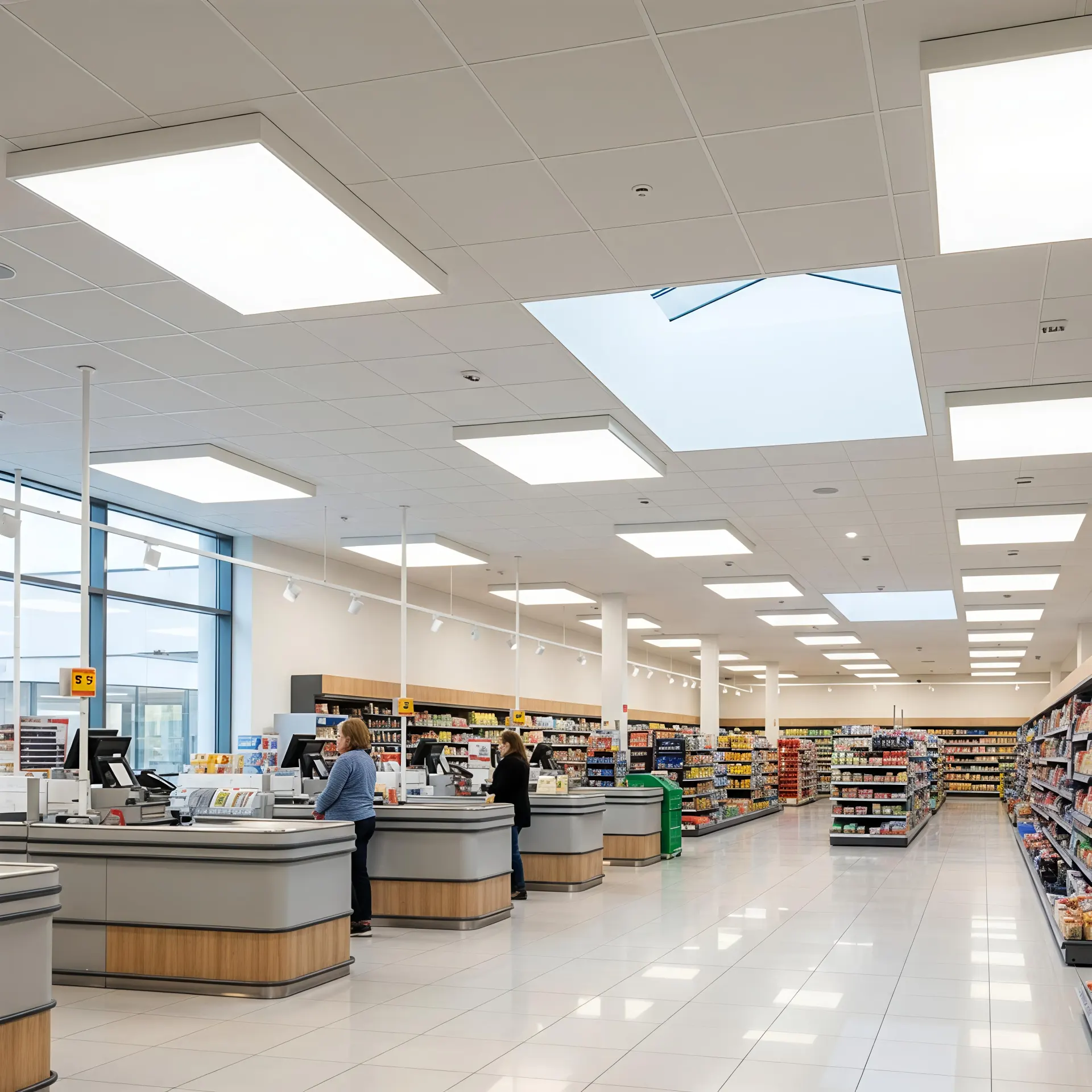

Checkout and Corridors Using DALI Panel Lights
Checkout counters and circulation corridors require stable, comfortable lighting that performs reliably over long operating hours.
DALI Panel Lighting with Integrated Sensors
Modern DALI Panel Lights often integrate daylight and occupancy sensors directly into the fixture housing.
| Integrated Function | Operational Benefit |
|---|---|
| Daylight Harvesting | Maintains constant brightness near windows |
| Occupancy Detection | Reduces energy use in low-traffic corridors |
| Fixture-Level Control | Simplifies installation and maintenance |
This design philosophy reinforces the concept of DALI Smart Supermarket Lighting fixtures as self-contained intelligent nodes.
Visual Comfort and Staff Efficiency
High-quality DALI panel lighting supports deep dimming (often below 1%) while maintaining flicker-free operation. This improves visual comfort for checkout staff and enhances barcode scanning accuracy, contributing to smoother daily operations.
Why Choose DALI Smart Supermarket Lighting Fixtures?
| Comparison Aspect | DALI Smart Supermarket Lighting | Conventional Smart Lighting |
|---|---|---|
| Communication | Bidirectional, hardware-based | Mostly one-way |
| Fault Detection | Automatic status feedback | Manual inspection |
| EMC Stability | High resistance to interference | Limited in complex environments |
| Scalability | Ideal for large commercial projects | Better suited for residential use |
For supermarkets with hundreds or thousands of luminaires, DALI’s reliability and maintainability provide clear long-term advantages.
Future Outlook: DALI Smart Supermarket Lighting as Digital Infrastructure
Beyond illumination, DALI Smart Supermarket Lighting is increasingly becoming part of the digital backbone of retail spaces:
- Fixture-based energy monitoring for sustainability reporting
- Lighting-enabled traffic analysis and heat mapping
- Foundation for future human-centric and data-driven retail concepts
Lighting fixtures are no longer passive components—they are active digital assets.
Conclusion: DALI Smart Supermarket Lighting as a Strategic Investment
DALI Smart Supermarket Lighting is not merely a control solution. It represents a complete portfolio of high-performance lighting fixtures designed specifically for modern retail environments.
From precision-engineered DALI Linear Lights in shelf aisles, to high-CRI DALI Track Lights in fresh food zones, and sensor-integrated DALI Panel Lights in circulation areas, each luminaire directly contributes to product visibility, customer comfort, and operational efficiency.
For retailers seeking long-term competitiveness, investing in intelligent lighting fixtures is ultimately an investment in sales performance and sustainable retail growth.
