Led Track Wall Washer Light for Retail Shelf & Display Wall Lighting
Product Code: PS-TL30/35W-W86
Certificate:
30/35W
Power
83/92/97Ra
CRI
160LM/W
Lumen Efficiency
Citizen / Luminus / Cree
LED Chip
Osram / Tridonic / BOKE
Driver
Specification Table
| Model | PS-TL30/35W-W86 |
| Power | 30/35W |
| Product size(mm) | W86*L134mm |
| Input Voltage | AC220-240V 50/60Hz |
| LED Type | Citizen/Luminus/Cree COB |
| Power Supply | Tridonic / Osram / Philips / Boke |
| Efficacy(lm/W) | 160LM/W |
| Beam Angle | 55°*90° |
| CCT (K) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | Ra83/Ra92/Ra97 |
| PF | >0.9 |
| SDCM | <3 |
| UGR | <19 |
| Track Adapt | 2/3/4/6wire |
| Material | Die-Casting Aluminum |
| THD | <15 |
| IP Rate | IP20 |
| Input Voltage Shock | <380VAC |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) |
| Switching Cycles | >100,000 switching cycles |
| Withstand VoItage | 1/P-0/P:3750VAC |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) |
| Life-time | Nominal life-time up to 100,000h |
| Operating Temperature | -20~50°C |
| Operating Humidity | 5-85% RH, non-condensing |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing |
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 5 Years |
| QTY/CTN Size | 12 PCS / 420*320*310 mm |
| NW/GW | 12.5kg /14 kg |
Applications
- Retail Shelf Lighting
Provides even illumination from the top shelf to the bottom, improving merchandise visibility while eliminating shadows between shelves.
- Fashion & Retail Display Walls
High CRI and smooth wall washing enhance clothing, accessories, and promotional displays with vivid colors and excellent visual appeal.
- Museums & Art Galleries
Uniform vertical lighting highlights paintings and exhibitions without distracting hotspots or uneven brightness.
- Hotels & Commercial Feature Walls
Creates elegant architectural lighting for reception areas, corridors, decorative walls, and premium interior spaces.
FAQ
-

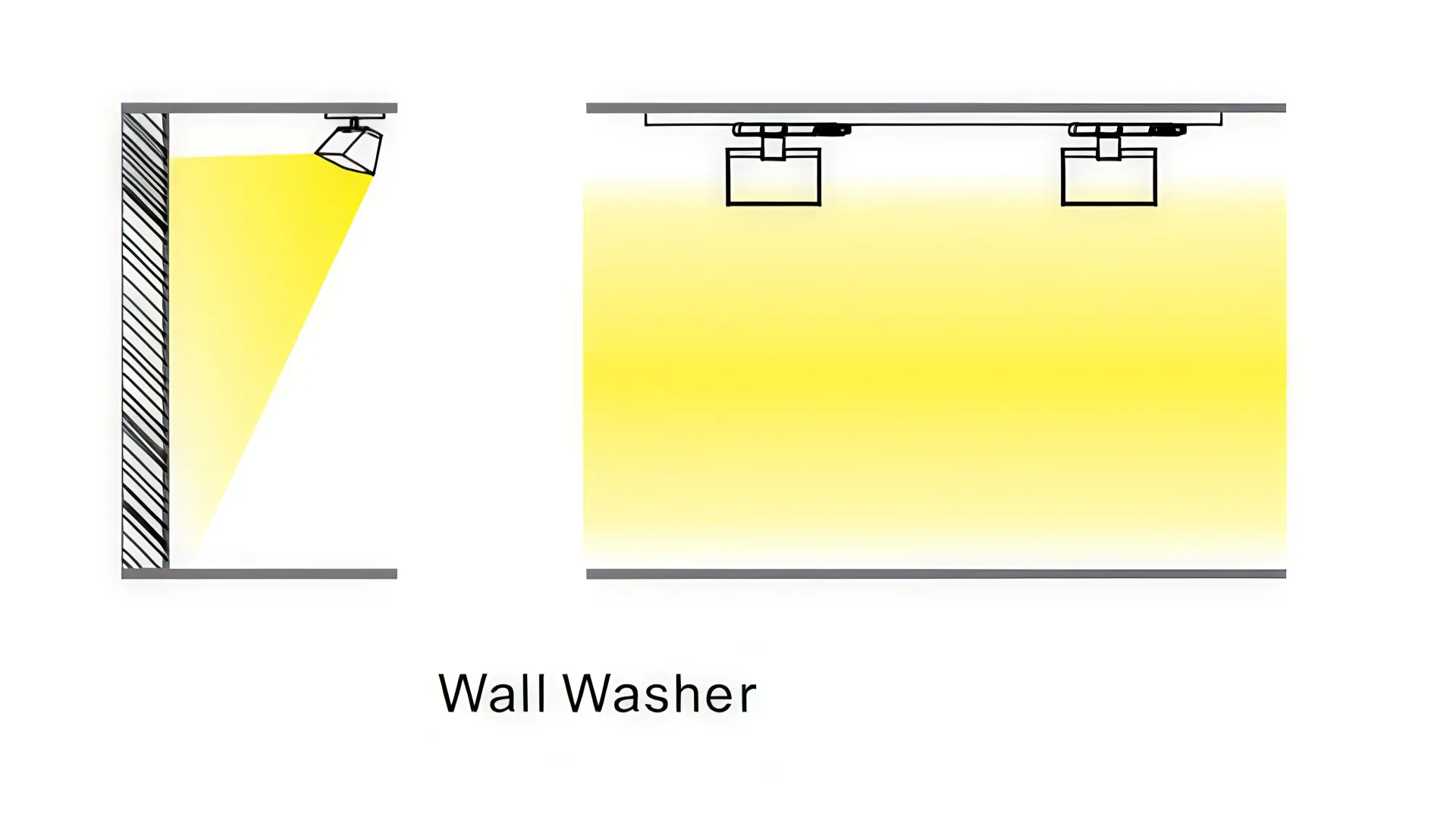

Q.What is a wall washer track light?
A.A wall washer track light is a type of lighting fixture designed to provide even illumination across vertical surfaces. It spreads light smoothly over walls, shelves, or displays, creating a clean and uniform effect.
-
Q.How is it different from a linear light or spot light?
A.A spot light produces a focused beam, while a linear light creates a line of light. A wall washer track light delivers surface lighting. It covers a wider area and reduces shadow overlap.
-
Q.What causes shadow overlap in lighting?
A.Shadow overlap happens when a fixture has multiple light-emitting points. Each point creates its own shadow. When combined, they form double or blurred shadows.
-
Q.Can a wall washer track light eliminate shadow overlap?
A.Yes. A well-designed wall washer track light uses optical control to create a smooth light output. This helps reduce or eliminate shadow overlap in most display applications.
-
Q.Where can this type of lighting be used?
A.It is commonly used in retail stores, fashion shops, showrooms, galleries, and commercial spaces. It works best in areas with wall displays or shelves.
-
Q.What is the advantage of high luminous efficacy (160 lm/W)?
A.Higher efficacy means more light output with less power consumption. This helps reduce energy costs while maintaining strong brightness.
-
Q.How many fixtures are needed for a wall?
A.It depends on wall height and layout. In many cases, fewer fixtures are needed compared to spot lighting because of the wider coverage.
-
Q.Is installation flexible?
A.Yes. The track system allows easy installation and adjustment. You can reposition or re-aim the light based on your display needs.
