30W 120 Lm/W RA80 Cob Track Led Lighting
Product Code: PS-TL30-X16A85
Certificate:
30W
Power
83/92Ra
CRI
120 LM/W
Lumen Efficiency
Citizen COB
LED Chip
Tridonic
LED Driver
Description
Features
- High Efficiency – Up to 120 lm/W: Providing more light output with lower energy consumption to save cost
- Flexible Beam Angle Options – 15° / 24° / 38° / 60°: Provide precise light distribution for retail, clothing stores and commercial spaces, etc
- Premium Aluminum Housing & Optical Lens Design: Ensure efficient heat dissipation, durability, and stable light performance
- Multiple Installation Method: Surface mounted / recessed / track mounted
- Multiple Track Adapter Options: 2 / 3 / 4 / 6 wires
- Multiple Control Options: Bluetooth / Zigbee / 0-10V / Triac / DALI
Specification Table
| Model | PS-TL30A85 |
| Power | 30 W |
| Product size(mm) | D85*H170 mm |
| Input Voltage | AC 220-240V 50/60 Hz |
| LED Type | Citizen/Luminus/Cree COB |
| Power Supply | Tridonic / Osram / Philips / Boke |
| Efficacy(lm/W) | 120 LM/W |
| Lumen Output±5% | 3600 LM |
| Beam Angle | 15/24/38/60° |
| CCT (K) | 2700/3000K/4000K/5000K/5700 K |
| CRI | Ra80/Ra90/Ra97 |
| PF | >0.9 |
| SDCM | <3 |
| UGR | <15 |
| Track Adaptor | 2/3/4/6 wires |
| Material | Die-Casting Aluminum |
| THD | <15 |
| IP Rate | IP20 |
| Input Voltage Shock |
<380V AC |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) |
| Switching Cycles | >100,000 switching cycles |
| Withstand VoItage | 1/P-0/P:3750VAC |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) |
| Life-time | Nominal life-time up to 100,000H |
| Operating Temperature | -20~50°C |
| Operating Humidity | 5-85% RH, non-condensing |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing |
| Dimming | Non-dimming (Default) /1-10V / TRIAC |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 5 Years |
| QTY/CTN Size |
15 PCS / 445*275*250 mm |
| Q’TY(PCS)/carton | 15 pcs |
| NW / GW | 10.8 / 12.5 kg |
Applications

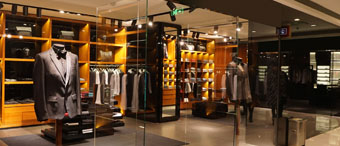

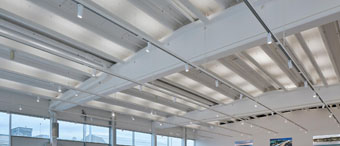

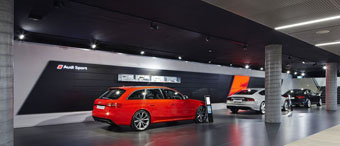

This 120 lm/W track light is suitable for supermarkets, shopping malls, clothing stores, furniture showrooms, cosmetics shops, flower shops, auto parts stores, and other retail environments where flexible and attractive accent lighting is required.
Faqs
-
Q.What is the luminous efficacy of the Englumia 30W LED track light?
A.The fixture delivers a luminous efficacy of up to 120 lm/W, providing high light output with lower energy consumption. It is an energy-efficient solution for retail stores, showrooms, galleries, and other commercial spaces.
-
Q.What beam angles are available?
A.The 30W LED track light is available with 15°, 24°, 38°, and 60° beam angles. Narrow beams are suitable for precise accent lighting, while wider beams provide broader and more uniform illumination.
-
Q.Does this LED track light support dimming?
A.Yes. Multiple dimming and control options are available, including Bluetooth, Zigbee, 0–10V, Triac, and DALI. The appropriate control solution can be selected according to the project requirements.
-
Q.Is the track light compatible with different track systems?
A.Yes. It can be supplied with 2-wire, 3-wire, 4-wire, or 6-wire track adapters. The 6-wire, 3-phase version can support advanced control systems such as 0–10V, DALI, and DMX512.
-
Q.What installation options are available?
A.The product is available in track-mounted, surface-mounted, and recessed versions. 3 mounting options provide greater flexibility for different ceiling structures and commercial lighting layouts.
