20-80W
Power
85/93Ra
CRI
100 lm/W
Lumen Efficiency
Lumileds
LED Chip
Tridonic
LED Driver
Specification Table
| Model | PS-LL5075W06-20W | PS-LL5075W12-40W | PS-LL5075W18-60W | PS-LL5075W24-80W |
| Power | 20W | 40W | 60W | 80W |

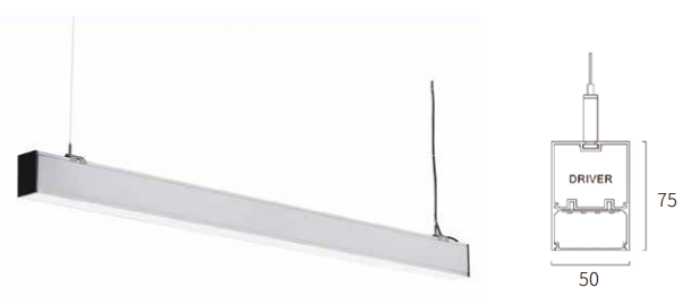

| Product size(mm) | 600*50*75 mm | 1200*50*75 mm | 1800*50*75 mm | 2400*50*75 mm |
| Input Voltage | AC220-240V 50/60Hz | |||
| LED Type | LUMILEDS 2835 | |||
| Power Supply | Flicker Free Driver | |||
| Efficacy(lm/W) | 100 LM/W | |||
| Lumen Output±5% | 2000 LM | 4000 LM | 6000 LM | 8000 LM |
| Beam Angle | 120° | |||
| CCT (K) | 2700/3000/4000/5000K | |||
| CRI | 83/92 Ra | |||
| PF | >0.9 | |||
| SDCM | <3 | |||
| UGR | <19 | |||
| Material | Die-Casting Aluminum | |||
| THD | <15 | |||
| IP Rate | IP20 | |||
| Input Voltage Shock |
<380V AC | |||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | |||
| Switching Cycles | >100,000 switching cycles | |||
| Withstand VoItage | 1/P-0/P:3750V AC | |||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | |||
| Life-time | Nominal life-time up to 100,000h | |||
| Operating Temperature | -20~50°C | |||
| Operating Humidity | 5-85% RH, non-condensing | |||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | |||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | |||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |||
| Warranty | 5 Years | |||

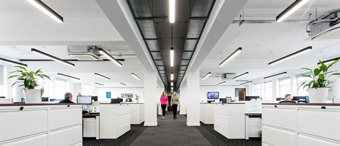

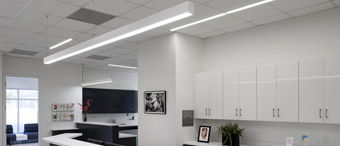

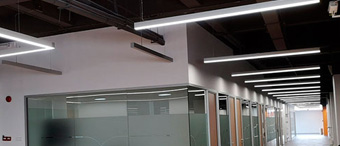

Applications
Faqs
-
Q.Where can the LED Suspended Linear Light be used?
A.It is suitable for offices, meeting rooms, retail stores, schools, hospitals, showrooms, and other commercial interiors.
-

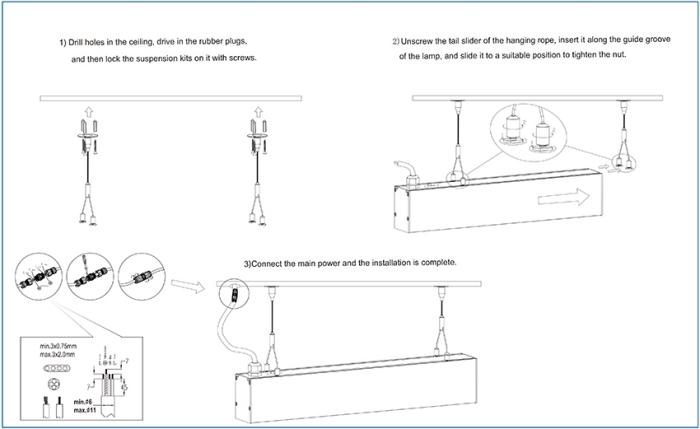

Q.What installation methods are available?
A.The fixture can be suspended from the ceiling or wall-mounted, depending on project requirements.
-
Q.What diffuser options can I choose?
A.Clear, frosted, and prismatic UGR19 diffusers are available for different lighting effects.
-
Q.Is the color temperature adjustable?
A.Yes. Selectable color temperatures from 2700K to 5000K are available.
-
Q.Can the brightness be adjusted?
A.Yes. Dimming options are available to create suitable brightness levels for different activities.
-
Q.What is the luminous efficiency?
A.The fixture delivers up to 100 lm/W, providing efficient illumination with lower energy consumption.
-
Q.Does it provide uniform lighting?
A.Yes. The 120° beam angle creates wide and consistent light distribution.
