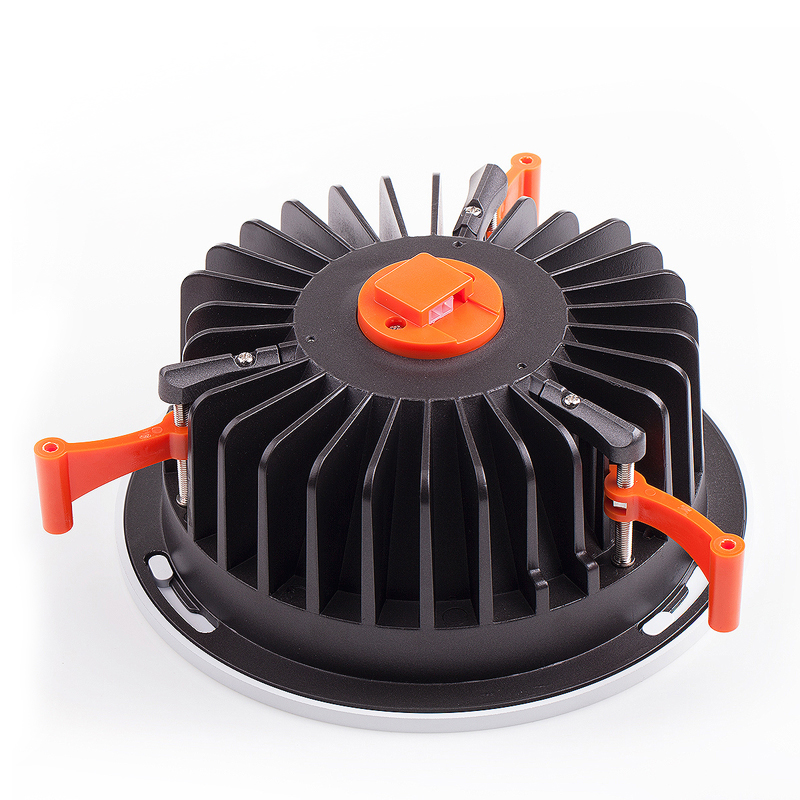

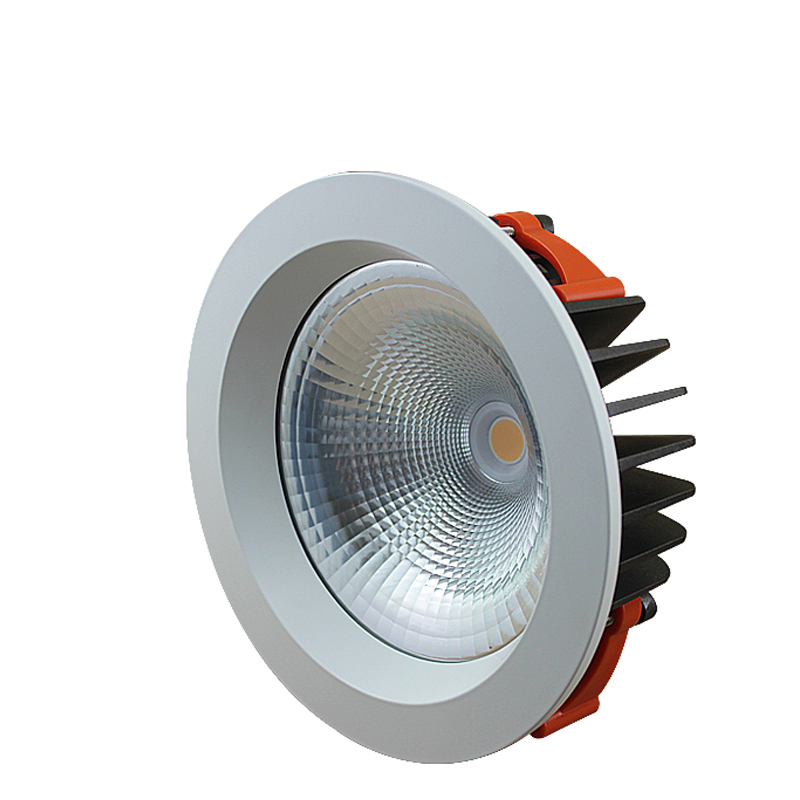

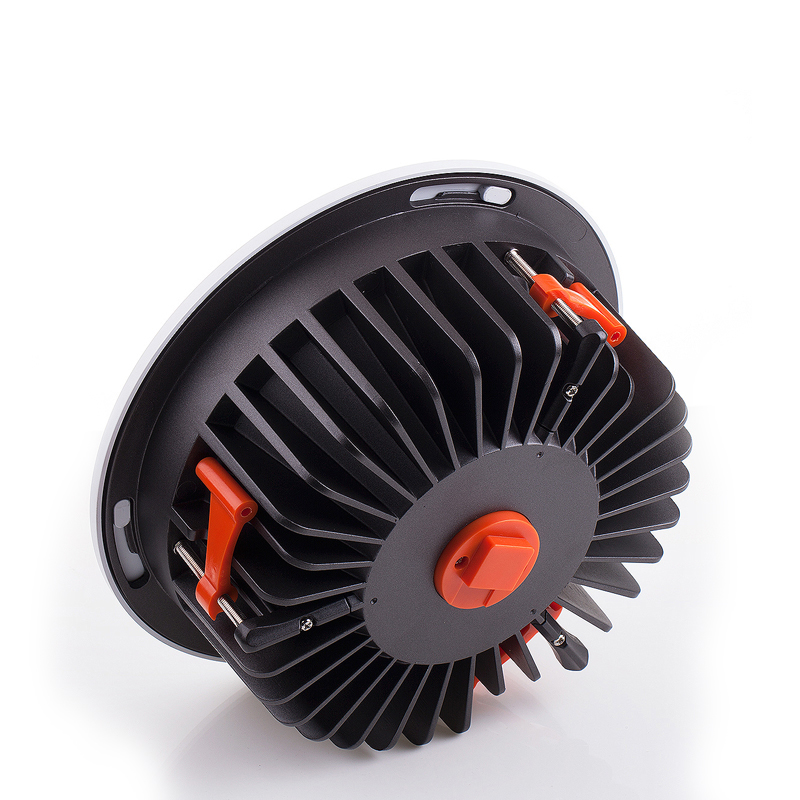

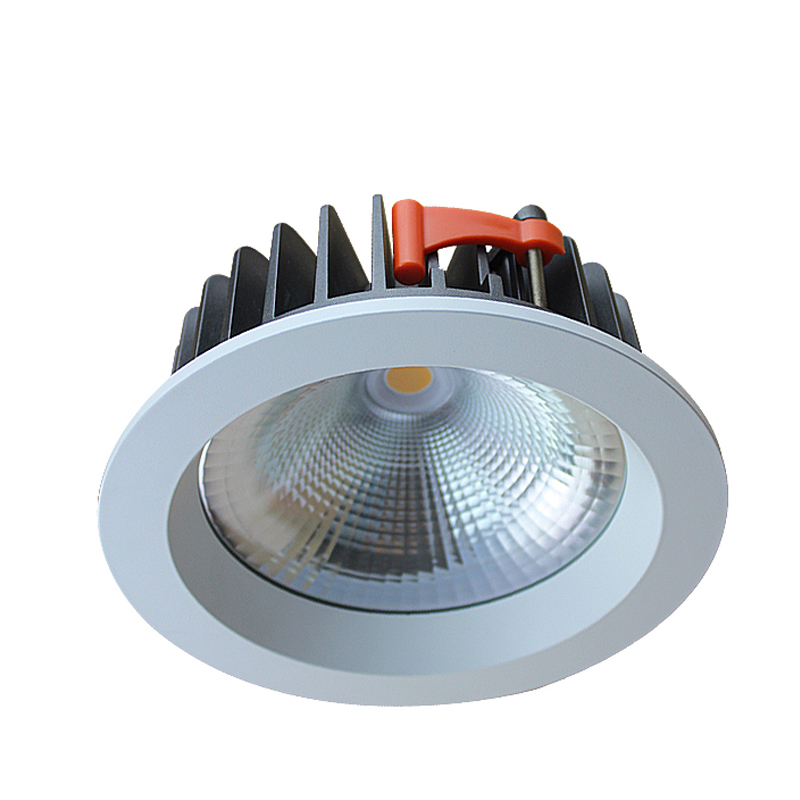

30W RGBW DMX DMX512 LED Recessed Downlight
Product Code: PS-DL30C16
Certificate:
Add To Quote
12-50W
Power
83/92Ra
CRI
100 lm/W
Lumen Efficiency
RGBW
LED Chip
RGBW
LED Driver
Description
Any room in your house may be brightened with the 30W RGBW LED Recessed Downlight. Its built-in LED delivers a strong and even light, making it ideal for every space in your home. In addition to offering a greater variety of hues, this new type of light is more energy-efficient than conventional incandescent bulbs. By just altering the shade of the light, you can quickly alter the ambiance of the space using this kind of lighting. It is a fantastic way to save energy costs because of its integrated LED. So if you want to update the lighting in your home, think about buying 30W RGBW LED downlights.
Features
- RGBW Colour Control: Produces red, green, blue, white, and mixed-colour lighting effects.
- Professional DMX512 Control: Supports precise dimming, colour adjustment, grouping, and scene management.
- Up to 3000 Lumens: Delivers powerful output for commercial and entertainment applications.
- Wide Light Distribution: The 120° beam angle provides broad and uniform illumination.
- Clean Recessed Installation: Integrates neatly into the ceiling for a simple architectural appearance.
- Energy-Efficient LED Technology: Reduces energy consumption compared with traditional incandescent lighting.
- Flexible Applications: Suitable for hotels, restaurants, stages, theatres, clubs, and exhibition spaces.
The DMX512 RGBW LED Downlight features CRI >90 and a flicker-free driver for consistent, comfortable illumination. Multiple fixtures can be connected within one DMX512 system for synchronized colour, dimming, and scene control.
When paired with a compatible LED DMX controller or driver, it provides a complete and flexible lighting control solution.
The RGBW LED COB Downlight supports multiple control options, including RF remote and app control. RF control provides convenient access to colour changes, flashing modes, and dynamic lighting effects for bars and stages.
App control enables wireless grouping, power switching, brightness adjustment, colour selection, and scene management. Multiple fixtures can also be connected for coordinated lighting control.
Specification Table
| Model | PS-DL12C163 | PS-DL20C164 | PS-DL30C166 | PS-DL50C168 |
| Power | 12W | 20W | 30W | 50W |
| Product size(mm) | Φ110*53 mm | Φ145*69 mm | Φ190*86 mm | Φ230*99 mm |
| Cut hole size (mm) | 95 mm | 130 mm | 170 mm | 200 mm |
| Input Voltage | AC220-240V 50/60Hz | |||
| LED Type | RGB/RGBW COB | |||
| Power Supply | RGB/RGBW driver | |||
| Efficacy(lm/W) | 100LM/W | |||
| Lumen Output±5% | 1200 LM | 2000 LM | 3000 LM | 5000 LM |
| Beam Angle | 60° | |||
| CCT (K) | RGB+White 3000K/4000K | |||
| CRI | Ra 90 | |||
| PF | >0.9 | |||
| SDCM | <3 | |||
| UGR | <19 | |||
| Material | Die-Casting Aluminum | |||
| IP Rate | IP20 | |||
| THD | <15 | |||
| Input Voltage Shock | <380V AC | |||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) |
|||
| Switching Cycles | >100,000 switching cycles |
|||
| Withstand VoItage | 1/P-0/P:3750VAC |
|||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) |
|||
| Life-time | Nominal life-time up to 100,000H |
|||
| Operating Temperature | -20~50°C |
|||
| Operating Humidity | 5-85% RH, non-condensing |
|||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing |
|||
| Dimming | DMX512 | |||
| Warranty | 5 Years | |||
| QTY | 36 PCS | 20 PCS | 12 PCS | 10 PCS |
| CTN Size | 460*340*360 mm | 460*340*360 mm | 580*440*240 mm | 550*53.50*29.50 mm |
| GW / NW | 10.8 / 14 kg | 12 / 18.5 kg | 11.52 / 15.6 kg | 14.2 / 20.5 kg |
Applications

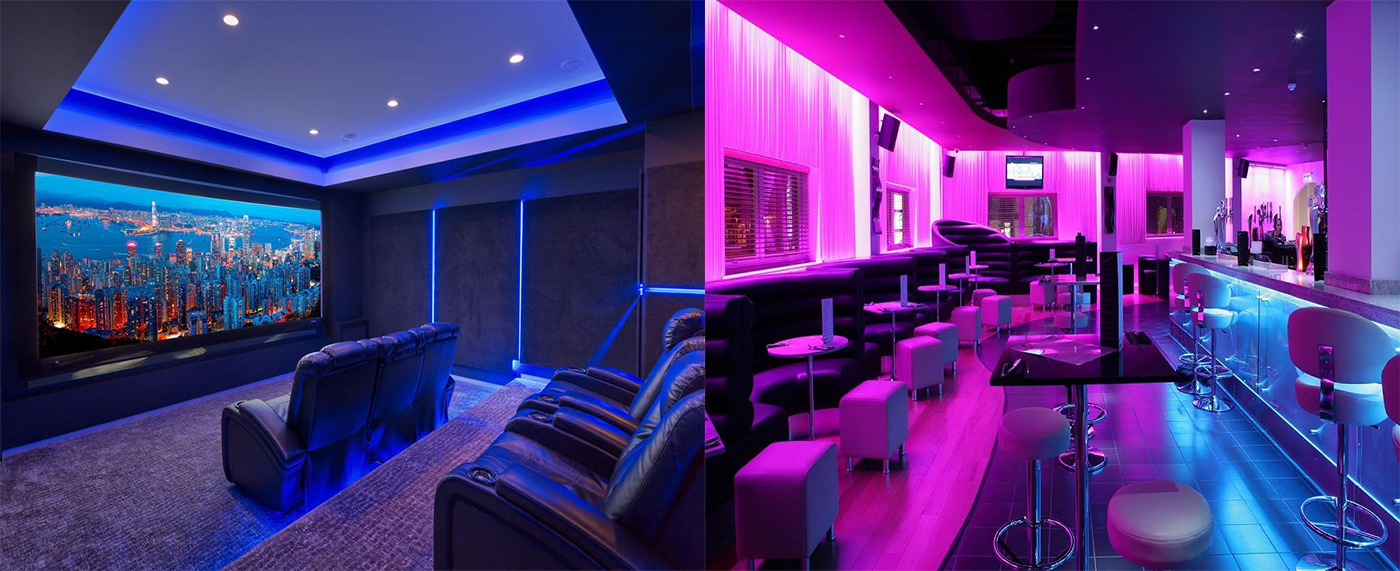

The RGBW LED Recessed Downlight is ideal for hotels, restaurants, bars, stages, clubs, exhibition halls, and entertainment venues. It provides functional white lighting and dynamic colour effects for ambient lighting, scene changes, events, and decorative applications.
Faqs
-
Q.What does RGBW mean?
A.RGBW combines red, green, blue, and white LEDs within one fixture.
-
Q.What is the power of this downlight?
A.The recessed downlight has a 30W power output.
-
Q.What colours can it produce?
A.It can produce red, green, blue, white, and mixed-colour lighting effects.
-
Q.Does it support DMX512 control?
A.Yes. DMX512 allows precise control of brightness, colours, groups, and scenes.
-
Q.Can each downlight be controlled independently?
A.Yes. Each fixture can receive an individual DMX address.
-
Q.Are wireless control options available?
A.Yes. RF remote and app control options are available.
-
Q.What functions can the app control?
A.The app can manage power, brightness, colours, groups, and lighting scenes.
-
Q.What effects are available with RF control?
A.RF control can support colour changes, flashing modes, and dynamic lighting effects.
-
Q.Can it provide normal white lighting?
A.Yes. The dedicated white channel supports practical everyday illumination.
