Do You Worry About Scene Lighting Cannot be Controlled ?

In modern intelligent lighting systems, DALI2 Lighting technology is becoming the mainstream choice. It supports advanced DALI2 scene lighting control, helping users easily manage complex lighting scenes. As an upgraded protocol, DALI2 offers stronger compatibility and flexibility, making light grouping control more precise and efficient.

DALI light grouping control is a key function of DALI2 scene Lighting. Through software configuration, users can assign lights to different groups without modifying wiring. For example, in an office, lights near windows can be grouped together, automatically dimmed using a daylight sensor; corridor lights can be grouped into another group for independent switching. This grouping method greatly improves system flexibility.

DALI2 scene light advantages:

Flexible reconfiguration: DALI scene lighting settings can be adjusted at any time via host computer software or the controller, supporting the storage of 16 scenes.

Energy saving: Combined with sensors, it achieves constant illumination control and occupancy detection for groups, significantly reducing energy consumption.

Easy maintenance: Two-way communication allows querying light status, facilitating fault diagnosis and equipment management.

Cross-manufacturer compatibility: DALI2 certification ensures seamless interoperability between devices from different brands, avoiding compatibility issues.

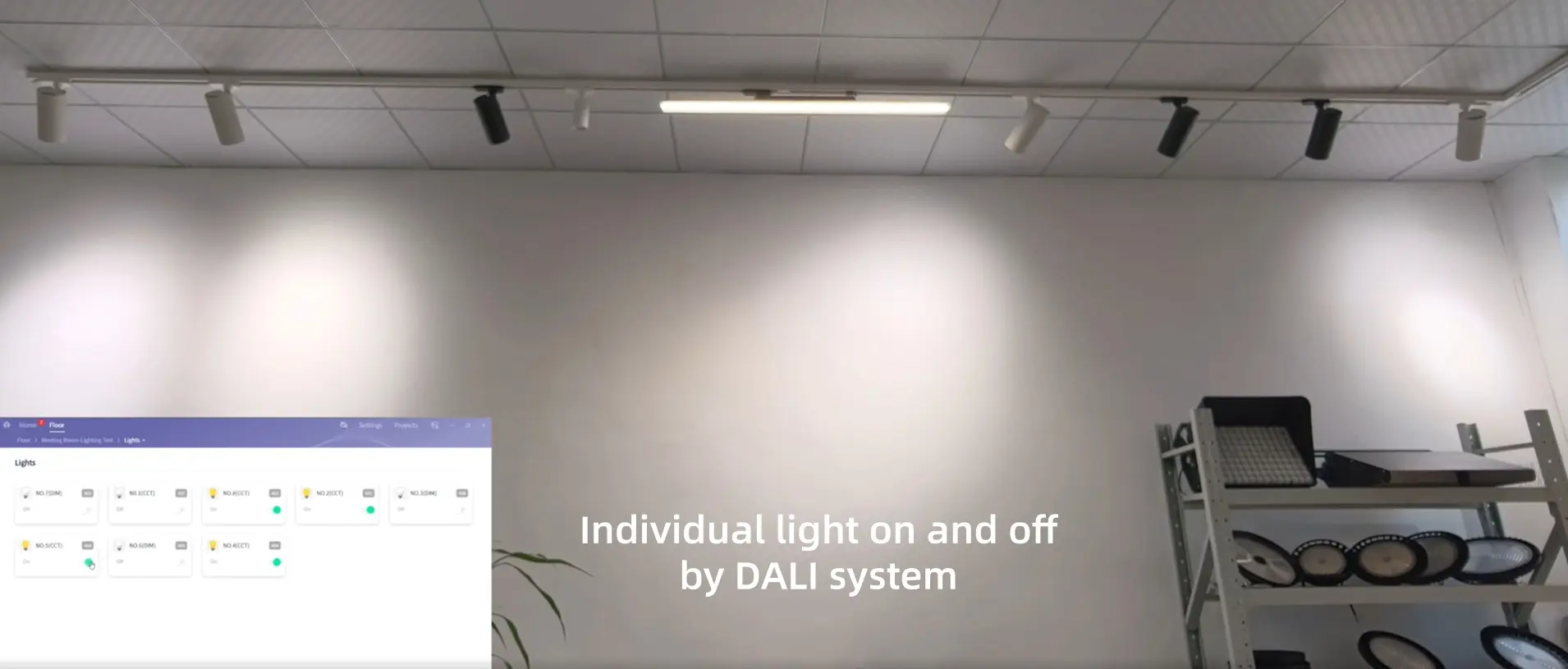

DALI2 scene lighting with track lights

How to implement DALI2 Scene lighting?

Implementing DALI lighting group control in the DALI2 Lighting system is very simple:

Address assignment: Assign a short address (0-63) to each luminaire using the master controller or PC software.

Group settings → Add luminaires to group addresses (0-15). A luminaire can belong to multiple groups.

Scene configuration → Set parameters such as brightness, fade-in/fade-out time for each group, supporting extended fade-in time.

Integrated sensors → DALI2 supports input devices such as occupancy sensors and light sensors, automatically triggering group control.

For example, in commercial buildings, conference room lights can be divided into groups such as “Meeting Mode” and “Rest Mode,” switching with a single click.

DALI2 Lighting is widely used in hotels, office buildings, hospitals, and public spaces. Through DALI lighting group control, users can achieve zone management: a welcoming lighting mode for the entrance area, constant lighting control for the office area, and independent backup for the emergency area. This intelligent technology not only enhances the user experience but also meets green building standards, reducing carbon emissions. Many brands, such as Tridonic, Osram, and Helvar, offer DALI2-certified products, ensuring system stability and reliability. Choosing DALI2 Lighting will give you a more advanced lighting group control experience.

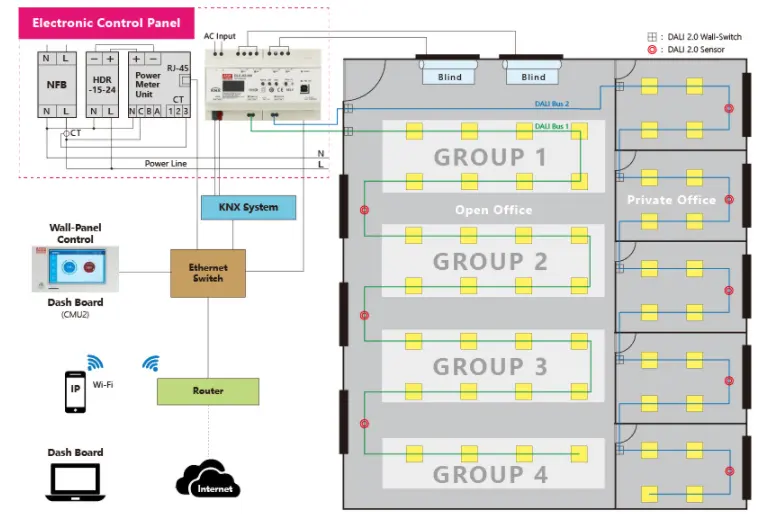

DALI2 scene lighting flexible scene Areas

DALI lighting group control is not simply about “multiple lights switching on and off simultaneously,” but rather a logical division method based on usage scenarios and management needs. Its core features are reflected in the following aspects:

Grouping by Spatial Function

In commercial projects, common grouping methods include:

· Grouping of office areas / meeting areas / public areas

· Grouping of commercial display areas / corridors / shop windows

· Grouping of hotel rooms / corridors / public areas

· With DALI lighting group control, different areas can be independently dimmed or scenes switched without rewiring.

Grouping by Usage Scenarios

Time- or activity-based grouping control is a high-value application of DALI lighting grouping control:

• Working Mode / Presentation Mode / Cleaning Mode

• Daytime Mode / Nighttime Mode / Energy Saving Mode

• The same luminaire can participate in multiple logical groups, increasing system flexibility.

DALI-2 scene setting for energy efficiency

Combining DALI2 Lighting with DALI lighting grouping control delivers clear economic and management benefits in commercial projects:

Reduced Overall Energy Consumption

Group dimming and on-demand control significantly reduce ineffective lighting time.

Enhanced Spatial Experience

Lighting adjusts according to function, improving visual comfort and spatial hierarchy.

Reduced Retrofitting Costs

Grouping logic can be adjusted via software, eliminating the need for physical rewiring.

Enhanced Project Professionalism and Pricing Capability

Advanced grouping control is a differentiating competitive advantage for contractors and brands.

Choose DALI2 lighting and experience scene lighting

With the diversification of lighting needs, DALI2 Lighting and DALI light group control are becoming the preferred choice for smart lighting. It not only provides precise control but also delivers the dual benefits of energy savings and easy maintenance. If you are planning a lighting project, DALI2 Lighting is the ideal solution. Explore DALI2 technology today and make your lighting system smarter and more efficient.
