What is DMX512 LED Lighting and Why Does Your Commercial Space Need It?
By Powerstar
In today’s commercial lighting market, DMX512 LED Lighting has evolved far beyond its origins in stage and performance lighting. It now plays a pivotal role in façade illumination, landscape lighting, bars, showrooms, and entertainment venues. By digitally controlling track lights, downlights, and linear lights, it delivers precise, programmable, and immersive lighting experiences.
Whether it’s synchronizing lighting with live performances, enhancing architectural branding, or creating dynamic commercial environments, DMX512 provides the level of control and sophistication that modern businesses require. For more technical background on DMX protocols, you can refer to the USITT DMX512 Standard for detailed specifications.
Understanding DMX512 – The Digital Nervous System of Commercial Lighting
1.1 What is DMX512 LED Lighting?
Originally developed for the entertainment industry, DMX512 (Digital Multiplex 512) was designed to manage hundreds or even thousands of stage lights simultaneously.
- 512 Channels Explained: One DMX universe can control up to 512 channels, each corresponding to brightness, color, or beam angle.
- Digital Precision: Unlike traditional 0–10V analog dimming, DMX512 allows 256 brightness levels per channel, enabling seamless dimming from 0.1% to 100% without visible steps.
- High-Speed Response: With a refresh rate of 44 Hz, lighting changes occur in milliseconds, ensuring synchronization in fast-paced environments.
| Feature | Benefit |
|---|---|
| Digital Signal Transmission | High immunity to electromagnetic interference, suitable for complex commercial installations |
| 256-Level Dimming | Smooth, flicker-free control across the full brightness range |
| Millisecond Response | Instantaneous scene changes, perfect for dynamic lighting applications |
| Flexible Grouping | Programmable scenes for different operational modes |
This combination of speed, accuracy, and programmability makes DMX512 LED Lighting ideal for both high-end commercial spaces and professional stage applications.
1.2 Why DMX512 is the Ultimate Solution for Commercial Spaces

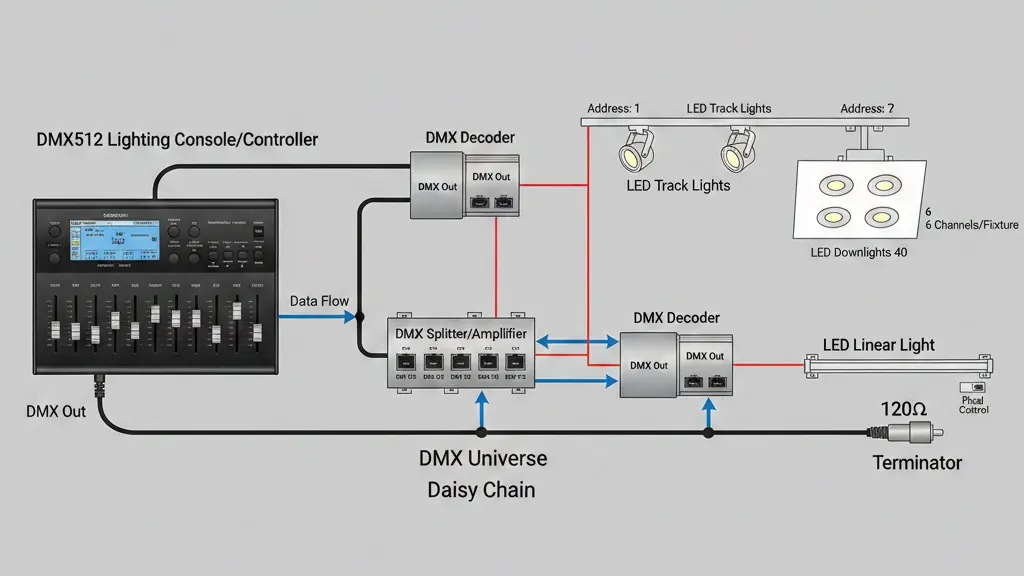

Modern commercial environments, particularly luxury retail, hospitality, and mixed-use complexes, demand high stability, rapid refresh rates, and easy scene management. DMX512, based on RS-485 differential transmission, maintains signal integrity across long runs and complex electrical environments, outperforming wireless or analog systems.
The result is a digital lighting ecosystem capable of programmable, immersive, and energy-efficient control, making it a strategic asset for commercial projects. For more insights into advanced lighting control systems, see Lighting Control Association.
Core Applications of DMX512 in Commercial Lighting
By embedding DMX512 technology into our track lights, downlights, and linear lights, we enable four primary commercial applications:

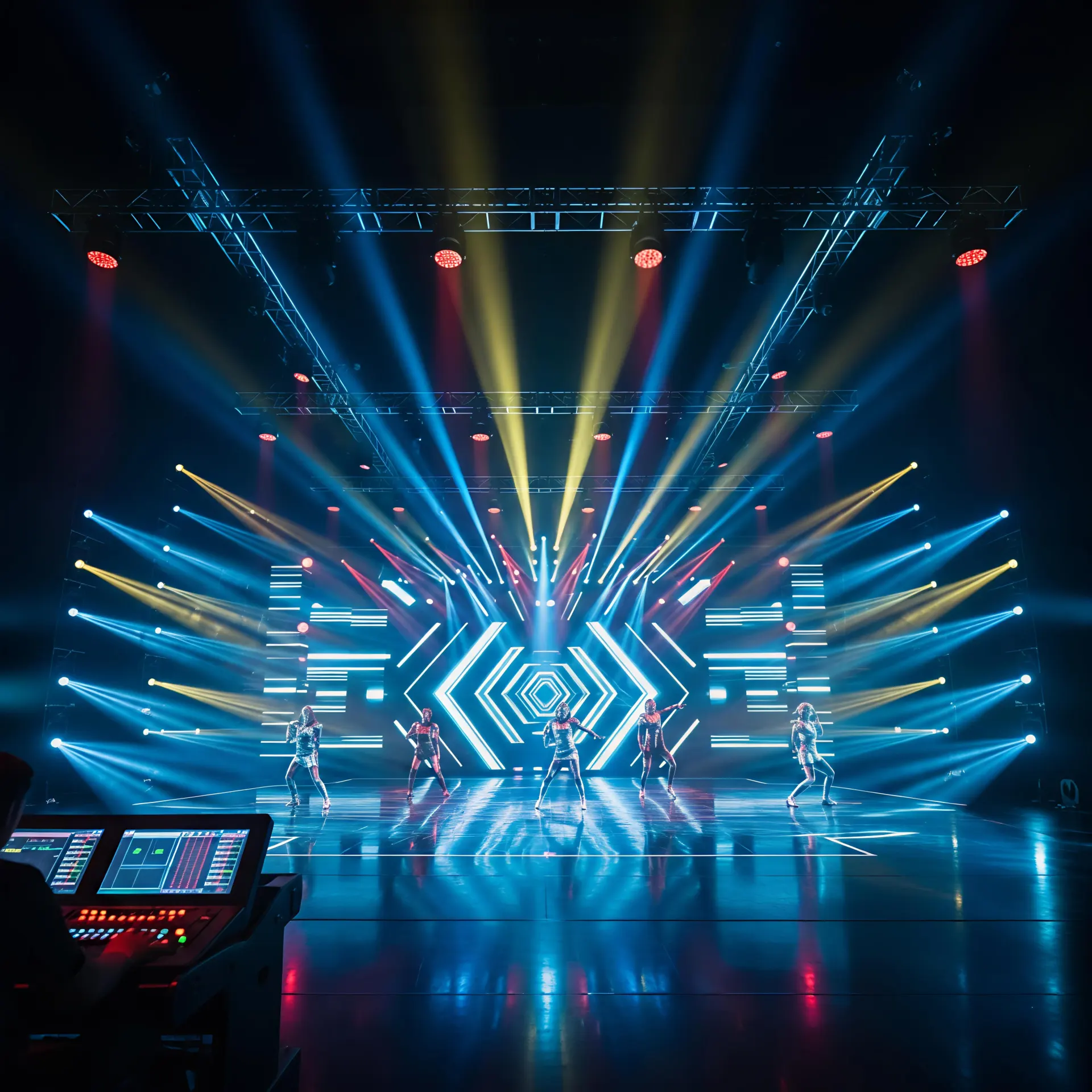

2.1 Stage and Performance Lighting: Precision at the Beat
Stage and performance lighting remains the primary domain of DMX512. In theaters, multipurpose halls, and product launch events, lights must respond instantly to music and performance cues.
- Products Used: High CRI DMX track lights and high-power downlights
- Key Advantage: Millisecond-level responsiveness enables hundreds of lights to execute synchronized color changes and strobe effects, achieving real-time audio-visual interaction
- Use Case: Track lights highlight key performers or areas, downlights provide ambient illumination, and linear lights create dynamic stage backgrounds
This level of precision rivals any other commercial lighting protocol, such as DALI or Zigbee.

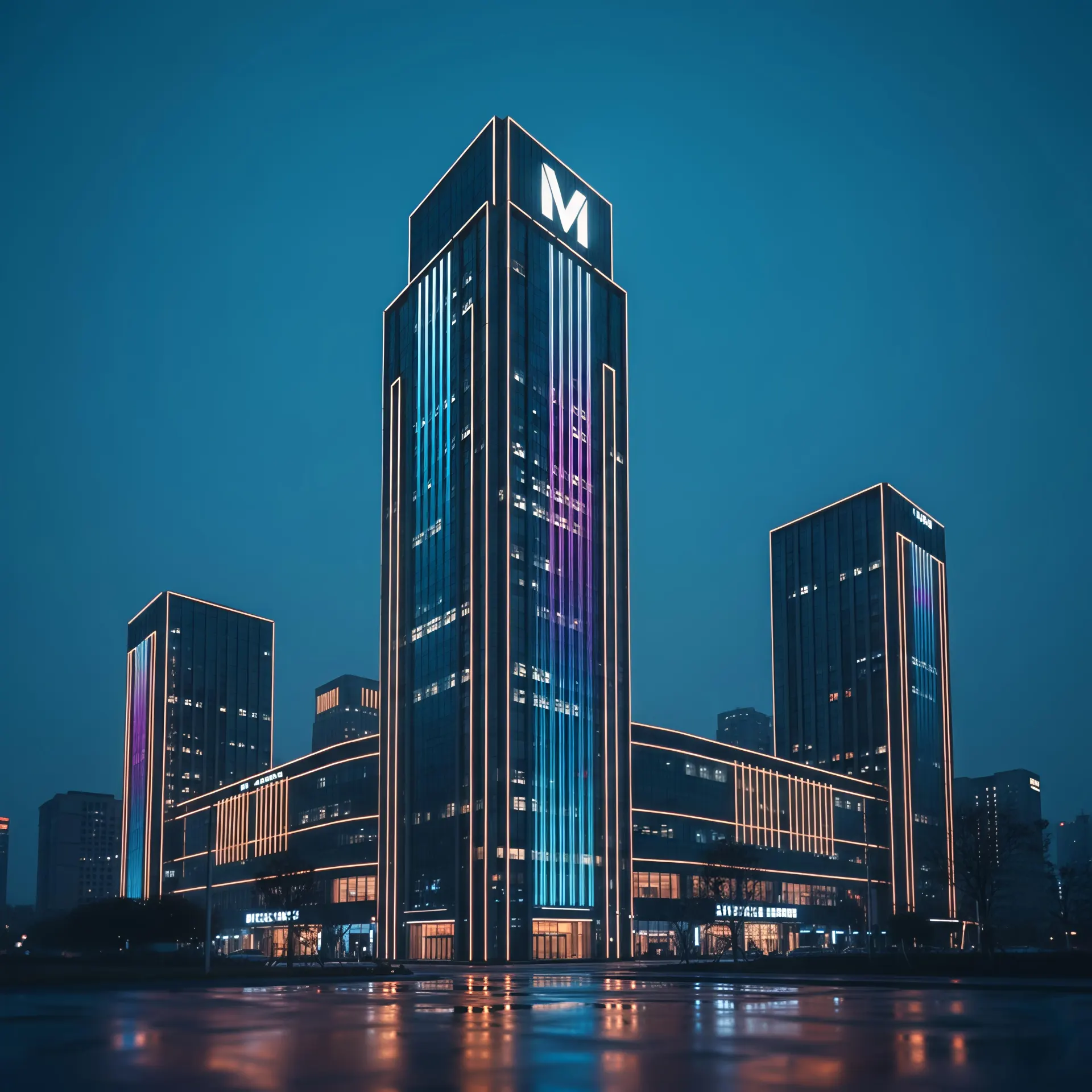

2.2 Architectural Facade Lighting: Turning Buildings into Digital Landmarks
Modern façades have evolved into dynamic branding tools.
- Products Used: Pixel-controlled DMX linear lights
- Key Advantage: DMX daisy-chaining allows entire buildings to become programmable low-resolution screens. Designers can create breathing effects, flowing gradients, or seasonal animations.
- Outcome: Buildings come alive at night, enhancing brand presence and urban identity.
Such dynamic facade lighting is increasingly popular in hotels, shopping centers, and corporate headquarters.

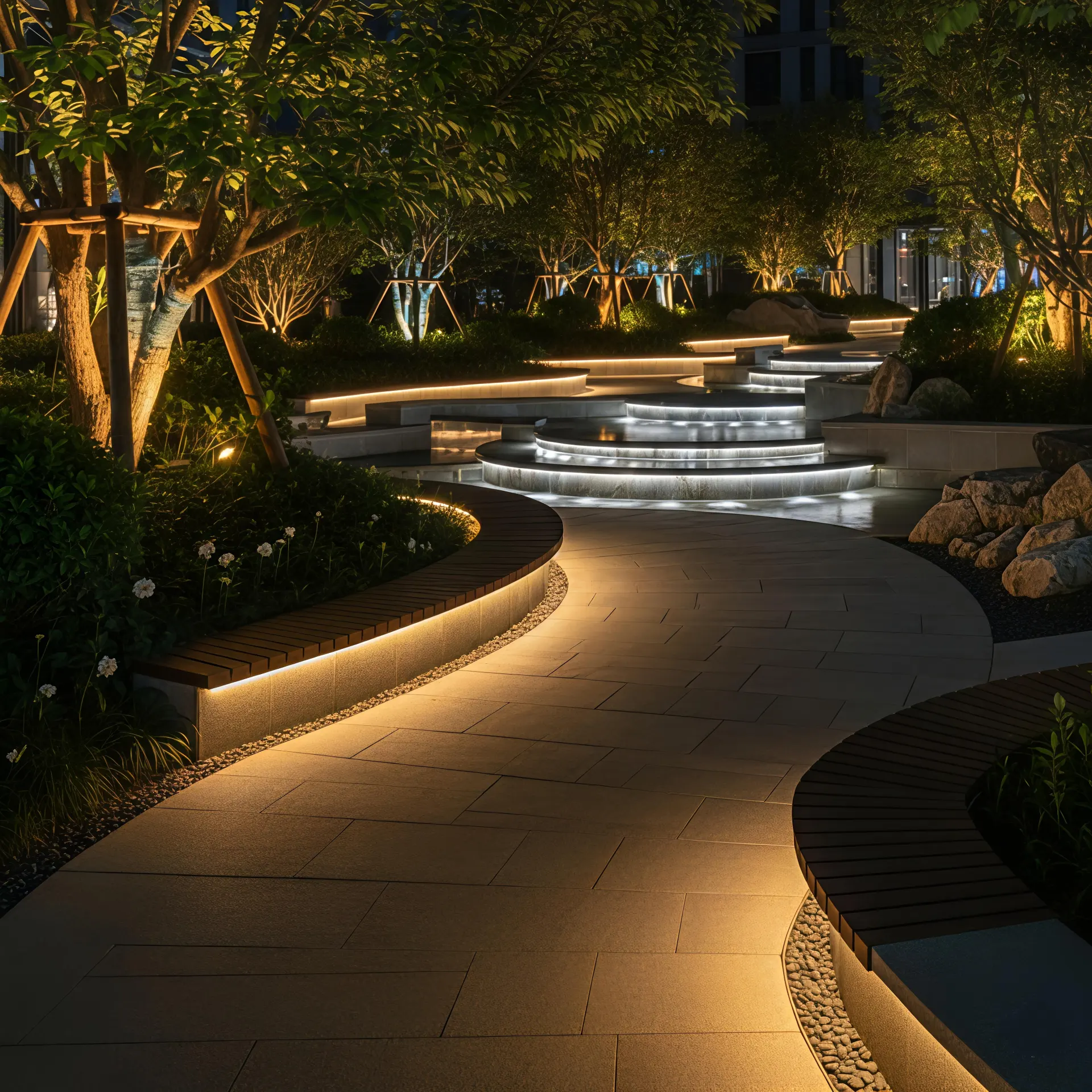

2.3 Landscape Lighting: Digital Dialogue with Nature
Lighting parks, pathways, and water features requires subtlety and depth.
- Products Used: Embedded DMX downlights and outdoor-grade spotlights
- Key Advantage: RGBW control enables millions of color combinations. Scenes can be preset to match seasonal changes or create gentle aurora-like effects.
- Outcome: Nighttime landscapes are vibrant, immersive, and energy-efficient
Through DMX512, designers can deliver programmable, adaptive lighting without compromising natural aesthetics.

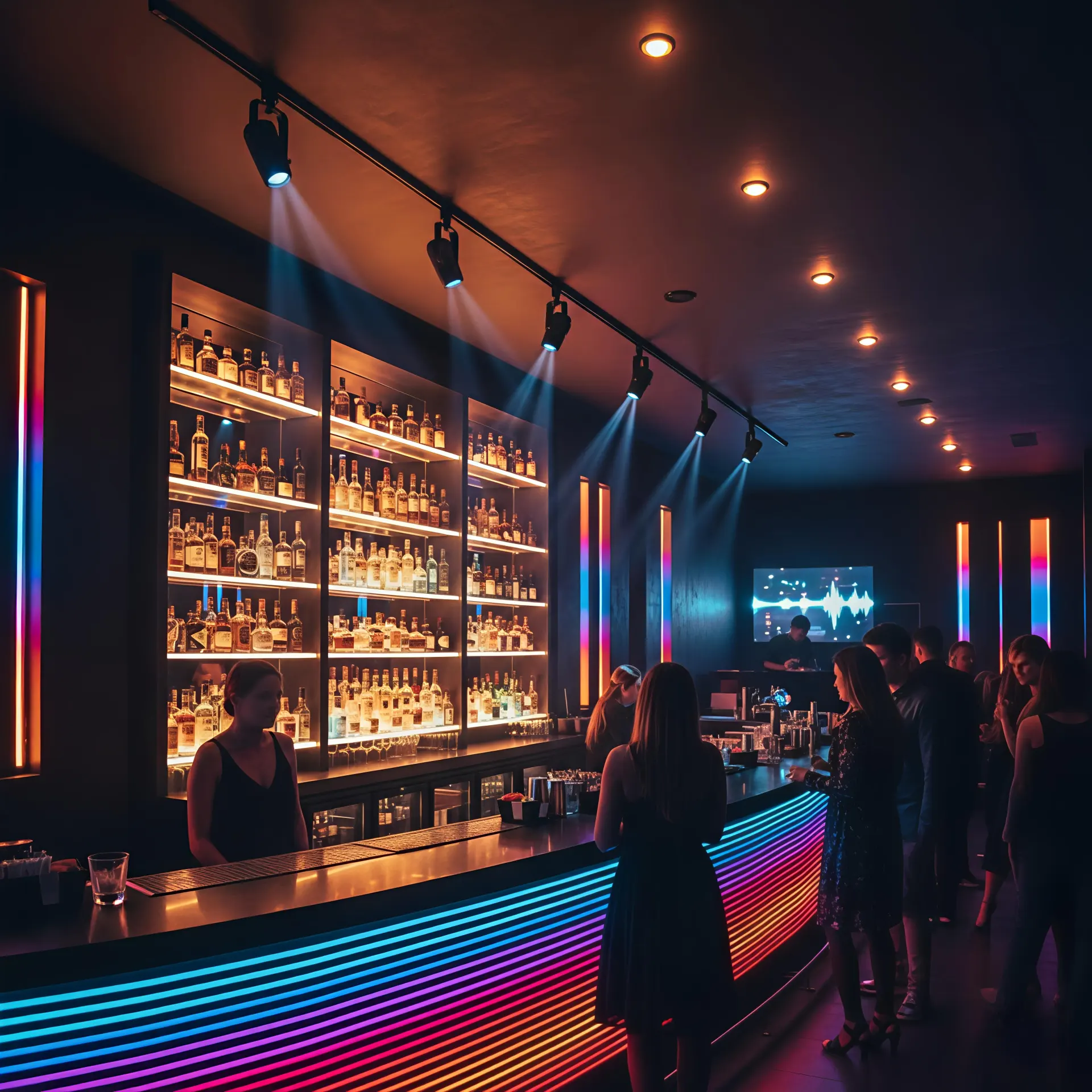

2.4 Bars, Showrooms, and Entertainment Spaces: Immersive Customer Experiences
Lighting is a critical factor in influencing customer engagement and dwell time.
- Products Used: DMX track lights + intelligent linear lights
- Key Advantage: Track lights guide traffic and highlight displays, linear lights respond to music rhythms, and downlights provide smooth ambient transitions
- Outcome: Spaces can instantly switch from daytime commercial mode to evening entertainment mode, creating memorable, immersive experiences
Track Lights, Downlights, and Linear Lights – The DMX Evolution
Our product line functions not only as light sources but also as networked endpoints in a programmable digital system.
3.1 DMX Track Lights: The Director of Flexible Spaces
Traditional track lights are constrained by power rails. Our DMX track lights assign an individual DMX address to each fixture, enabling independent control along the same track.
- Business Value: Retailers can reprogram lighting for seasonal displays or promotions without rewiring
- Use Case: Retail stores, exhibition spaces, and performance venues
- Technical Advantage: Supports RGBW color control and dynamic scene transitions
3.2 DMX Downlights: Defining High-End Ambient Light
Downlights establish the base illumination in commercial spaces.
- Technical Feature: 16-bit dimming technology eliminates low-light banding
- Use Case: Hotel lobbies, upscale restaurants, conference areas
- Value Added: Smooth fade-in/out transitions up to 10 seconds enhance perceived luxury
3.3 DMX Linear Lights: Painting Architectural and Landscape Spaces
Linear lights are among the most expressive design elements in modern commercial spaces.
- Technical Feature: RDM (Remote Device Management) allows easy addressing and real-time status monitoring
- Use Case: Façades, landscapes, bars, and showrooms
- Business Value: Significantly reduces installation and maintenance costs while delivering complex programmable effects
Why Your Commercial Space Needs DMX512 LED Lighting
Investing in DMX512 provides three major benefits:
| Benefit | Explanation |
|---|---|
| Infinite Scene Possibilities | Switch from bright daytime, to soft café, to romantic evening scenes with a single button |
| Stability & Longevity | RS-485 digital backbone ensures reliable operation, extending LED lifetime and reducing replacement costs |
| Brand Premium & Foot Traffic | Creative light shows attract social media attention, increasing dwell time and reinforcing brand image |
By combining programmable lighting with track lights, downlights, and linear lights, DMX512 transforms ordinary illumination into a strategic marketing tool.
Conclusion – Defining Commercial Light Digitally
What is DMX512? It is the conductor’s baton in the digital age of lighting.
Why do you need it? Because in competitive commercial environments, ordinary lighting no longer stands out.
Our high-performance DMX512 track lights, downlights, and linear lights bring stage-level control to your commercial space, creating environments that are not only illuminated but also immersive, emotionally engaging, and commercially valuable.
