30-35W Wall Washer Track Light 160 Lm/W
Product Code: PS-TL30/35-W86
Certificate:
30/35W
Power
83/92/97Ra
CRI
150LM/W
Lumen Efficiency
COB
LED Chip
Warranty
5 years
Description
- 160 lm/ W, high lumen efficacy, saves energy for daily electrical spending.
- Designed for side lighting attracting customers’ attention, without directly lighting to ground.
- 360° rotatable and tiltable design, without light direction limited, evenly distribute light over a wide surface area.
- Track mounted easy installation. 1-circuit and 3-circuit track compatible for most track system like Nordic, Global, etc.

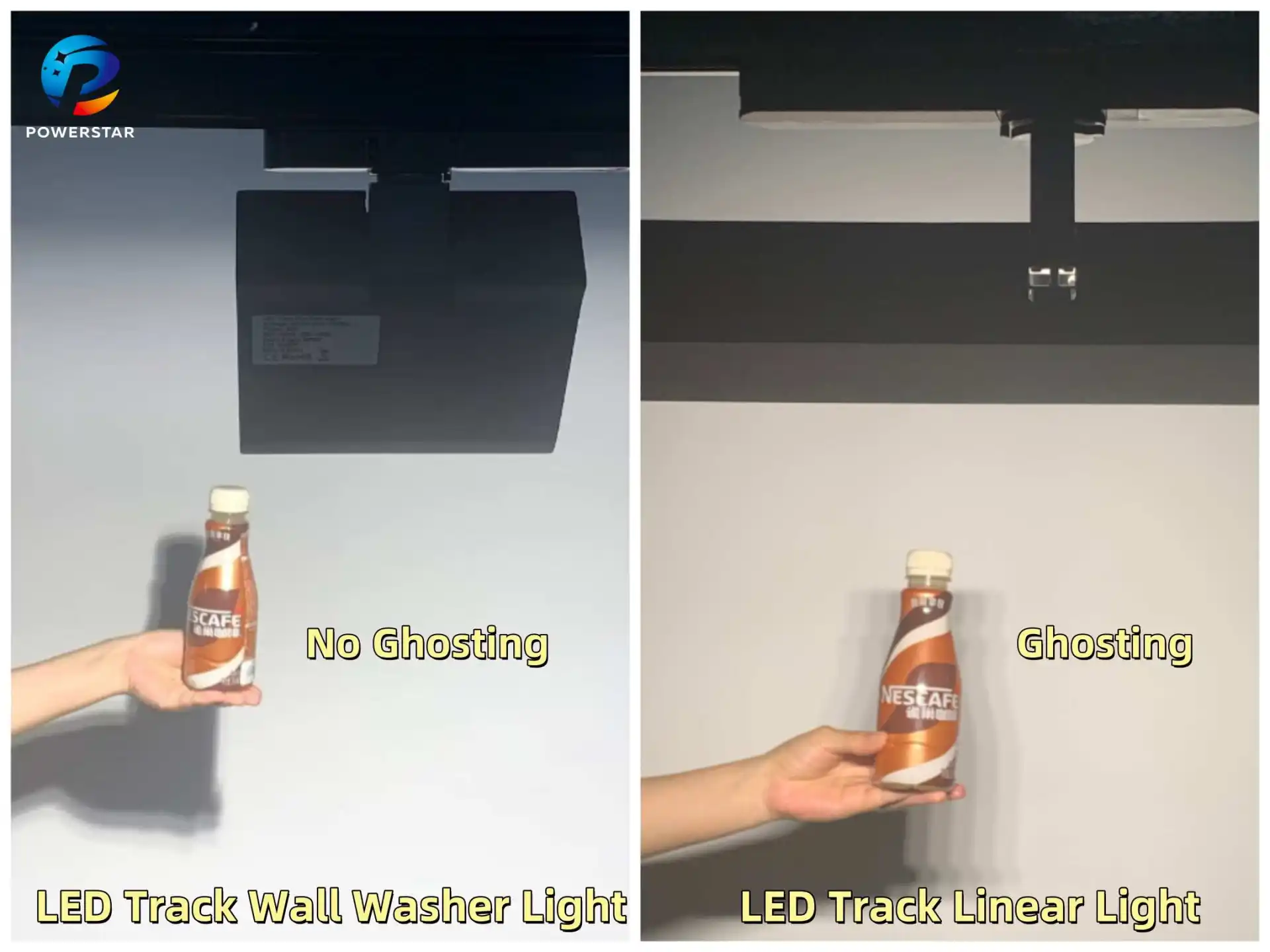

A good visual effect with no ghosting.
Specification Table
| Model | PS-TL30/35-W86 |
| Power | 30/35W |

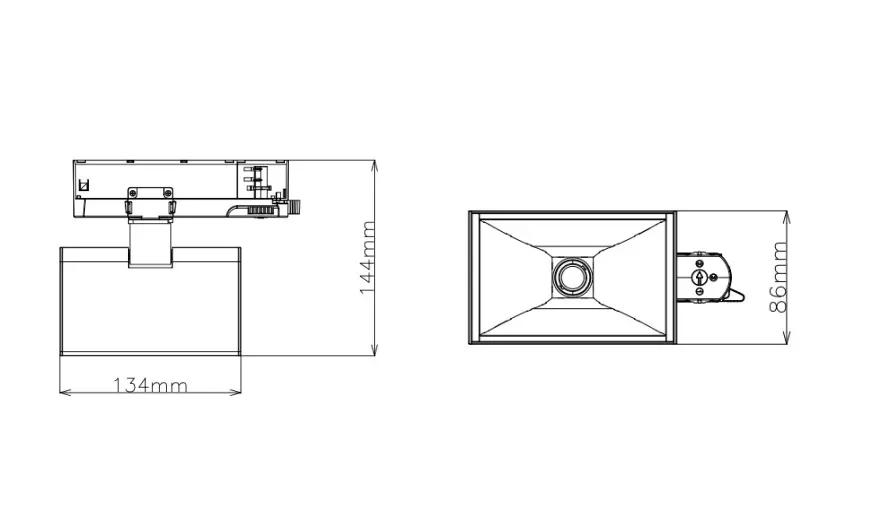

| Product size(mm) | W86*L134mm |
| Input Voltage | AC220-240V 50/60Hz |
| LED Type | Citizen/Luminus/Cree COB |
| Power Supply | Tridonic / Osram / Philips / Boke |
| Efficacy(lm/W) | 150LM/W |
| Lumen Output±5% | 5250LM |
| Beam Angle | 55/90° |
| CCT (K) | 2700/3000K/4000K/5000K/5700K |
| CRI | Ra83/Ra92/Ra97 |
| PF | >0.9 |
| SDCM | <3 |
| UGR | <19 |
| Track Adapt | 2/3/4/6wire |
| Material | Die-Casting Aluminum |
| THD | <15 |
| IP Rate | IP20 |
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 5 Years |
| Q’TY(PCS)/carton | 12pcs |
| NW(KG/carton) | 12.5kg |
| Carton Size(mm) | 420*320*310mm |
| GW(KG/carton) | 14kg |
Applications
Discover our wall wash track light, a versatile solution for lighting artwork, retail products, signage and displays.The LED track light features a durable AL6061 housing. It features a high light cup with a luminous efficacy of up to 150LM/W. It has a colour rendering index of 83/92/97Ra and rotates through 180° for precise light direction control. It is suitable for commercial and residential wall washer applications that require versatile lighting.
Documents
2024.05.04
0.00KB
FAQ
-
Q.Does a guarantee cover the products from you?
A.Yes. We provide a 3-5 year warranty on all of our goods.
-
Q.Is it legal to print my company's logo on a led light product?
A.Yes. Before we begin production, kindly inform us in writing and validate the design using our sample.
