Home / Products / LED Downlight / Fan Series 15-45W LED Downlight

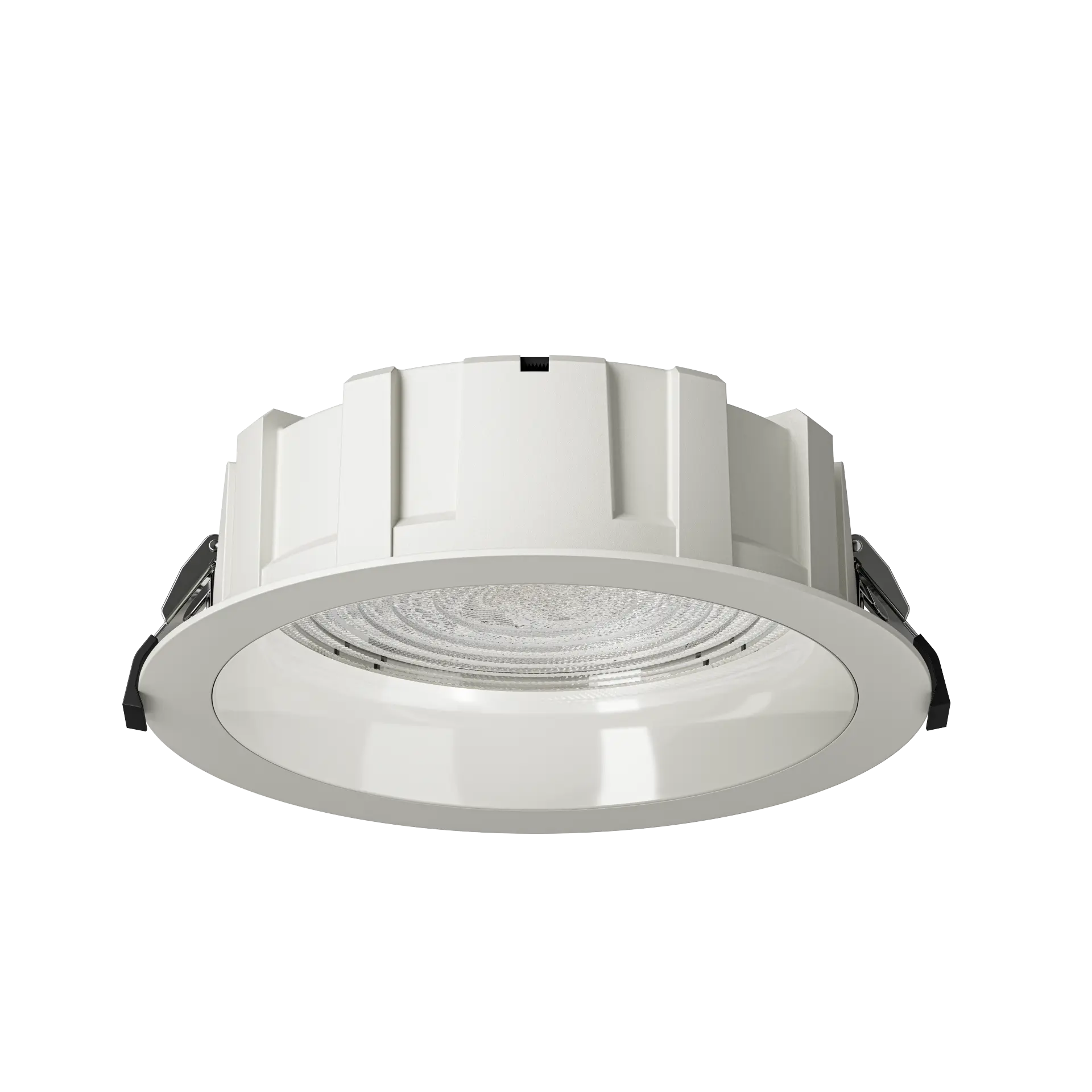

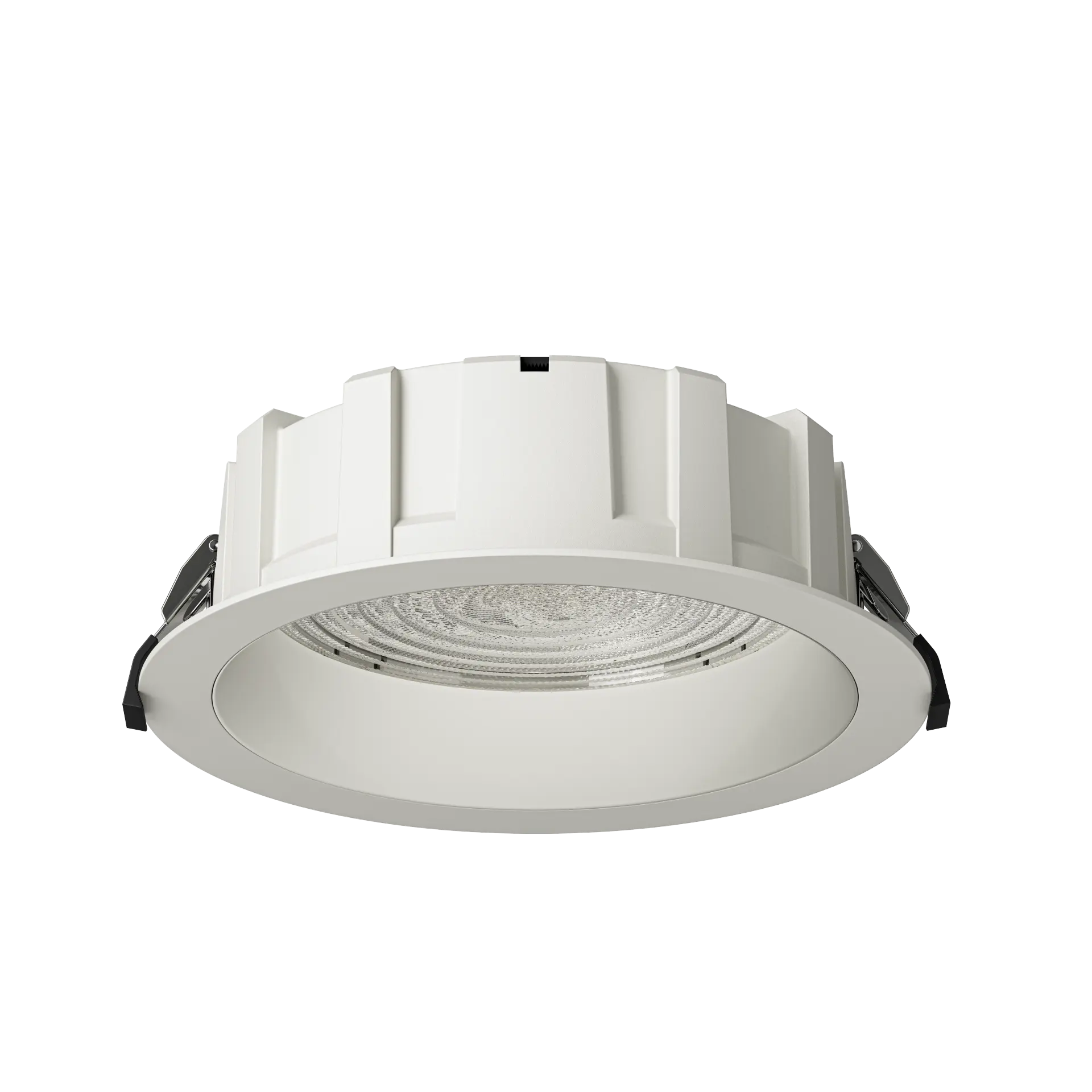

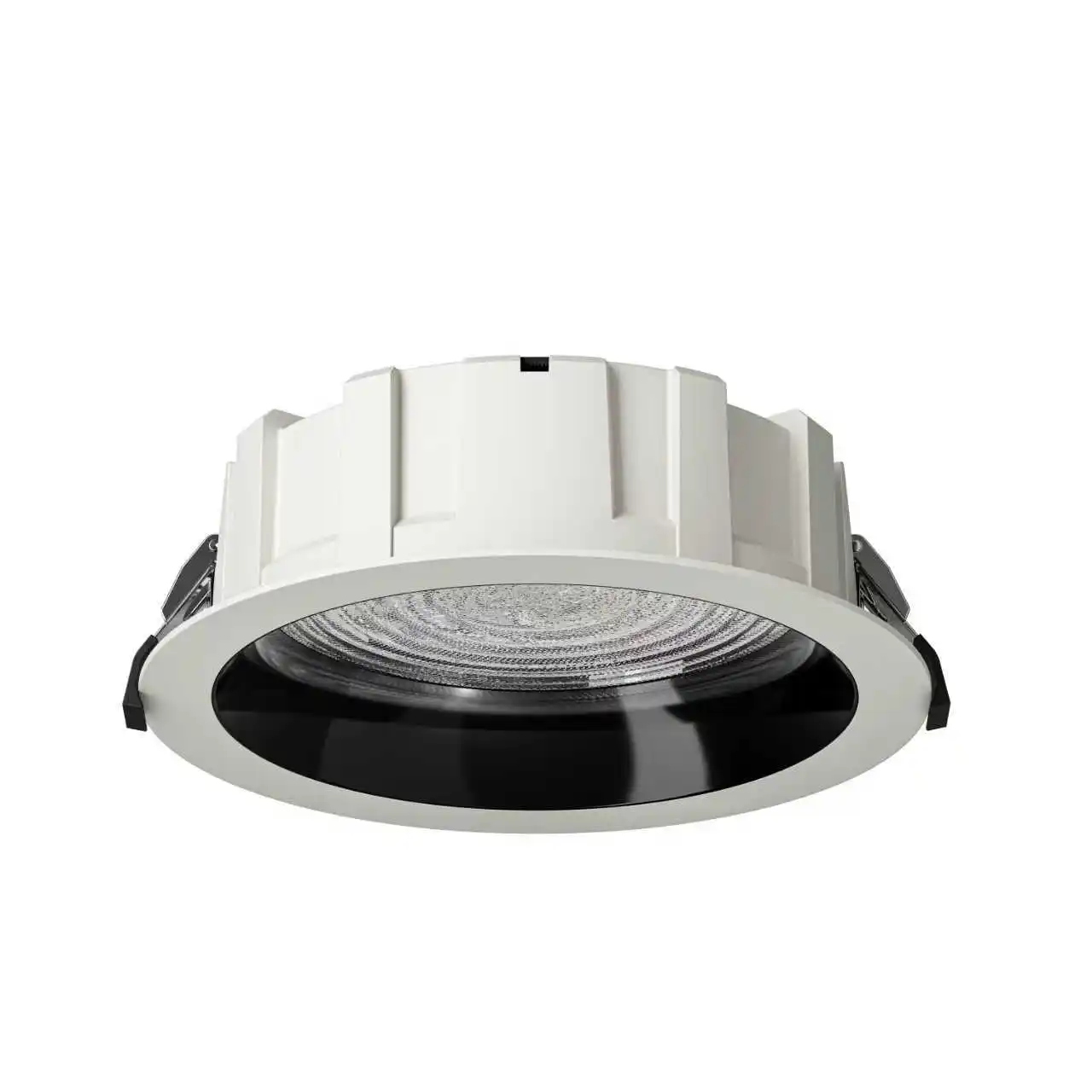

Fan Series 15-45W LED Downlight

Product Code: PS-DL15-45WA18

Englumia A18 series recessed downlight led, the largest watt can accomplish 45W with 215mm cut hole, practically fulfill the watt and cut hole criteria for all ordinary downlights. With a high-quality reflector, aluminum material with an effective heat dissipation structure, and a long lifespan, the lumen can reach 150lm/w.

Certificate:

Request Info

Add To Quote

15-45W

Power

83/92Ra

CRI

100-150lm/w

Lumen Efficiency

Bridgelux/CITIZEN

LED Chip

BOKE

LED Driver

Description

The Fan Series LED downlight is a new product on the market that has gained a lot of popularity in recent years. This light is designed to provide a high level of illumination while being very energy efficient. It is also one of the most affordable LED downlights on the market. It is Energy Star qualified and has a CRI of 80. The light is dimmable and has a life expectancy of 50,000 hours. With a sleek and modern design, this downlight is sure to complement any décor. Featuring a variety of settings, the Fan Series LED Downlight is sure to provide the perfect lighting for any space. This product uses light emitting diodes (LEDs) to produce light, which is then directed downwards through a reflector. The light is diffused through a lens, creating an even distribution of light. The downlight uses an array of high-powered light emitting diodes (LEDs) to produce a bright, even light that is similar to the light produced by traditional incandescent bulbs.

Features

The Fan Series LED Downlight is also very easy to install, and it comes with a five-year warranty.
The Fan Series LED Downlight is the latest innovation in LED lighting technology.
With a variety of mount options and a wide range of lumen output options, the Fan Series is a great choice for any lighting project.
The LED light is also energy-efficient, making it a great choice for your home.
This product is available in a variety of finishes, including brushed nickel, chrome, and oil-rubbed bronze.
The Fan series LED downlight is a high quality product that is affordable and offers many features and benefits.
It is a great choice for any room in your house because it is so versatile.
It is available in a variety of finishes and offers a wide range of features that make it an excellent choice for any home.
With its dimmable feature, you can adjust the light to your desired level, making it perfect for any mood or setting.
Additionally, the LED chip will ensure that your light is long lasting, energy efficient, and eco-friendly.

Specification Table

Model	PS-DL9C20		PS-DL12C20		PS-DL20C20		PS-DL30/40C20		PS-DL50/60C20
Power	12W		15W		20W		25/30/35W		40/45W
Product size(mm)	Φ89*46mm		Φ110*49mm		Φ110*49mm		Φ140*53mm		Φ236*60mm
Input Voltage	AC220-240V 50/60Hz
LED Type	Bridgelux/Citizen/Cree COB
Power Supply	Tridonic / Osram / Philips / Boke
Efficacy(lm/W)	100LM/W
Lumen Output±5%	1200LM		1500LM		2000LM		2500-3500LM		4000/4500LM
Beam Angle	60/90°
CCT (K)	2700/3000K/4000K/5000K/5700K
CRI	Ra80/Ra90/Ra97
PF	>0.9
SDCM	<3
UGR	<19
Material	Die-Casting Aluminum
THD	<15
IP Rate	IP20
Dimming	Non-dimming (Default) /1-10V / Dali/BLE dimming
Certificate	CE/RoHS/CB/TUV/SAA/C-Tick
Warranty	5 Years
Q’TY(PCS)/carton	24pcs	18pcs		12pcs		12pcs		8pcs
N.W.(KG/carton)	14.9kg	15.2kg		13.6kg		17.2kg		14.4kg
Carton Size(mm)	540430340mm	460460360mm		560410400mm		610450430mm		500500430mm
G.W.(KG/carton)	16.9kg	17.2kg		15.6kg		19.2kg		16.4kg

Applications

The 15-45W LED downlight is one of the most popular and versatile lighting solutions on the market today. With a wide variety of uses, it is perfect for any application. Whether you need general lighting, task lighting, accent lighting, or even emergency lighting, the Fan Series LED downlight is the perfect solution. It can be used for a variety of applications, including accent lighting, task lighting, and general lighting. It is also a great choice for use in commercial and industrial settings. Its compact size and low power consumption make it an ideal choice for use in residential and commercial applications.

Shopping malls, hotels, exhibition halls, conference halls, business halls, residential, office, catering, and other lighting applications are ideal for the Englumia A18 series.

Owen Series 4 inch LED Downlight application

Documents

About DL15-45W product the title name of this pdf is put in

2025.12.01

18.99KB

Faqs

Q.Are your products backed by a guarantee?

A.Yes. Our items have a warranty of 3-5 years.
Q.Is it possible to have my company's logo printed on an LED light product?

A.Yes. Please contact us in writing before we begin production so that we can validate the design using our sample first.
