Englumia C10 series cob led down light with 3 sizes has a compact design with outstanding heat dissipation performance, Ra80/90/97 are available, special CCT can be customized, match with brand led chip and brand driver, lifetime is more than 5 years, Dali/DMX512 dimming method is also available, and we have ISO9001 quality certificate and CE/RoHS/CB/TUV/SAA/C-Tick certificate.
The Tokio Series 30W LED Downlight Fixture is one of the most popular and trusted LED fixtures on the market today. It is known for its quality, performance, and durability. The 30W LED downlight fixture is an excellent choice for an energy-efficient lighting option. It uses less energy than traditional incandescent bulbs, and it emits a bright, even light. It is also a good choice for those who want to reduce their carbon footprint. This fixture is also very easy to install and comes with a five-year warranty. This fixture provides good light output and has a nice modern look that will complement any home décor. A 30W LED downlight fixture is a great way to save energy and money on your lighting costs. LED lighting is up to 80% more efficient than traditional incandescent bulbs, so you’ll see a significant reduction in your energy bills.
Features
The 30W LED downlight fixture is a versatile lighting solution that can be used in a variety of applications.
LEDs are more energy efficient than incandescent bulbs
With its sleek design and energy-saving capabilities, it is no wonder why so many people are choosing this fixture over traditional incandescent bulbs.
It is a versatile light that can be used in a number of different ways.
The light is dimmable, so you can adjust the light output to suit your needs.
The light is also energy efficient, so you can save money on your energy bills.
In general, an LED downlight fixture will include an LED light source, a heat sink, a driver, and a housing.
designed to provide general lighting to a specific area.
Most 30W LED downlight fixtures have a round or square shape.
They are available in different colors, including white, black, and silver.
Specification Table
model
PS-DL9/12C10
PS-DL15C10
PS-DL20/30C10
power
9/12W
15W
20/30W

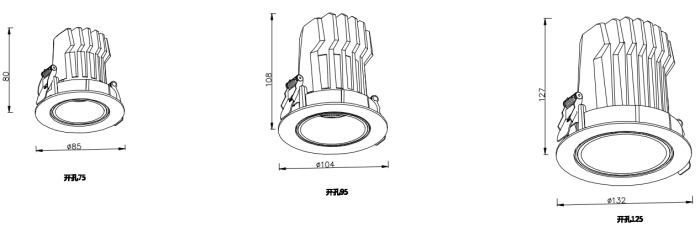

Product size(mm)
Φ85*80mm
Φ104*105mm
Φ132*127mm
Input Voltage
AC220-240V 50/60Hz
LED Type
Citizen/Luminus/Cree COB
Power Supply
Tridonic / Osram / Philips / Boke
Efficacy(lm/W)
80LM/W
Lumen Output±5%
720/960LM
1200LM
1600/2400LM
Beam Angle
15/24/38°
CCT (K)
2700/3000K/4000K/5000K/5700K
CRI
Ra80/Ra90/Ra97
PF
>0.9
SDCM
<3
UGR
<19
Material
Die-Casting Aluminum
THD
<15
IP Rate
IP20
Dimming
Non-dimming (Default) /1-10V / Dali/BLE dimming
Certificate
CE/RoHS/CB/TUV/SAA/C-Tick
Warranty
5 Years
Q’TY(PCS)/carton
24pcs
24pcs
18pcs
NW(KG/carton)
12kg
16.5kg
19.4kg
Carton Size(mm)
500*400*290mm
460*460*340mm
550*550*380mm
GW(KG/carton)
14kg
18.5kg
21.4kg

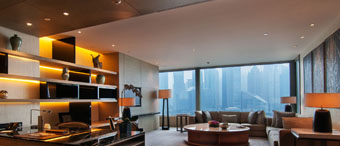

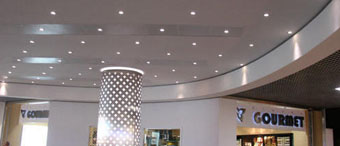

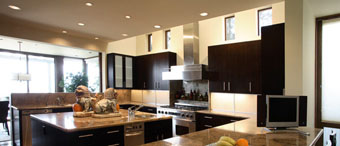

Applications
The 30W LED downlight fixture has a wide range of applications. It can be used for general lighting, task lighting, accent lighting, and even outdoor lighting. With its high efficiency and long life span, the 30W LED downlight fixture is an excellent choice for any lighting needs. The 30W LED downlight fixture is a versatile and energy-efficient lighting solution that can be used in a variety of settings, both residential and commercial. Thanks to its compact size and sleek design, the 30W LED downlight fixture is perfect for use in recessed lighting applications, as well as in track lighting and display lighting.
The Tokio Series 30W LED Downlight is a versatile and handy product that can be used for various purposes, both indoor and outdoor. Its main purpose is to provide illumination, but it can also be used as a source of heat, or even as a source of power for other devices.
Documents
2022.03.05
0.00KB
Faqs
Q.Do you provide a guarantee on your products?
A.Yes. Our products are covered by a 3-5 year warranty.
Q.Is it feasible to have my brand printed on a led light product?
A.Yes. Please notify us in writing before we begin production and validate the design first using our sample.
