G08 Anna Series Led Flood Light 50W–600W IP66 Commercial Outdoor Lighting
Product Code: PS-FL0050-600W-G08
The G08 ANNA Series LED flood light delivers high-efficiency outdoor lighting for commercial spaces such as shopping mall facades, parking lots, and exhibition center plazas. With up to 180 lm/W efficacy, multiple beam angle options, and IP66 protection, it ensures powerful illumination, long-term reliability, and energy savings for large-scale outdoor lighting applications.
Certificate:
Add To Quote
50-600W
Power
>70 (>80,>90 Optional)
CRI
150-180lm/w
Lumen Efficiency
Lumileds 2835/5050
LED Chip
Inventronics/Sosen/Moso
LED Driver
Specification Table
| Model | PS-FL0050-G08 | PS-FL0100-G08 | PS-FL0150-G08 | PS-FL0200-G08 | PS-FL0300-G08 | PS-FL0500-G08 | PS-FL0600-G08 |
| Power | 50W | 100W | 150W | 200W | 300W | 500W | 600W |

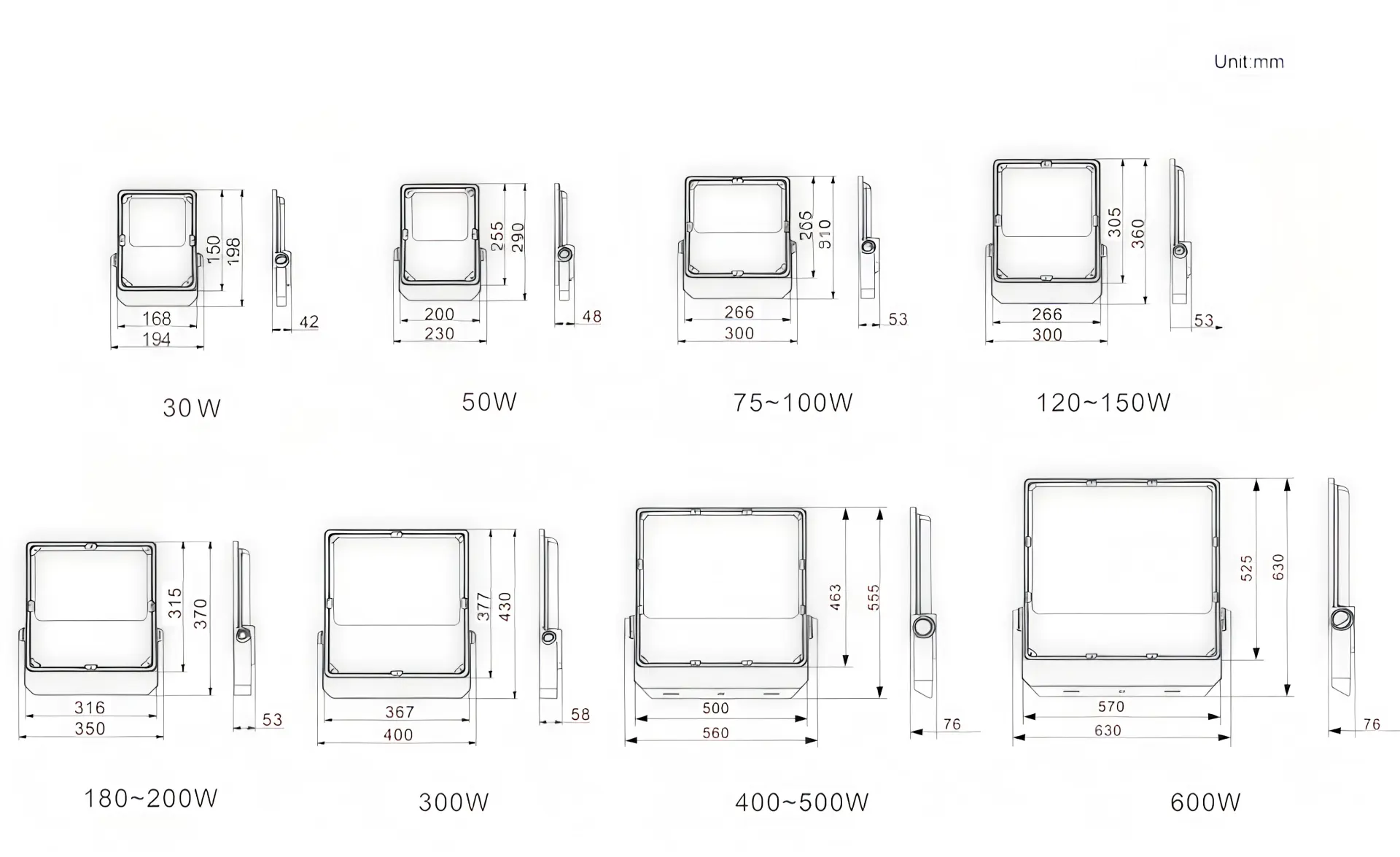

| Product size(mm) | L290*W230*H48 | L310*W300*H53 | L360*W300*H53 | L370*W350*H53 | L430*W400*H58 | L555*W560*H76 | L630*W630*H76 |
| Input Voltage | AC220-240V 50/60Hz | ||||||
| LED Type | Lumileds 2835/5050 | ||||||
| Power Supply | Inventronics/Sosen/Moso | ||||||
| Efficacy(lm/W) | 150-180LM/W | ||||||
| Lumen Output±5% | 9000LM | 18000LM | 27000LM | 36000LM | 54000LM | 90000LM | 108000LM |

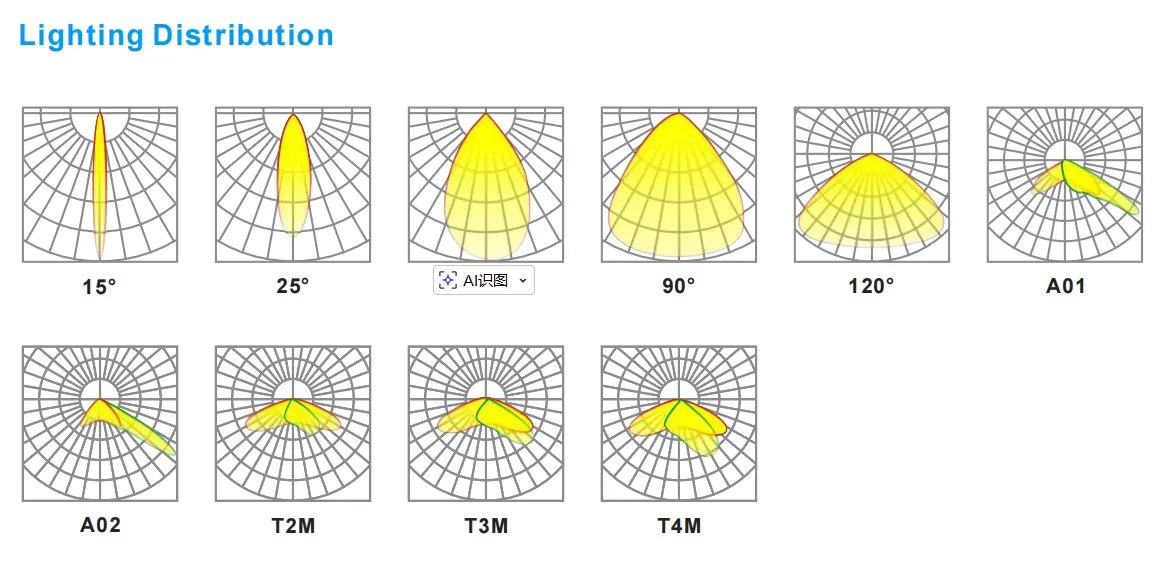

| Beam Angle | 15°/25°/60°/90°/120°/A01/A02/T2M/T3M/T4M | ||||||
| CCT (K) | 3000K/4000K/5700K | ||||||
| CRI | >70 (>80,>90 Optional) | ||||||
| PF | 0.95 | ||||||
| SDCM | <5 | ||||||
| Surge Protection | 10KV | ||||||
| Material | Aluminum,PC lens,Tempered glass | ||||||
| IK Rate | IK08 | ||||||
| IP Rate | IP66 | ||||||
| Control | On-off / 1-10V / DALI | ||||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||||||
| Warranty | 5 Years | ||||||
| Hoursing Color | Black/Grey | ||||||
| Finish | Powder Coating | ||||||
| Operating Temperature | -30 to +50°C | ||||||
| Life Span | >100,000Hrs | ||||||
Applications
The G08 ANNA Series LED Flood Light is designed for large-scale commercial lighting projects such as shopping mall facades, parking lots, and exhibition center plazas. With luminous efficacy up to 180 lm/W, it delivers powerful illumination while maintaining excellent energy efficiency.
For shopping mall exterior lighting, the fixture highlights building architecture and enhances nighttime visibility, creating an attractive and safe environment for visitors. With multiple beam angle options, it provides precise lighting control for facade lighting and landscape illumination. The high-output light and focused beam also make it ideal for illuminating large outdoor billboards and commercial advertising signage, ensuring clear visibility and strong visual impact from a distance.
In shopping mall parking lots, the high-output LED flood light provides wide and uniform lighting coverage, improving safety for vehicles and pedestrians while reducing energy consumption.
The G08 ANNA Series is also ideal for exhibition center plaza lighting, where large open spaces require reliable and high-performance outdoor illumination. The robust IP66 and IK08 design ensures stable operation in harsh outdoor environments.
With a lifespan exceeding 100,000 hours, integrated 10kV surge protection, and optional 1-10V or DALI dimming control, this flood light offers a durable and flexible solution for modern commercial lighting projects.
Documents
2026.03.12
0.00KB
Faqs
-
Q.What applications is the G08 ANNA Series LED flood light suitable for?
A.The G08 ANNA Series LED flood light is designed for large outdoor commercial lighting applications, including shopping mall facade lighting, parking lot lighting, exhibition center plazas, and large outdoor billboards. Its high output and flexible beam angles make it suitable for both architectural lighting and large-area illumination.
-
Q.What power options are available for this LED flood light?
A.The G08 ANNA Series is available in a wide range of power options to suit different project requirements: 30–50W, 100W, 150W, 200W, 300W, 400–500W, 600W. This flexibility allows the fixture to be used for both medium and large outdoor lighting areas.
-
Q.What beam angles are available?
A.This LED flood light offers multiple beam angle options to meet different lighting design needs. Available beam angles include: 15°/25°/60°/90°/120° As well as professional lighting distributions such as: T2M/T3M/T4M/A01/A02. These options allow precise lighting control for building facades, parking areas, and large plazas.
-
Q.Is the G08 LED flood light suitable for outdoor environments?
A.Yes. The fixture is designed for demanding outdoor environments and features: IP66 waterproof rating IK08 impact resistance Its durable die-cast aluminum housing ensures reliable operation in rain, dust, and harsh weather conditions.
-
Q.What is the luminous efficiency of this LED flood light?
A.The G08 ANNA Series delivers high luminous efficiency of 150–180 lm/W, providing powerful illumination while reducing energy consumption compared with traditional flood lighting systems.
-
Q.Does the LED flood light support dimming control?
A.Yes. The fixture supports several control options depending on project requirements: On/Off, 1–10V dimming, DALI control These options make it suitable for commercial lighting systems and smart lighting projects.
-
Q.What is the lifespan of the G08 LED flood light?
A.The luminaire is designed with high-quality LED chips and reliable drivers, offering a lifespan of more than 100,000 hours under normal operating conditions. This significantly reduces maintenance and replacement costs.
-
Q.Can this LED flood light be used for billboard lighting?
A.Yes. Thanks to its high brightness and focused beam angle options, the G08 ANNA Series is also suitable for large outdoor billboard and advertising signage lighting, ensuring clear visibility and strong visual impact at night.
