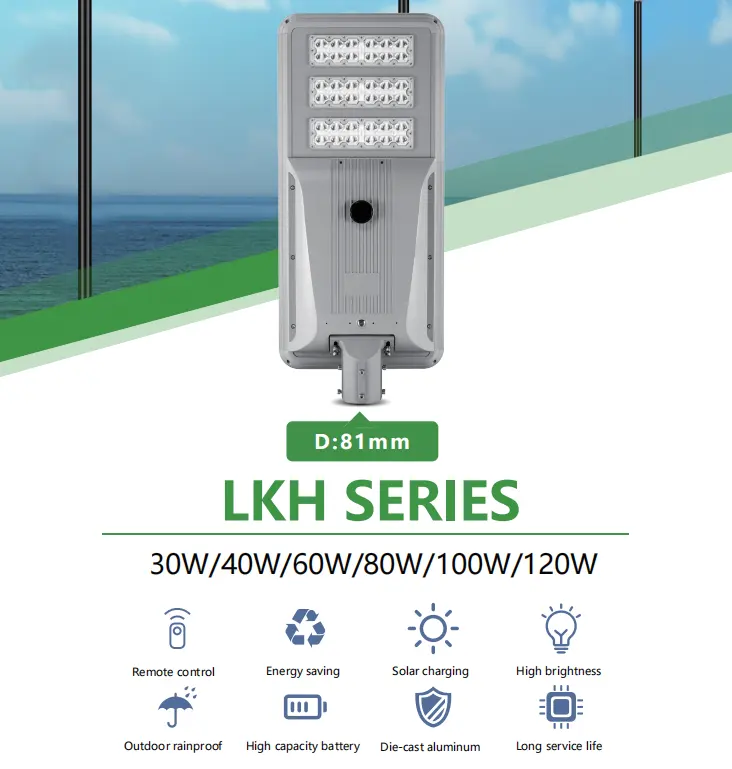

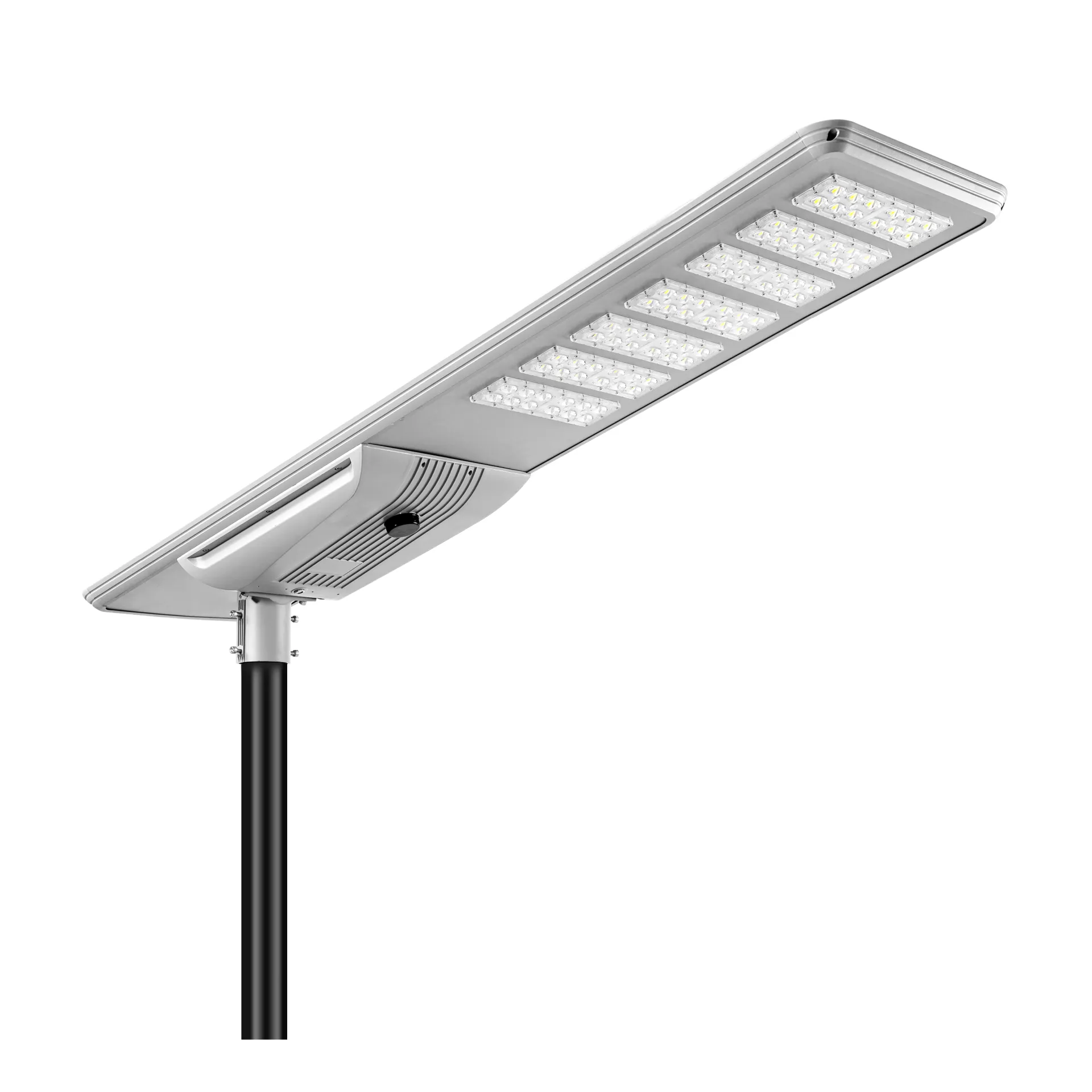

All-In-One Solar Street Light Lkh Series for Commercial Outdoor Lighting
Product Code: PS-SSL0030-120W-L01
The LKH Series all-in-one solar street light is specifically designed for commercial outdoor lighting projects such as parking lots, shopping mall surroundings, and urban streets. With an integrated design that combines a high-efficiency LED module, lithium battery, and monocrystalline solar panel, this solution eliminates the need for complex wiring while significantly reducing energy costs.

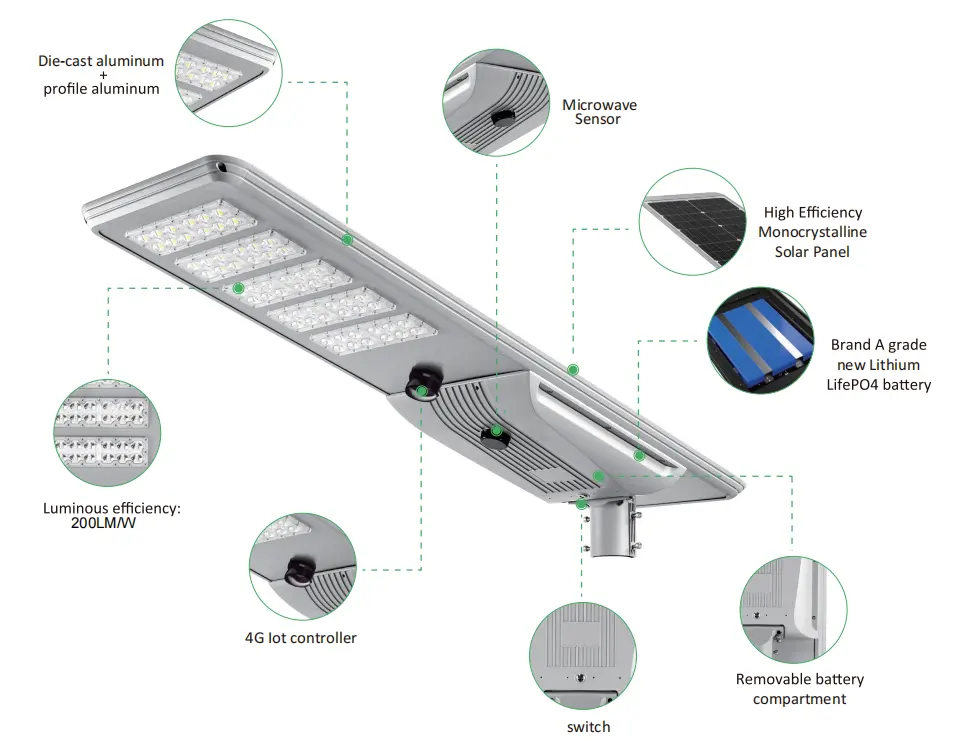

Built with a durable die-cast aluminum housing and equipped with an intelligent MPPT controller, the LKH Series ensures stable performance even in challenging outdoor environments. It is an ideal choice for commercial applications where reliability, efficiency, and fast installation are essential.
Certificate:
30-120W
Power
23.8%
Solar panel conversion efficiency
200lm/w
Lumen Efficiency
SMD 3030
LED Chip
MPPT controller
Controller
Specification Table
| Model | PS-SSL0030-L01 | PS-SSL0040-L01 | PS-SSL0060-L01 | PS-SSL0080-L01 | PS-SSL0100-L01 | PS-SSL0120-L01 |
| Power | 30W | 40W | 60W | 80W | 100W | 120W |
| Solar Panel | 18V/50W Mono | 18V/60W Mono | 18V/80W Mono | 18V/105W Mono | 18V/130W Mono | 18V/150W Mono |
| Battery | Lithium LifePO4 battery 3.2V 72AH(231WH) | Lithium LifePO4 battery 3.2V 100AH(320WH) | Lithium LifePO4 battery 12.8V 30AH(231WH) | Lithium LifePO4 battery 12.8V 45AH(231WH) | Lithium LifePO4 battery 12.8V 60AH(231WH) | Lithium LifePO4 battery 12.8V 75AH(231WH) |

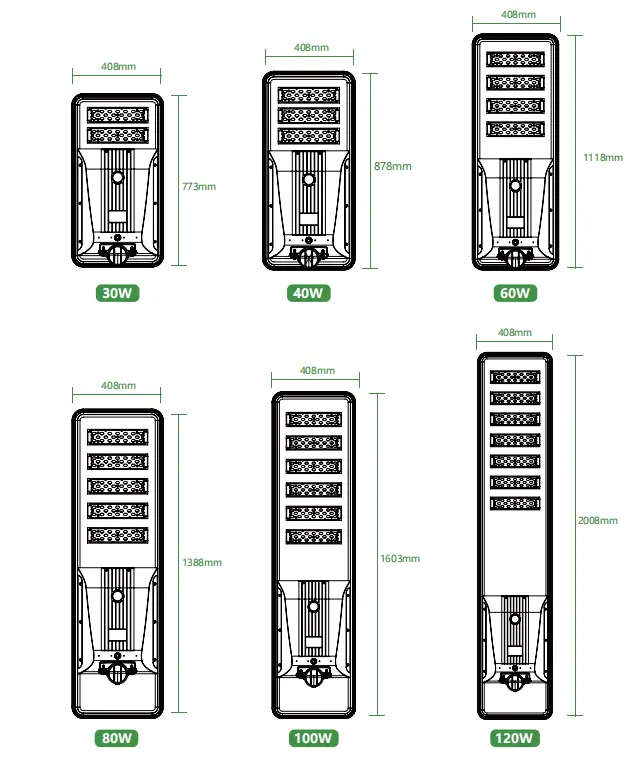

| Product size(mm) | L773*W408 | L878*W408 | L1118*W408 | L1388*W408 | L1603*W408 | L2008*W408 |
| LED Type | 4 cores high efficiency smd 3030 96PCS |
4 cores high efficiency smd 3030 144PCS |
4 cores high efficiency smd 3030 192PCS |
4 cores high efficiency smd 3030 240PCS |
4 cores high efficiency smd 3030 288PCS |
4 cores high efficiency smd 3030 336PCS |
| Controller | MPPT Controller | |||||
| Led Efficacy(lm/W) | 200LM/W | |||||
| Solar panel conversion efficiency |
23.8% |
|||||
| Lumen Output±5% | 6000LM | 8000LM | 12000LM | 16000LM | 20000LM | 24000LM |
| Lighting Angle | 75*155° / transmittance: >95% | |||||
| Cloud platform system management |
Iot Control Management System (optional) | |||||
| Lighting Method | Intelligent control +Microwave induction + segmented time control | |||||
| Discharge time | 3-5 rainy days | |||||
| Material | Die-cast aluminum+profile aluminum | |||||
| IP Rate | IP65 | |||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |||||
| Warranty | 3 Years | |||||
| Hoursing Color | Grey | |||||
| Operating Temperature | -30 to +50°C | |||||
| Life Span | >50,000Hrs | |||||
| Packge Size(mm) | 995*460*130 | 1100*460*130 | 1340*460*130 | 1610*460*130 | 1825*460*130 | 2230*460*130 |
| Net Weight | 10.5KG | 11.5KG | 13.5KG | 16KG | 18.5KG | 22KG |
| Installation Height Recommended |
5-6M | 6-8M | 8-10M | 10-12M | 12-15M | 15-18M |
Applications
The LKH Series all-in-one solar street light is designed to meet the lighting needs of modern commercial environments. With an integrated structure that combines the solar panel, LED module, and battery, it offers easy installation, low maintenance, and reliable performance.
For shopping mall exteriors and public plazas, this all-in-one solar street light delivers bright and uniform illumination, improving visibility and creating an attractive nighttime atmosphere. Its clean design also complements modern commercial architecture.
In commercial pedestrian streets, the system enhances safety and supports a comfortable shopping environment. The built-in motion sensor and intelligent control help adjust brightness based on activity, making the all-in-one solar street light both energy-efficient and practical.
For commercial parking lots, it provides wide-area lighting coverage with a consistent output. The integrated solar design eliminates the need for underground cabling, reducing installation costs and making it ideal for large-scale outdoor projects.
Documents
2026.03.18
7430.89KB
Faqs
-
Q.Is this all-in-one solar street light suitable for commercial use?
A.Yes, this all-in-one solar street light is specifically designed for commercial outdoor lighting projects such as shopping mall exteriors, pedestrian streets, and parking lots. It provides reliable and energy-efficient lighting without the need for grid power.
-
Q.Can it provide enough brightness for commercial parking lots?
A.Yes, with luminous efficacy up to 200 lm/W and wide beam angle design, this all-in-one solar street light ensures strong and uniform illumination, making it ideal for large parking areas.
-
Q.How many rainy or cloudy days can it work continuously?
A.The system is designed to support 3–5 consecutive rainy or cloudy days, depending on the selected model and battery capacity.
-
Q.Does the light have intelligent control features?
A.Yes, the all-in-one solar street light includes an MPPT controller, microwave motion sensor, and time-based dimming modes. These features help optimize energy usage and extend battery life.
-
Q.Is installation complicated?
A.No, installation is very simple. The integrated design eliminates the need for trenching or cabling. It can be easily mounted on a pole, making it ideal for commercial projects with tight timelines.
-
Q.Is it suitable for commercial pedestrian streets?
A.Yes, it is widely used in pedestrian streets and retail areas. The adjustable brightness helps create a comfortable lighting environment while reducing energy consumption.
-
Q.What is the lifespan of the battery?
A.The built-in LiFePO4 battery typically lasts 5–8 years under normal operating conditions, making it suitable for long-term commercial use.
-
Q.Can it be used for shopping mall exterior lighting?
A.Yes, this all-in-one solar street light is ideal for shopping mall surroundings and plazas. It enhances visibility, improves safety, and adds value to the commercial space.
