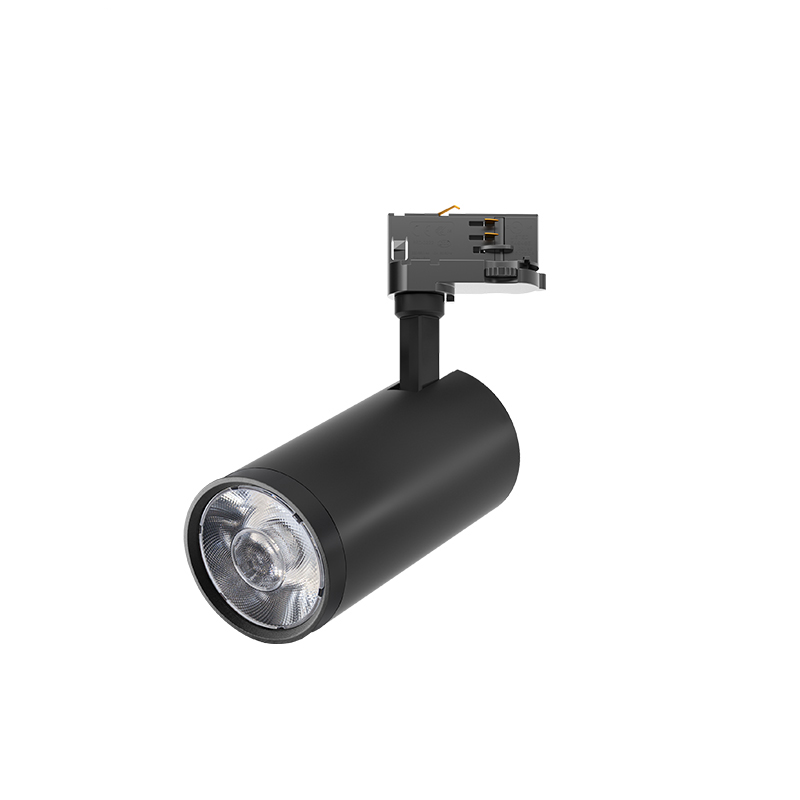

Small Angels LEDIL Lens 16W Dimmable LED Track Light
Product Code: PS-TL-16W-A85
The casing of this 8°-13° dimmable LED track light is available in black or white, and it allows for unrestricted adjustment of the light's angle and dimmable. It can be a good replacement for halogen track lights, with increased brightness, longer life, and lower energy use.
Compatible with track adaptors for 2/3/4/6 wires. The series adjustable track light is ideal for a range of building layouts and has a number of installation choices.
Certificate:
Add To Quote
16W
Power
80/ 90/ 97 Ra
CRI
90 lm/w
Lumen Efficiency
Citizen
LED Chip
Tridonic
LED Driver
Specification Table
| Model | PS-TL16W-A85 |
| Power | 16 W |
| Product Size(mm) | D83*H229 mm |
| Input Voltage | AC 220-240V 50/60Hz |
| LED Type | Citizen/ Luminus/ Cree COB |
| Power Supply | Tridonic/ Osram/ Philips/ BOKE |
| Efficacy (lm/W) | 90 lm/ W |
| Lumen Output ±5% | 3000 LM |
| Beam Angle | 8°/ 10°/ 15° |
| CCT(K) | 2700/ 3000/ 4000/ 5000 K |
| CRI | Ra 83/ 92 /97 |
| PF | >0.9 |
| SDCM | <3 |
| UGR | <15 |
| Track Adapt | 2/ 3/4 /6 Wires |
| Material | Die-casting Aluminum |
| THD | <15 |
| IP Rate | IP 20 |
| Dimming | Non-dimming (Default)/1-10V/Dali/BLE |
| Certificate | CE/ RoHS/ CB/ TUV/ SAA/ C-Tick |
| Warranty | 5 years |
| QTY(PCS/Carton) | 12 |
| N.W.(KG/Carton) | 16.2 |
| Carton Size (mm) | 42*32*31 cm |
| G.W.(KG/Carton) | 18 |
Applications
Small angle track lights are becoming increasingly popular as an efficient lighting option for displaying applications.
8° / 10°/ 13° track lights are excellent for art museums, residential areas, colleges, exhibitions, showrooms, and other commercial lighting applications such as clothing stores (jewelry and watch stores), shopping malls, superstores, exhibitions, and so on.
Documents
2023.11.20
18.99KB
Faqs
-
Q.Does a guarantee cover the products from you?
A.Yes. We provide a 3-5 year warranty on all of our goods.
-
Q.Is it okay to print my company's logo on a led light product?
A.Yes. Before we begin production, kindly inform us in writing and validate the design using our sample.
