20/25/30 W Integrated Power Zoomable&Dimmable&Cct Track Light
Product Code: PS-TL25/30-I92Z
Certificate:
Add To Quote
25/30 W
Power
80/90/97 Ra
CRI
80-90 lm/W
Lumen Efficiency
Citizen
LED Chip
Tridonic
LED Driver
Description
Features

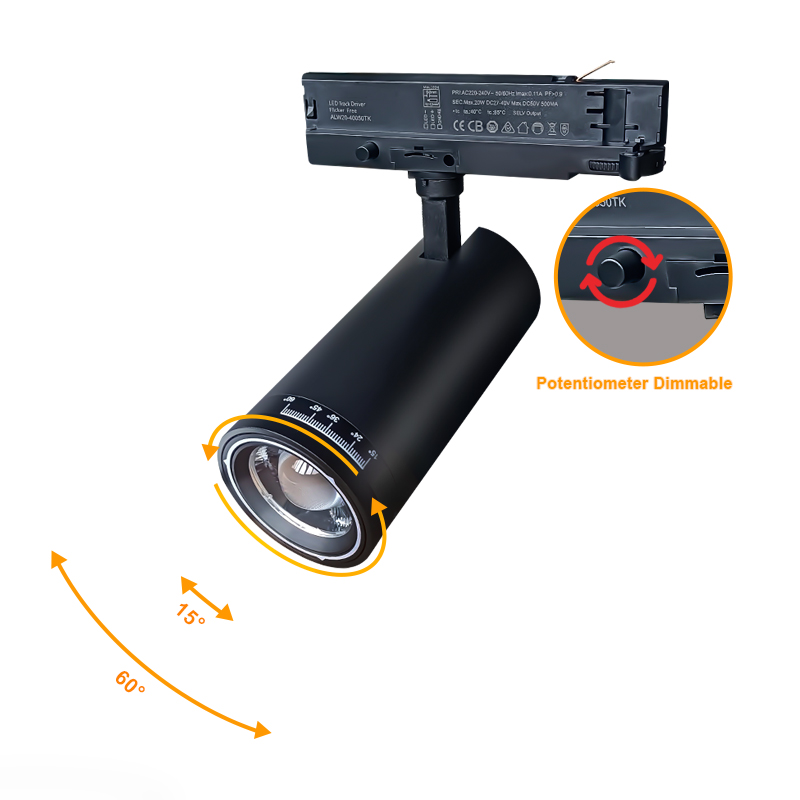

1. 15°–60° Adjustable Beam Angle: Smoothly adjust the beam from narrow to wide for different display sizes and lighting requirements.
2. Precise Zoom Control: Easily control the beam diameter and light concentration to highlight specific objects or display areas.
3. Integrated Dimming Function: Adjust the brightness directly on the fixture without installing an additional external dimmer.
4. Flexible Light Intensity: Create anything from soft ambient illumination to bright, focused accent lighting.
5. High Luminous Output: Delivers sufficient brightness for commercial displays, exhibitions, and high-demand accent lighting applications.
6. Uniform Light Distribution: Produces a smooth and evenly distributed beam with minimal dark spots or visible light irregularities.
7. Consistent Light Color: Maintains uniform brightness and color across the beam, helping to reduce chromatic aberration.
Specification Table
| Model | PS-TLI92Z | PS-TL30I92Z |
| Power | 25W | 30W |
| Product Size (mm) | D92*H205 mm | |
| Input Voltage | AC 220-240V 50/60 Hz | |
| LED Type | Citizen / Luminus / Cree COB | |
| Power Supply | Tridonic / Osram / Philips / Boke | |
| Efficacy (lm/W) | 80-90 LM/W | |
| Lumen Output±5% | 1800 LM | 2250 LM |
| Beam Angle | 15-60° | |
| CCT (K) | 2700 / 3000 / 4000 / 5000 / 5700 K | |
| CRI | Ra80 / Ra90 / Ra97 | |
| PF | >0.9 | |
| SDCM | <3 | |
| UGR | <15 | |
| Track Adaptor | 2/3/4/6 wires | |
| Material | Die-Casting Aluminum | |
| THD | <15 | |
| IP Rate | IP20 | |
| Input Voltage Shock |
<380V AC | |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | |
| Switching Cycles | >100,000 switching cycles | |
| Withstand VoItage | 1/P-0/P:3750 V AC | |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | |
| Lifetime | Nominal lifetime up to 100,000H | |
| Operating Temperature | -20~50 ℃ | |
| Operating Humidity | 5-85% RH, non-condensing | |
| Operating Humidity | 5-85% RH, non-condensing | |
| Storage Temp./Humidity |
-40~80°C, 5-85% RH, non-condensing | |
| Dimming | Yes | |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |
| Warranty | 5 Years | |
| QTY/CTN Size | 15 PCS / 445*275*280 mm | |
| N.W. / G.W. | 15.5 / 17.5 kg | |
Applications
Englumia zoomable LED track lights deliver precise, uniform illumination with smooth beam transitions, minimal stray light, and an adjustable 15°–60° beam angle.
Ideal for museums, galleries, retail displays, and workspaces, they accurately highlight artwork, cultural relics, and featured objects while preserving consistent light color.
FAQS
-
Q.What is the adjustable beam angle of this LED track light?
A.Yes. Before we begin production, kindly inform us in writing and validate the design using our sample.
-
Q.How do I adjust the beam angle?
A.Simply rotate the front section of the lamp body to change the beam from a concentrated spotlight to a wider floodlight.
-
Q.What color temperatures are available?
A.The built-in CCT switch allows users to select 2700K, 4000K, or 5700K, covering warm white, neutral white, and cool white lighting.
-
Q.Does it require an additional wall dimmer?
A.No additional external dimmer is required for the built-in potentiometer dimming function. The brightness can be controlled directly on the fixture.
-
Q.What power options are available?
A.This zoomable track light is available in 25W, and 30W versions to meet different brightness and installation requirements.
-
Q.Do your products come with a warranty?
A.Yes. All our products are covered by a 3–5-year warranty, depending on the product model and configuration.
