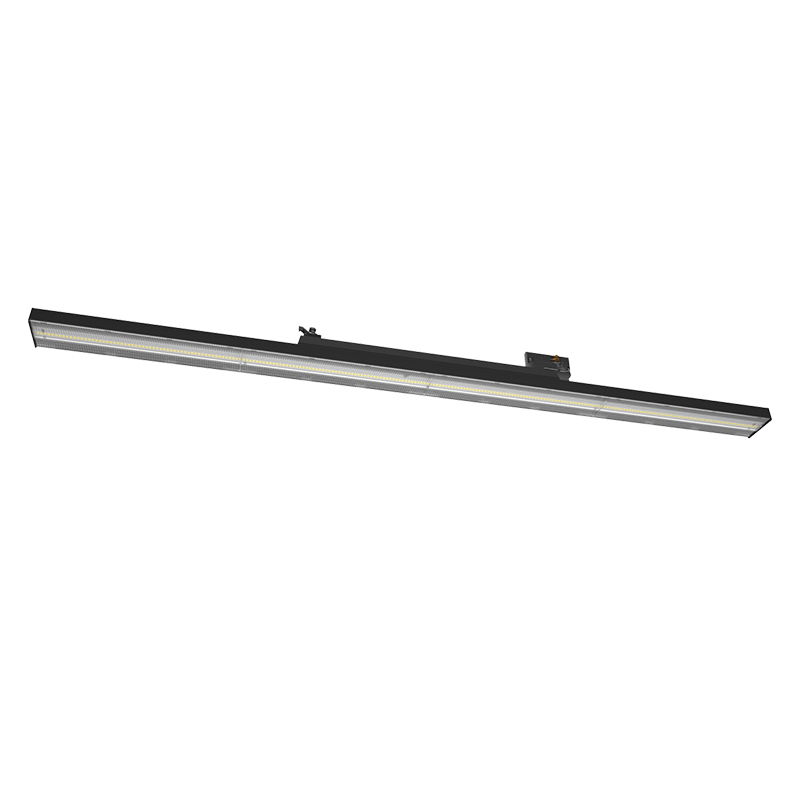

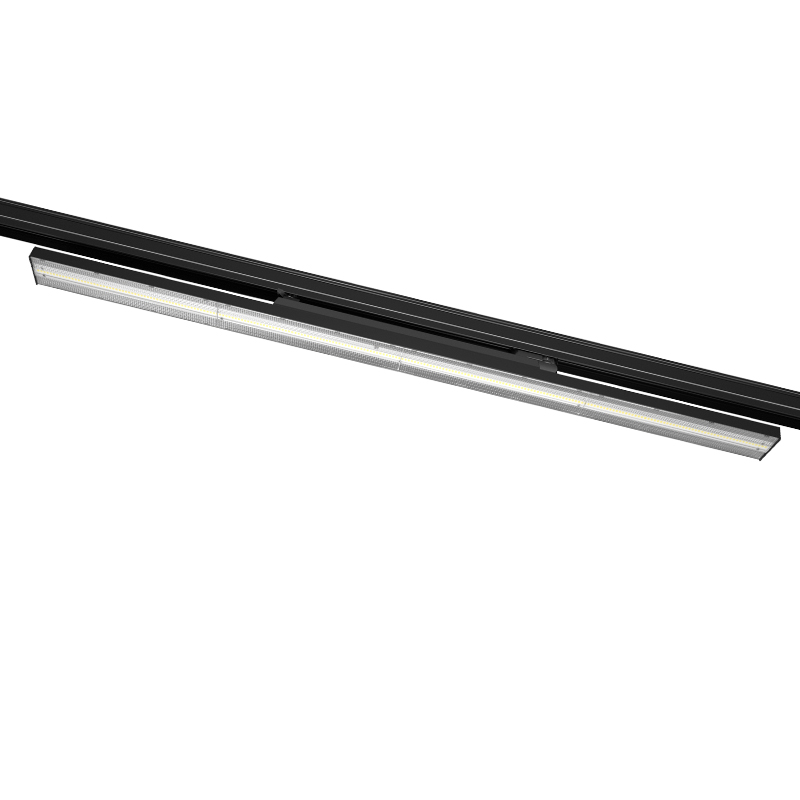

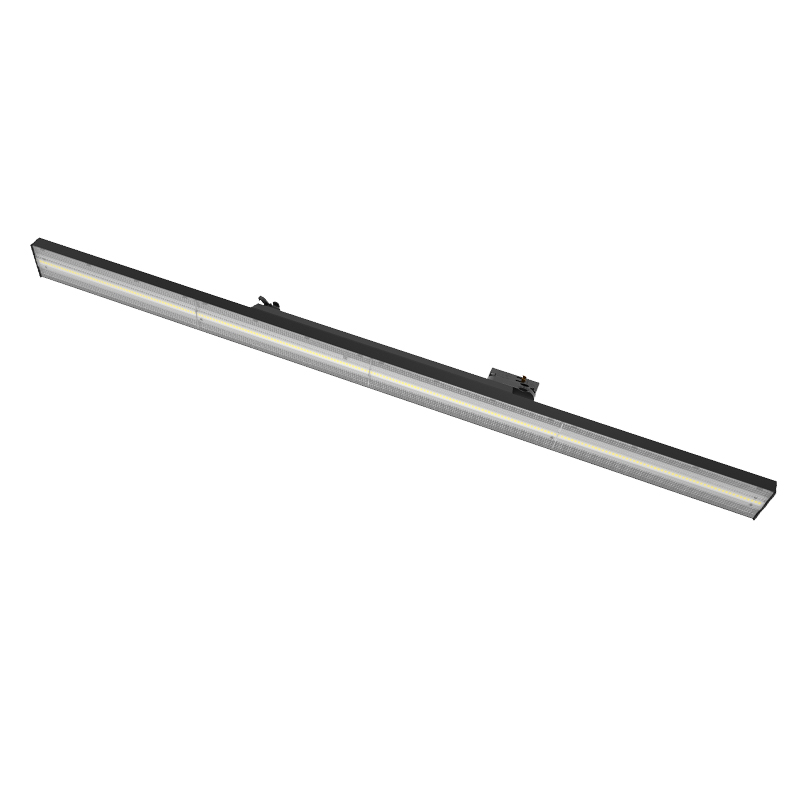

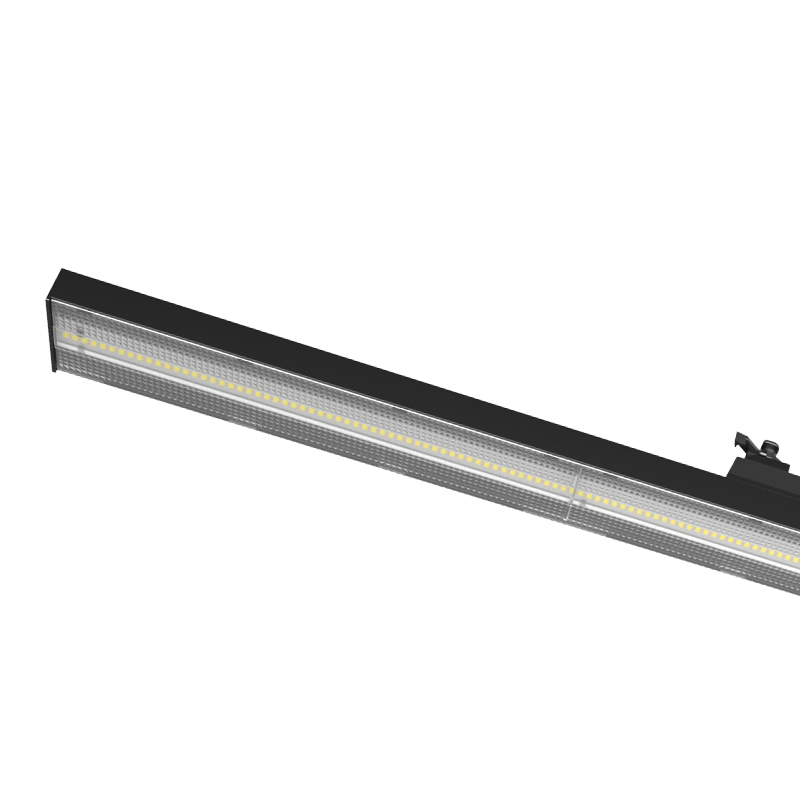

35-70W Turnable Dali DT8 Led Track Linear Light
Product Code: PS-TL70WL64
The DALI DT8 LED Track Linear Light delivers high-efficiency commercial lighting with adjustable 35–70W output and up to 150 lm/W performance. Using Lumileds/Osram LEDs, a flicker-free driver, and anti-glare optics, it provides bright, uniform, and comfortable illumination. Multiple beam angles (30°/60°/90°) offer flexibility for retail, supermarket, and office applications. With full DALI DT8 control, the fixture supports dimming, color tuning, and scene management for smart-building integration. Its die-cast aluminum housing ensures excellent heat dissipation and long-term reliability, making it a professional choice for modern lighting projects.
Certificate:
Add To Quote
35-70W
Power
80Ra/90Ra
CRI (Ra)
IP20
IP Rating
30x90° / 60x110° / 90x110° / LR25° / P18°
Beam Angle
220~240v
Voltage
Specification Table
| Model | PS-TL70L64 |
| Power | 35-70W adjustable |
| Product size(mm) | W64*L1148*H96 |
| Input Voltage | AC220-240V 50/60Hz |
| LED Type | SMD 2835 |
| Power Supply | Tridonic / Osram / Philips / Boke |
| Efficacy(lm/W) | 140LM-150LM/W |
| Lumen Output±5% | 7000LM-7500LM |
| Beam Angle | 30×90° / 60×110° / 90×110° / LR25° / P18° |
| CCT (K) | 2700 / 3000K / 4000K / 5000K |
| CRI | Ra83 / Ra92 |
| PF | >0.9 |
| SDCM | <3 |
| UGR | <19 |
| Track Adapt | 2/3/4/6wires Powergear /Global |
| Material | Die-Casting Aluminum |
| THD | <15 |
| IP Rate | IP20 |
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 5 Years |
| Q’TY(PCS)/carton | 8pcs |
| N.W.(KG/carton) | 16kg |
| Carton Size(mm) | 1210*320*220mm |
| G.W.(KG/carton) | 18.5kg |
Applications
The PS-TL70WL64 Dali DT8 Led Track Linear Light is ideal for a wide range of commercial and retail lighting environments, including shopping malls, fashion stores, supermarkets, showrooms, and car dealerships. With its high efficiency, adjustable wattage, and multiple beam angle options, it delivers both precise accent lighting and uniform general illumination—perfect for enhancing merchandise visibility, improving customer experience, and creating a premium retail atmosphere.
Beyond retail spaces, this LED track light also performs exceptionally well in office areas, meeting rooms, libraries, galleries, and public buildings, providing comfortable and glare-free lighting for long working hours. Thanks to its full DALI integration, the fixture supports intelligent control, automated dimming, and centralized management, making it a reliable choice for modern smart-building lighting projects with strict energy-saving and performance requirements.
Documents
2022.09.20
2119.52KB
Faqs
-
Q.Does a guarantee cover the products from you?
A.Yes. We provide a 3-5 year warranty on all of our goods.
-
Q.Is it legal to print my company's logo on a led light product?
A.Yes. Before we begin production, kindly inform us in writing and validate the design using our sample.
