160LM/W High-Efficiency Led Track Spot Light 30W/35W
Product Code: PS-TL30/35W-A90H
Certificate:
30/35W
Power
92/97Ra
CRI
160Lm/W
Lumen Efficiency
Citizen / Luminus / Cree
Led Chip
Tridonic / Osram / Philips
Led Driver
Specification Table
| Model | PS-TL30/35W-A90H |
| Power | 30/35W |

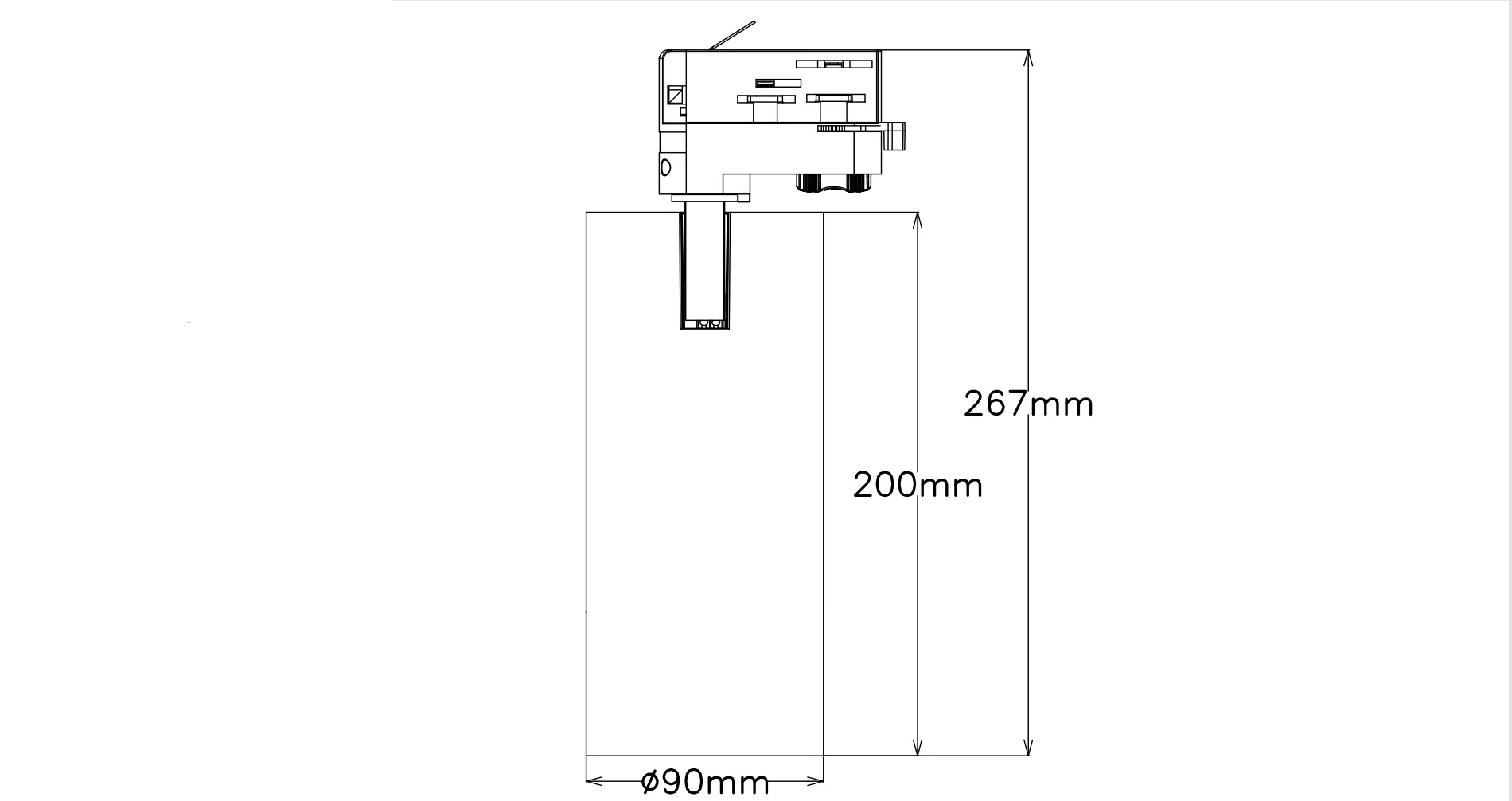

| Product size(mm) | D90*H200mm |
| Input Voltage | AC220-240V 50/60Hz |
| LED Type | Citizen/Luminus/Cree/ Bridgelux COB |
| Power Supply | Tridonic / Osram / Philips / Boke |
| Efficacy(lm/W) | 160LM/W |
| Beam Angle | 15°/24°/38°/60°/(20°/30°/45°/60°) |
| CCT (K) | 2700/3000K/4000K/5000K |
| CRI | 90/97 Ra |
| PF | >0.9 |
| SDCM | <5 |
| UGR | <19 |
| Track Adapt | 2/3/4/6wire |
| Material | Die-Casting Aluminum |
| THD | <15 |
| IP Rate | IP20 |
| Input Voltage Shock | <380VAC |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) |
| Switching Cycles | >100,000 switching cycles |
| Withstand VoItage | 1/P-0/P:3750VAC |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) |
| Life-time | Nominal life-time up to 100,000H |
| Operating Temperature | -20~50°C |
| Operating Humidity | 5-85% RH, non-condensing |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing |
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 5 Years |
| Q’TY(PCS)/carton | 12pcs |
| N.W.(KG/carton) | 12.5kg |
| Carton Size(mm) | 420*320*310mm |
| G.W.(KG/carton) | 14kg |
Applications
- Car Showrooms & 4S Stores: Highlights the sleek metallic lines, glossy finishes, and sharp contours of premium vehicles with crisp, high-efficacy accent lighting that captures customer attention.
- Museums & Art Galleries: Utilizes the precise CRI 90+ optical output to faithfully reproduce artwork textures and vibrant colors while maintaining zero UV/IR damage to sensitive exhibits.
- High-End Fashion & Luxury Retail: Enhances texture depth, fabric rich tones, and brand positioning through flexible track positioning and low-glare (UGR<19) visual luxury.
- Smart Office & Commercial Atriums: Integrates flawlessly into human-centric wellness spaces and office common areas via intelligent DALI dimming networks to align with natural circadian schedules.
Faqs
-
Q.What brands of components are used?
A.We use Citizen/Cree/Bridgelux chips and Osram/Tridonic/BOKE/Eaglerise drivers for maximum reliability.
-
Q.What is the benefit of the 160lm/W version?
A.It delivers maximum brightness with minimal power consumption, drastically cutting energy bills.
-
Q.Does it support smart building systems?
A.Yes, it fully supports DALI, 0-10V, and Triac dimming protocols for smart automation.
-
Q.Is the DALI dimming smooth and stable?
A.Yes, our DALI-2 configuration ensures smooth, flicker-free dimming curves without brightness surges.
-
Q.Can it be used for high-end color-critical displays?
A.Yes, we offer up to museum-grade CRI 97Ra to highlight true product colors and textures.
-
Q.What beam angle options are available?
A.It offers flexible dual optics with beam angles ranging from a narrow 15° to a wide 60°.
-
Q.Is it compatible with standard track rails?
A.Yes, it is universally compatible with both 1-phase and 3-phase track systems.
-
Q.What is the warranty and certification status?
A.It comes with a 5-year warranty and carries global certifications including CE, CB, SAA, RoHS, and CCC.
