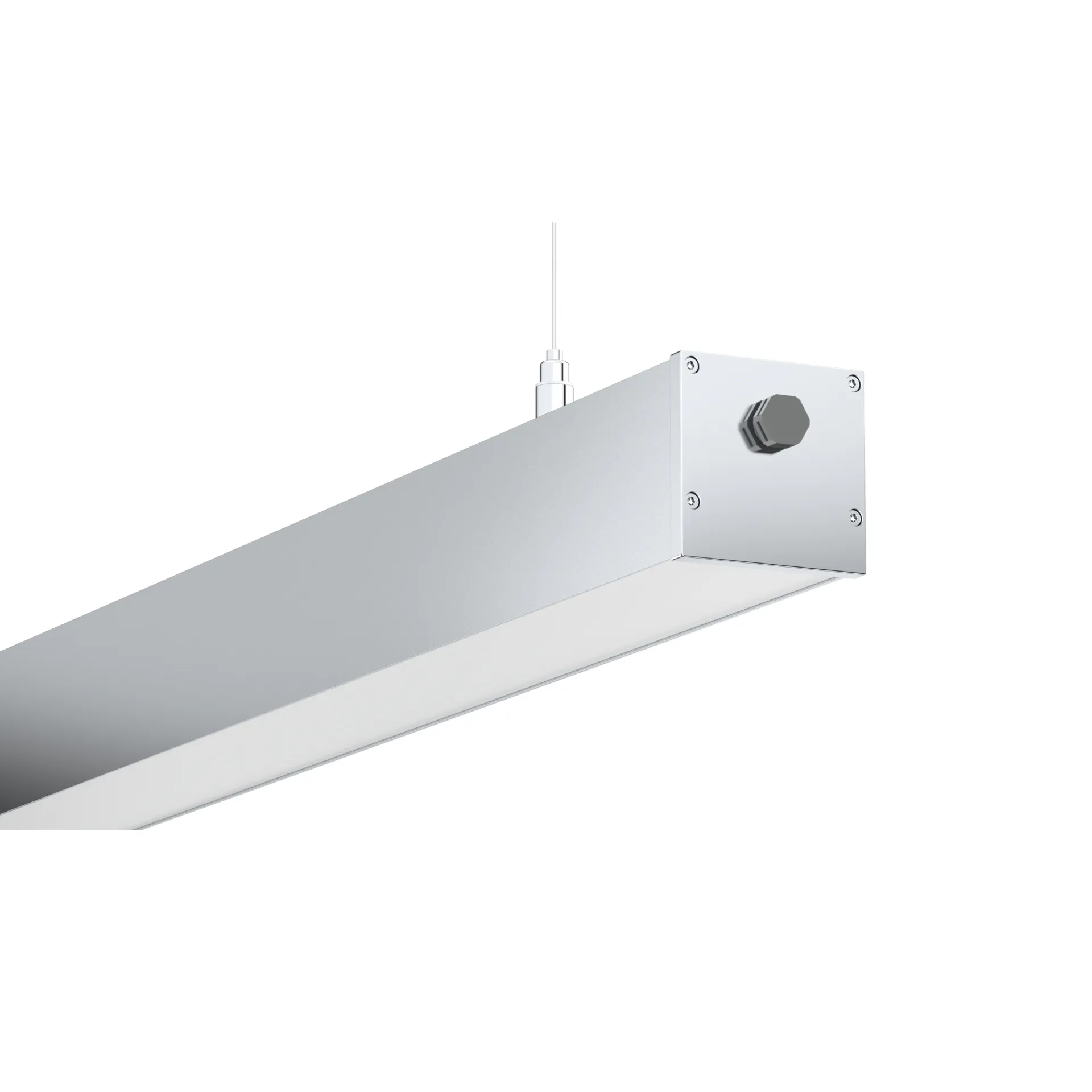

IP65 Waterproof Linear Light for Commercial Indoor Lighting | Surface & Suspended Led Linear Fixture

Product Code: PS-LL20-80W-IP65

IP65 waterproof protection for humid and dusty indoor spaces.
160° wide beam for bright, uniform illumination.
Aluminum housing for efficient cooling and long lifespan.
Ideal for warehouses, supermarkets, parking garages, and workshops.

Certificate:

Request Info

Add To Quote

20-80W

Power

80/90Ra

CRI

120-130lm/w

Lumen Efficiency

SMD 2835

LED Chip

Inventronics / Osram / Tridonic

LED Driver

Description

Designed for demanding commercial indoor environments, this IP65 Waterproof Linear Light combines high-performance lighting with a sleek architectural appearance. Its aluminum housing, wide beam distribution, and waterproof construction make it an ideal solution for supermarkets, warehouses, logistics centers, parking garages, and industrial facilities. Available in multiple sizes, wattages, and mounting options, it delivers reliable, energy-efficient illumination while reducing maintenance costs.

IP65 Waterproof Protection: The sealed housing protects against dust, moisture, and water splashes, ensuring reliable performance in humid commercial and industrial environments.
High Luminous Efficacy: Delivers 120–130 lm/W for bright, energy-efficient lighting while reducing electricity consumption.

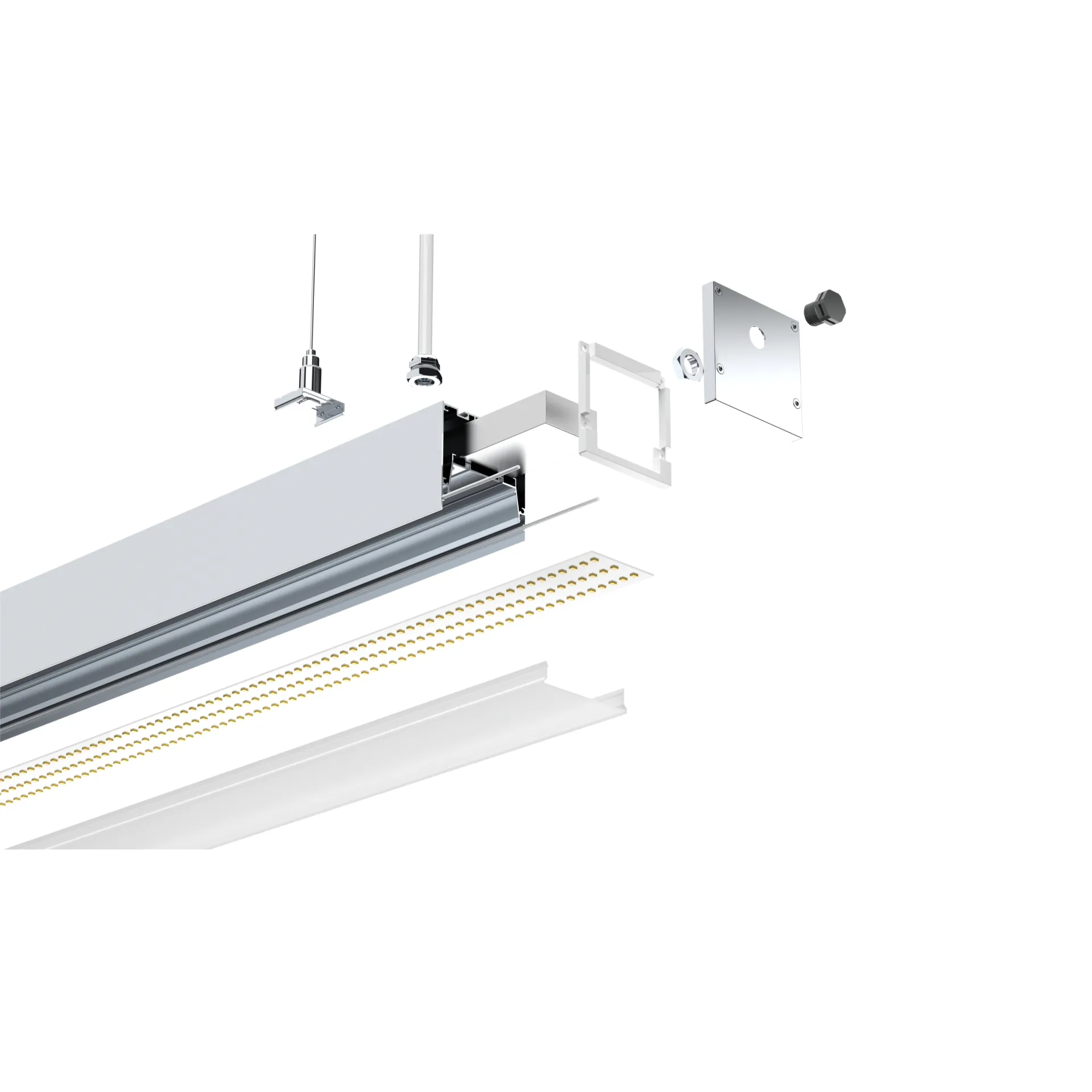

Premium Aluminum Housing: 6063-T5 aluminum construction provides excellent heat dissipation, improving lumen maintenance and extending fixture lifespan.
Wide 160° Beam Distribution: The optical PC diffuser creates soft, uniform illumination with broad coverage, reducing fixture quantity while improving visual comfort.

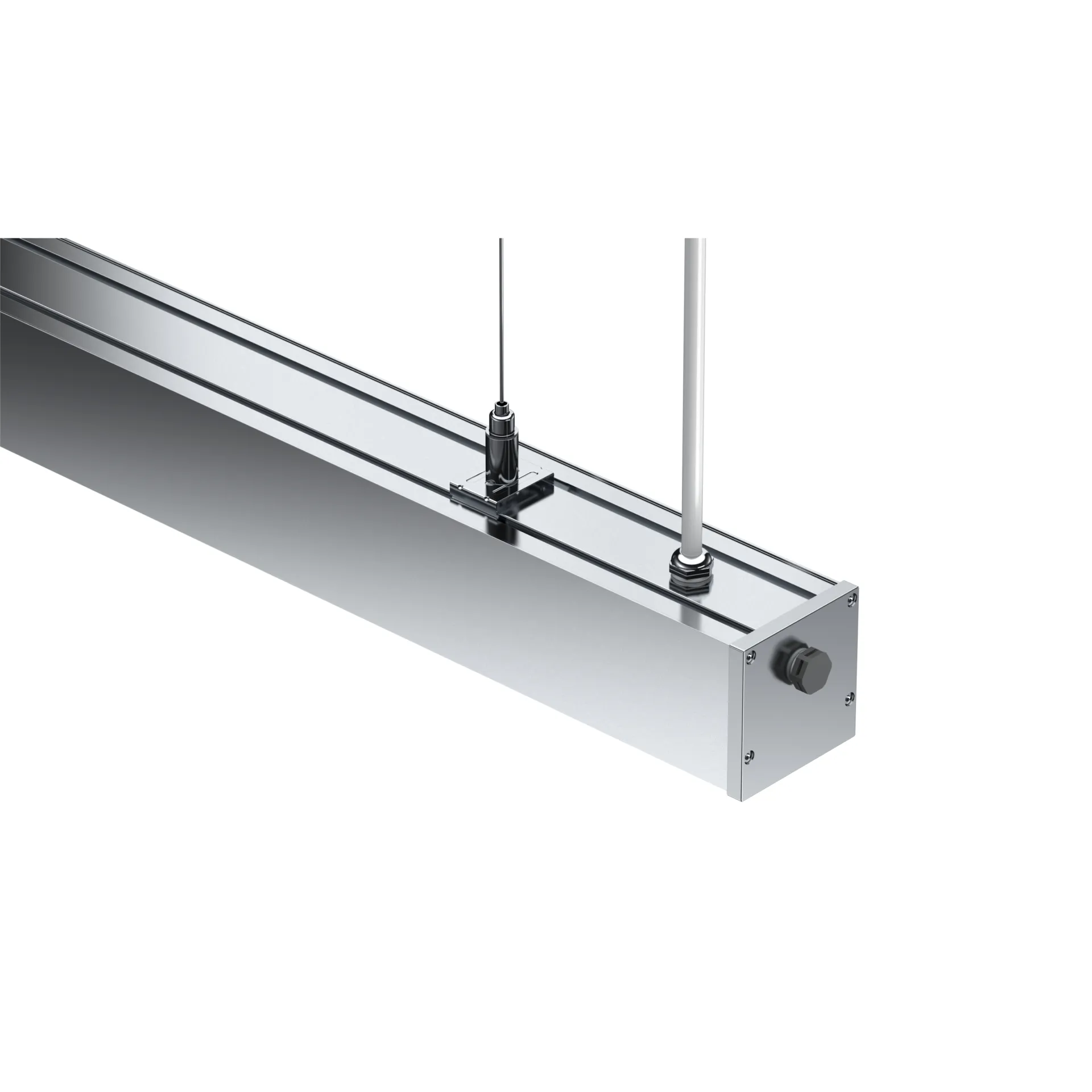

Anti-Condensation Design: An integrated waterproof breather valve balances internal air pressure to minimize condensation and protect internal components.
Flexible Installation: Supports suspended, surface-mounted, and square tube installations, making it suitable for various ceiling structures and renovation projects.
Modern Commercial Design: Available in white, black, and silver finishes, combining industrial durability with a clean architectural appearance for commercial interiors.

Specification Table

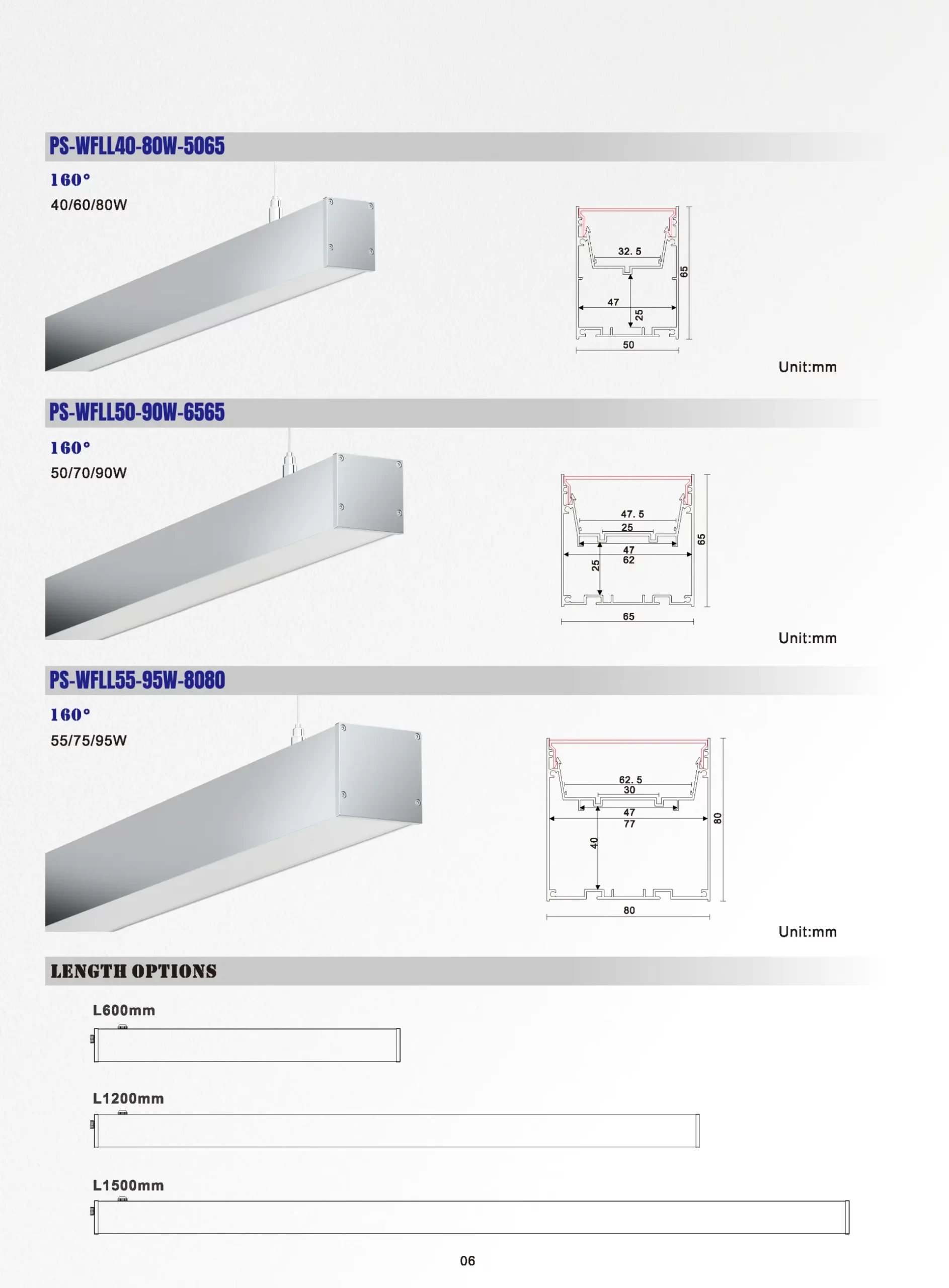

Model	PS-LL20-80W-IP65-5065	PS-LL20-80W-IP65-6565	PS-LL20-80W-IP65-8080
Power	20-80 W
Product size(mm)	L600/1200/1500W50H65 mm	L600/1200/1500W67.5H67.5 mm	L600/1200/1500W82.5H82.5 mm
Input Voltage	AC220-240V 50/60Hz
LED Type	SMD 2835
Power Supply	Inventronics / Osram / Tridonic
Efficacy(lm/W)	120-130LM/W
Beam Angle	160°
CCT (K)	2700/3000/3500/4000/5000 K
CRI	Ra80/90/97
PF	>0.9
SDCM	<5
UGR	<19
Material	6063-T5 Aviation-Grade Aluminum
THD	<15
Input Voltage Shock	<380V AC
Start/Switchover/Turn off	<0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off)
Switching Cycles	>100,000 switching cycles
Withstand VoItage	1/P-0/P:3750V AC
Mainssurge Capability	L-N:2KV(90%/270°, 5 times each with an interval of 60s)
Life-time	Nominal life-time up to 100,000H
Operating Temperature	-20~50°C
Operating Humidity	5-85% RH, non-condensing
Storage Temp./Humidity	-40~80°C, 5-85% RH, non-condensing

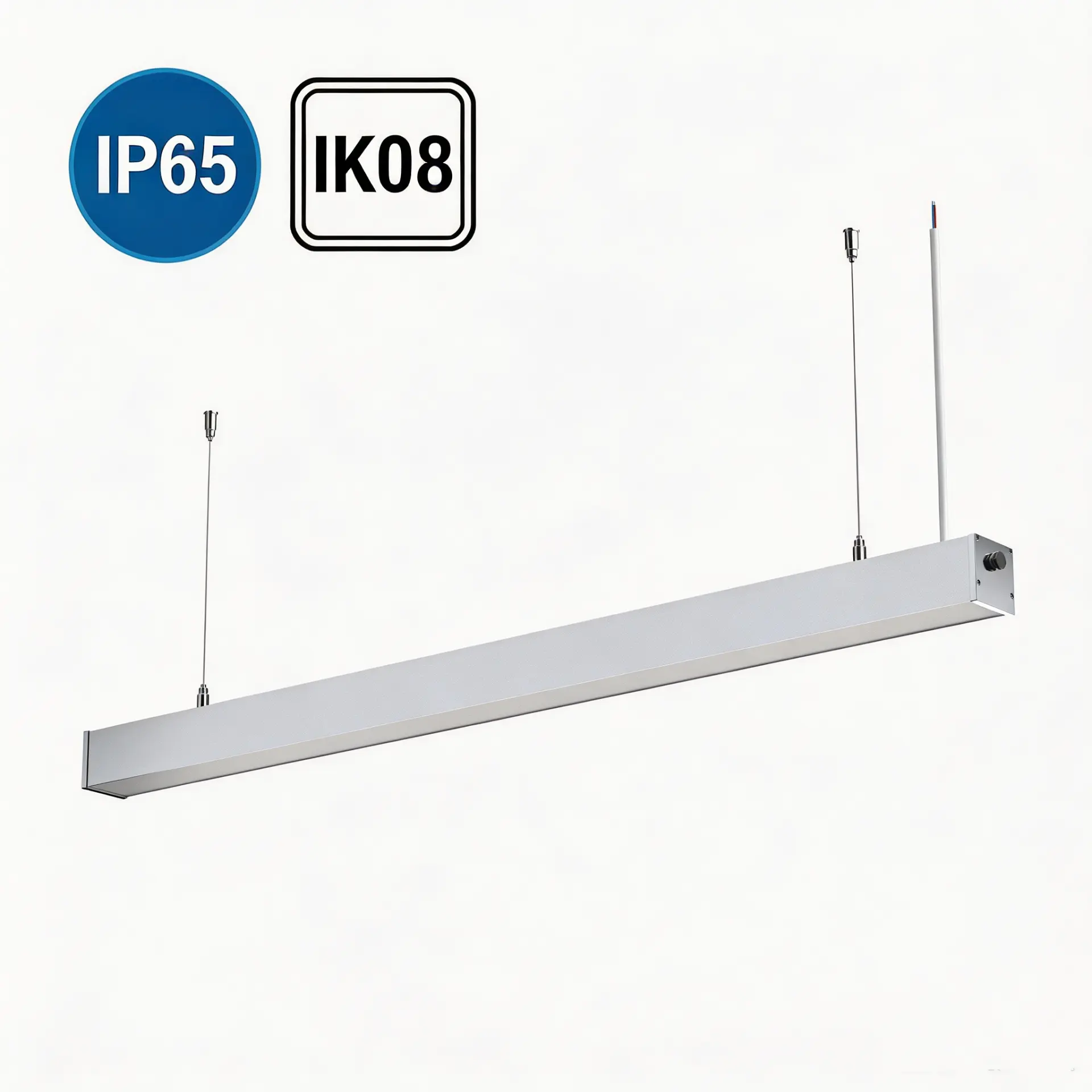

IP Rate	IP65 / IK08
Dimming	Non-dimming (Default) /1-10V / Dali/BLE dimming
Certificate	CE/RoHS/CB/TUV/SAA/C-Tick
Warranty	5 Years

Applications

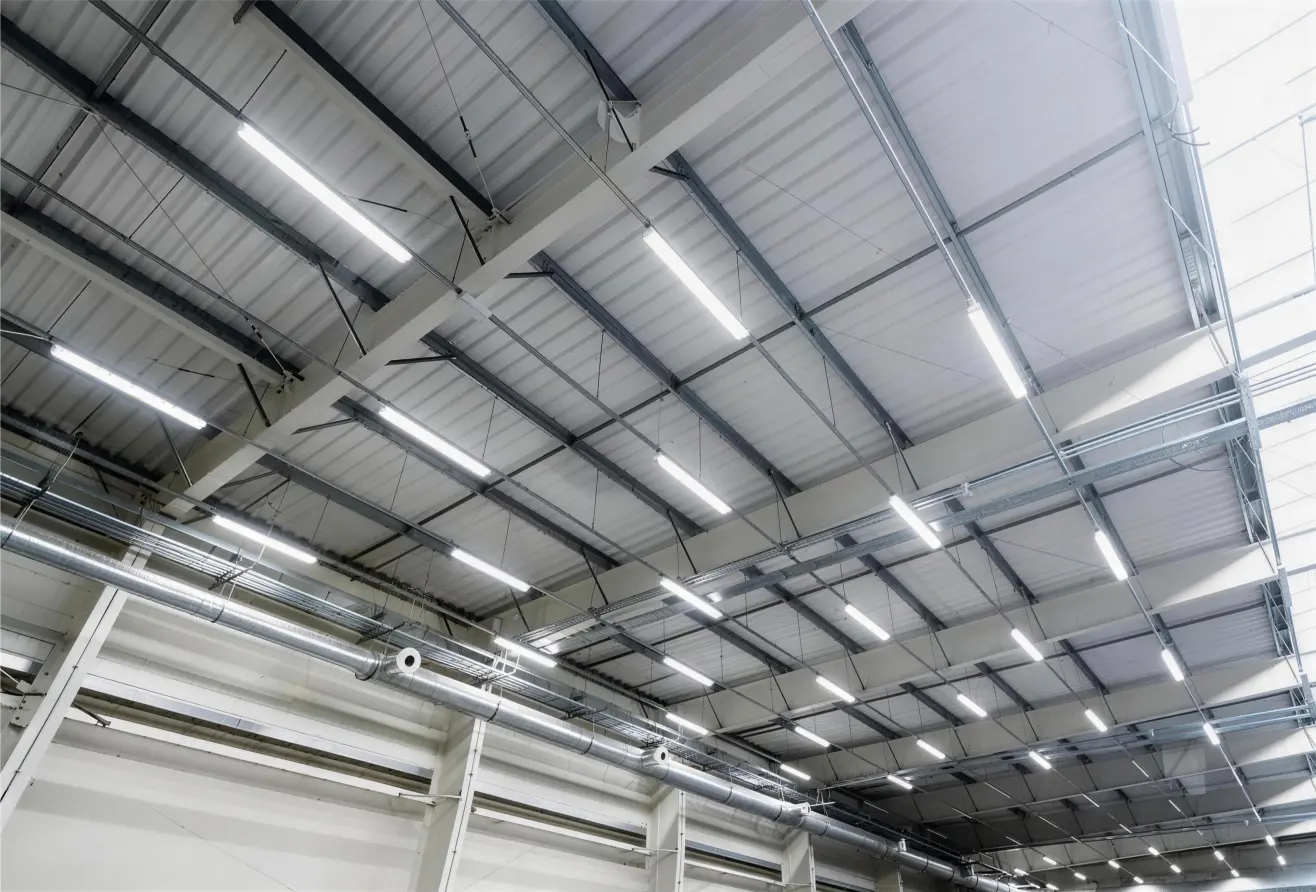

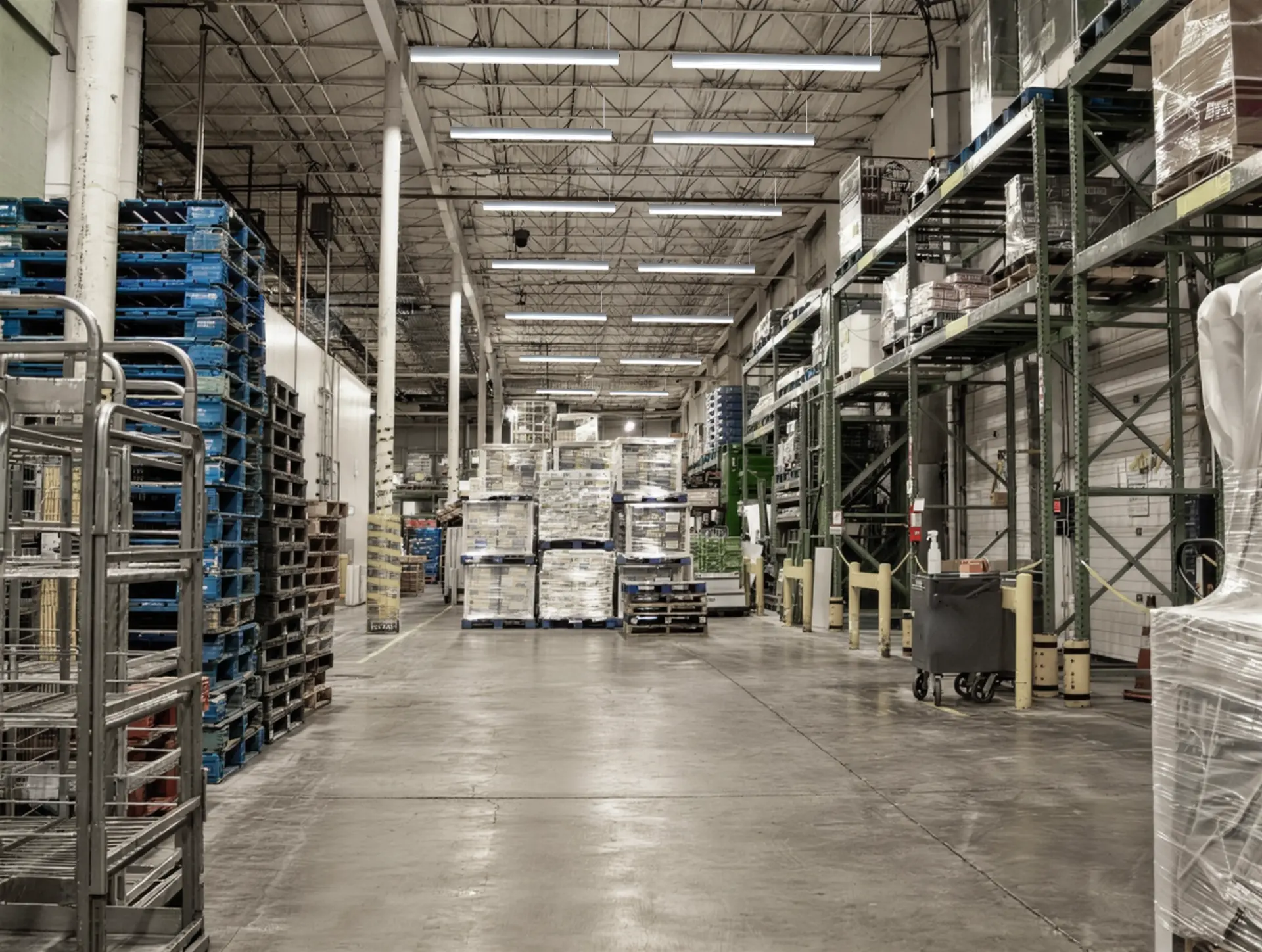

Warehouse Lighting: Provides bright, uniform illumination for storage aisles, loading areas, and logistics operations while reducing maintenance requirements.
Supermarket Lighting: Creates comfortable, glare-reduced lighting that enhances product visibility and improves the shopping experience.

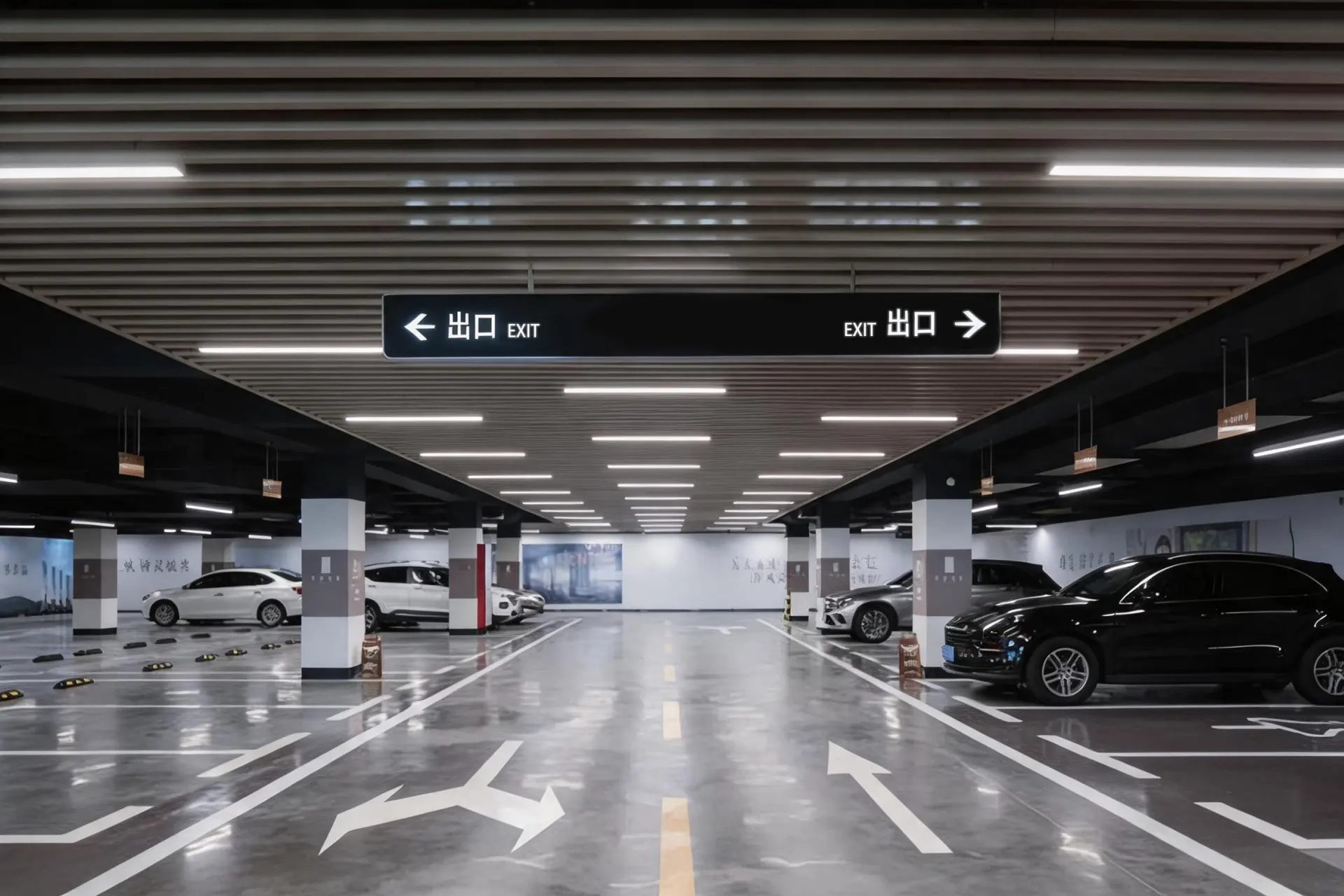

Underground Parking Garage: The IP65 waterproof housing withstands humidity, dust, and vehicle exhaust, ensuring reliable long-term performance.
Industrial Workshop: Delivers stable, high-quality lighting for production lines, assembly areas, and manufacturing facilities with excellent durability.

Documents

2026.06.17

1625.90KB

Faqs

Q.Is this Waterproof Linear Light suitable for humid indoor environments?

A.Yes. Its IP65-rated housing protects against dust and water ingress, making it ideal for humid commercial and industrial applications.

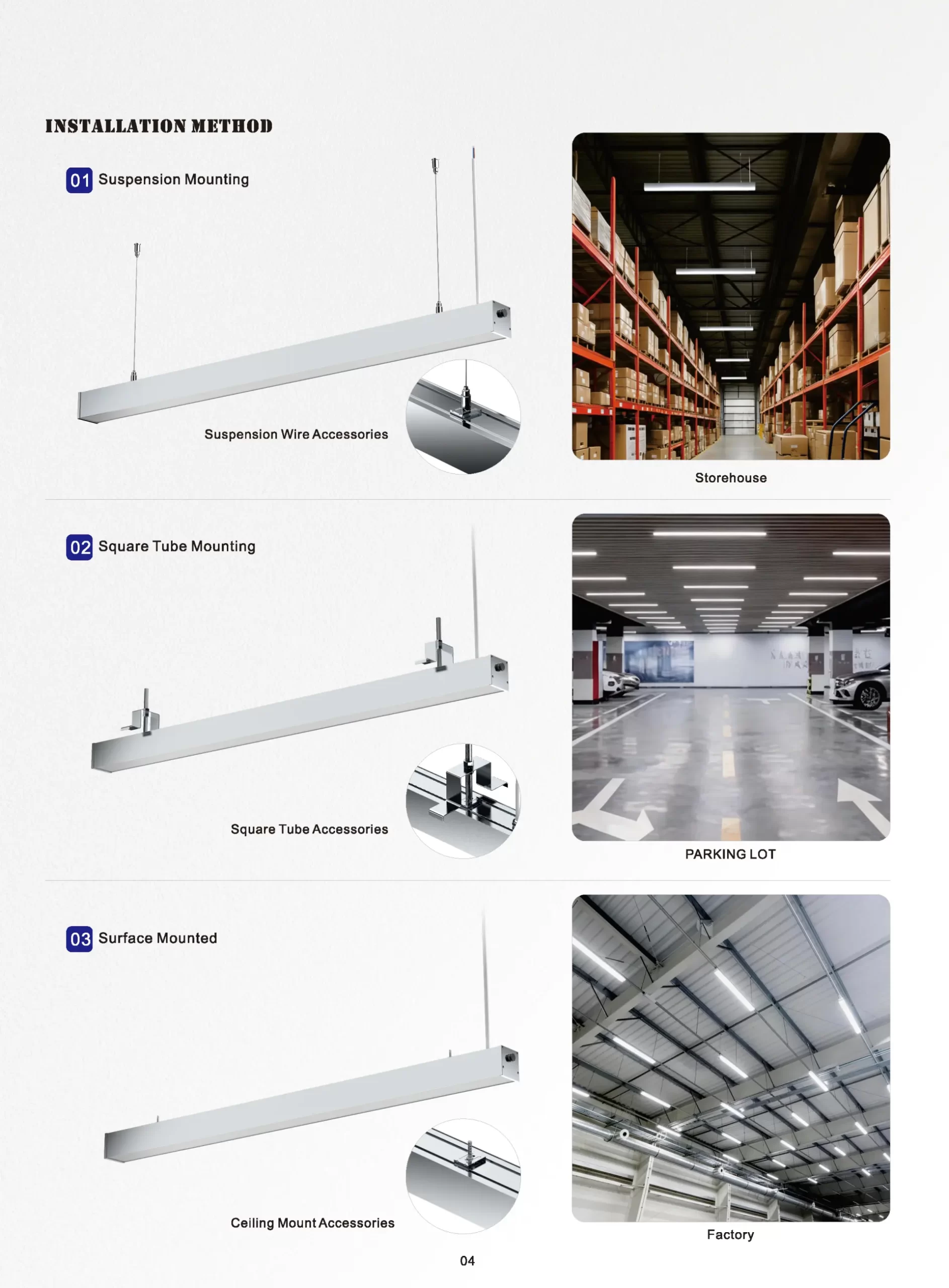

Q.What installation methods are available?

A.The fixture supports surface mounting, suspended installation, and square tube mounting accessories.
Q.Can I customize the fixture length?

A.Yes. Standard lengths include 600 mm, 1200 mm, and 1500 mm, with custom lengths available for project requirements.
Q.Does the fixture reduce internal condensation?

A.Yes. An integrated waterproof breather valve balances air pressure and helps minimize internal moisture caused by temperature changes.
Q.What beam angle does the fixture provide?

A.It features a 160° wide beam angle with an optical PC diffuser for smooth and uniform light distribution.
Q.Which commercial applications is this product designed for?

A.It is suitable for warehouses, supermarkets, logistics centers, underground parking garages, workshops, retail stores, and other commercial indoor spaces.
Q.What housing colors are available?

A.White, black, and silver finishes are available to match different architectural and commercial environments.
Q.Why choose an aluminum housing instead of a plastic fixture?

A.The aluminum housing offers better heat dissipation, improved structural strength, longer lifespan, and a more premium appearance.
