Dual Head Led Track Wall Wash Light for Supermarket Shelf Lighting
Product Code: PS-TL40/45/50W-DW86
Certificate:
40/45/50W
Power
83/92/97Ra
CRI
160LM/W
Lumen Efficiency
Citizen / Luminus / Bridgelux / Cree
LED Chip
Osram / Tridonic / BOKE
Driver
Specification Table
| Model | PS-TL40/45/50W-DW86 |
| Power | 40/45/50W |

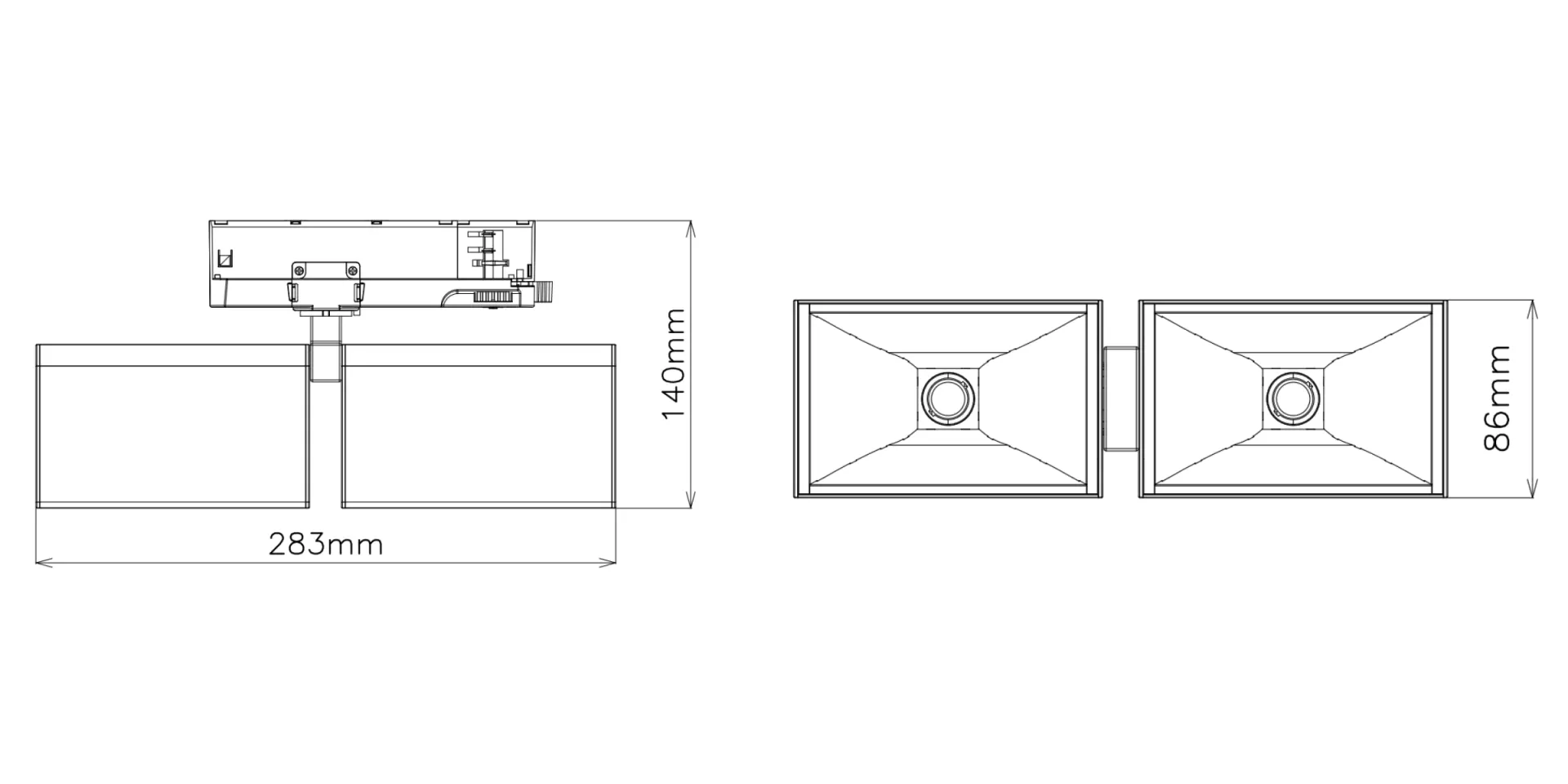

| Product size(mm) | W86*L283mm |
| Input Voltage | AC220-240V 50/60Hz |
| LED Type | Citizen/Luminus/Cree COB |
| Power Supply | Tridonic / Osram / Philips / Boke |
| Efficacy(lm/W) | 160LM/W |
| Beam Angle | 55°×90° |
| CCT (K) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | Ra83/Ra92/Ra97 |
| PF | >0.9 |
| SDCM | <3 |
| UGR | <19 |
| Track Adapt | 2/3/4/6wire |
| Material | Die-Casting Aluminum |
| THD | <15 |
| IP Rate | IP20 |
| Input Voltage Shock | <380VAC |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) |
| Switching Cycles | >100,000 switching cycles |
| Withstand VoItage | 1/P-0/P:3750VAC |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) |
| Life-time | Nominal life-time up to 100,000h |
| Operating Temperature | -20~50°C |
| Operating Humidity | 5-85% RH, non-condensing |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing |
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 5 Years |
| QTY/CTN Size | 10 PCS / 420*320*310 mm |
| NW/GW | 14.6 kg /15.8 kg |
Applications
- Supermarket Shelf Lighting
Illuminate both shelving rows from a single track, reducing fixture quantity while improving product visibility.
- Retail Stores
Create bright and uniform lighting for merchandise displays to enhance the customer shopping experience.
- Museums & Galleries
Deliver smooth vertical illumination with high CRI for artwork, exhibition panels, and display walls.
- Hypermarkets & Warehouse Stores
Provide powerful and efficient lighting for tall shelving, wide aisles, and large commercial spaces.
FAQ
-
Q.Why choose a dual head track wall wash light?
A.The dual-head design illuminates both sides of an aisle simultaneously, reducing fixture quantity, installation costs, and maintenance requirements.
-
Q.What applications is this fixture suitable for?
A.It is ideal for supermarkets, hypermarkets, retail stores, museums, galleries, showrooms, and commercial display areas.
-
Q.Does it support intelligent lighting control?
A.Yes. The fixture supports On-Off, Triac, 0-10V, and DALI dimming for flexible lighting management.
-
Q.What beam angle does it use?
A.It features a specially designed 55°×90° asymmetric optical system that provides smooth and uniform vertical illumination.
-
Q.What color rendering options are available?
A.CRI 83, CRI 92, and CRI 97 are available to meet different retail and exhibition lighting requirements.
-
Q.Which track systems are compatible?
A.The fixture is compatible with both single-phase and three-phase track systems for commercial lighting projects.
-
Q.How does it help reduce project costs?
A.By replacing two conventional fixtures with one dual-head fixture, it lowers equipment, installation, wiring, and maintenance costs.
-
Q.Is it suitable for high-ceiling supermarkets?
A.Yes. The 45W and 50W versions are designed for higher mounting heights and large retail spaces requiring strong vertical illumination.
