The High Power Commercial LED Downlight in the Berlin Series is designed for large commercial projects that require powerful, uniform, and comfortable lighting. Offering wattages up to 50W, it is especially suitable for high-ceiling environments where standard downlights cannot provide sufficient illumination. Combined with a deep reflector, high-efficiency LED technology, and multiple CRI options, the Berlin Series delivers excellent lighting performance while meeting international project standards.
Key Features
High Power Output: Available from 12W to 50W, providing sufficient illumination for spaces with ceiling heights from standard commercial areas to large public halls.
High Efficiency: Delivers up to 110 lm/W, reducing energy consumption while maintaining bright and consistent lighting.
Deep Reflector Design: The precision reflector and 60° beam angle create uniform light distribution with improved visual comfort and reduced glare.
Premium Color Rendering: Optional CRI 80, 90, and 97 accurately reproduce colors for retail, hospitality, museums, and architectural projects.
Excellent Heat Dissipation: Die-cast aluminum housing efficiently transfers heat, ensuring stable performance and a long service life.
L-N:2KV(90%/270°, 5 times each with an interval of 60s)
Life-time
Nominal life-time up to 100,000H
Operating Temperature
-20~50°C
Operating Humidity
5-85% RH, non-condensing
Storage Temp./Humidity
-40~80°C, 5-85% RH, non-condensing
Dimming
Non-dimming (Default) /1-10V / Dali/BLE dimming
Certificate
CE/RoHS/CB/TUV/SAA/C-Tick
Warranty
5 Years
QTY
36 PCS
20 PCS
12 PCS
10 PCS
CTN Size
46*34*36 mm
46*34*36 mm
58*44*24 mm
55*53.5*29.5mm
N.W.
10.8 KG
12 KG
11.52 KG
14.2 KG
G.W.
14 KG
18.5 KG
15.6 KG
20.5 KG
Applications
Hotel Lobbies & Atriums
High-power models provide sufficient illumination for ceilings between 4–8 meters while creating a welcoming atmosphere with warm white lighting.
Metro Stations & Transportation Hubs
Bright, uniform lighting improves visibility and passenger safety while reducing maintenance through long-lasting LED performance.
Shopping Malls & Commercial Buildings
High CRI and multiple wattage options deliver consistent lighting throughout open retail areas, corridors, and public spaces.
Exhibition Halls & Convention Centers
Powerful illumination and excellent color rendering enhance exhibitions, architectural features, and large indoor venues.
Documents
2022.03.05
1378.35KB
Faqs
Q.Is this downlight suitable for high ceilings?
A.Yes. With power options up to 50W, the Berlin Series is specifically designed for commercial spaces with higher ceilings such as hotel lobbies, airports, metro stations, and exhibition halls.
Q.Which wattage should I choose for my project?
A.Lower wattages (12W–20W) are suitable for standard commercial ceilings, while 30W–50W models are recommended for larger spaces and higher ceilings.
Q.Does the downlight provide anti-glare lighting?
A.Yes. The deep reflector and 60° beam angle help reduce glare while maintaining comfortable and uniform illumination.
Q.Which CRI option is recommended for retail or hospitality?
A.CRI 90 is ideal for most commercial projects, while CRI 97 is recommended for luxury retail stores, museums, galleries, and premium hospitality environments.
Q.What certifications does the Berlin Series have?
A.The product is certified with CE, ENEC, CB, TÜV Rheinland, SAA, RoHS, CCC, and ISO, making it suitable for international commercial projects.
Q.Can this downlight be used in renovation projects?

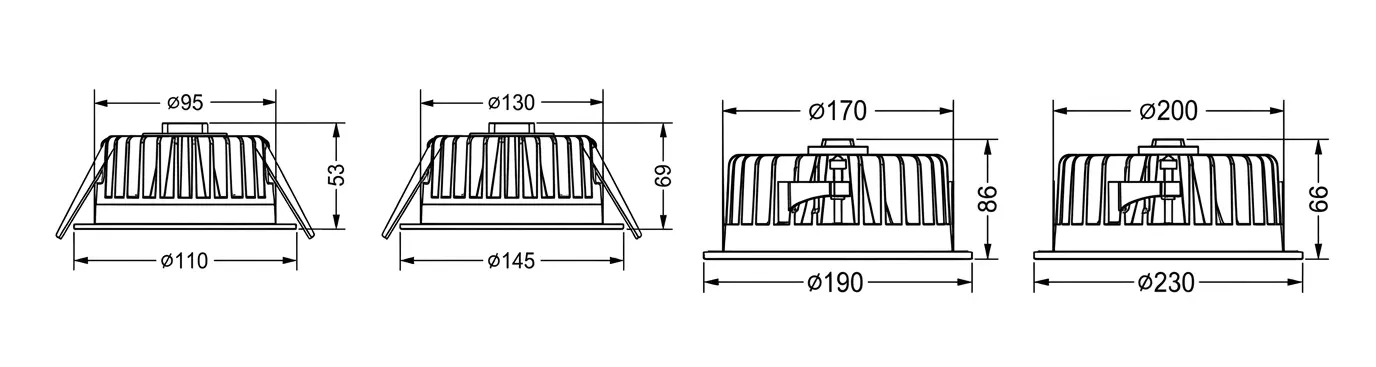

A.Yes. Multiple housing sizes and cutout dimensions make it suitable for both new installations and retrofit applications.
