High Efficiency Led Street Light 150LM/W for Commercial Outdoor Road Lighting
Product Code: PS-SL0050-200W-G01
Certificate:
Add To Quote
50-200W
Power
>70 (>80,>90 Optional)
CRI
150lm/w
Lumen Efficiency
SMD 2835
LED Chip
Inventronics/Sosen/Moso
LED Driver
Specification Table
| Model | PS-SL0050-G01 | PS-SL0100-G01 | PS-SL0150-G01 | PS-SL0200-G01 |
| Power | 50W | 100W | 150W | 200W |

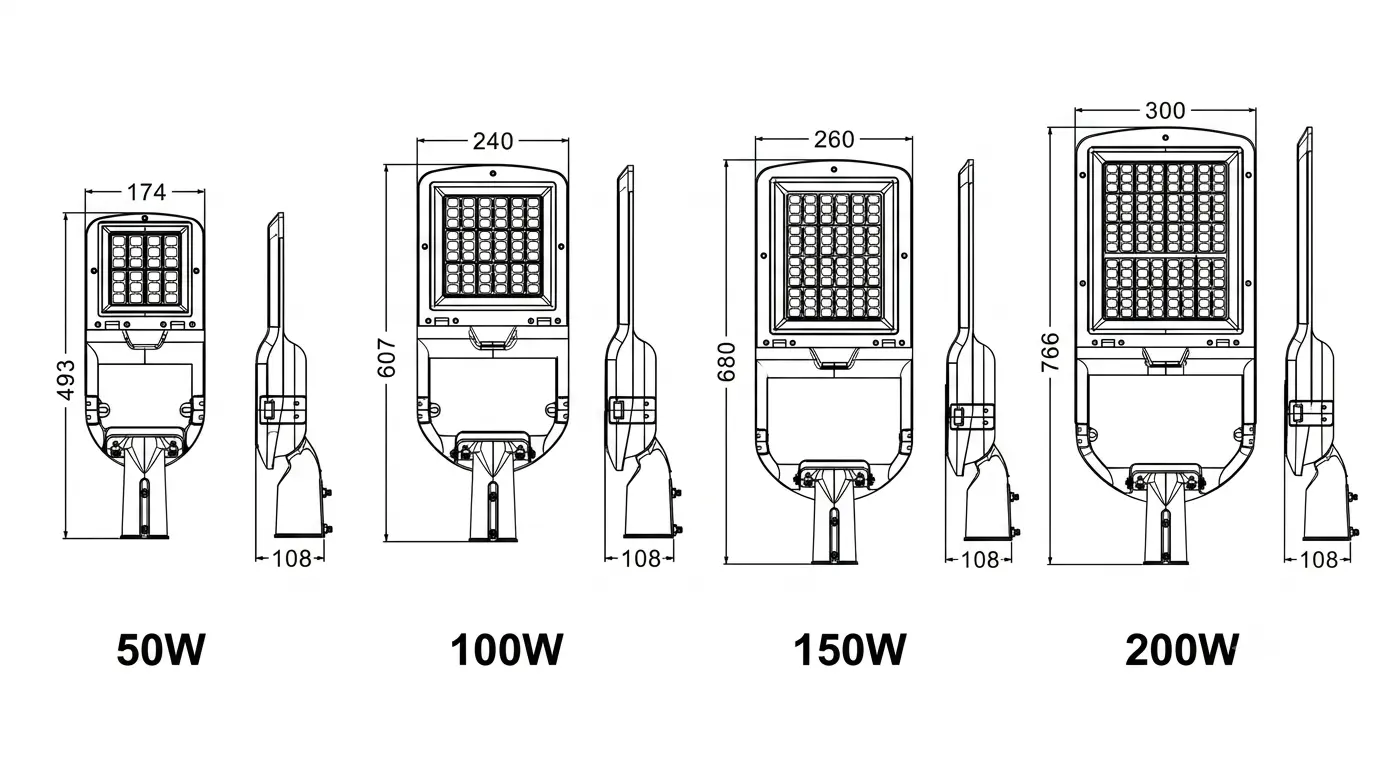

| Product size(mm) | L493*W174*H108 | L607*W240*H108 | L680*W260*H108 | L766*W300*H108 |
| Input Voltage | AC220-240V 50/60Hz | |||
| LED Type | SMD 2835 | |||
| Power Supply | Inventronics/Sosen/Moso | |||
| Efficacy(lm/W) | 150LM/W | |||
| Lumen Output±5% | 7500LM | 15000LM | 22500LM | 30000LM |
| Beam Angle | T2M/T3M/T4M | |||
| CCT (K) | 3000K/4000K/5700K | |||
| CRI | >70 (>80,>90 Optional) | |||
| PF | 0.95 | |||
| SDCM | <5 | |||
| Surge Protection | 10KV(20KV Optional) | |||
| Material | Aluminum,PC lens,Tempered glass | |||
| IK Rate | IK08 | |||
| IP Rate | IP66 | |||
| Control | On-off / 1-10V / DALI | |||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |||
| Pole Diameter | Ø42mm,Ø50mm,Ø60mm | |||
| Warranty | 5 Years | |||
| Hoursing Color | Grey | |||
| Finish | Powder Coating | |||
| Operating Temperature | -30 to +50°C | |||
| Life Span | >60,000Hrs@L70 | |||
| Net Weight(KG) | 3.6 | 5.3 | 5.8 | 7.5 |
Applications
- Shopping Mall Plazas
In shopping mall plazas, lighting plays a key role in shaping the overall atmosphere and attracting foot traffic. The G01 Air Series LED Street Light provides bright and uniform illumination, helping create a safe and welcoming environment for visitors. Its high efficacy ensures energy savings for large open areas that require long operating hours. With flexible beam angle options, it can adapt to different plaza layouts, highlighting pathways, gathering areas, and surrounding retail spaces while enhancing the overall visual appeal.
- Retail Parking Lots
For shopping mall parking lots, safety and visibility are critical. The G01 Air Series LED Street Light delivers consistent and glare-controlled lighting across wide parking areas. This improves visibility for both drivers and pedestrians, reducing potential risks during night-time use. Its high lumen output and optimized light distribution help eliminate dark spots, while the durable IP66-rated design ensures reliable performance in outdoor conditions. It is an ideal solution for commercial parking environments that require stable and long-term operation.
- Commercial Pedestrian Streets
In commercial pedestrian streets, lighting needs to balance functionality and atmosphere. The G01 Air Series LED Street Light provides comfortable and evenly distributed lighting that enhances the shopping experience. It helps create a pleasant night-time environment, encouraging longer visitor stays and increased activity. With multiple beam angle options, it can be tailored to different street widths and layouts, ensuring effective illumination for walkways, storefronts, and public spaces.
Faqs
-
Q.What applications is this LED Street Light suitable for?
A.This LED Street Light is designed for commercial outdoor lighting applications. It is ideal for shopping mall plazas, retail parking lots, commercial pedestrian streets, and hospitality environments such as hotels and resorts.
-
Q.Is this LED Street Light suitable for parking lot lighting?
A.Yes, this LED Street Light is an excellent choice for parking lot lighting. It provides uniform illumination, reduces dark spots, and improves safety for both drivers and pedestrians in commercial parking areas.
-
Q.What beam angles are available for this LED Street Light?
A.The G01 Air Series LED Street Light offers multiple beam angles, including T2M, T3M, and T4M. These options allow flexible lighting design for different commercial layouts such as plazas, walkways, and parking zones.
-
Q.How energy-efficient is this LED Street Light?
A.This LED Street Light delivers high luminous efficacy up to 150 lm/W. It helps reduce energy consumption and operating costs, making it ideal for commercial projects with long working hours.
-
Q.Can this LED Street Light be used in harsh outdoor environments?
A.Yes, the fixture is designed for outdoor use with IP66 waterproof protection and IK08 impact resistance. It can operate reliably in temperatures from -30°C to +50°C.
-
Q.Does this LED Street Light support smart lighting control?
A.Yes, this LED Street Light supports multiple control options, including On/Off, 1-10V dimming, and DALI systems. It can be integrated into smart lighting systems for better energy management.
-
Q.What is the lifespan of this LED Street Light?
A.The G01 Air Series LED Street Light has a lifespan of over 60,000 hours (L70). This ensures long-term performance with low maintenance requirements.
-
Q.Can the LED Street Light be customized for different projects?
A.Yes, this LED Street Light offers flexible configurations, including different wattages, beam angles, surge protection levels, CRI options, and driver brands to meet specific project requirements.
