Fixing a brightness cannot match the application needs of varied scenarios in many cases due to the advancement of various types of modern lighting. Therefore, using dimming techniques like DMX512, DALI, Triac, 0-10V, and others is widespread to create various lighting effects. These techniques can also have an impact on energy conservation.
The 30W DMX 512/DALI Anti-glare LED Downlight is a versatile and efficient lighting solution that can be used in a variety of settings. the downlight is compatible with both DMX 512 and DALI lighting control systems, making it a great option for a variety of applications. With a wide range of light output options and a variety of dimming options, this downlight is perfect for any application where energy efficiency and controllability are a priority. The light is also dimmable, which is great for savings energy. It offers a wide range of features and benefits, making it a great choice for anyone looking for a quality LED downlight
Features
It features a dimming range of 0-100%, making it ideal for creating the perfect mood in any environment.
Compatible with all leading edge and trailing edge dimmers, and is suitable for use with LED, CFL and incandescent bulbs.
Suitable for anyone looking to add some extra illumination to their house or office.
It comes in two distinct beam angles and has a variety of dimming choices.
It is a versatile and powerful lighting fixture that is perfect for a variety of applications
It has a beam angle of 90 degrees
You can also control the light output and the beam angle to get the perfect light for your application.
Very easy to install and can be controlled remotely.
The downlight can be utilized in a variety of ways and is also quite inexpensive.
This fixture is perfect for illuminating broad areas because of its wide beam angle and strong lumen output.
At the moment, our downlights are compatible with the majority of dimming systems on the market, including DMX512, DALI, Zigbee, 0-10V, and BLE dimming. In accordance with the various requirements of the project, we can offer the best solution. We can also align our engineering expertise with the various dimming methods. Additionally, in order to minimize the issue of frequent repairs in the future, we can offer personalized service for the pertinent scheme specifics prior to construction.
Easy installation:
We offer several forms of packing to guarantee the security of various dimming solutions like DMX/Dali/Zigbee/Bluetooth. If you have specific requirements, we can also work together with specially designed packaging.
Specification Table
Model
PS-DL12A163
PS-DL20A164
PS-DL30A166
PS-DL40WA168
PS-DL50WA16
Power
12W
20W
30W
40W
50W
Product size(mm)
Φ110mm*H53mm
Φ145mm*H69mm
Φ190mm*H86mm
Φ230mm*H99mm
Φ230mm*H99mm
Cut Hole Size(mm)
95mm
125-130mm
170mm
200-210mm
200-210mm
Input Voltage
AC220-240V 50/60Hz
LED Type
SMD
Power Supply
Flicker Free Driver
Efficacy(lm/W)
100LM/W
Lumen Output±5%
1200LM
2000LM
3000LM
4000LM
5000LM
Beam Angle
90°
CCT (K)
3000K/4000K/5000K
CRI
83/92Ra
PF
>0.9
SDCM
<3
UGR
<19
Material
Die-Casting Aluminum
THD
<15
IP Rate
IP20
Dimming
DMX512/1-10V/Dali/Triac/BLE dimming
Certificate
CE/RoHS/CB/TUV/SAA/C-Tick
Warranty
5 Years

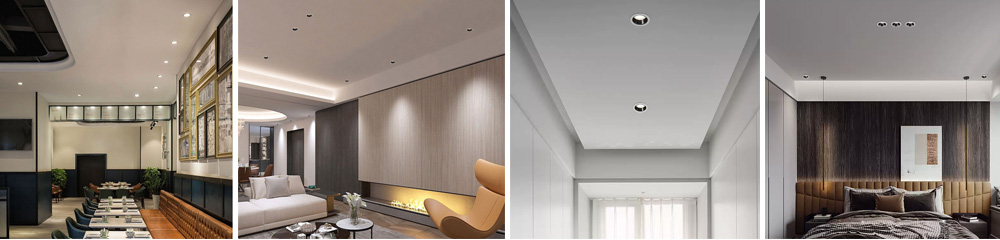

Applications
The anti-glare LED downlight may produce the illusion that there is light there but it is not visible. It has a multi-cup design that produces accurate light and reflects the hierarchy of space while shielding the eyes from light stimulation. Suitable for use in villas, halls, high-end clubs, commercial centers, hotels, exhibition halls, and other indoor lighting applications.
One popular method is using DMX 512/DALI, which is a digital protocol that allows for very precise control of light intensity.
