Adjustable Angle Anti Glare Led Downlight With Honeycomb Reflector
Product Code: PS-DL9-30WC10
Certificate:
9-30W
Power
80/90/97Ra
CRI
90-100lm/w
Lumen Efficiency
Citizen / Luminus / Cree
LED Chip
Tridonic / Osram / Philips
LED Driver
Specification Table
| Model | PS-DL9/12WC10 | PS-DL15/20WC10 | PS-DL20/30WC10 |
| Power | 9/12W | 15/20W | 20/30W |

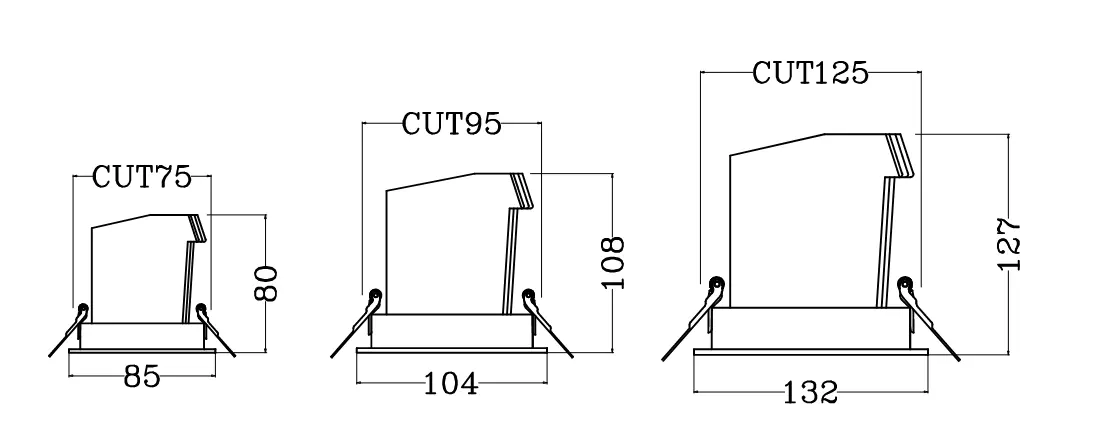

| Product size(mm) | Φ85*80mm | Φ104*108mm | Φ132*127mm |
| Cut-out | 75mm | 95mm | 125mm |
| Input Voltage | AC220-240V 50/60Hz | ||
| LED Type | Citizen/Luminus/Cree COB | ||
| Power Supply | Tridonic / Osram / Philips / Boke | ||
| Efficacy(lm/W) | 90-100 LM/W | ||
| Beam Angle | 15° / 24° / 38° | ||
| CCT (K) | 2700K / 3000K / 3500K / 4000K / 5000K | ||
| CRI | Ra80/Ra90/Ra97 | ||
| PF | >0.9 | ||
| SDCM | <3 | ||
| UGR | <19 | ||
| Material | Die-Casting Aluminum | ||
| THD | <15 | ||
| IP Rate | IP20 | ||
| Input Voltage Shock | <380VAC | ||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | ||
| Switching Cycles | >100,000 switching cycles | ||
| Withstand VoItage | 1/P-0/P:3750VAC | ||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | ||
| Life-time | Nominal life-time up to 100,000H | ||
| Operating Temperature | -20~50°C | ||
| Operating Humidity | 5-85% RH, non-condensing | ||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | ||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||
| Warranty | 5 Years | ||
| Q’TY(PCS)/carton | 24pcs | 24pcs | 18pcs |
| NW(KG/carton) | 12kg | 16.5kg | 19.4kg |
| Carton Size(mm) | 500*400*290mm | 460*460*340mm | 550*550*380mm |
| GW(KG/carton) | 14kg | 18.5kg | 21.4kg |
Applications
- Hotel & Hospitality Lighting
Creates comfortable, low-glare lighting for guest rooms, lobbies, corridors, and restaurants while improving premium atmosphere.
- Retail Store Lighting
Adjustable beam direction highlights products, shelves, and displays to enhance visual presentation and customer experience.
- Office & Commercial Spaces
Provides comfortable workplace lighting with reduced glare for meeting rooms, reception areas, and modern offices.
- Residential & Luxury Interior Lighting
Suitable for villas, apartments, and high-end interiors requiring elegant appearance and flexible accent lighting.
Faqs
-
Q.Can the lamp head direction be adjusted after installation?
A.Yes. The Tokio Series features an adjustable lamp head design, allowing flexible aiming for different lighting requirements.
-
Q.What is the difference between 15°, 24°, and 38° beam angles?
A.15° is suitable for focused accent lighting, 24° provides balanced illumination, and 38° is better for wider area lighting.
-
Q.Does the honeycomb reflector help reduce glare?
A.Yes. The deep recessed reflector and honeycomb structure hide the light source and reduce direct glare.
-
Q.Can one model support different brightness requirements?
A.Yes. The dual wattage design allows two power levels within the same fixture size, improving project flexibility.
-
Q.Which CRI option should I choose for retail and hotel projects?
A.CRI 90Ra or 97Ra is recommended for spaces requiring accurate color appearance, such as retail stores and hospitality areas.
-
Q.Is this downlight suitable for overseas projects?
A.Yes. Tokio Series supports CE, CB, RoHS, SAA, CCC, and ISO certifications for international applications.
