20/25W Zoomable Track Light Use in Museum Art Gallery
Product Code: PS-TL20/25-X16A83Z
Certificate:
20/25W
Power
85/93/97Ra
CRI
100lm/w
Lumen Efficiency
Citizen
LED Chip
Tridonic
LED Driver
Description

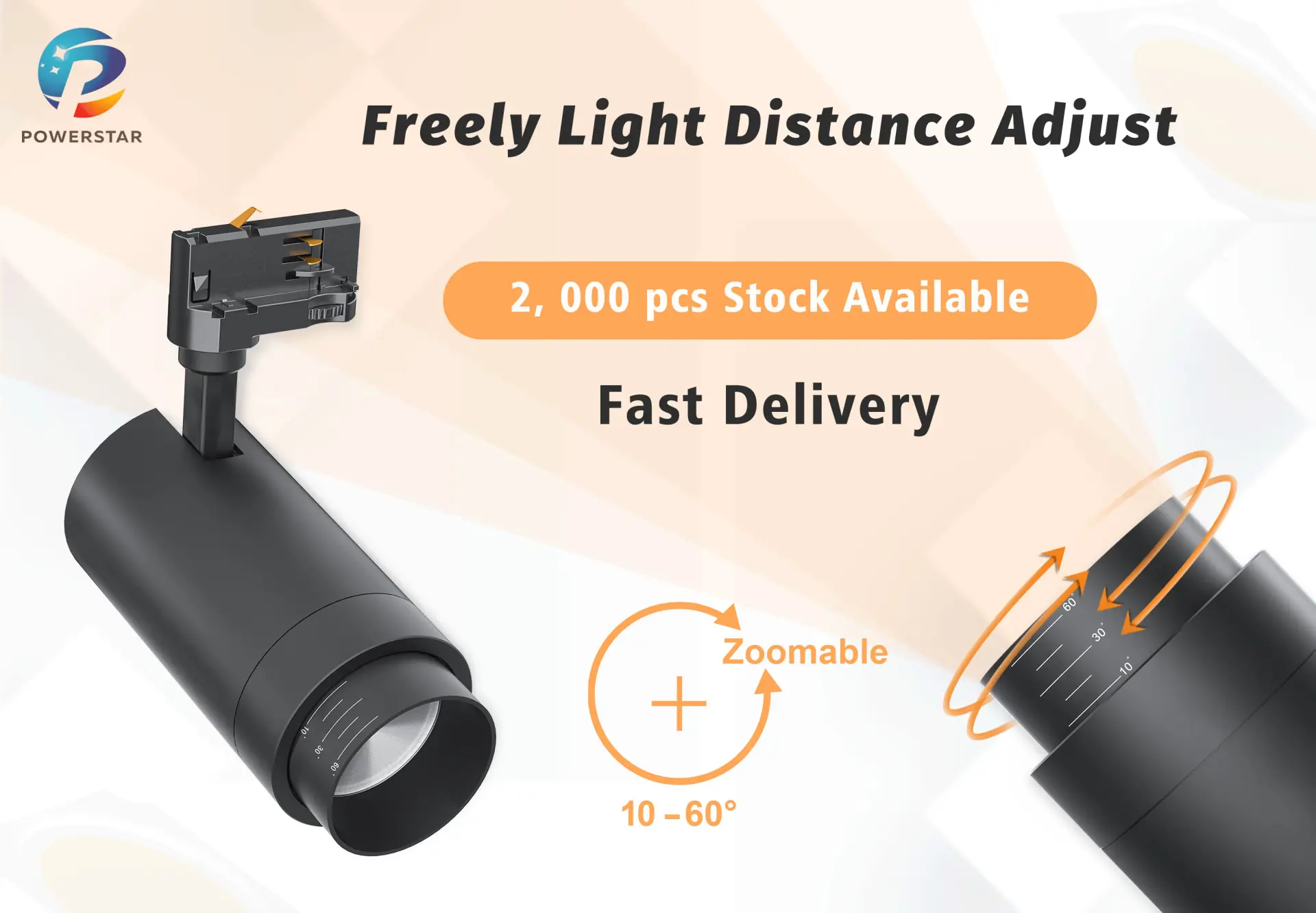

The 20/25W Zoomable Track Light provides flexible accent lighting for museums, galleries, retail stores, and showrooms. Its 10°–60° adjustable beam allows precise control from narrow spotlighting to wider illumination. Potentiometer dimming enables direct brightness adjustment without an external dimmer. The fixture delivers smooth, uniform light with reliable color consistency for artwork, merchandise, and architectural details.
Features
- 10°–60° Zoomable Beam: Adjusts easily from focused spotlighting to wider illumination.
- Potentiometer Dimming: Enables direct brightness control without an additional dimmer.
- Multiple Dimming Options: Different dimming methods are available for various projects.
- Uniform Light Output: Provides smooth illumination with good color consistency.
- Flexible Direction Adjustment: The lamp body can be aimed precisely at the target area.
- 20W and 25W Options: Offers suitable output for different mounting heights and applications.
Specification Table
| Model | PS-TL20A83Z | PS-TL25A83Z |
| Power | 20W | 25W |
| Product size(mm) | D83*H156 mm | |
| Input Voltage | AC220-240V 50/60Hz | |
| LED Type | Citizen/Luminus/Cree COB | |
| Power Supply | Tridonic / Osram / Philips / Boke | |
| Efficacy(lm/W) | 90-100 LM/W | |
| Lumen Output±5% | 1800 LM | 2250 LM |
| Beam Angle | 10-60° | |
| CCT (K) | 2700/3000/4000/5000/5700K | |
| CRI | Ra80/90/97 | |
| PF | >0.9 | |
| SDCM | <3 | |
| UGR | <15 | |
| Track Adaptor | 2/3/4/6 wires | |
| Material | Die-Casting Aluminum | |
| THD | <15 | |
| Input Voltage Shock |
<380V AC | |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | |
| Switching Cycles | >100,000 switching cycles | |
| Withstand VoItage | 1/P-0/P:3750VAC | |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | |
| Life-time | Nominal life-time up to 100,000h | |
| Operating Temperature | -20~50°C | |
| Operating Humidity | 5-85% RH, non-condensing | |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | |
| IP Rate | IP20 | |
| Dimming | Non-Dimming or Potentiometer Dimming | |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |
| Warranty | 5 Years | |
| QTY/CTN Size | 12 pcs / 420*320*310 mm | |
| NW /GW | 15.6 / 16kg | |
Applications
The high-light precision optical components used by the Englumia zoomable led track light allow for pure color saturation, soft transitions, the absence of secondary spots and stray light, an adjustable 15–60 degree angle, and color tolerance that is controlled within a two-step MacAdam range to effectively ensure the consistency of light color at a height.
The excellent lighting effect presents the incomparable beauty of art and cultural relics for you, giving static art exhibits new vitality, floating and air reflection painting, just like the work in the spontaneous light, perfectly presents the essence of art, bringing the purest and most beautiful art enjoyment. You can use it to highlight a piece of art, illuminate a work area, or provide ambient light in a space.
Faqs
-
Q.What wattages are available?
A.The zoomable track light is available in 20W and 25W options.
-
Q.What is the adjustable beam angle?
A.The beam angle can be adjusted smoothly from 10° to 60°.
-
Q.Can it provide both spotlighting and wider illumination?
A.Yes. The narrow beam highlights small objects, while the wider beam covers larger display areas.
-
Q.How does potentiometer dimming work?
A.Brightness is adjusted directly through the potentiometer on the fixture.
-
Q.Is an external dimmer required?
A.No. Potentiometer dimming does not require an additional dimmer.
-
Q.Does it require signal wiring?
A.No additional signal cables are needed for the potentiometer-dimming version.
-
Q.Can it work with an existing track system?
A.Yes. It can be used with compatible standard track systems without replacing the track rail.
-
Q.Can users observe the lighting effect while dimming?
A.Yes. Brightness can be adjusted while viewing the illuminated object in real time.
-
Q.Are other dimming options available?
A.Yes. Other dimming methods can be provided for different project requirements.
