Seamless Continuous Run Led Linear Light With up to 30M
Product Code: PS-LL15-30WM-7050FE
Certificate:
Add To Quote
15-30W Per Meter
Power
83/92Ra
CRI

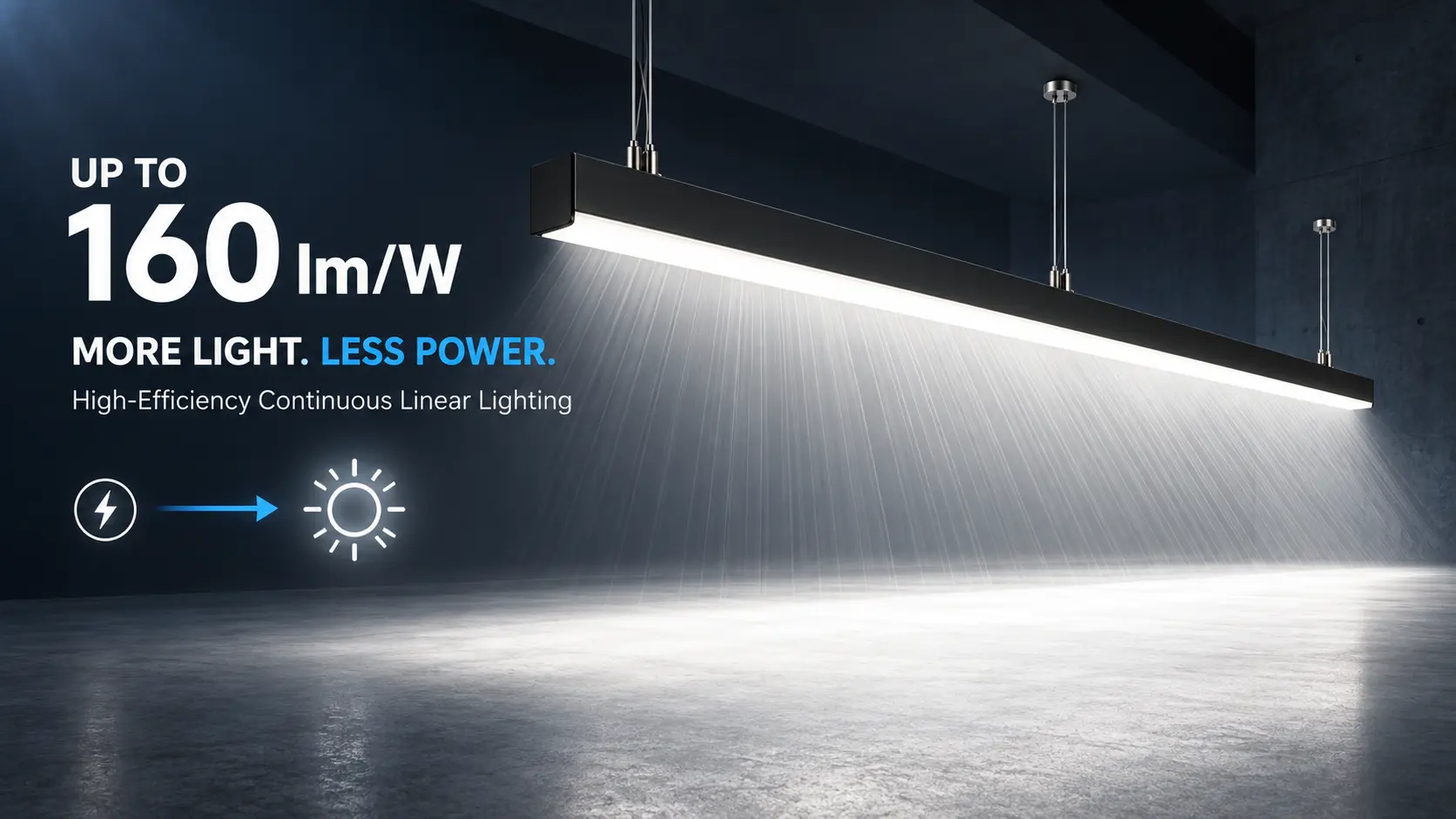

160-170 lm/W
Lumen Efficiency
Lumileds/Osram SMD 2835
LED Chip
CE
LED Driver
Specification Table
| Model | PS-LL15-30WM-7050FE |
| Power / Meter | 15-30W / M |
| Product Size(mm) | W70/100/120/150/200/300*H50 mm |
| Input Voltage | AC220-240V 50/60 Hz |
| LED Type | Lumileds/Osram SMD 2835 |
| Power Supply | CE |
| Efficacy (lm/W) | 160 LM/W |
| Beam Angle | 120° |
| CCT (K) | 2700/3000K/4000K/5000/5700 K |
| CRI | 80/90 Ra |
| PF | >0.9 |
| SDCM | <5 |
| UGR | <19 |
| Material | Iron |
| THD | <15 |
| IP Rate | IP20 |
| Input Voltage Shock | <380V AC |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) |
| Switching Cycles | >100,000 switching cycles |
| Withstand VoItage | 1/P-0/P:3750VAC |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) |
| Life-time | Nominal life-time up to 100,000H |
| Operating Temperature | -20~50°C |
| Operating Humidity | 5-85% RH, non-condensing |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing |
| Dimming | Non-dimming (Default) /0-10V / DALI / BLE dimming |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 3 Years |
Applications
Supermarkets
Creates continuous lighting across long aisles, improving visibility while maintaining a clean ceiling layout.
Shopping Malls
Provides seamless illumination throughout corridors, atriums, and large public areas without visible dark sections.
Open-Plan Offices
Delivers uniform workplace lighting across large areas, supporting visual comfort and a consistent architectural appearance.
Restaurants and Food Courts
Forms long, uninterrupted light lines that complement modern interiors and clearly define dining zones.
Airports and Stations
Supports continuous illumination across terminals and passageways while visually guiding pedestrian movement.
Large Retail Stores
Provides consistent lighting over merchandise displays and circulation areas, creating a bright and inviting shopping environment.
Faqs
-

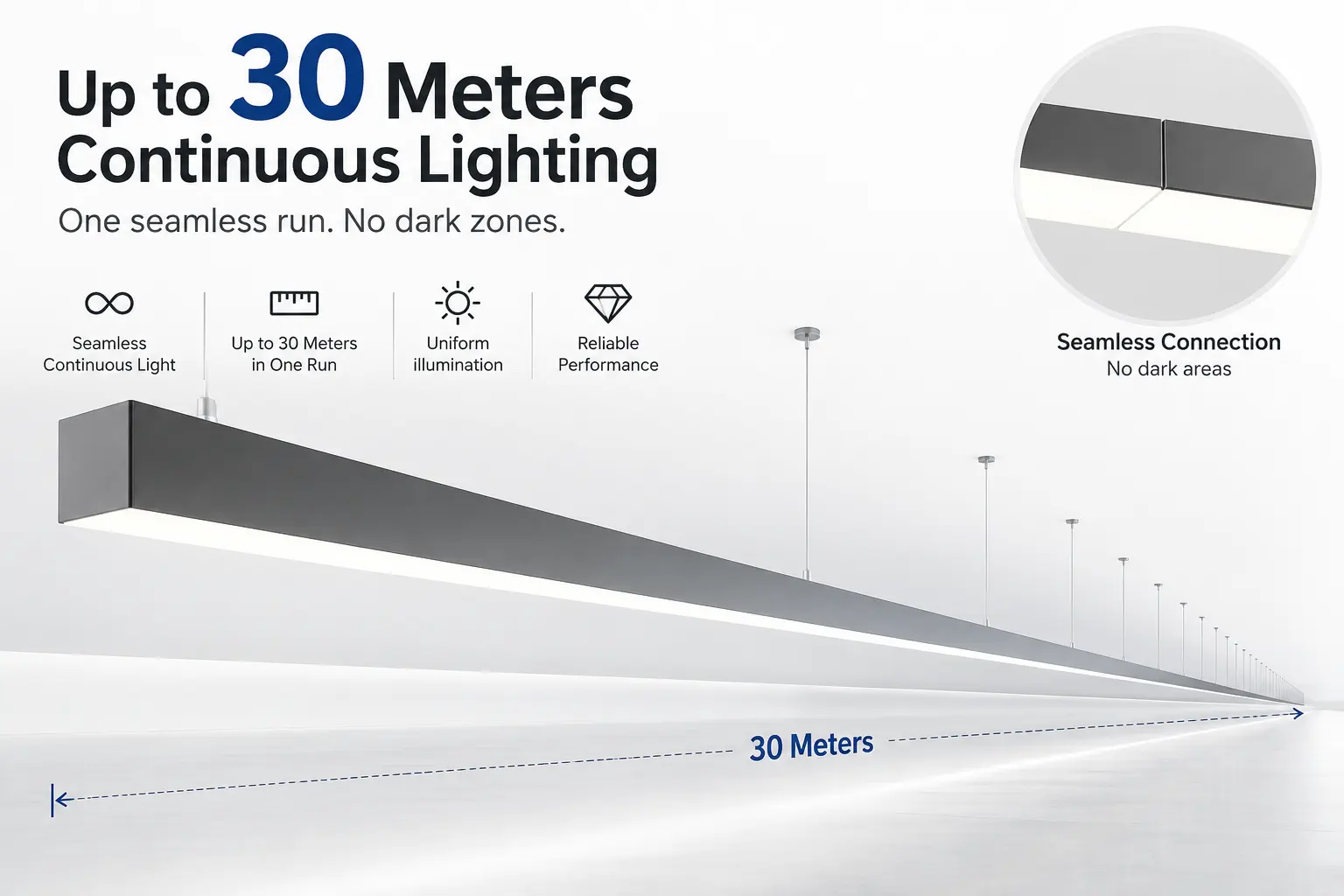

Q.What is the maximum length of the continuous PC diffuser?
A.The opal PC diffuser can reach up to 30 metres for uninterrupted lighting installations. Available lengths depend on project dimensions and transportation requirements.
-
Q.How does the system prevent dark spots at profile joints?
A.The continuous diffuser covers connections between separate aluminium profile sections. Carefully arranged LED modules maintain uniform brightness across each connection.
-
Q.Is the aluminium housing supplied as one 30-metre section?
A.No, the aluminium housing is supplied in manageable modular sections. These sections are assembled onsite and concealed beneath the continuous diffuser.
-
Q.Can the PC diffuser be cut to a custom length?
A.Yes, it can be cut according to the confirmed project layout. This reduces unnecessary joints and supports a cleaner finished appearance.
-
Q.Which mounting methods are available?
A.The system can support pendant, surface-mounted, or recessed installation. Final mounting options depend on the selected profile and ceiling structure.
-
Q.Can the continuous linear light support dimming controls?
A.Yes, compatible configurations can support DALI, 0–10V, or other project controls. Control requirements should be confirmed before production.
-
Q.How is the long continuous diffuser transported and installed?
A.The flexible PC diffuser can be supplied in a protected roll. Contractors install it after assembling and aligning the aluminium profile sections.
-
Q.Can individual components be replaced after installation?
A.Drivers, LED modules, and profile sections can be serviced separately where the design permits. Keeping spare components can simplify future project maintenance.
