Round Led Panel Light With Large Diameter for Modern Commercial Spaces
Product Code: PS-LL20-120W100-R400-1200
Certificate:
Add To Quote
20-120W
Power
80/90Ra
CRI
100-110lm/w
Lumen Efficiency
SMD 2835
LED Chip
Inventronics / Osram / Tridonic / Boke
LED Driver
Specification Table
| Model | PS-LL20W100-R400 | PS-LL40W100-R600 | PS-LL80W100-R900 | PS-LL90W100-R1000 | PS-LL120W100-R1200 | |
| Power | 20W | 40W | 80W | 90W | 120W | |

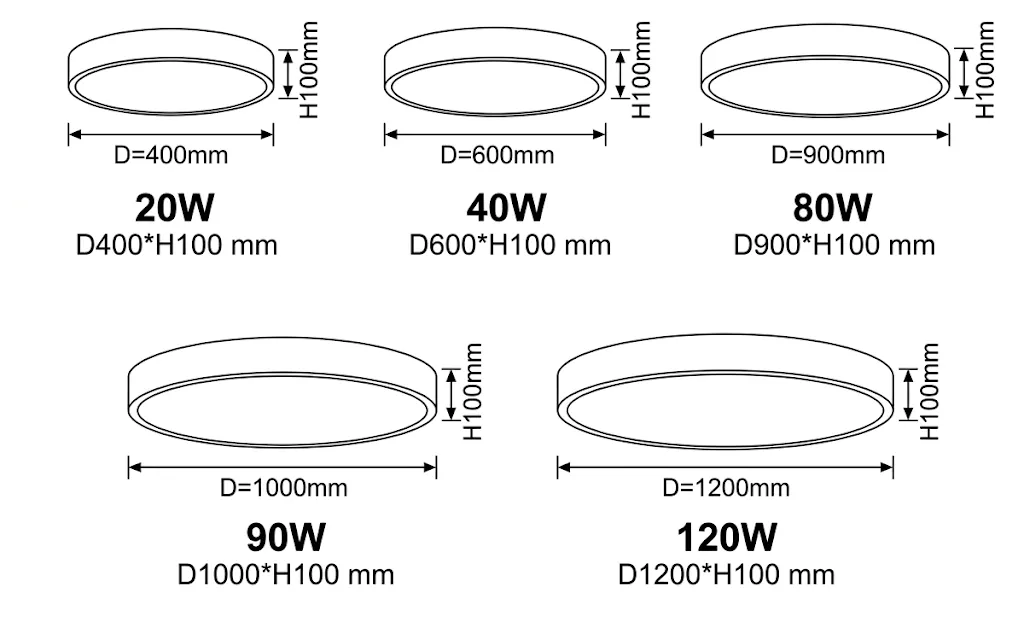

| Product size(mm) | D400*H100 mm | D600*H100 mm | D900*H100 mm | D1000*H100 mm | D1200*H100 mm | |
| Input Voltage | AC220-240V 50/60Hz | |||||
| LED Type | SMD 2835 | |||||
| Power Supply | Inventronics / Osram / Tridonic / Boke | |||||
| Efficacy(lm/W) | 100-110 LM/W | |||||
| Beam Angle | 120° | |||||
| CCT (K) | 2700/3000/4000/6500 K | |||||
| CRI | Ra80/90 | |||||
| PF | >0.9 | |||||
| SDCM | <5 | |||||
| UGR | <19/22/24 | |||||
| Material | 6063-T5 Aviation-Grade Aluminum | |||||
| THD | <15 | |||||
| Input Voltage Shock |
<380V AC | |||||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | |||||
| Switching Cycles | >100,000 switching cycles | |||||
| Withstand VoItage | 1/P-0/P:3750V AC | |||||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | |||||
| Life-time | Nominal life-time up to 100,000H | |||||
| Operating Temperature | -20~50°C | |||||
| Operating Humidity | 5-85% RH, non-condensing | |||||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | |||||
| IP Rate | IP20 | |||||
| Dimming | Non-dimming (Default) /1-10V / Dali / 3CCT / PWM / RGB / RGBWW / Emergency Power / Sensor Motion | |||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |||||
| Warranty | 5 Years | |||||
Applications
- Shopping Mall & Atrium
Large Ø800–1200mm models can create visually striking circular lighting elements while providing broad, uniform illumination for large open spaces.
- Hotel Lobby
Suspended round panel lights combine with modern interior architecture to create an elegant ceiling feature while delivering comfortable ambient lighting.
- Restaurant & Dining Space
Ø400–800mm models provide soft, wide-area illumination and can be arranged individually or in groups to enhance the overall dining atmosphere.
- Exhibition & Conference Center
Large-diameter models provide wide-area general lighting for exhibition halls, conference rooms and event spaces, with dimming and smart-control options for different activities.
