Louver Linear Light for Low-Glare Commercial Lighting
Product Code: PS-LL20-40WM-5080L
Certificate:
Add To Quote
20-40W / M
Power
83/92Ra
CRI
100-120 lm/W
Lumen Efficiency
Lumileds/Osram SMD 2835
LED Chip
CE
LED Driver
Specification Table
| Model | PS-LL20-40WM-5080L |
| Power / Meter | 20-40W / M |
| Product Size(mm) | L(60/120/150/200/300)*W50*80 mm |
| Input Voltage | AC220-240V 50/60 Hz |
| LED Type | Lumileds/Osram SMD 2835 |
| Power Supply | CE |
| Efficacy (lm/W) | 100-120 LM/W |

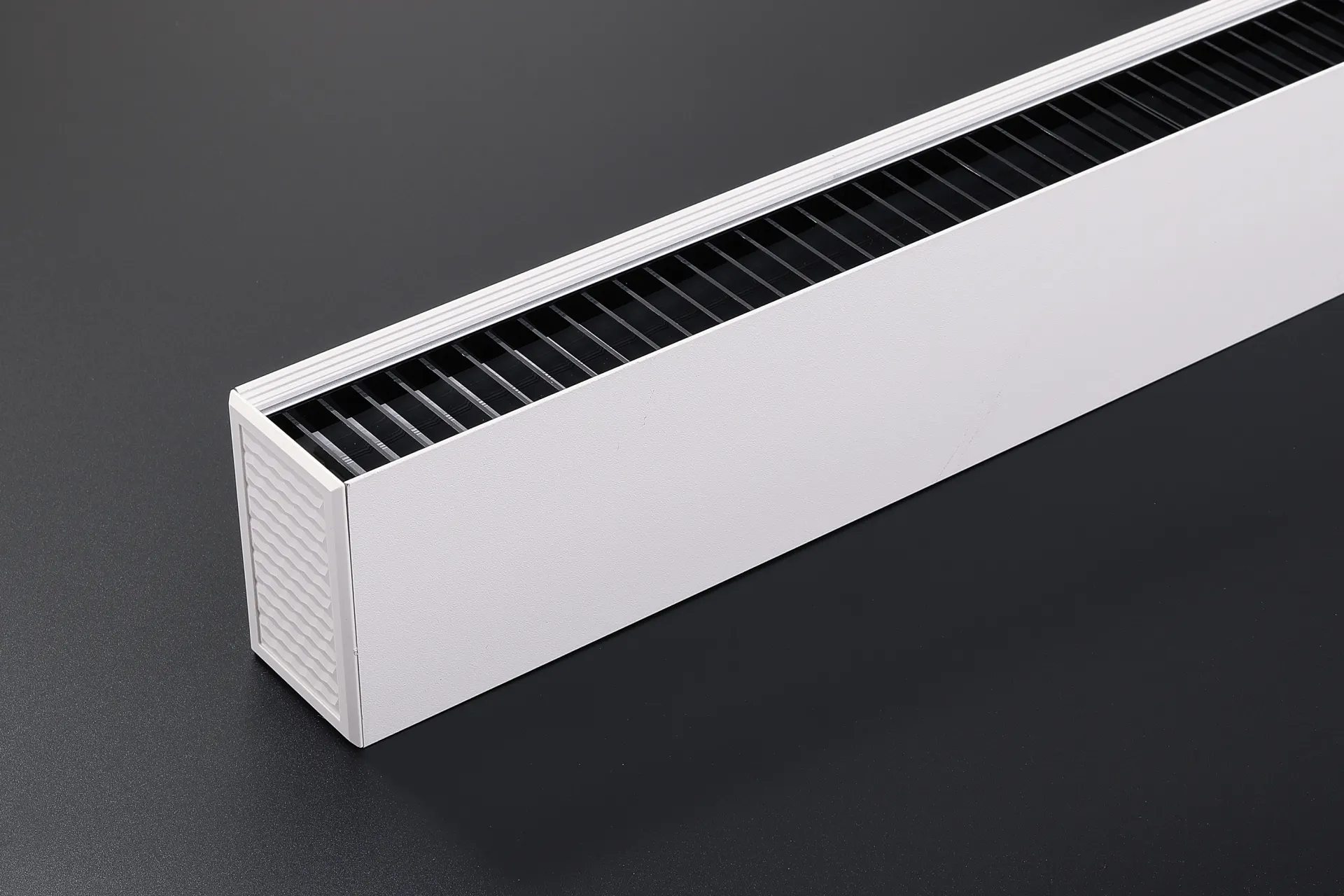

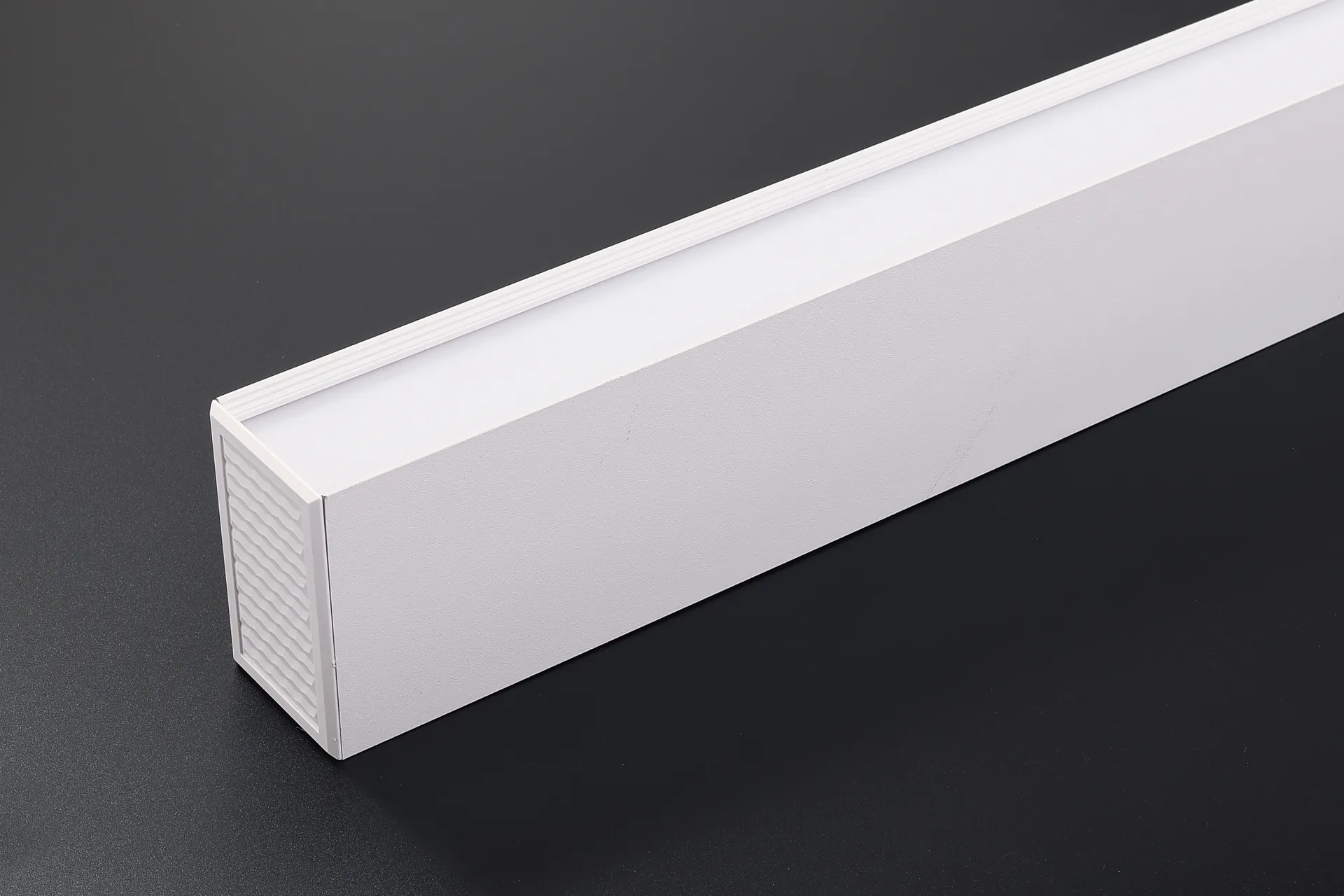

| Beam Angle | Grille 30/50/80/50*70° / Prism 80° / PC 120° |
| CCT (K) | 2700/3000K/4000K/5000/5700 K |
| CRI | 80/90 Ra |
| PF | >0.9 |
| SDCM | <5 |
| UGR | <19 |
| Material | Iron |
| THD | <15 |
| IP Rate | IP20 |
| Input Voltage Shock | <380V AC |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) |
| Switching Cycles | >100,000 switching cycles |
| Withstand VoItage | 1/P-0/P:3750VAC |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) |
| Life-time | Nominal life-time up to 100,000H |
| Operating Temperature | -20~50°C |
| Operating Humidity | 5-85% RH, non-condensing |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing |
| Dimming | Non-dimming (Default) /0-10V / DALI / BLE dimming |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 3 Years |
Applications
Supermarkets
Uniform linear lighting supports bright, consistent illumination across aisles, shelves, and circulation areas.
Large Retail Stores
Multiple optical options help balance general illumination, visual comfort, and a clean architectural appearance.
Office Lighting

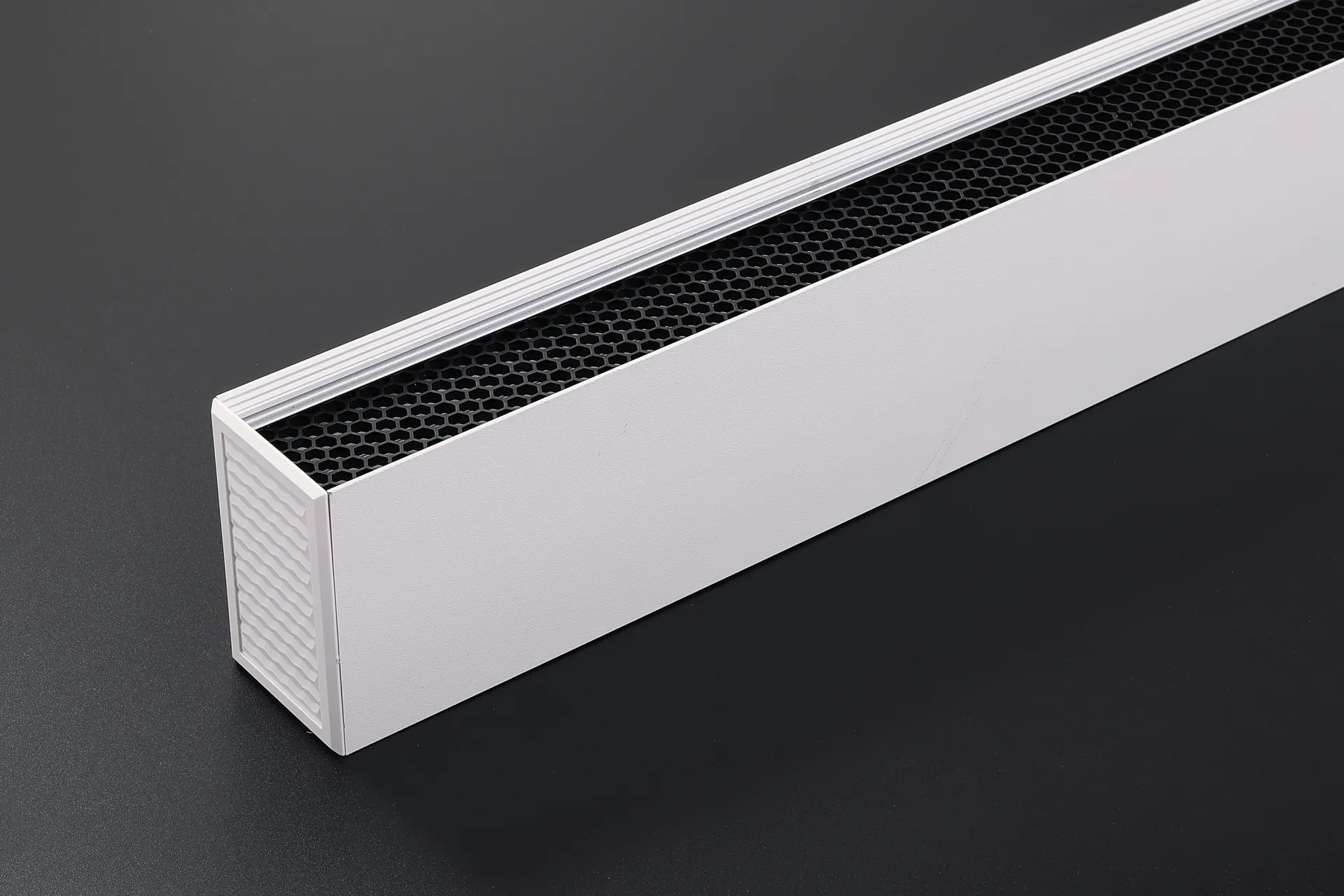

Low-glare louver and honeycomb optics improve visual comfort for workstations, meeting rooms, and open offices.
Schools & Classrooms
Comfortable, even lighting helps create a better visual environment for classrooms, libraries, and study areas.
Corridors & Public Areas
Continuous linear lighting creates a clean visual line and provides consistent illumination across long spaces.
Faqs
-
Q.What is a Louver Linear Light?
A.A Louver Linear Light uses a louver optical structure to control light distribution and reduce direct glare. It is suitable for commercial and architectural lighting.
-
Q.What are the main benefits of louver optics?
A.Louver optics improve visual comfort, reduce harsh glare, and create a more controlled lighting effect. They are ideal for offices and workspaces.
-
Q.Where can Louver Linear Lights be used?
A.They are widely used in offices, retail stores, supermarkets, schools, showrooms, meeting rooms, corridors, and other commercial interiors.
-
Q.Does this linear light support different installation methods?
A.Yes. Depending on the model, pendant and surface-mountedinstallation options can be available for different project requirements.
-
Q.Which mounting methods are available?
A.The system can support pendant, surface-mounted. Final mounting options depend on the selected profile and ceiling structure.
-
Q.What color temperatures are available?
A.Common options include 3000K, 4000K, and other project-specific color temperatures. Selectable CCT versions may also be available.
-
Q.Is dimming or smart control available?
A.Yes. ON/OFF, DALI, 0-10V, and other control options can be offered depending on the project and driver configuration.
-
Q.Can the Louver Linear Light be customized for projects?
A.Yes. Length, wattage, color temperature, housing color, optical design, control system, and mounting method can be customized for different projects.
