Home / Products / LED Downlight / Recessed Anti-glare Linear Light for Modern Offices | Grille Led Linear Light

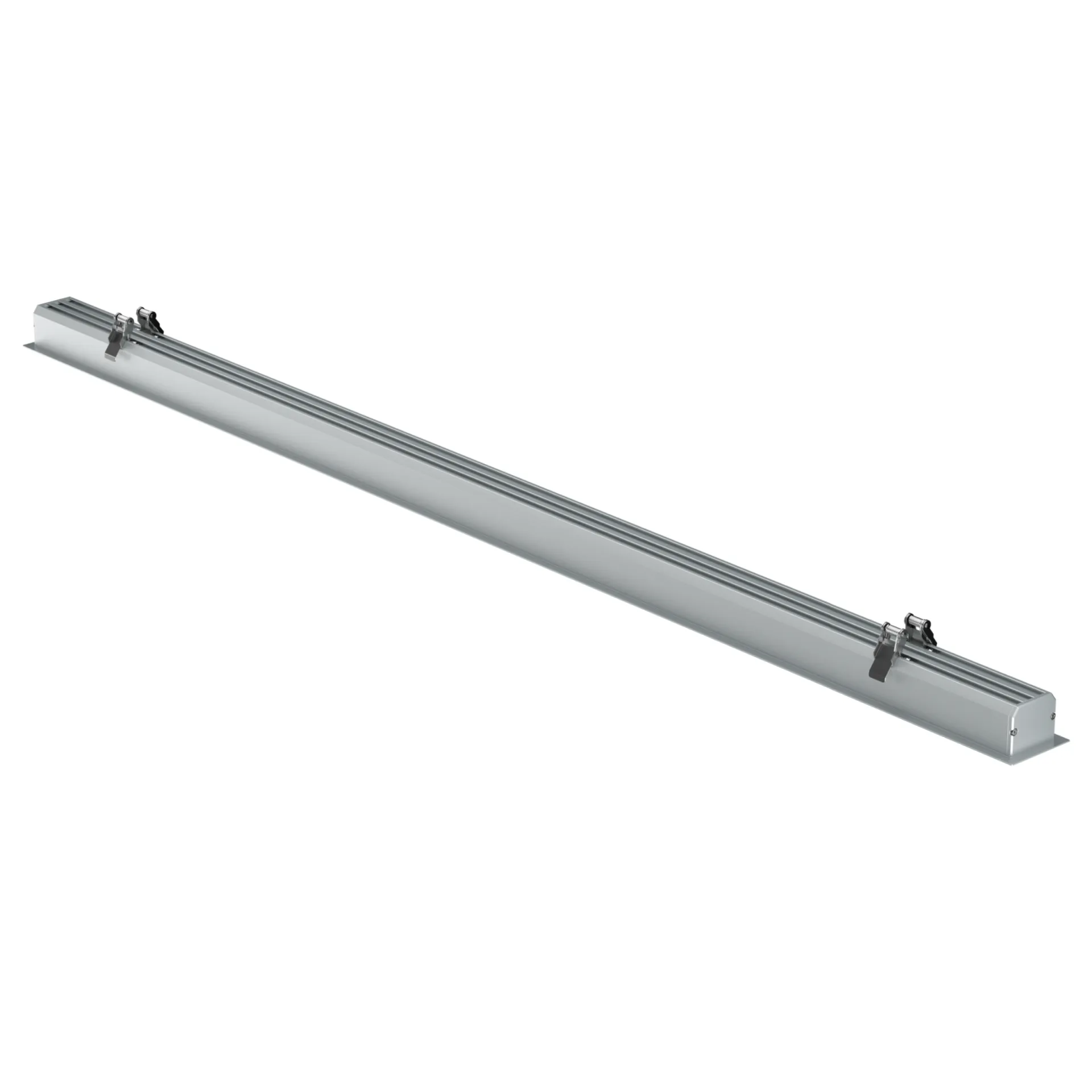

Recessed Anti-glare Linear Light for Modern Offices | Grille Led Linear Light

Product Code: PS-LL20/40W-5235/6035GR

Deep Anti-Glare Grille – Reduces glare for comfortable, eye-friendly office lighting.
6 Beam Angles – 6 options provide precise lighting for different spaces.
High-Efficiency LED – Lumileds 2835 delivers up to 120 lm/W for energy-efficient lighting.
Ultra-Slim Recessed Design – 35mm height fits modern offices, meeting rooms and commercial interiors.

Certificate:

Request Info

Add To Quote

20/40W

Power

80/90Ra

CRI

110-120lm/w

Lumen Efficiency

SMD 2835

LED Chip

Inventronics / Osram / Tridonic / Boke

LED Driver

Description

Designed for premium commercial and office lighting, the 5235/6035 Recessed Grille Linear Light combines deep anti-glare optics, precise beam control and an ultra-slim recessed profile. Available in 20W and 40W versions, it delivers 110–120 lm/W with Lumileds 2835 LEDs, while multiple beam angles and CCT options provide flexible lighting solutions for different architectural spaces.

Key Features

Deep Anti-Glare Grille: Deep recessed grille design effectively controls glare and improves visual comfort during long working hours.
Precise Beam Control: 15° / 24° / 38° / 50° beam angles support both accent and general area lighting.
High-Efficiency Lumileds LEDs: Lumileds 2835 LEDs provide 110–120 lm/W efficiency with CRI 80/90 options.
Reliable BOKE Driver: BOKE driver with PF >0.9 provides stable electrical performance and dependable operation.
Ultra-Slim 35mm Profile: The 35mm-high housing requires less ceiling space and integrates neatly into modern ceilings.
Flexible 5235 & 6035 Options: Two housing widths provide greater compatibility with different ceiling openings and project requirements.

Specification Table

Model	PS-LL20W-5235GR	PS-LL40W-5235GR	PS-LL20W-6035GR	PS-LL40W-6035GR
Power	20W	40W	20W	40W
Product size(mm)	L670W52H35 mm	L1200W52H35 mm	L577W60H35 mm	L1146W60H35 mm
Cut-out(mm)	L660W42H35 mm	L1190W42H35 mm	L567W50H35 mm	L1136W50H35 mm
Input Voltage	AC220-240V 50/60Hz
LED Type	SMD 2835
Power Supply	Inventronics / Osram / Tridonic / Boke
Efficacy(lm/W)	110-120 LM/W
Beam Angle	24° / 38° / 50° / 5050° / 7070° / 35*70°
CCT (K)	2700 / 3000 / 4000 / 5000K
CRI	Ra80/90
PF	>0.9
SDCM	<5
UGR	<19
Material	6063-T5 Aviation-Grade Aluminum
THD	<15
Input Voltage Shock	<380V AC
Start/Switchover/Turn off	<0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off)
Switching Cycles	>100,000 switching cycles
Withstand VoItage	1/P-0/P:3750V AC
Mainssurge Capability	L-N:2KV(90%/270°, 5 times each with an interval of 60s)
Life-time	Nominal life-time up to 100,000H
Operating Temperature	-20~50°C
Operating Humidity	5-85% RH, non-condensing
Storage Temp./Humidity	-40~80°C, 5-85% RH, non-condensing
IP Rate	IP20
Dimming	Non-dimming (Default) /1-10V / Dali/BLE dimming
Certificate	CE/RoHS/CB/TUV/SAA/C-Tick
Warranty	5 Years

Applications

Open-Plan Offices

Deep anti-glare optics create comfortable, uniform illumination for workstations and long working hours.

Meeting & Conference Rooms

High CRI and precise beam control enhance facial, material and presentation visibility in professional spaces.

Commercial Showrooms

15°–24° beam angles provide focused illumination for products, displays and architectural details.

Premium Retail Spaces

Slim recessed integration and multiple beam options create clean, controlled lighting for modern retail interiors.

Documents

2026.06.17

0.00KB

Faqs

Q.What beam angles are available?

A.The light is available with 24°/38°/50°/50*50°/70*70°/35*70° beam angles for different lighting requirements.
Q.What is the difference between the 5235 and 6035 versions?

A.The main difference is the housing width: 5235 is 52mm wide, while 6035 is 60mm wide.
Q.What power options are available?

A.The series is available in 20W and 40W configurations, with lengths of 670mm and 1200mm respectively.
Q.Is it suitable for office lighting?

A.Yes. Its deep anti-glare grille and controlled light distribution make it particularly suitable for offices and meeting rooms.
Q.Can the housing color be customized?

A.Standard finishes include black, white. Custom requirements can be discussed for project orders.
Q.What is the installation requirement?

A.It is designed for recessed ceiling installation. The exact ceiling cut-out should follow the selected 5235 or 6035 configuration.
Q.What is the warranty period?

A.The product comes with a 5-year warranty.
