High Luminous Anti-Glare LED Track Lighting combines powerful illumination with improved visual comfort for modern commercial spaces. Its optimized optical design reduces direct glare and minimizes harsh hot spots, creating a more balanced and comfortable lighting environment.
Features
Anti-Glare Optical Design: Reduces direct glare and improves visual comfort for customers and staff.
Reduced Hot Spot Effect: Provides smoother, more uniform illumination across products and display areas.
Controlled Light Reflection: Minimizes unwanted reflections from shelves, glass surfaces, and displayed products.
Multiple Beam Angles: Available in 20°, 30°, 45°, and 60° for focused or wider illumination.
High Luminous Output: Delivers bright and effective lighting for demanding commercial environments.
Energy Efficient: Uses less energy and produces less heat than traditional lighting sources.
Easy Installation: Designed for quick installation on compatible track lighting systems.
Improved Visibility: Enhances visual clarity while helping reduce eye fatigue in commercial spaces.

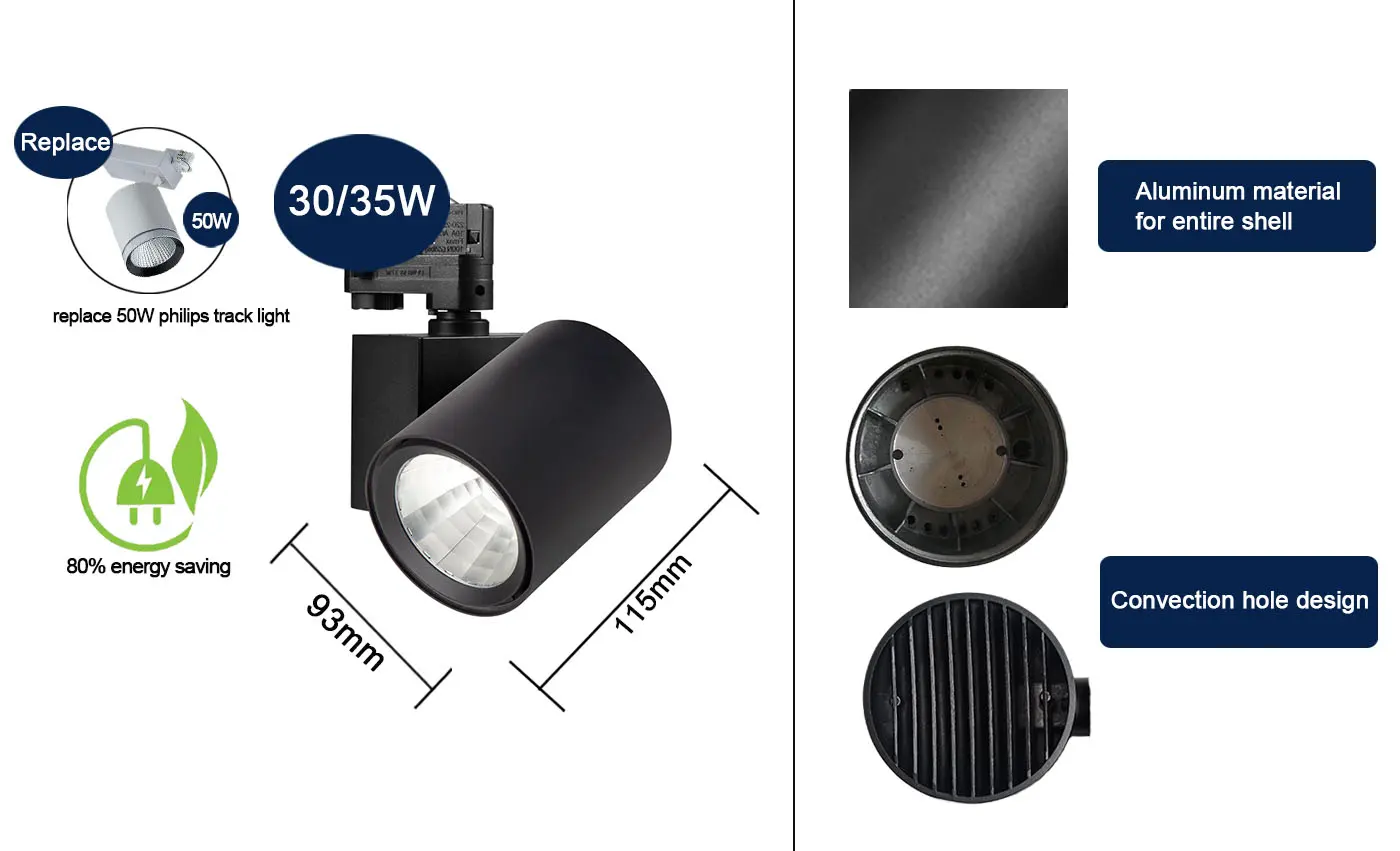

Efficient Heat Dissipation and High Luminous Output

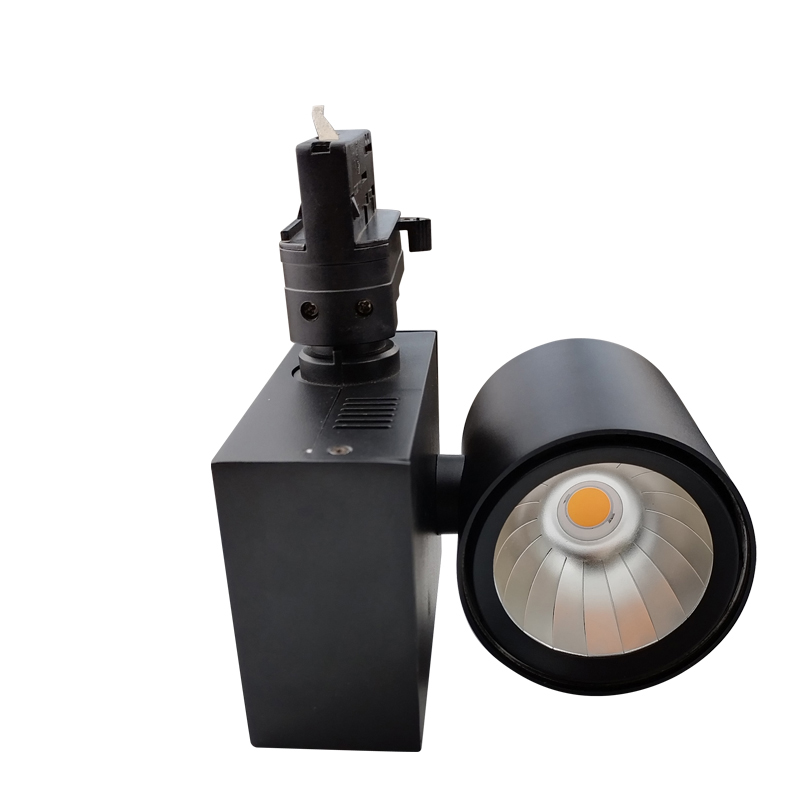

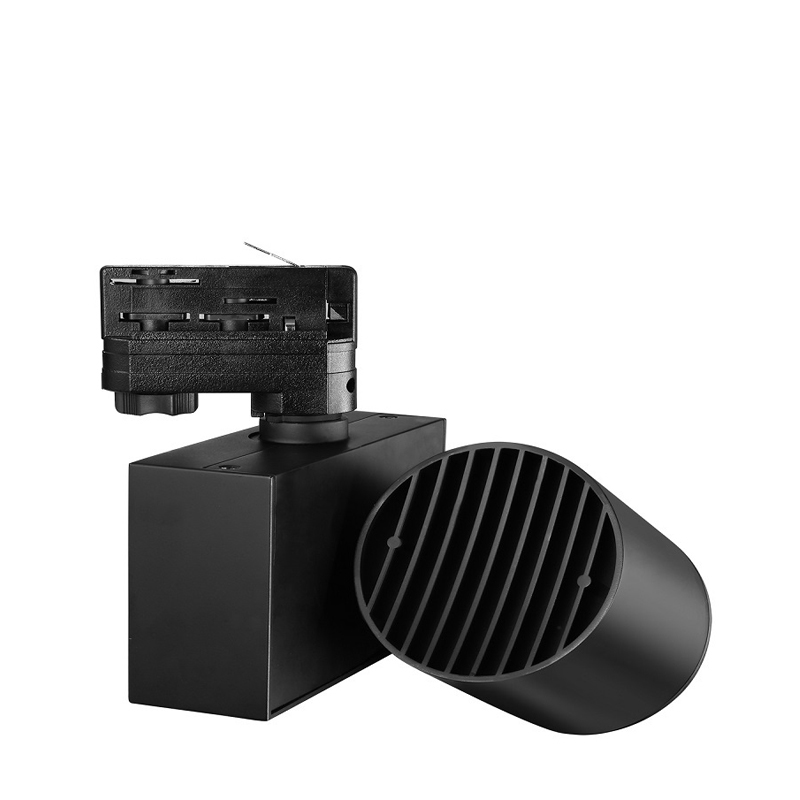

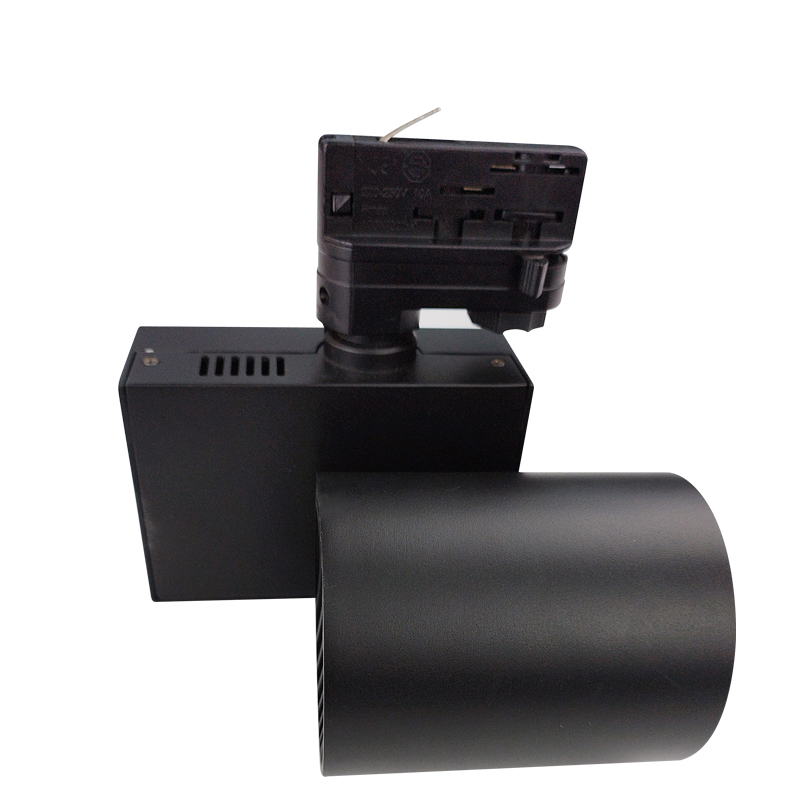

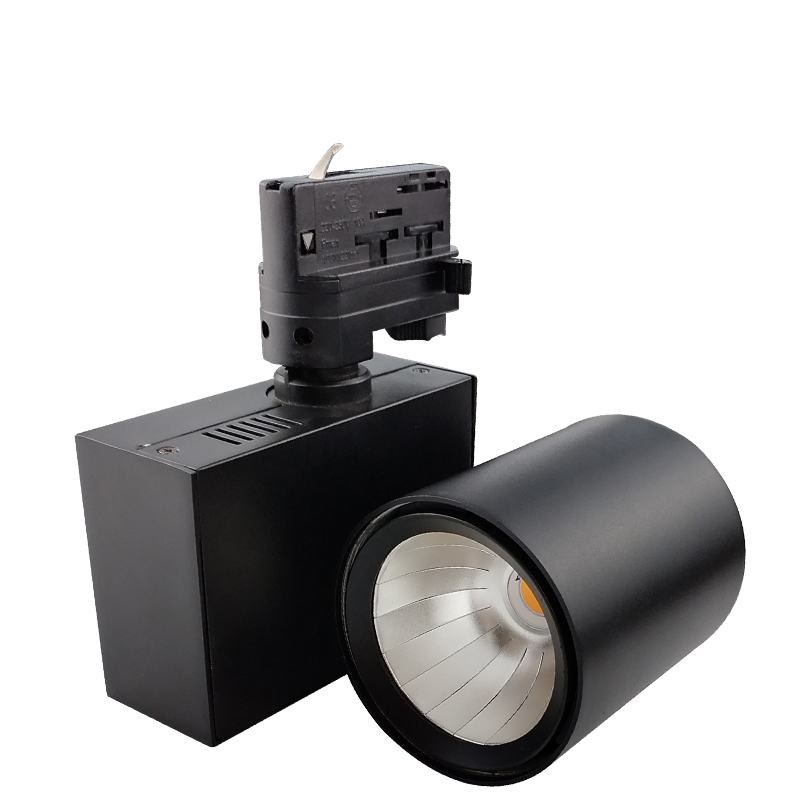

The Englumia C93H features a side-mounted external driver, aviation-grade aluminum housing, and thermoelectric separation structure for efficient heat dissipation.
This design helps protect the LED chips, extend the fixture’s service life, and keep light depreciation below 3%. Available in 30W and 35W versions, the compact 93 × 115 mm fixture delivers up to 140 lm/W.
Its high luminous efficiency makes it ideal for commercial spaces requiring powerful, stable, and energy-efficient illumination.

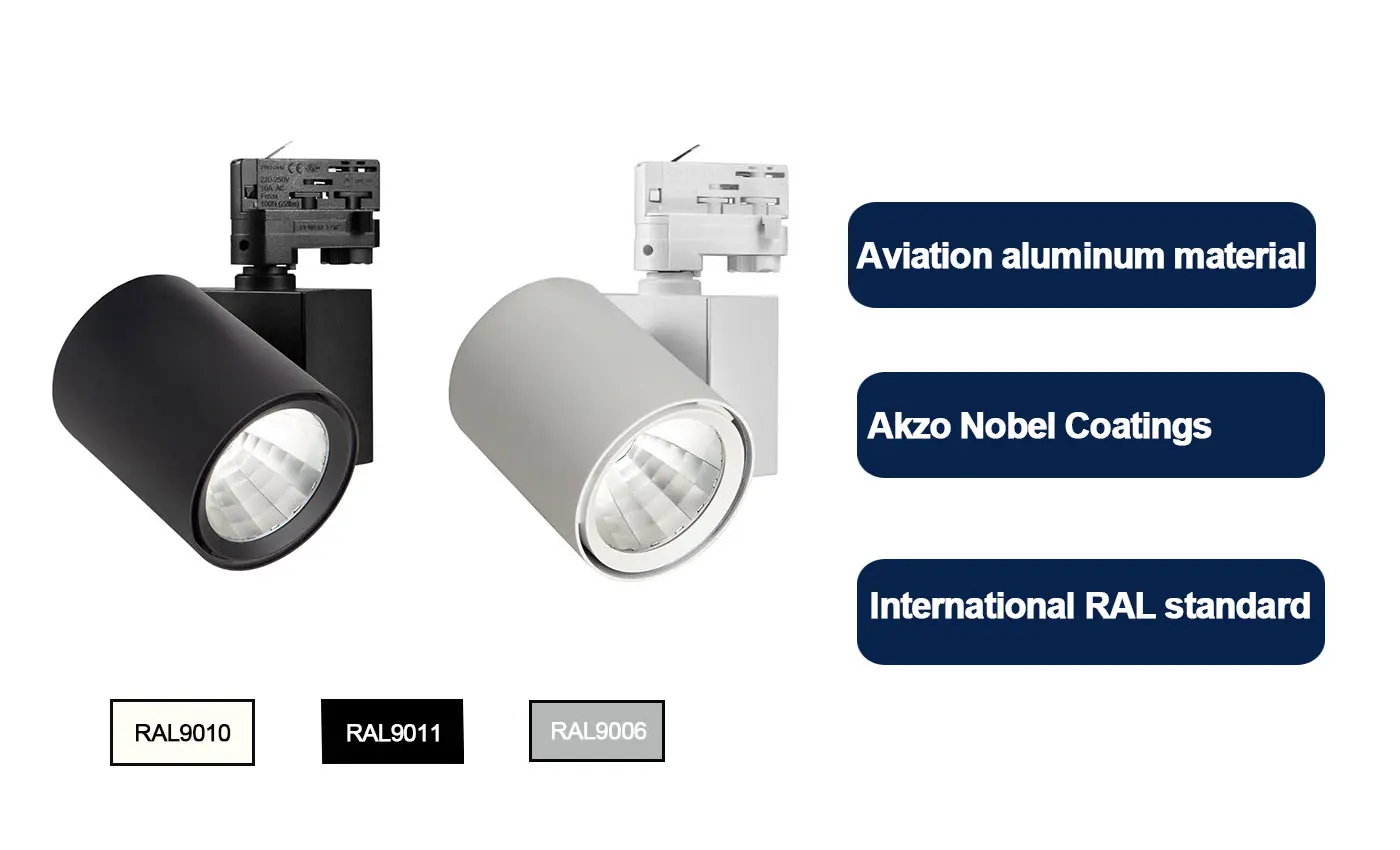

Premium Surface Finish and Enhanced Thermal Design
The housing undergoes an 11-stage finishing process, including electrostatic powder coating with environmentally friendly AkzoNobel powder.
Its durable, pollution-free finish complies with international RAL color standards, giving the fixture a refined and consistent appearance.
The side-mounted external driver box also supports efficient heat dissipation, helping improve the product’s thermal performance and long-term reliability.

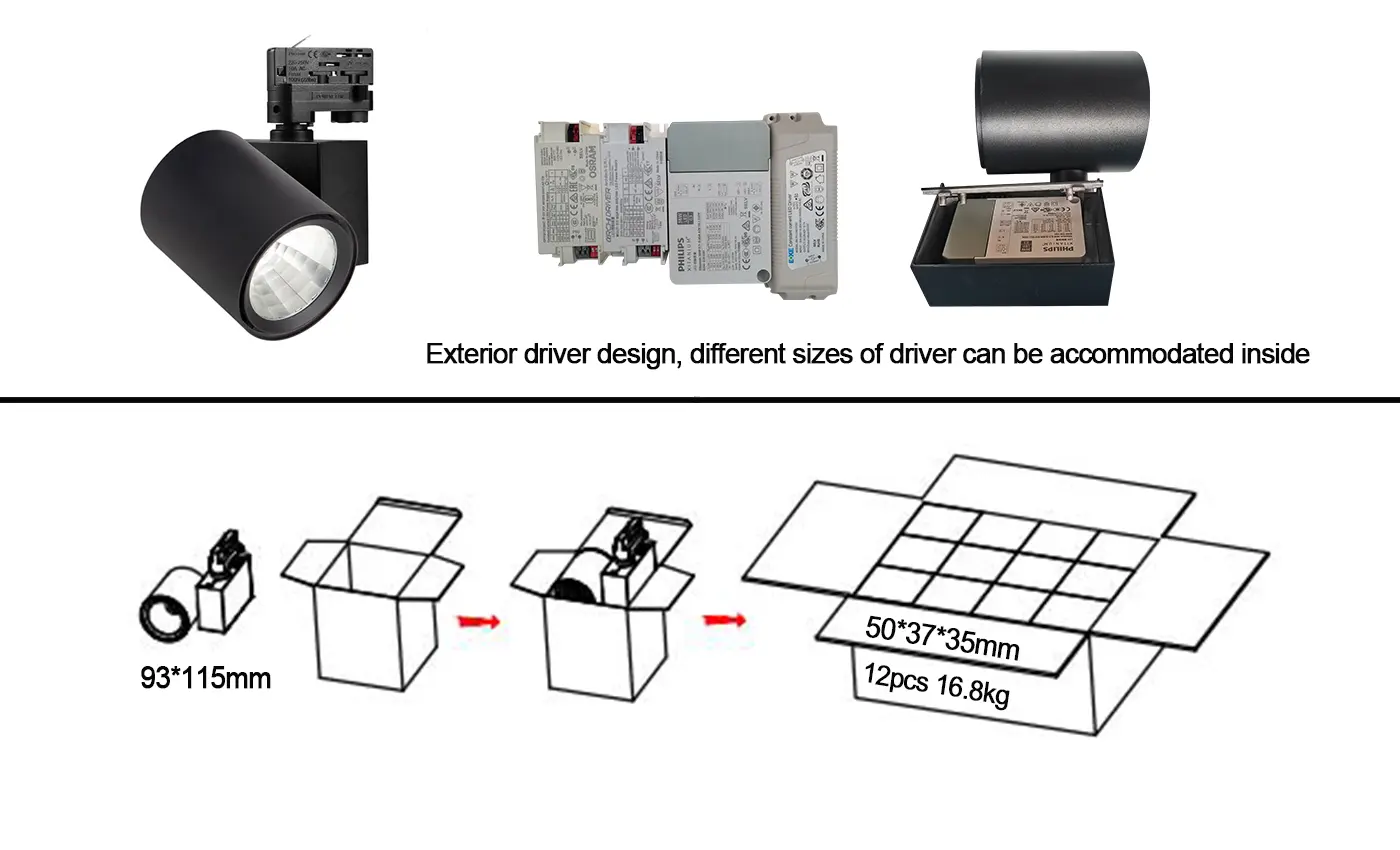

Flexible Driver Options and Simplified Installation
The Englumia C93H features a spacious external driver box compatible with DALI, 0–10V, and standard non-dimmable drivers.
This integrated design maintains a clean, streamlined appearance while reducing the need for additional external components.
It also simplifies wiring and installation, helping lower labor costs and improve overall project efficiency.
L-N:2KV(90%/270°, 5 times each with an interval of 60s)
Life-time
Nominal life-time up to 100,000H
Operating Temperature
-20~50°C
Operating Humidity
5-85% RH, non-condensing
Storage Temp./Humidity
-40~80°C, 5-85% RH, non-condensing
IP Rate
IP20
Dimming
Non-dimming (Default) /1-10V / Dali/BLE dimming
Certificate
CE/RoHS/CB/TUV/SAA/C-Tick
Warranty
5 Years
QTY / CTN Size
12 pcs / 500*370*345 mm
NW / GW
14 / 16.8 kg
Applications
Englumia develops commercial lighting solutions that balance functionality, visual comfort, spatial design, and brand presentation. Flexible lighting configurations can be adapted to different layouts, display requirements, and business environments.

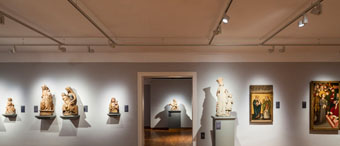

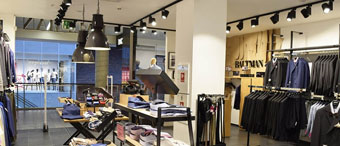

Our A80 track lighting fixtures are widely used in supermarkets, shopping malls, car showrooms, fresh food areas, flower shops, furniture stores, fashion boutiques, cosmetics stores, and other retail spaces.
Documents
2022.03.05
0.00KB
Faqs
Q.What power options are available for the Englumia C93H?
A.The Englumia C93H is available in 30W and 35W versions for different commercial lighting requirements.
Q.What is the luminous efficacy of this LED track light?
A.The fixture delivers up to 150 lm/W, providing approximately 5,250 lumens with high energy efficiency.
Q.How does the C93H reduce glare?
A.Its optimized optical system controls direct light and reduces harsh hot spots, creating more comfortable illumination.
Q.What beam angles are available?
A.Available beam angles include 20°, 30°, 45°, and 60° for accent lighting or wider illumination.
Q.What color temperatures and CRI options are offered?
A.Available CCT options range from 2700K to 5700K. CRI 80 and CRI 90 are available.
Q.What dimming options are available?
A.The fixture supports non-dimming, 1–10V, DALI, and BLE dimming configurations.
Q.How does the external driver improve heat dissipation?
A.The side-mounted driver separates electrical components from the LED heat source, improving thermal management and reliability.
Q.Which power supply brands can be used?
A.Available driver brands include Tridonic, Osram, Philips, and Boke, depending on project requirements.
Q.Which track systems are compatible with this fixture?
A.The track adaptor is available in 2-wire, 3-wire, 4-wire, and 6-wire configurations.
Q.What warranty is provided?
A.The Englumia C93H comes with a five-year warranty for professional commercial lighting projects.
