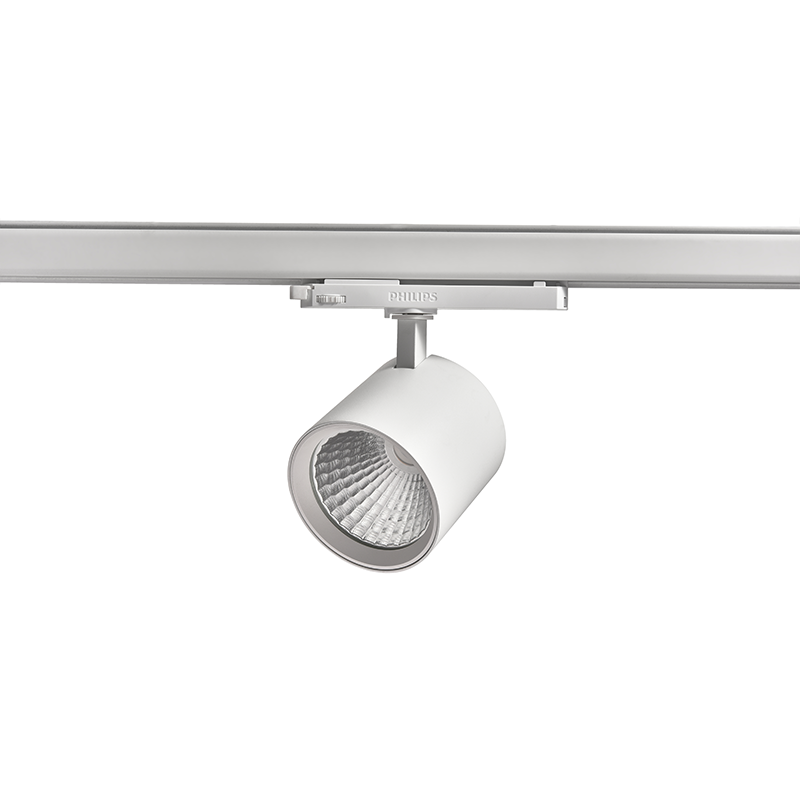

30W Energy Saving Led Track Light
Product Code: PS-TL20/30/40-X16I90/100/110
Certificate:
Add To Quote
20/30/40W
Power
1000
Life Cycle(Hours)
IP20
IP Rating
15/24/38/60°
Beam Angle
220~240v
Voltage
Description
An LED track spotlight with an OSRAM integrated driver combines the LED light source and driver in one compact fixture. This integrated design simplifies installation, creates a cleaner appearance, and supports stable, energy-efficient performance. With a long service life and reliable light output, it is well suited to modern commercial lighting applications. The spotlight is available in two models with different wattages and lumen outputs, allowing users to select the most suitable option for retail stores, showrooms, galleries, and other display spaces.
Features
- Osram Integrated Driver: Provides stable power output while simplifying installation and wiring.
- Energy-Efficient Performance: Produces high light output with lower energy consumption.
- Uniform Illumination: Delivers consistent and evenly distributed light for product displays.
- Multiple Beam Angles: Available with 15/24/38/60° beam angle to choose.
- Easy Installation: The integrated design reduces additional components and makes installation more convenient.
Specification Table
| Model | PS-TL20/25/30WI90 | PS-TL30/35WI100 | PS-TL40WI110 |
| Power | 20/25/30W | 30/35W | 40W |
| Product Size(mm) | D90*H91 mm | D100*H95 mm | D110*H100 mm |
| Input Voltage | AC 220-240V 50/60Hz | ||
| LED Type | Citizen/Luminus/Bridgelux/Cree COB | ||
| Power Supply | Tridonic / Osram / Philips / KGP/ALLOOKING/Eaglerise | ||
| Efficacy(lm/W) | 100-110 LM/W | ||
| Lumen Output±5% | 3000 LM | 3500 LM | 4000 LM |
| Beam Angle | 15/24/38/60° | ||
| CCT (K) | 2700/3000/4000/5000/5700K | ||
| CRI | Ra80/90/97 | ||
| PF | >0.9 | ||
| SDCM | <3 | ||
| UGR | <15 | ||
| Track Adaptor | 2/3/4/6 wires | ||
| Material | Die-Casting Aluminum | ||
| THD | <15 | ||
| IP Rate | IP20 | ||
| Input Voltage Shock |
<380V AC | ||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | ||
| Switching Cycles | >100,000 switching cycles | ||
| Withstand VoItage | 1/P-0/P:3750 V AC | ||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | ||
| Lifetime | Nominal lifetime up to 100,000H | ||
| Operating Temperature | -20~50 ℃ | ||
| Operating Humidity |
5-85% RH, non-condensing | ||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | ||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||
| Warranty | 5 Years | ||
| QTY/CTN Size | 12 pcs / 590*250*330mm | 12 pcs / 590*250*330mm | 10 pcs / 590*250*330mm |
| N.W. / G.W. | 9 / 11 kg | 10.6 / 12.6 kg | 11 / 13 kg |

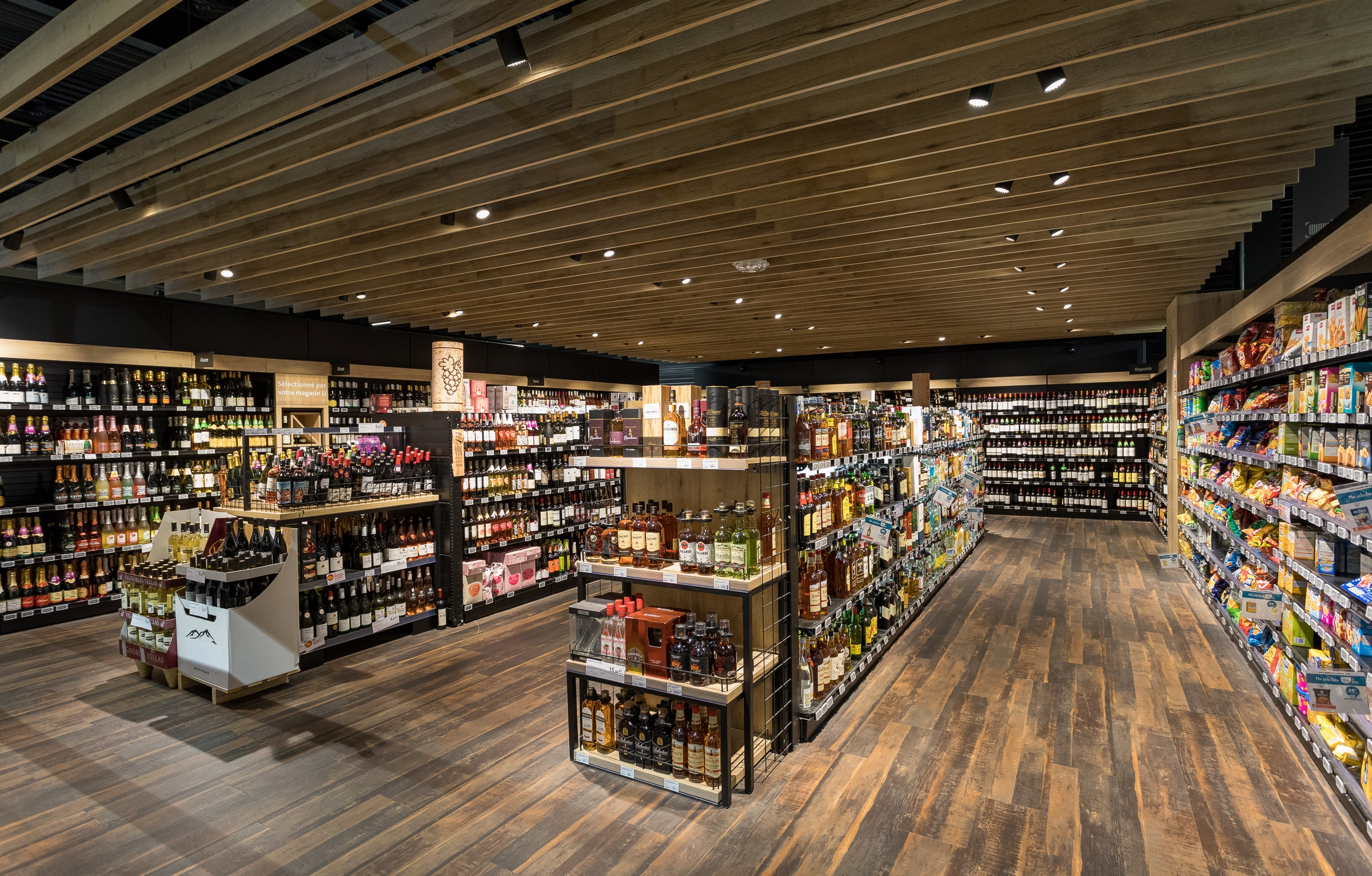

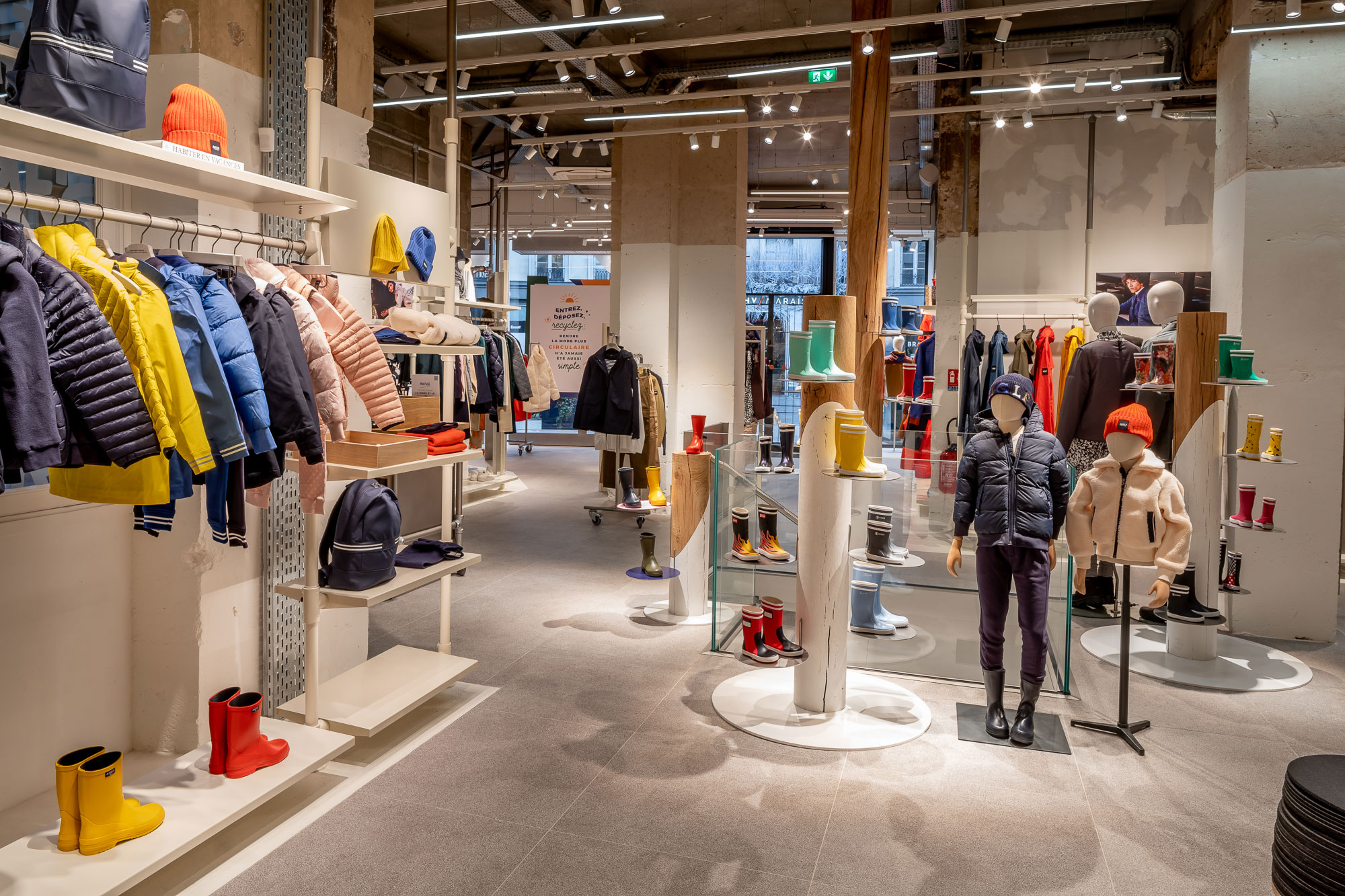

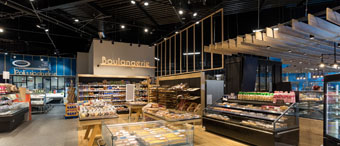

Applications
Commercial lighting should balance visibility, visual comfort, color presentation, and spatial aesthetics. Englumia LED track spotlights provide both general and accent lighting, helping enhance the texture and color of displayed products while maintaining uniform, comfortable illumination.
They are suitable for shopping malls, supermarkets, car showrooms, boutiques, specialty stores, and other commercial spaces.
Faqs
-
Q.What wattages are available?
A.This LED track light is available in 20W, 30W, and 40W versions, with three corresponding fixture sizes.
-
Q.What is the lumen output of the 30W model?
A.The 30W model delivers approximately 3000 lumens, providing efficient illumination for commercial and retail spaces.
-
Q.What type of driver does the fixture use?
A.It uses a reliable OSRAM integrated driver, creating a compact appearance while supporting stable lighting performance.
-
Q.Is this LED track light energy efficient?
A.Yes. With a luminous efficiency of approximately 100–110 lm/W, it provides high light output while helping reduce energy consumption.
-
Q.Does the fixture reduce glare?
A.Yes. The precision reflector and optimized optical structure deliver low-glare illumination with UGR<15.
-
Q.What CRI options are available?
A.CRI 80, CRI 90, and CRI 97 options are available for different color-rendering requirements.
-
Q.Does it provide consistent light color?
A.Yes. SDCM≤3 LED technology helps maintain uniform light color across multiple fixtures in the same installation.
-
Q.Can the color temperature be customized?
A.Yes. Standard and customized color temperatures are available, including special lighting options for fresh food displays.
-
Q.What warranty is available?
A.The product is available with a 5-year warranty, depending on the selected configuration and project requirements.
