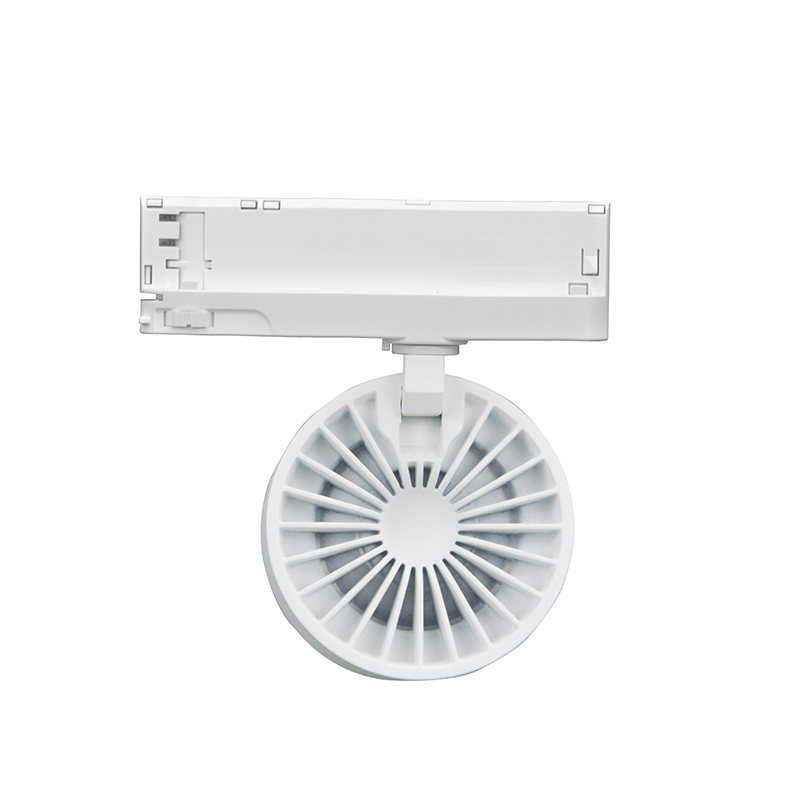

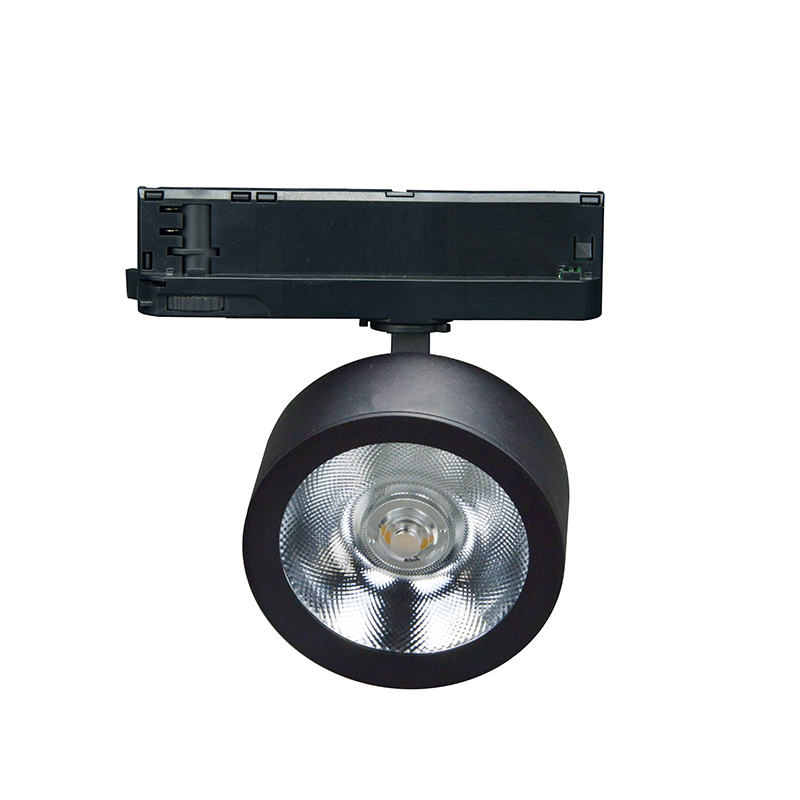

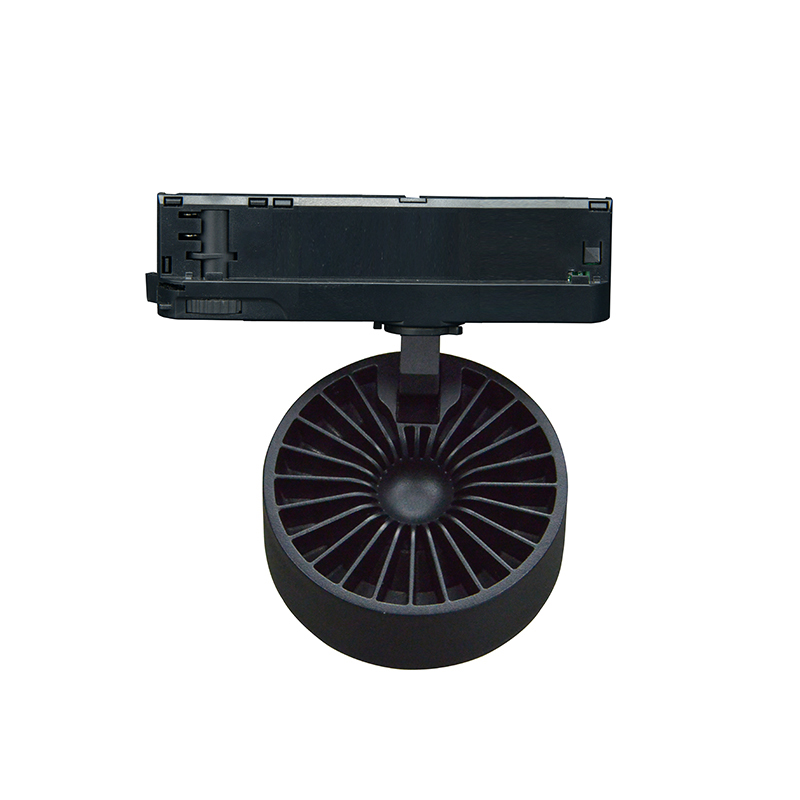

35W Ultra-Slim Cob Led Track Light
Product Code: PS-TL35I135E
Certificate:
Add To Quote
20-35W
Power
83/92Ra
CRI
90-100 lm/W
Lumen Efficiency
Citizen
LED Chip
Tridonic
LED Driver
Specification Table
| Model | PS-TL20I80E | PS-TL30I110E | PS-TL35I135E |
| Power | 20 W | 30 W | 35 W |

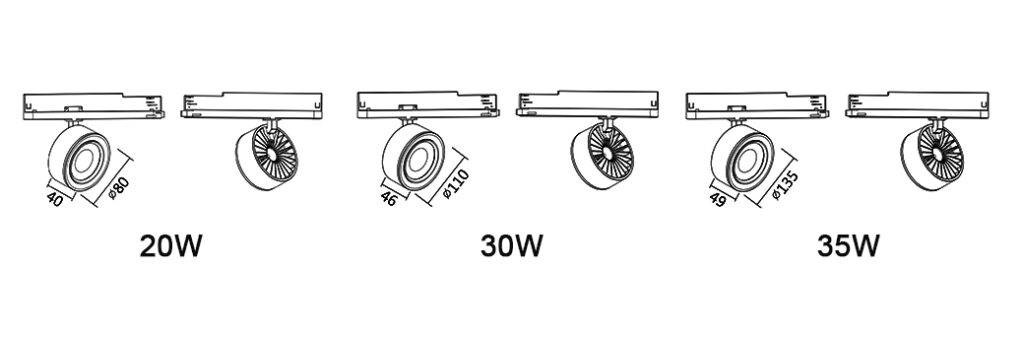

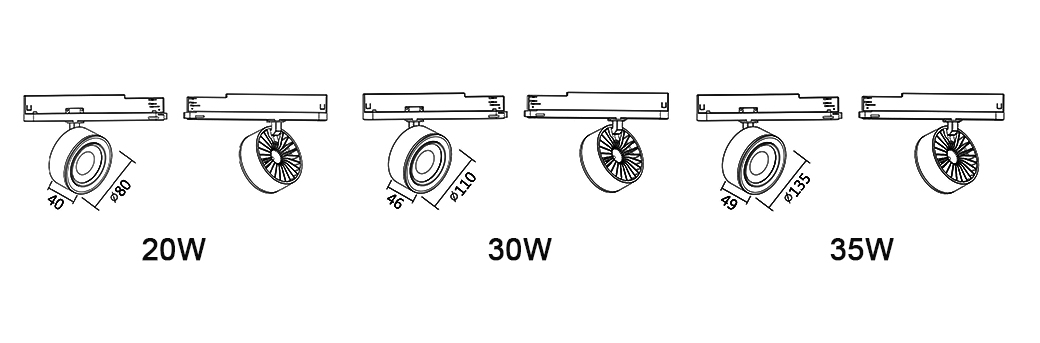

| Product size(mm) | Φ80*40 mm | Φ110*46 mm | Φ135*49 mm |
| Input Voltage | AC220-240V 50/60Hz | ||
| LED Type | Citizen/Luminus/Cree COB | ||
| Power Supply | Tridonic / Osram / Philips / Boke | ||
| Efficacy(lm/W) | 90-100 LM/W | ||
| Lumen Output±5% | 1800-2000 LM | 2700-3000 LM | 3150-3500 LM |
| Beam Angle | 15/24/38° | ||
| CCT (K) | 2700/3000/4000/5000/5700 K | ||
| CRI | Ra80/90/97 | ||
| PF | >0.9 | ||
| SDCM | <3 | ||
| UGR | <19 | ||
| Track Adaptor | 2 / 3 / 4 wires | ||
| Material | Die-Casting Aluminum | ||
| Input Voltage Shock | <380V AC | ||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | ||
| Switching Cycles | >100,000 switching cycles | ||
| Withstand VoItage | 1/P-0/P:3750VAC | ||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | ||
| Life-time | Nominal life-time up to 100,000H | ||
| Operating Temperature | -20~50°C | ||
| Operating Humidity | 5-85% RH, non-condensing | ||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | ||
| THD | <15 | ||
| IP Rate | IP20 | ||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||
| Warranty | 5 Years | ||
Applications

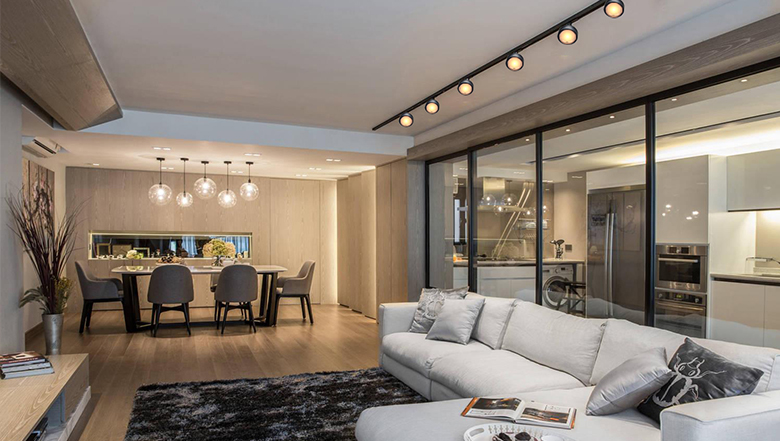

The 35W LED track light is suitable for retail stores, restaurants, hotels, offices, galleries, and museums. It provides focused illumination for merchandise, artwork, displays, and architectural details.
Its ultra-slim design fits compact interiors where conventional track lights may appear too bulky. The adjustable lighting direction also supports flexible accent lighting across different commercial spaces.
Faqs
-
Q.What is the power of this LED track light?
A.The fixture has a rated power of 35W, providing efficient illumination for commercial and display lighting.
-
Q.How slim is the track light?
A.The housing is only 22mm thick, creating a clean appearance and reducing visual bulk.
-
Q.What material is the housing made from?
A.The fixture uses durable die-cast aluminum for effective heat dissipation and reliable long-term performance.
-
Q.What beam angles are available?
A.Available beam angle options include 15°, 24°, and 38° for different accent lighting requirements.
-
Q.What CRI options can I choose?
A.Ra80, Ra90, and Ra97 versions are available to meet different color-rendering needs.
-
Q.What input voltage does the fixture support?
A.It operates at AC 220–240V and supports both 50Hz and 60Hz power supplies.
-
Q.What track system does it use?
A.The fixture can be supplied with a 3-phase adaptor compatible with common commercial track systems.
