20/25W Anti-glare Led Track Spotlight
Product Code: PS-TL20/25-X16A80
Certificate:
Add To Quote
20/25W
Power
83/92Ra
CRI
110LM/W
Lumen Efficiency
Citizen
LED Chip
Tridonic
LED Driver
Description
Anti-glare LED track lighting reduces direct glare and improves visual comfort compared with traditional track lights. It provides softer, more controlled illumination while maintaining high brightness and accurate light distribution. Its energy-efficient LED technology also generates less heat and reduces operating costs, making it suitable for retail stores, galleries, showrooms, homes, and other spaces requiring comfortable accent lighting.
Features
- Low-Glare Lighting: Designed to reduce direct glare and improve visual comfort.
- Multiple Beam Angles: Available in 15°, 24°, 38°, and 60° for focused or wider illumination.
- Energy-Efficient Performance: Uses less energy and produces less heat than traditional lighting.
- Easy Installation: Designed for quick installation on compatible 2/3/4/6 wires track systems.
- Multiple Color Options: Available in different light colors to suit various interior environments.
Specification Table
| Model | PS-TL20A80 | PS-TL25A80 |
| Power | 20W | 25W |
| Product size(mm) | D80*H155 mm | |
| Input Voltage | AC220-240V 50/60Hz | |
| LED Type | Citizen/Luminus/Cree COB | |
| Power Supply | Tridonic / Osram / Philips / Boke | |
| Efficacy(lm/W) | 110 LM/W | |
| Lumen Output±5% | 2100 LM | 2750 LM |
| Beam Angle | 15/24/38/60° | |
| CCT (K) | 2700/3000/4000/5000/5700 K | |
| CRI | Ra80/90/97 | |
| PF | >0.9 | |
| SDCM | <3 | |
| UGR | <15 | |
| Track Adaptor | 2/3/4/6 wires | |
| Material | Die-Casting Aluminum | |
| THD | <15 | |
| IP Rate | IP20 | |
| Input Voltage Shock |
<380V AC | |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | |
| Switching Cycles | >100,000 switching cycles | |
| Withstand VoItage | 1/P-0/P:3750VAC | |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | |
| Life-time | Nominal life-time up to 100,000 h | |
| Operating Temperature | -20~50°C | |
| Storage Temp./Humidity |
-40~80°C, 5-85% RH, non-condensing | |
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |
| Warranty | 5 Years | |
| QTY/CTN Size | 15 pcs / 445*275*250 mm | |
| NW / GW | 10.8 / 12.5 kg | |

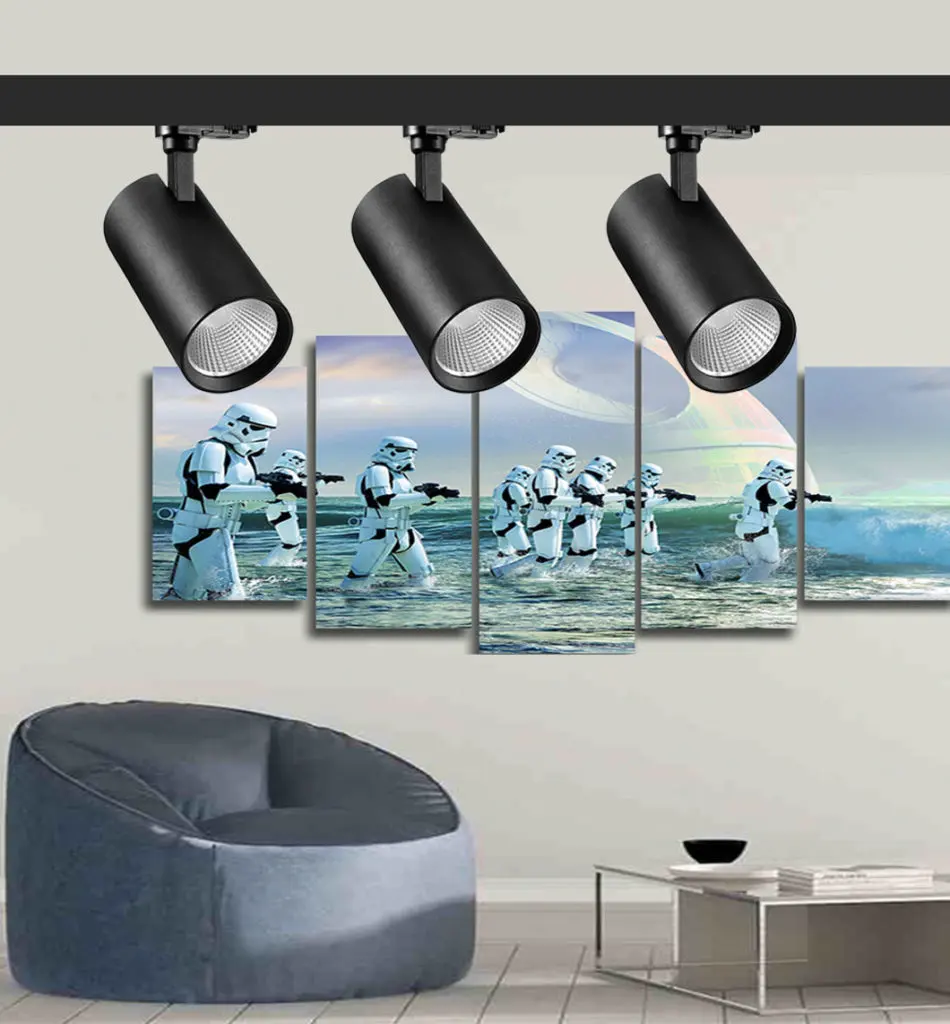

Applications
Each lighting is tailored to different layouts, display requirements, and business environments, helping create comfortable spaces while enhancing the appearance of products.
The A80 track light is widely used in shopping malls, car showrooms, fresh food areas, flower shops, furniture stores, fashion boutiques, department stores, cosmetics shops, and other commercial spaces requiring flexible accent lighting.
Faqs
-
Q.What wattages are available?
A.The Englumia A80 Anti-Glare LED Track Spotlight is available in 20W and 25W versions.
-
Q.How does this track spotlight reduce glare?
A.Its deep optical structure and precision reflector control direct light and reduce unwanted glare. With UGR<15, it provides comfortable illumination for commercial spaces.
-
Q.What beam angles are available?
A.The fixture is available with 15°, 24°, 38°, and 60° beam angles. Narrow beams highlight individual products, while wider beams illuminate larger display areas.
-
Q.What is the luminous efficiency?
A.The track spotlight delivers up to 110 lm/W. The 20W version produces approximately 2,100 lumens, while the 25W version reaches approximately 2,750 lumens.
-
Q.What CRI options are available?
A.CRI 80, CRI 90, and CRI 97 options are available. Higher CRI versions are suitable for artwork, fashion, cosmetics, and fresh food displays.
-
Q.Does it provide consistent light color?
A.Yes. Its color consistency is controlled within SDCM<3, helping reduce visible color differences between multiple fixtures.
-
Q.Is the track spotlight dimmable?
A.The standard version is non-dimmable. Optional 1–10V, DALI, and Bluetooth dimming versions are available for different project requirements.
-
Q.Which track systems are compatible?

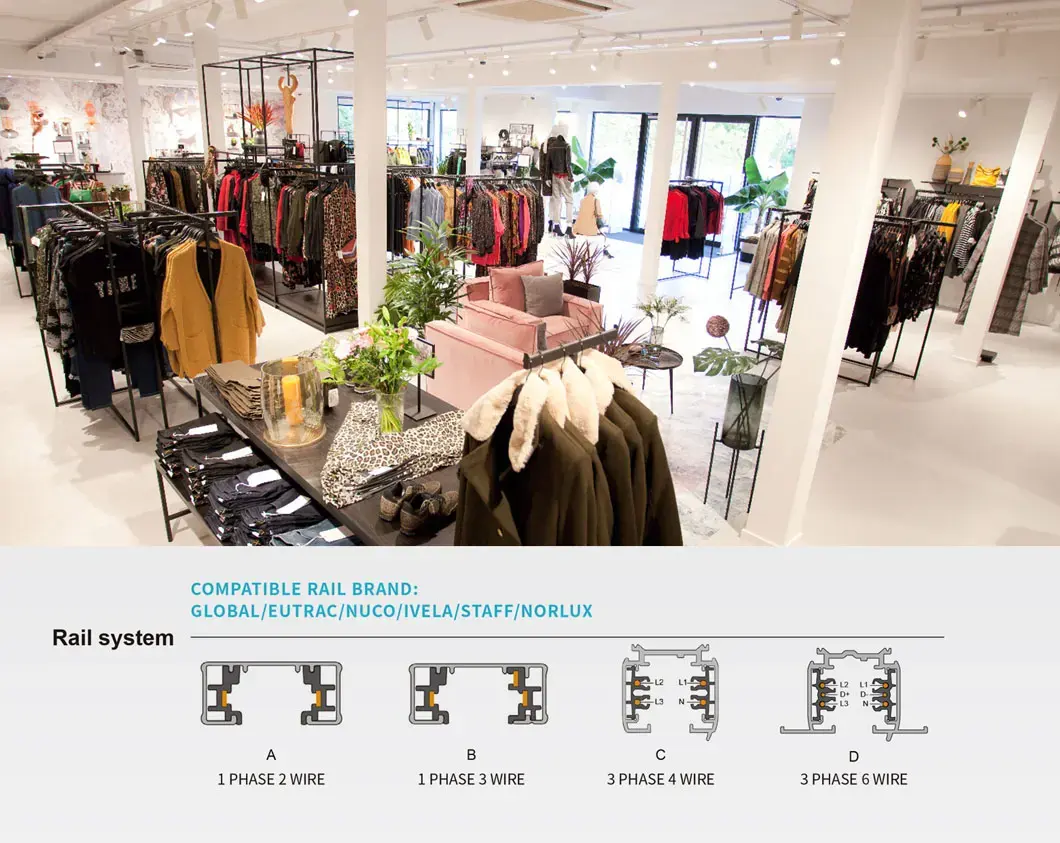

A.The fixture supports 2-wire, 3-wire, 4-wire, and 6-wire track adaptors. Please confirm your existing track system before ordering.
-
Q.What installation options are available?
A.The A80 can be supplied for track-mounted, surface-mounted, or recessed installation, making it suitable for different ceiling structures.
-
Q.What warranty is provided?
A.The Englumia A80 Anti-Glare LED Track Spotlight comes with a five-year warranty.
