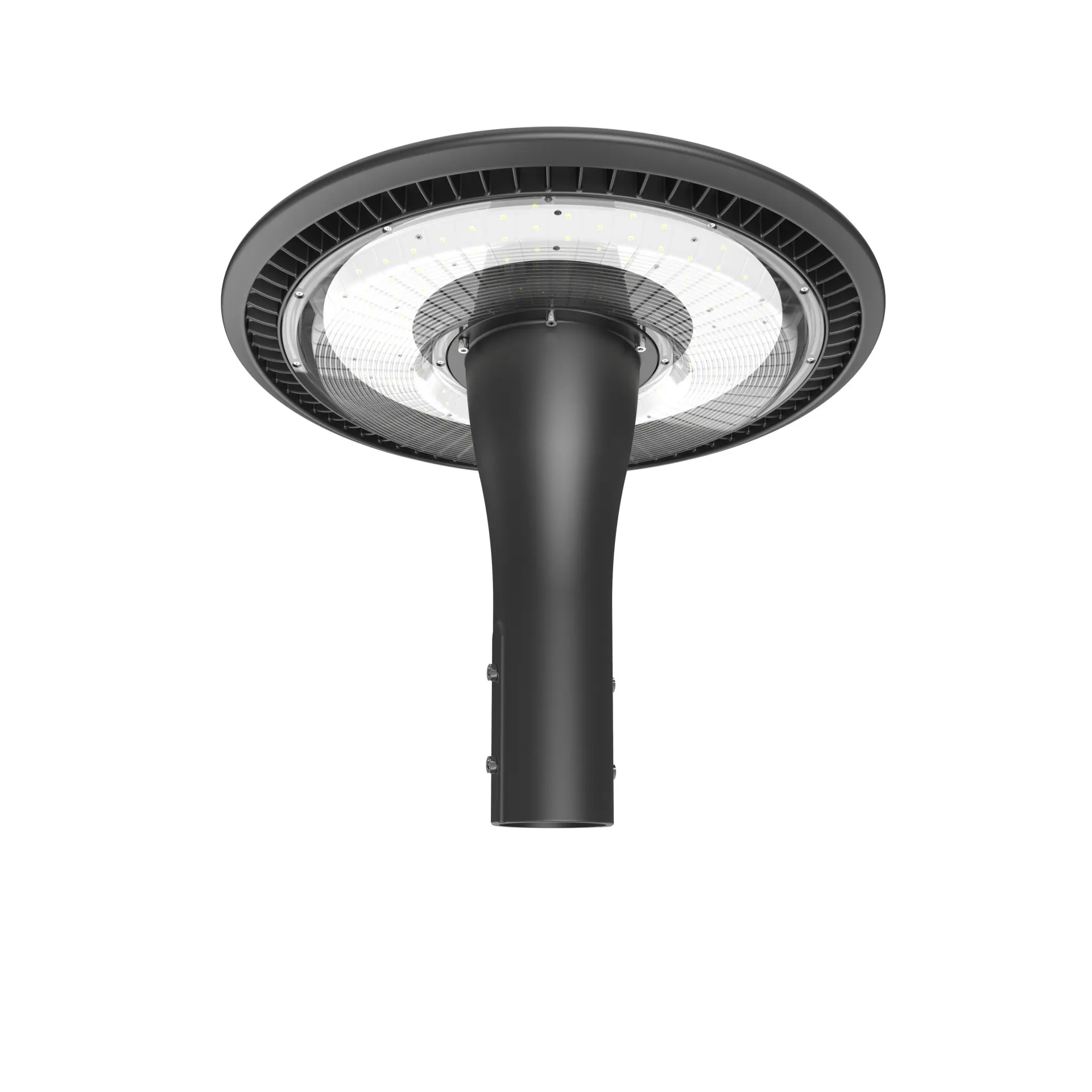

The L11 FAIRY SERIES LED Landscape Garden Light combines a modern ultra-thin appearance with outstanding lighting performance. Powered by Lumileds 3030 LEDs and premium LED drivers, it delivers up to 150 lm/W while providing soft, glare-free illumination through a ribbed diffused PC cover. Its robust die-cast aluminum housing, IP65 waterproof protection, and IK08 impact resistance ensure long-term reliability in demanding outdoor environments. Available in 40W, 60W, 80W, and 100W, the fixture is suitable for parks, residential streets, commercial plazas, hotels, campuses, and landscape projects. Optional DALI and 1-10V dimming make it an excellent solution for modern smart lighting systems.
Key Features:
High Luminous Efficiency: Up to 150 lm/W reduces energy consumption while maintaining bright and uniform outdoor lighting.
Slim Disc Design: The ultra-thin housing delivers a clean architectural appearance while reducing dust accumulation and wind resistance.
Comfortable Glare-Free Lighting: The ribbed diffused PC cover creates soft, evenly distributed light with a wide 130° beam angle.
Built for Harsh Outdoor Conditions: Die-cast aluminum housing, IP65 waterproof protection, IK08 impact resistance, and 10kV surge protection ensure reliable operation.
Smart Lighting Compatibility: Supports On-Off, 1-10V, and DALI dimming for intelligent lighting management and additional energy savings.
Long Service Life: Premium LEDs and branded drivers provide over 60,000 hours of maintenance-free performance with a 5-year warranty.
Specification Table
Model
PS-FL40-100WL11
Power
40/60/80/100W

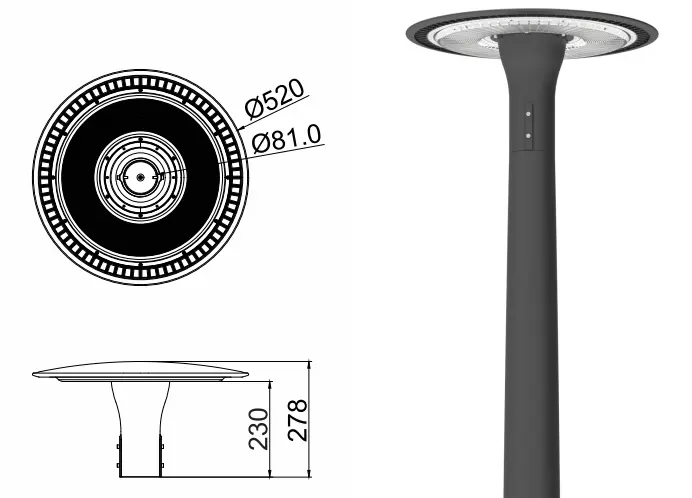

Pole Diameter(mm)
Ø81
Input Voltage
AC220-240V 50/60Hz
LED Type
SMD3030
Power Supply
Inventronics/Meanwell/Sosen
Efficacy (lm/W)
140-150lm/W
Lumen Output ±5%
5600-15000lm/W
Beam Angle
130°
CCT(K)
3000/4000/5700K
CRI
Ra80/90/95
PF
>0.9
SDCM
<3
ULOR
0%
DLOR
100%
Material
Die-casting Aluminum
THD
<15
IP Rate
IP 65
Dimming
Non-dimming (Default)/1-10V/DALI
Certificate
CE/RoHS/CB/TUV/SAA/C-Tick
Warranty
5 years
QTY(PCS/Carton)
/
N.W.(KG/Carton)
8.7
Carton Size (mm)
/
G.W.(KG/Carton)
11.5
Applications
Parks & Gardens
Provides comfortable pathway lighting while enhancing landscape aesthetics with soft and uniform illumination.
Residential Communities
Improves safety and visibility for internal roads, courtyards, pedestrian walkways, and public gathering areas.
Commercial Plazas
Delivers bright and energy-efficient lighting for shopping centers, business parks, and urban public squares.
Hotels & Resorts
Creates an elegant outdoor atmosphere while providing reliable illumination for gardens, entrances, and leisure areas.
Documents
2026.07.23
24309.04KB
Faqs
Q.Which installation height is recommended?
A.The 40W and 60W models are ideal for 3–5 m poles, while the 80W and 100W models are recommended for 5–8 m installations.
Q.Does the fixture support smart lighting systems?
A.Yes. It supports On-Off, 1-10V dimming, and DALI control for intelligent lighting management.
Q.Is it suitable for coastal or rainy environments?
A.Yes. The IP65-rated housing and corrosion-resistant powder-coated die-cast aluminum body provide reliable outdoor performance.
Q.What color temperatures are available?
A.The fixture is available in 3000K, 4000K, and 5700K to suit different outdoor lighting applications.
Q.Can higher color rendering be selected?
A.Yes. Besides the standard CRI >70, optional CRI >80 and CRI >90 are available for premium landscape projects.
Q.How long is the service life?
A.The fixture offers more than 60,000 hours (L70) of operation and is backed by a 5-year warranty.
