Home / Products / LED Downlight / Seamless Circular Led Linear Light for Commercial Architectural Lighting

Seamless Circular Led Linear Light for Commercial Architectural Lighting

Product Code: PS-CLL25-180W-5075

Seamless Lighting: Continuous light with a clean, uninterrupted ring effect.
Architectural Design: Adds a modern visual feature to commercial interiors.
Flexible Customization: Custom sizes and configurations for different projects.
Wide Applications: Ideal for retail, hotels, offices and showrooms.

Certificate:

Request Info

Add To Quote

25-180W

Power

80/90Ra

CRI

110-120lm/w

Lumen Efficiency

SMD 2835

LED Chip

Inventronics / Osram / Tridonic / Boke

LED Driver

Description

Designed to combine lighting performance with architectural aesthetics, this seamless circular LED linear light creates a continuous ring of light that becomes part of the interior design. Its clean circular profile provides both functional illumination and a distinctive visual element for modern commercial spaces.

Key Features

Seamless Continuous Lighting: Creates a smooth and uninterrupted ring of light for a refined architectural appearance.
Distinctive Circular Design: Turns conventional ceiling lighting into an eye-catching spatial design feature.

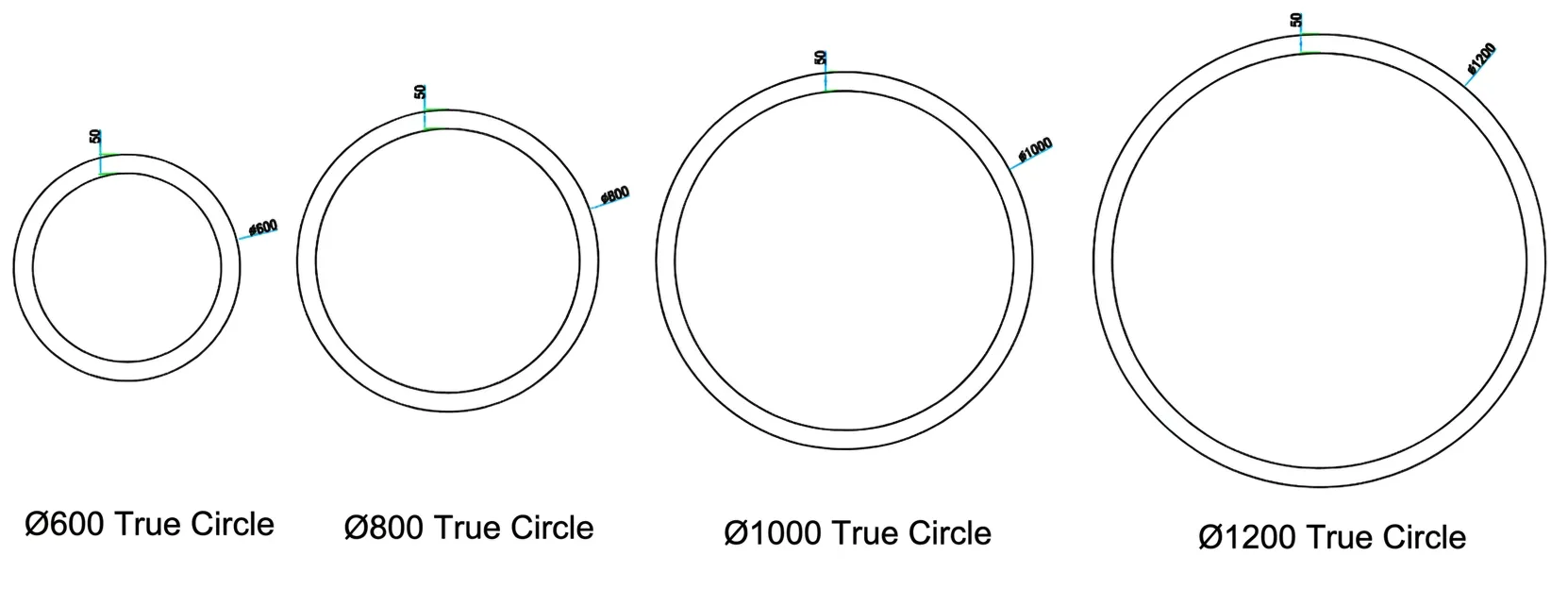

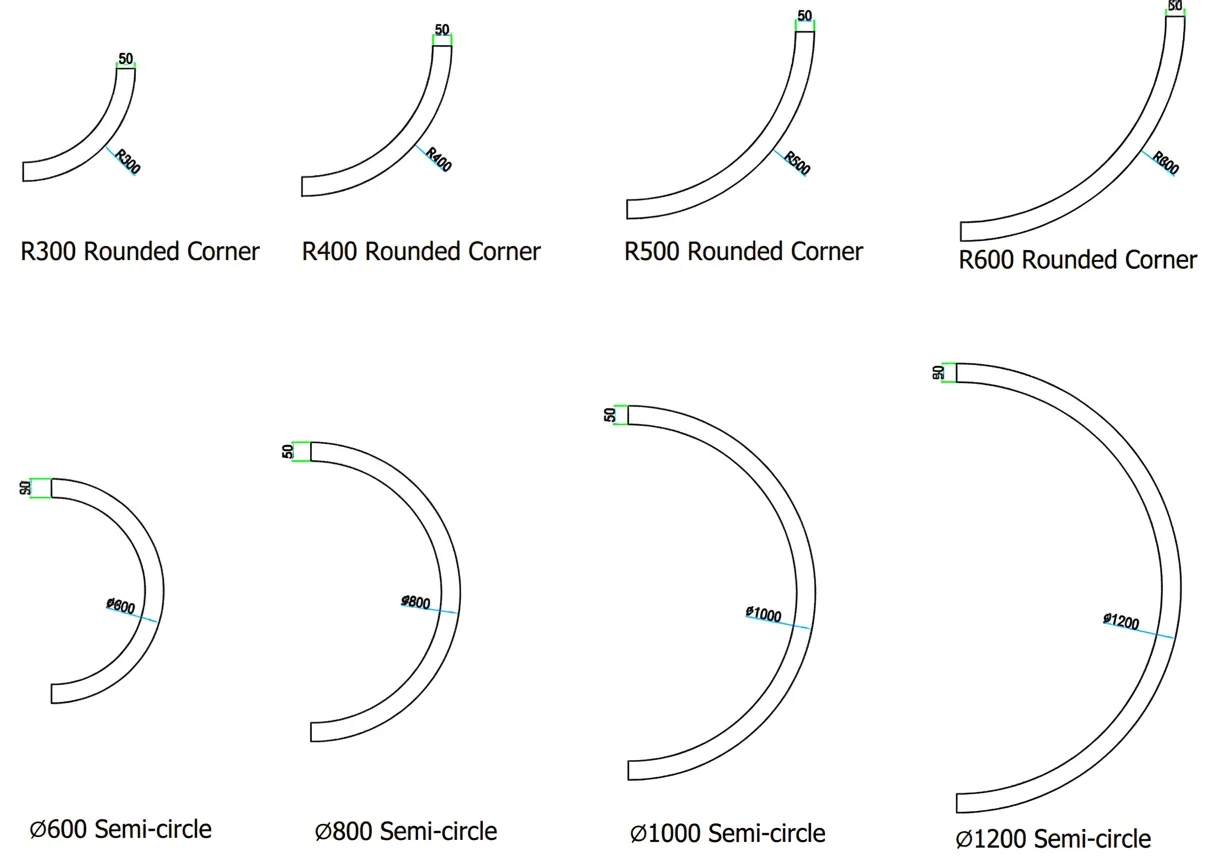

Flexible Project Design: Different diameters and configurations can be developed to meet specific project requirements.
Uniform Visual Effect: The continuous linear profile helps create a consistent and visually balanced lighting appearance.
Commercial-Ready Solution: Well suited for retail, hospitality, office, showroom and public commercial environments.
Custom Lighting Options: Supports project-oriented customization of dimensions, power, CCT, finish and control according to actual requirements.

Specification Table

Model	PS-CLL-5075-R400/500/600	PS-CLL-5075-R700/800	PS-CLL-5075-R900/1000	PS-SCLL-R1200/1500
Power	25-72W	40-100W	55-120W	75-180W
Product size(mm)	R400/500/600W50H75 mm	R700/800W50H75 mm	R900/1000W50H75 mm	R1200/1500W50H75 mm
Input Voltage	AC220-240V 50/60Hz
LED Type	SMD 2835
Power Supply	Inventronics / Osram / Tridonic / Boke
Efficacy(lm/W)	110-120 LM/W
Beam Angle	120°
CCT (K)	2700/3000/3500/4000/5000 K
CRI	Ra80/90
PF	>0.9
SDCM	<5
UGR	<19
Material	6063-T5 Aviation-Grade Aluminum
THD	<15
Input Voltage Shock	<380V AC
Start/Switchover/Turn off	<0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off)
Switching Cycles	>100,000 switching cycles
Withstand VoItage	1/P-0/P:3750V AC
Mainssurge Capability	L-N:2KV(90%/270°, 5 times each with an interval of 60s)
Life-time	Nominal life-time up to 100,000H
Operating Temperature	-20~50°C
Operating Humidity	5-85% RH, non-condensing
Storage Temp./Humidity	-40~80°C, 5-85% RH, non-condensing
IP Rate	IP20
Dimming	Non-dimming (Default) /1-10V / Dali/BLE dimming
Certificate	CE/RoHS/CB/TUV/SAA/C-Tick
Warranty	5 Years

Applications

Retail Stores

Creates eye-catching ceiling features while providing a clean and modern lighting environment for merchandise displays.

Hotel Lobbies

Large circular lighting elements add elegance and visual identity to reception areas, entrances and hospitality spaces.

Offices & Reception Areas

Creates a contemporary architectural atmosphere while helping define key areas such as reception desks and collaborative spaces.

Showrooms & Shopping Malls

Multiple circular fixtures can be combined into creative ceiling compositions to enhance spatial aesthetics and customer experience.

Documents

2026.06.17

0.00KB

Faqs

Q.What is a seamless circular LED linear light?

A.It is a circular linear lighting system designed to create a continuous ring of illumination with a clean and uninterrupted visual appearance.
Q.Can the diameter of the circular LED linear light be customized?

A.Yes. Different diameters and configurations can be developed according to project requirements and installation conditions.
Q.Can multiple circular lights be used together?

A.Yes. Different ring sizes can be combined to create layered or customized ceiling lighting compositions.
Q.Can the lighting system be dimmed or connected to a smart lighting system?

A.Control and dimming options can be configured according to the selected driver and project requirements.
Q.Where can circular LED linear lights be used?

A.They are suitable for retail stores, hotels, offices, showrooms, shopping malls, reception areas and other commercial interiors.
Q.Can the finish and appearance be customized?

A.Project-specific finishes and configurations can be discussed for architectural and commercial lighting applications.
Q.Is this product suitable for large commercial projects?

A.Yes. Its modular and customizable design makes it suitable for commercial projects requiring distinctive circular lighting arrangements.
Q.Can you provide OEM or project-based solutions?

A.Yes. Custom dimensions, configurations and other project-specific requirements can be evaluated for OEM/ODM and architectural lighting projects.
