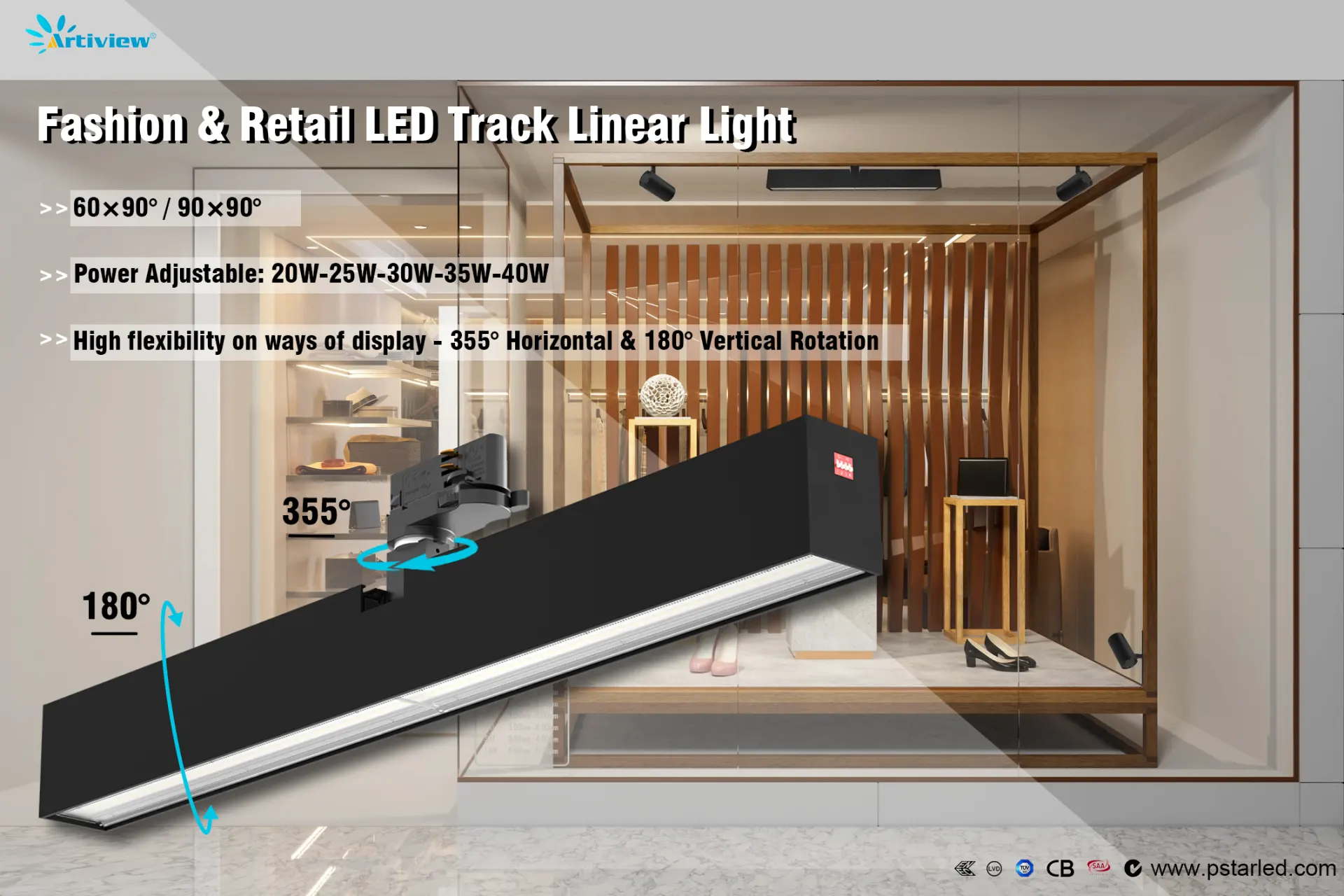

Ps-TL20-40W Dip Switch Track Linear Light
Product Code: PS-TL20/25/30/35/40WL45
20–40W track linear light features a 0.6 m length, dip switch in 20/25/30/35/40W power. It allows easy wattage adjustment to meet different light intensity requirements. With selectable power settings from 20W to 40W.
Optional 2/3/4/6 wires track adapter, easy to install and save wiring and installation cost.
Ultra-high track compatibility. Able to be used with your existed track system and moves flexibly.
Certificate:
20-40W
Power
80Ra/90Ra
CRI (Ra)
IP20
IP Rating
30°-90°
Beam Angle
220~240V
Voltage
Description
The 20-40W dip-switch track linear light has become an increasingly versatile choice for retail stores, supermarkets, galleries, and offices due to its adjustable power design and energy-saving performance.
- 20/25/30/35/40W 5 power dip-switch in 1 lamp, save cost and no need buy more lamps
- 110-120 lm/W high efficacy, save more electricity compared with traditional light
- 2/3/4 wires easy track installation
- Feature 0.6/1.2m; 0.6m for accent and complimentary lighting; 1.2 m for basic lighting
- 360° rotation and tiltable design
- Functions all combined in 1 lamp
- Slim and minimalist profile
Specification Table
| Model | PS-TL20/25/30/35/40WL45 |
| Power | 20/25/30/35/40W Dip Switch |
| Product size(mm) | L571*W45*H132mm |
| Input Voltage | AC220-240V 50/60Hz |
| LED Type | SMD 2835/ 3030 |
| Power Supply | Tridonic / Osram / Philips / Boke |
| Efficacy(lm/W) | 110LM-120LM/W |
| Lumen Output±5% | 2200LM-5600LM |
| Beam Angle | 30×90°/60×90°/90×90° |
| CCT (K) | 2700 / 3000K / 4000K / 5000/6000 K |
| CRI | Ra83 / Ra92 |
| PF | >0.9 |
| SDCM | <3 |
| UGR | <19 |
| Track Adapt | 2/3/4/6wire |
| Material | Die-Casting Aluminum |
| THD | <15 |
| IP Rate | IP20 |
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 5 Years |
| Q’TY(PCS)/carton | 10pcs |
| N.W.(KG/carton) | 17kg |
| Carton Size(mm) | 63.5*36.5*34.5cm |
| G.W.(KG/carton) | 20kg |
Applications
Faqs
-
Q.Does a guarantee cover the products from you?
A.Yes. We provide a 3-5 year warranty on all of our goods.
-
Q.Is it legal to print my company's logo on a led light product?
A.Yes. Before we begin production, kindly inform us in writing and validate the design using our sample.
