Sliding Adjustable Led Track Linear Light With Dual Locking Design 20-50W
Product Code: PS-TL20/25/30/35/40/45/50W-L45S
Certificate:
20-50W
Power
80Ra/90Ra
CRI (Ra)
IP20
IP Rating
30×90° / 60×90° / 90×90°
Beam Angle
220~240v
Voltage
Specification Table
| Model | PS-TL20/25/30/35/40/45/50W-L45S |
| Power | 20/25/30/35/40/45/50W |

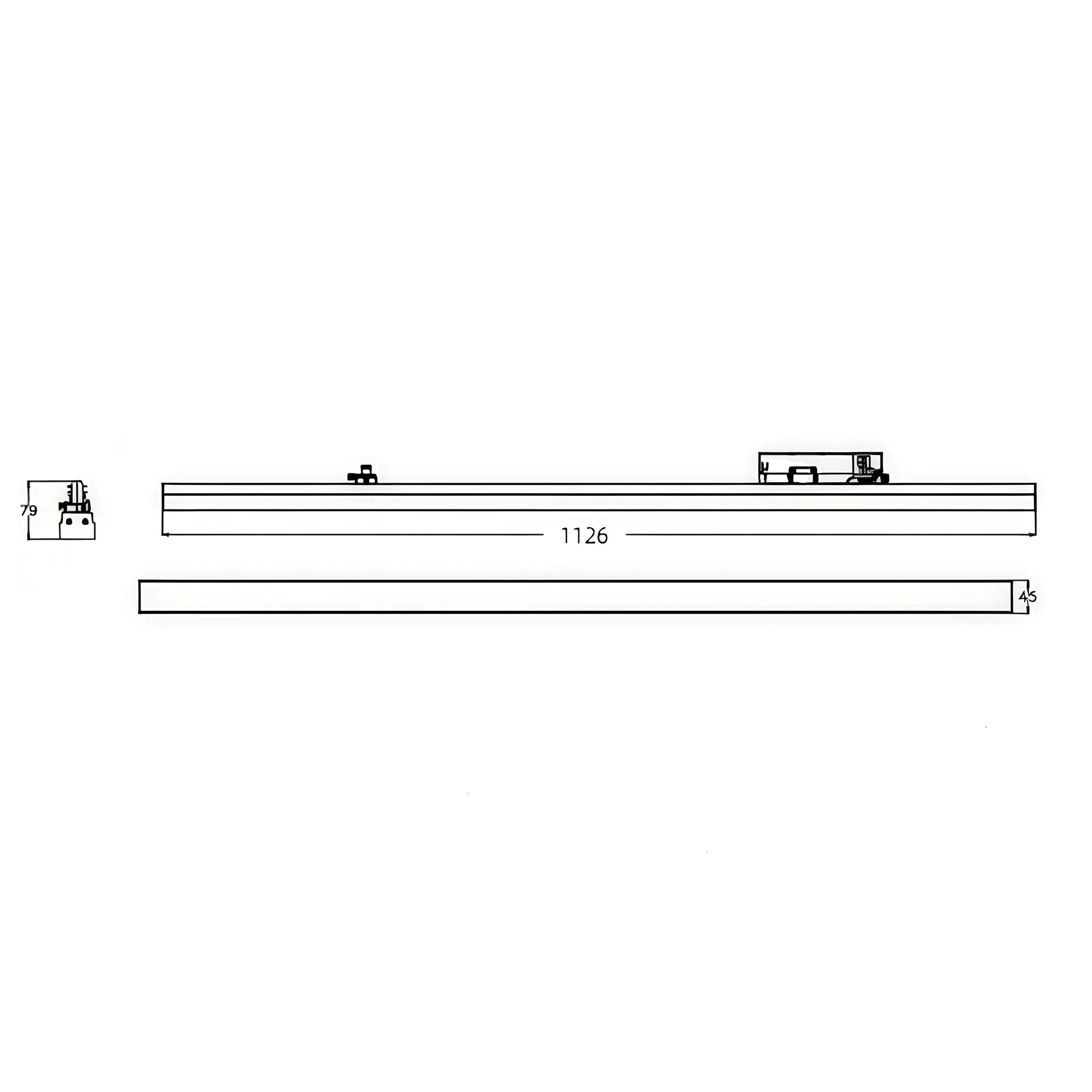

| Product size(mm) | L1126*W45*H79mm |
| Input Voltage | AC220-240V 50/60Hz |
| LED Type | Lumileds/Osram SMD 2835/3030 |
| Power Supply | Osram / Tridonic / Global / KGP |
| Efficacy(lm/W) | 100-140LM/W |
| Beam Angle | 30×90° / 60×90°/ 90×90° |
| CCT (K) | 2700 / 3000K / 3500K / 4000K / 5000K |
| CRI | Ra83 / Ra92 |
| PF | >0.9 |
| SDCM | <3 |
| UGR | <19 |
| Track Adapt | 2/3/4/6wire |
| Material | Die-Casting Aluminum |
| THD | <15 |
| IP Rate | IP20 |
| Input Voltage Shock | <380VAC |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) |
| Switching Cycles | >100,000 switching cycles |
| Withstand VoItage | 1/P-0/P:3750VAC |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) |
| Life-time | Nominal life-time up to 100,000H |
| Operating Temperature | -20~50°C |
| Operating Humidity | 5-85% RH, non-condensing |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing |
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 5 Years |
| QTY / CTN Size | 4 PCS / 1235*305*305 MM |
| N.W. / G.W. | 20 KG / 22 KG |
Applications
- Supermarkets
Adjust the fixture position easily when shelf layouts change without relocating the track.
- Retail Stores
Highlight merchandise accurately by sliding the luminaire to the ideal lighting position.
- Offices
Create comfortable, uniform lighting for open workspaces with flexible installation.
- Galleries & Showrooms
Reposition lighting quickly for changing exhibitions or display arrangements.
Faqs
-
Q.Why does this track linear light use a sliding design?
A.The sliding mechanism allows the fixture to move left or right after installation, making it easy to adjust lighting positions without rewiring or reinstalling the luminaire.
-
Q.What is the advantage of the dual locking structure?
A.The combination of a track adapter and locking clip securely supports the long fixture, preventing sagging or movement while maintaining installation flexibility.
-
Q.Can the fixture still slide after both ends are fixed?
A.Yes. The special sliding block is designed to allow smooth horizontal adjustment while both ends remain securely attached to the track.
-
Q.Which dimming systems are available?
A.The fixture supports On/Off, 0-10V, Triac, and DALI dimming to suit different commercial lighting control systems.
-
Q.Is this product suitable for supermarket lighting?
A.Yes. It is particularly suitable for supermarkets because the lighting position can be easily adjusted whenever shelving layouts change.
-
Q.What track systems are compatible?
A.The Vienna Series is available with both 1-phase and 3-phase track adapters to meet different project requirements.
