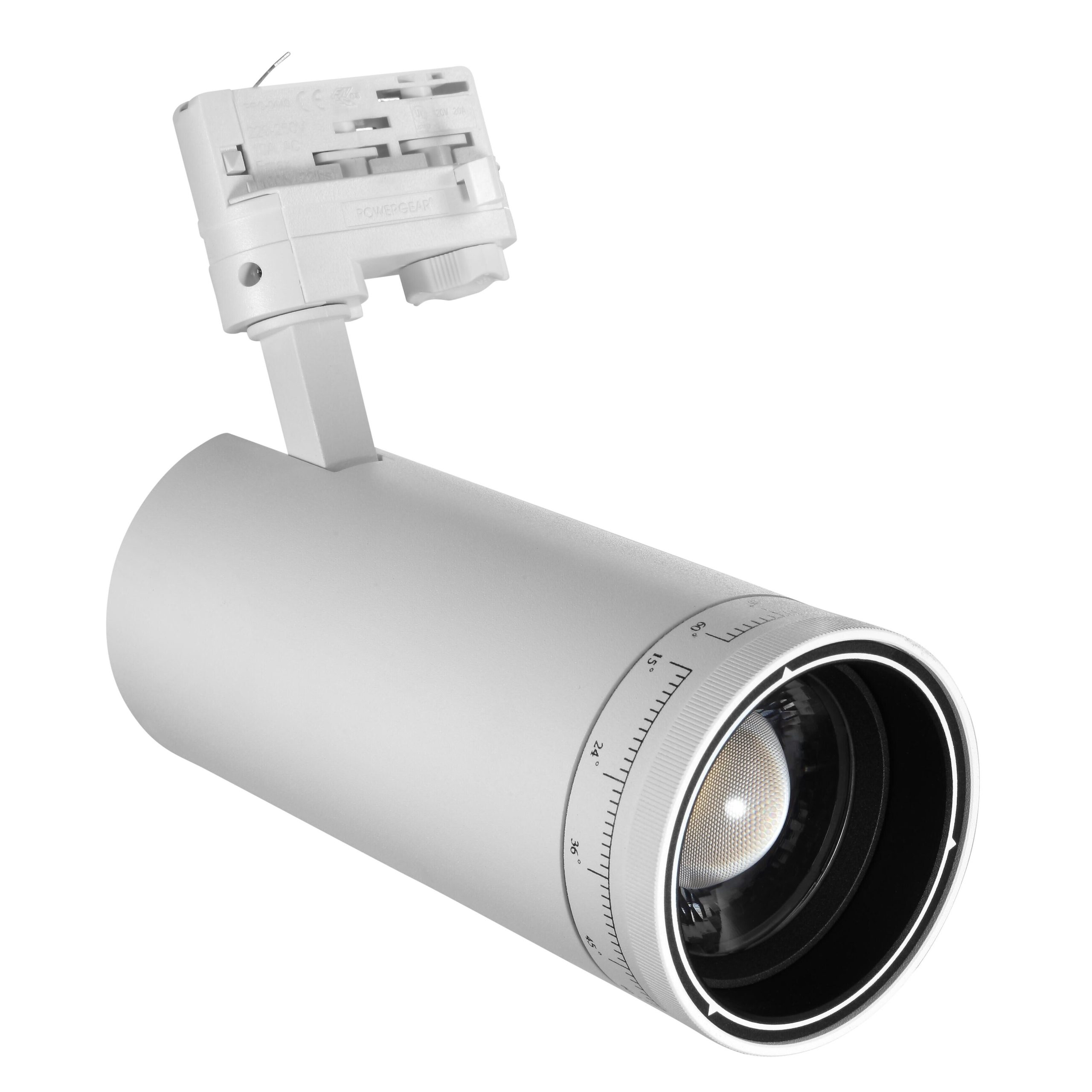

25/30 W Zoomable Led Track Spotlight
Product Code: PS-TL25/30-A92Z
Certificate:
25/30 W
Power
80/90/97 Ra
CRI
80-90 lm/w
Lumen Efficiency
Citizen
LED Chip
Tridonic
LED Driver
Description
Features:
- High CRI Options: 83 / 92 / 97: Enhances color accuracy to present paintings and artworks as faithfully as possible
- 15°–60° Stepless Beam Angle Adjustment: Smoothly adjusts the beam from narrow to wide to suit paintings and artworks of different sizes
- 0–10V Potentiometer Stepless Dimming: Each fixture can be dimmed independently from 0% to 100% for precise brightness control
- 2700–6000 K Adjustable CCT: Provides greater flexibility for changing exhibitions and helps create the right visual environment for display
- Quick Track Installation: Reduces installation time and makes repositioning or updating exhibition layouts faster and easier
- Multiple Track Adapter Options: 2 / 3 / 4 / 6 wires
Specification Table
| Model | PS-TL25/30A92Z |
| Power | 25/30 W |
| Product size(mm) | W92*L205 mm |
| Input Voltage | AC 220-240V 50/60Hz |
| LED Type | Citizen/Luminus/Cree COB |
| Power Supply | Tridonic / Osram / Philips / Boke |
| Efficacy(lm/W) | 80-90 LM/W |
| Lumen Output±5% | 2250-2700 LM |
| Beam Angle | 15-60° Zoomable |
| CCT (K) | 2700/3000K/4000K/5000K/5700/ (2700-6000) K |
| CRI | Ra83/Ra92/Ra97 |
| PF | >0.9 |
| SDCM | <3 |
| UGR | <19 |
| Track Adaptor | 2/3/4/6 wires |
| Material | Die-Casting Aluminum |
| THD | <15 |
| IP Rate | IP20 |
| Input Voltage Shock | <380VAC |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) |
| Switching Cycles | >100,000 switching cycles |
| Withstand VoItage | 1/P-0/P:3750VAC |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) |
| Life-time | Nominal life-time up to 100,000h |
| Operating Temperature | -20~50°C |
| Operating Humidity | 5-85% RH, non-condensing |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing |
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 5 Years |
| QTY/CTN Size | 12 PCS / 420*320*310 mm |
| NW/GW | 16.2 /18 kg |
Applications
Ideal for museums, galleries, and exhibition spaces, providing precise accent lighting for paintings, photographs, and other flat artworks.
FAQS
-
Q.Why is it suitable for changing exhibitions?
A.The adjustable beam angle, independent dimming, and selectable color temperature allow one fixture to adapt to artworks of different sizes, colors, and display layouts without replacing the luminaire.
-
Q.What is the adjustable beam angle range?
A.The beam angle can be adjusted continuously from 15° to 60°, from a narrow spotlight for precise accent lighting to a wider beam for larger artworks and display areas.
-
Q.Does the beam angle require changing the lens?
A.No. The beam angle can be adjusted directly through the zoom mechanism without replacing lenses or reflectors, making exhibition changes faster and easier.
-
Q.Can each track light be dimmed independently?
A.Yes. Each fixture supports independent 0–100% stepless dimming, allowing the brightness of every artwork or display area to be adjusted separately.
-
Q.How is the brightness adjusted?
A.The fixture uses a 0–10V potentiometer for smooth and precise dimming. The brightness can be fine-tuned directly according to the size, material, and lighting requirements of each exhibit.
-
Q.Is the color temperature adjustable?
A.Yes. The color temperature can be adjusted from 2700 K to 6000 K, allowing warm or cool lighting to be selected for different artworks, materials, and exhibition atmospheres.
-
Q.Is it suitable for paintings?
A.Yes. Its adjustable beam, brightness, and color temperature make it ideal for paintings, calligraphy, photographs, and other flat artworks that require precise and controlled accent lighting.
-
Q.Do I need to replace the existing track system?
A.No. The fixture can be installed on a compatible existing track system, helping reduce installation work and avoid unnecessary track replacement.
