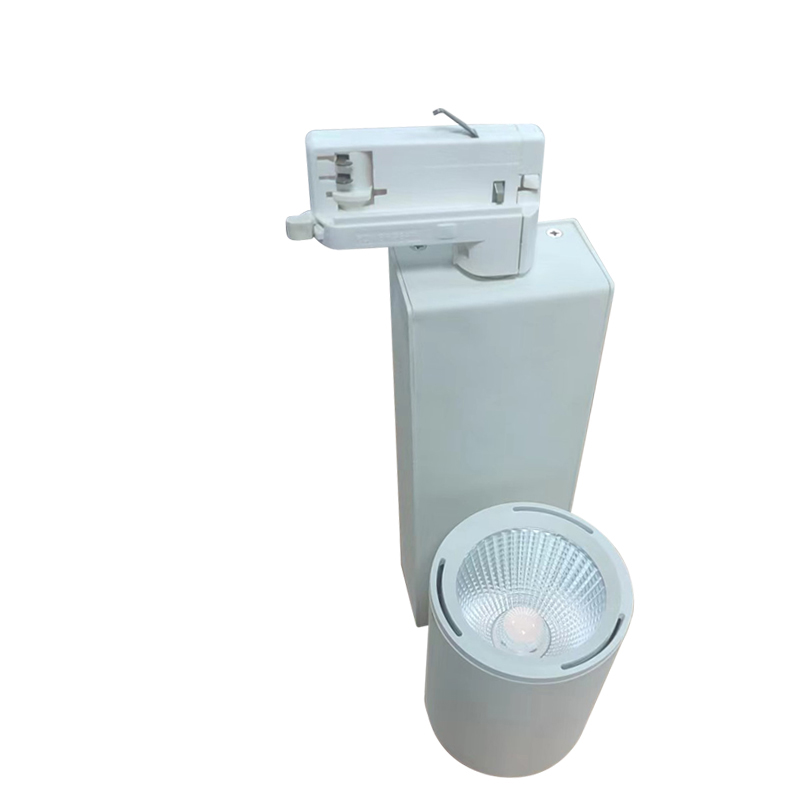

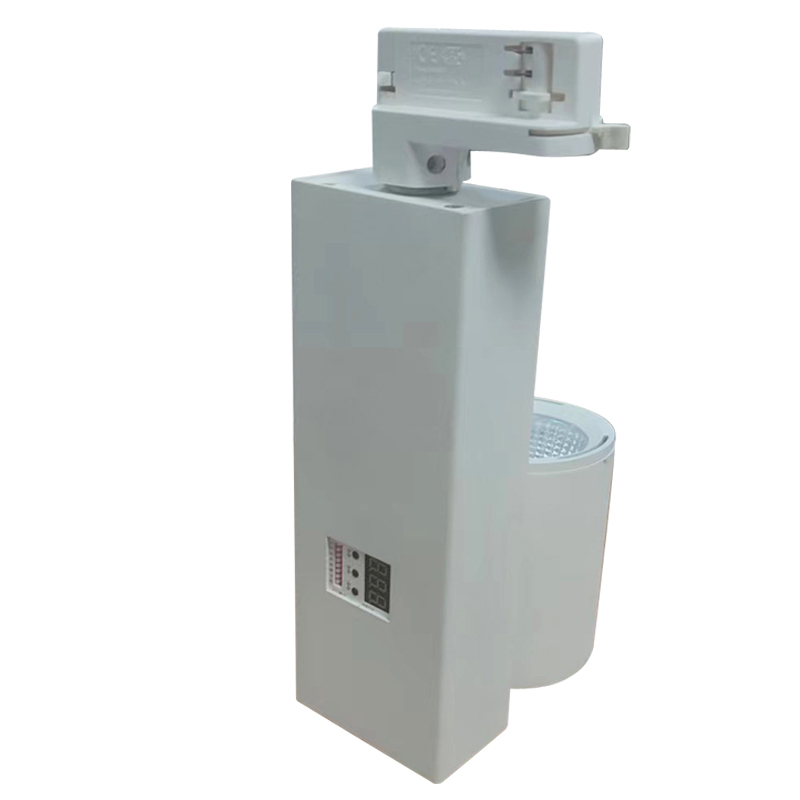

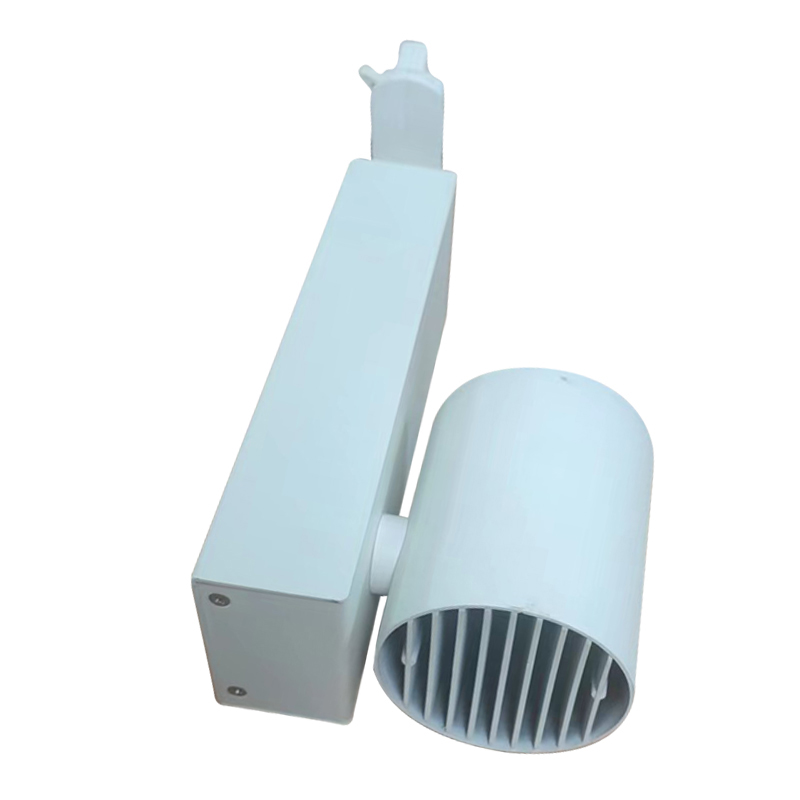

Led Rgbw DMX512 Track Light 30W
Product Code: PS-TL-30/35WRGBW-X16
Certificate:
Add To Quote
30/35W
Power
92Ra
CRI
100lm/w
Lumen Efficiency
RGB/RGBW
LED Chip
DMX512
LED Driver
Specification Table
| Model | PS-TL-30/35WRGBW-X16 |
| Power | 30W/35W |
| Product Size(mm) | D93*W115*H270 mm |
| Input Voltage | AC 220-240V 50/60Hz |
| LED Type | Citizen/Luminus/Cree COB |
| Power Supply | DMX512 |
| Efficacy (lm/W) | 80 lm/W |
| Lumen Output ±5% | 2400/2800 LM |
| Beam Angle | 15/24/38/60° Reflector |
| CCT | RGBW/RGB |
| CRI | Ra92 |
| PF | >0.9 |
| SDCM | <3 |
| UGR | <15 |
| Track Adaptor | 6 wires |
| Material | Die-casting Aluminum |
| Input Voltage Shock | <380V AC |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) |
| Switching Cycles | >100,000 switching cycles |
| Withstand VoItage | 1/P-0/P:3750VAC |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) |
| Life-time | Nominal life-time up to 100,000h |
| Operating Temperature | -20~50°C |
| Operating Humidity | 5-85% RH, non-condensing |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing |
| THD | <15 |
| IP Rate | IP 20 |
| Dimming | DMX512 |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 5 years |
| QTY/CTN Size | 9 pcs / 500*320*340 mm |
| NW / GW | 16.2 / 18 kg |
Applications
LED RGBW DMX512 track lights are designed for a wide range of commercial and entertainment lighting applications.
They provide flexible color control, dynamic lighting effects, and low power consumption, making them ideal for stages, bars, clubs, and exhibition spaces.
Faqs
-
Q.What is the difference between RGB and RGBW track lights?
A.RGB track lights combine red, green, and blue LEDs to create different colors. RGBW models add a dedicated white LED for cleaner white light and richer color performance.
-
Q.Does this track light support DMX512 control?
A.Yes. The fixture supports DMX512 control for adjusting colors, brightness, transitions, and dynamic lighting effects.
-
Q.Can each track light be controlled individually?
A.Yes. Each fixture can be assigned an individual DMX address for separate control. Multiple lights can also be synchronized as a group.
-
Q.Can the light produce both static and dynamic effects?
A.Yes. It supports static colors, smooth color transitions, dimming, flashing, and programmed dynamic lighting scenes.
-
Q.What type of track rail is required?
A.The compatible track rail depends on the selected control and wiring configuration. Please confirm the track system and wire layout before ordering.
-
Q.What is the product warranty?
A.The standard warranty is 3–5 years, depending on the selected configuration and driver.
