30/35W Microwave Sensor Led Track Light
Product Code: PS-TL30/35-X16B80M
Certificate:
Add To Quote
30/35W
Power
83/92Ra
CRI
110 LM/W
Lumen Efficiency
Citizen
LED Chip
0/1-10V
LED Driver
Description
The 30/35W Microwave Sensor LED Track Light combines intelligent sensing, efficient illumination, and flexible installation. Its microwave sensor automatically activates the light when movement is detected. The fixture can dim or switch off after a preset period without activity. This helps reduce unnecessary energy consumption and extends the operating lifespan. Its adjustable track-mounted design supports precise aiming for different commercial lighting requirements.
Features
- Intelligent Microwave Sensor: Detects movement accurately and automatically controls the light according to occupancy.
- 30W and 35W Options: Two power options are available to meet different brightness and installation requirements.
- Adjustable Lighting Direction: The flexible lamp body allows precise positioning for accent, task, or general lighting.
- Efficient LED Performance: High-quality LED chips provide bright, stable, and uniform illumination with low energy consumption.
- Durable Aluminum Housing: The aluminum body improves heat dissipation and supports reliable long-term operation.
- Flexible Sensor Settings: Detection range, hold time, and standby settings can be customized for different projects.
- Multiple Housing Colors: Available in black or white to match different ceiling and interior designs.
- Reliable Warranty: A 5-year warranty is available for long-term quality assurance.
Specification Table
| Model | PS-TL30B80M | PS-TL35B80M |
| Power | 30W | 35W |

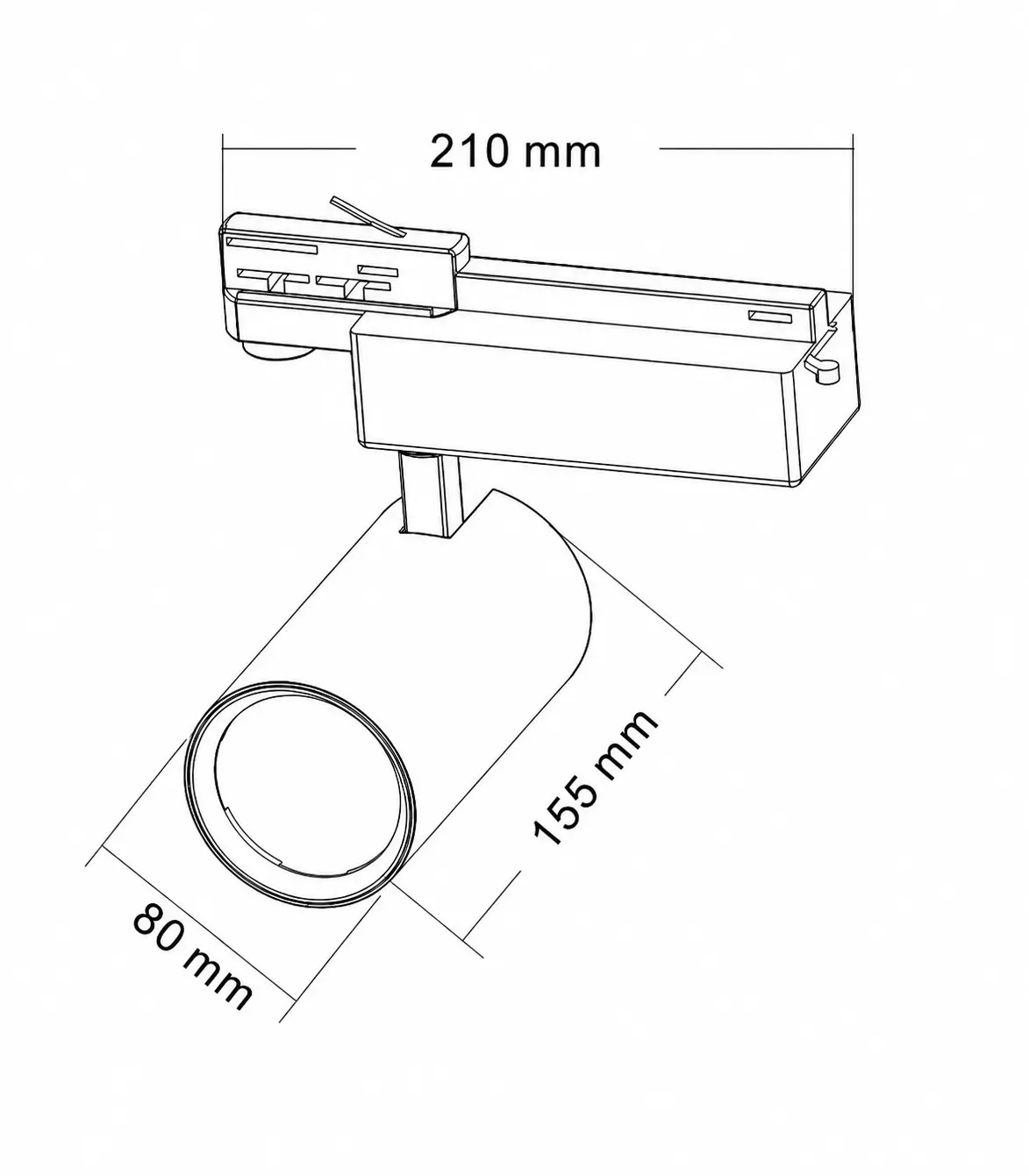

| Product size(mm) | D80*H155 mm | |
| Input Voltage | AC220-240V 50/60Hz | |
| LED Type | Citizen/Luminus/Cree COB | |
| Power Supply | Tridonic / Osram / Philips / Boke | |
| Efficacy(lm/W) | 110 LM/W | |
| Lumen Output±5% | 3300 LM | 3850 LM |
| Beam Angle | 15/24/38/60° | |
| CCT (K) | 2700/3000/4000/5000/5700 K | |
| CRI | Ra80/90 | |
| PF | >0.9 | |
| SDCM | <3 | |
| UGR | <15 | |
| Track Adaptor | 2/3/4/6 wires | |
| Material | Die-Casting Aluminum | |
| THD | <15 | |
| THD | <15 | |
| Input Voltage Shock |
<380V AC | |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | |
| Switching Cycles | >100,000 switching cycles | |
| Withstand VoItage | 1/P-0/P:3750VAC | |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | |
| Life-time | Nominal life-time up to 100,000H | |
| Operating Temperature | -20~50°C | |
| Operating Humidity | 5-85% RH, non-condensing | |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | |
| Dimming | 0/1-10V | |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |
| Warranty | 5 Years | |
| QTY/CTN Size | 12 pcs / 450*340*320 mm | |
| NW / GW | 12.6 / 14.6kg | |
Applications
The Microwave Sensor LED Track Light is ideal for retail stores, supermarkets, warehouses, corridors, showrooms, and other commercial spaces. It automatically activates when movement is detected and reduces brightness during inactive periods.
This intelligent operation provides reliable illumination while lowering unnecessary energy consumption. The adjustable track design also allows precise lighting for shelves, displays, walkways, and key functional areas.
Faqs
-
Q.How does the microwave sensor work?
A.The sensor detects movement within the sensing area and automatically turns on or adjusts the light.
-
Q.Can the sensor settings be adjusted?
A.Yes. Detection range, hold time, standby brightness, and standby period can be customized.
-
Q.Is the light suitable for high-ceiling spaces?
A.Yes. The sensing range can be configured for different installation heights and commercial environments.
-
Q.What happens when no movement is detected?
A.The light can dim to a preset level or switch off after the selected hold time.
-
Q.What power options are available?
A.The Microwave Sensor LED Track Light is available in 30W and 35W versions.
-
Q.What warranty is available?
A.A 5-year warranty is available, depending on the selected driver and sensor configuration.
