Adjustable Beam Angle Led Downlight for Accent Lighting
Product Code: PS-DL7/9/12W-Q1/Q2/Q3
Certificate:
7/9/12W
Power
80/90/97Ra
CRI
90-100lm/w
Lumen Efficiency
Citizen / Luminus / Cree
LED Chip
Tridonic / Osram / Philips
LED Driver
Specification Table
| Model | PS-DL7WQ1 | PS-DL9WQ2 | PS-DL12WQ3 |
| Power | 7W | 9W | 12W |

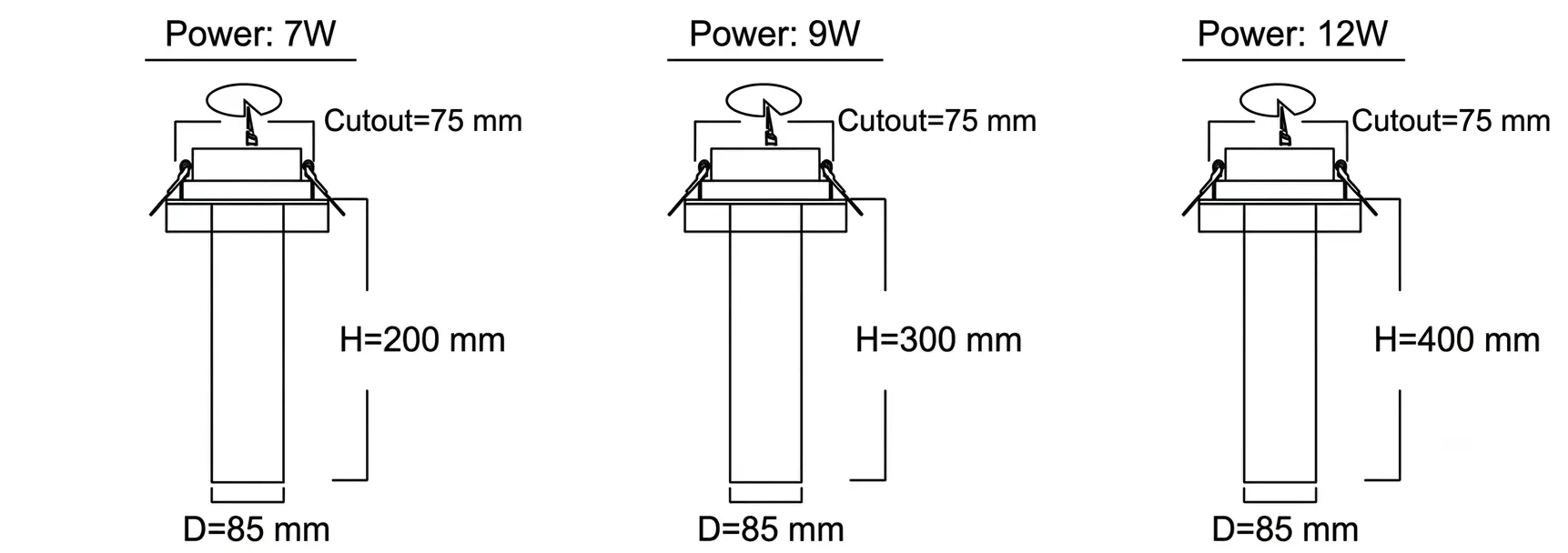

| Product size(mm) | D80*H200mm | D85*H200mm | D85*H300mm |
| Input Voltage | AC220-240V 50/60Hz | ||
| LED Type | Citizen / Bridgelux / Cree | ||
| Power Supply | Tridonic / Osram / Philips / Boke | ||
| Efficacy(lm/W) | 100LM/W | ||
| Lumen Output±5% | 700LM | 900LM | 1200LM |
| Beam Angle | 12-50° | ||
| CCT (K) | 2700/3000K/4000K/5000K/5700K | ||
| CRI | Ra83/Ra92 | ||
| PF | >0.9 | ||
| SDCM | <3 | ||
| UGR | <19 | ||
| Material | Die-Casting Aluminum | ||
| THD | <15 | ||
| IP Rate | IP20 | ||
| Input Voltage Shock | <380VAC | ||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | ||
| Switching Cycles | >100,000 switching cycles | ||
| Withstand VoItage | 1/P-0/P:3750VAC | ||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | ||
| Life-time | Nominal life-time up to 100,000H | ||
| Operating Temperature | -20~50°C | ||
| Operating Humidity | 5-85% RH, non-condensing | ||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | ||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||
| Warranty | 5 Years | ||
Applications
- Retail Display Lighting
Highlight jewelry, fashion products, cosmetics, and premium merchandise with precise adjustable accent lighting.
- Hotels & Hospitality
Illuminate artwork, decorative walls, corridors, and reception areas with comfortable, glare-controlled lighting.
- Museums & Art Galleries
Provide accurate beam control and high CRI illumination for paintings, sculptures, and exhibition displays.
- Luxury Residential Interiors
Accent architectural details, feature walls, decorative objects, and artwork while maintaining visual comfort.
Faqs
-
Q.Can the beam angle be adjusted after installation?
A.Yes. The beam angle can be adjusted continuously from 12° to 50° after installation, allowing lighting to adapt to changing display layouts.
-
Q.Is the lighting direction adjustable?
A.Yes. The spotlight head can be tilted to direct light precisely toward products, artwork, or architectural features.
-
Q.Is this downlight suitable for general lighting?
A.It is primarily designed for accent lighting and display illumination rather than uniform general lighting.
-
Q.What is the advantage of the deep recessed design?
A.The recessed optical structure reduces direct glare, improves visual comfort, and creates a cleaner ceiling appearance.
-
Q.Which CRI option should I choose?
A.Ra90 is recommended for most commercial projects, while Ra97 is ideal for museums, galleries, luxury retail, and other applications requiring exceptional color accuracy.
-
Q.What applications is this product best suited for?
A.It is ideal for retail stores, hotels, museums, galleries, luxury residences, boutiques, and exhibition spaces that require precise accent lighting.
