Wide Beam Commercial Led Downlight With 7-30W
Product Code: PS-DL7-30W-C8
Certificate:
7-30W
Power
80/90/97Ra
CRI
100lm/w
Lumen Efficiency
Citizen / Luminus / Cree
LED Chip
Tridonic / Osram / Philips
LED Driver
Specification Table
| Model | PS-DL7W-C8 | PS-DL12W-C8 | PS-DL15W-C8 | PS-DL20W-C8 | PSDL30W-C8 |
| Power | 7W | 12W | 15W | 20W | 30W |

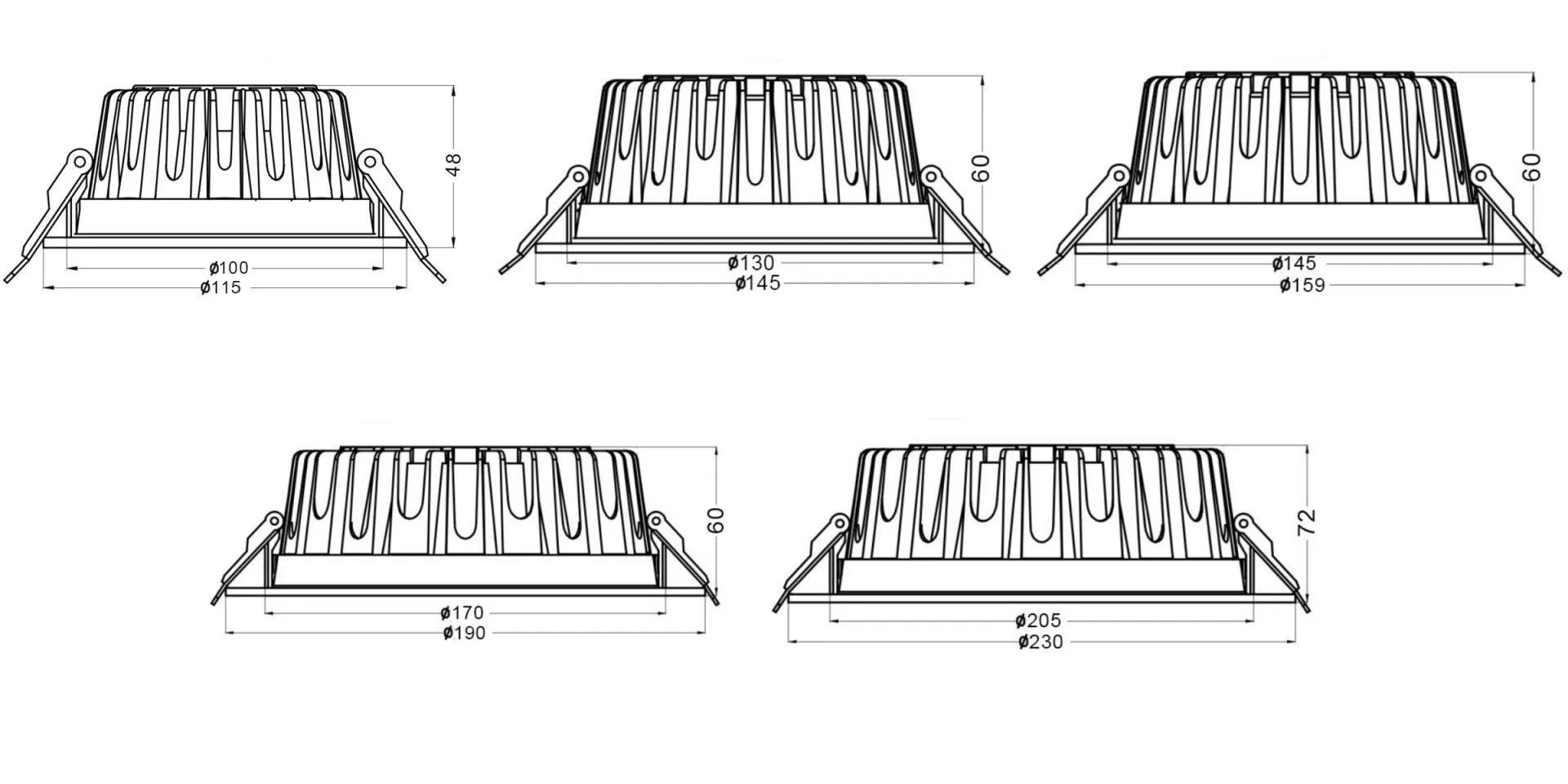

| Product size | Φ115*48mm | Φ145*60mm | Φ159*60mm | Φ190*60mm | Φ230*72mm |
| Cut hole | 95mm | 125mm | 140mm | 165mm | 200mm |
| Input Voltage | AC220-240V 50/60Hz | ||||
| LED Type | Citizen/Luminus/Cree COB | ||||
| Power Supply | Tridonic / Osram / Philips / Boke | ||||
| Efficacy(lm/W) | 100 lm/W | ||||
| Beam Angle | 90° | ||||
| CCT (K) | 2700K / 3000K / 3500K / 4000K / 5000K | ||||
| CRI | Ra80/Ra90/Ra97 | ||||
| PF | >0.9 | ||||
| SDCM | <3 | ||||
| UGR | <19 | ||||
| Material | Die-Casting Aluminum | ||||
| THD | <15 | ||||
| IP Rate | IP20 | ||||
| Input Voltage Shock | <380VAC | ||||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | ||||
| Switching Cycles | >100,000 switching cycles | ||||
| Withstand VoItage | 1/P-0/P:3750VAC | ||||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | ||||
| Life-time | Nominal life-time up to 100,000H | ||||
| Operating Temperature | -20~50°C | ||||
| Operating Humidity | 5-85% RH, non-condensing | ||||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | ||||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||||
| Warranty | 5 Years | ||||
Applications
- Office Lighting
Provides bright, uniform lighting for offices, meeting rooms, reception areas, and corridors to improve employee comfort and productivity.
- Retail Lighting
Ideal for supermarkets, convenience stores, boutiques, and shopping malls where even illumination enhances product visibility.
- Hotel & Hospitality
Creates comfortable ambient lighting for hotel lobbies, guest rooms, restaurants, cafés, and lounge areas.
- Public Buildings
Suitable for hospitals, schools, libraries, airports, stations, and government buildings requiring reliable and energy-efficient lighting.
Faqs
-
Q.What beam angle does the Burma Series LED Downlight offer?
A.The Burma Series features a 90° wide beam angle, providing uniform ambient lighting for commercial and residential spaces.
-
Q.Which CRI option should I choose?
A.CRI 80 is suitable for general lighting, CRI 90 is recommended for retail and hospitality, and CRI 97 is ideal for premium display and color-critical applications.
-
Q.What ceiling heights are suitable for each wattage?
A.The 7W model suits low ceilings, while 12W–15W fit standard commercial spaces. The 20W and 30W models are recommended for higher ceilings and large open areas.
-
Q.What color temperatures are available?
A.The Burma Series offers 2700K, 3000K, 3500K, 4000K, and 5000K to meet different lighting environments.
-
Q.Is this LED downlight suitable for commercial projects?
A.Yes. The product is certified by TÜV, CE, CB, ENEC, SAA, CCC, RoHS, and ISO, making it suitable for international commercial lighting applications.
-
Q.How does the aluminum heat sink improve performance?
A.The large aluminum heat sink dissipates heat efficiently, maintaining stable brightness and extending the service life of the LED.
