Anti Glare Recessed LED Downlight for Commercial Lighting
Product Code: PS-DL12-40W-C18
Certificate:
12-40W
Power
80/90/97Ra
CRI
90-100lm/w
Lumen Efficiency
Citizen / Luminus / Cree
LED Chip
Tridonic / Osram / Philips
LED Driver
Specification Table
| Model | PS-DL12WC18 | PS-DL15WC18 | PS-DL20WC18 | PS-DL30WC18 | PS-DL40WC18 |
| Power | 12W | 15W | 20W | 30W | 40W |

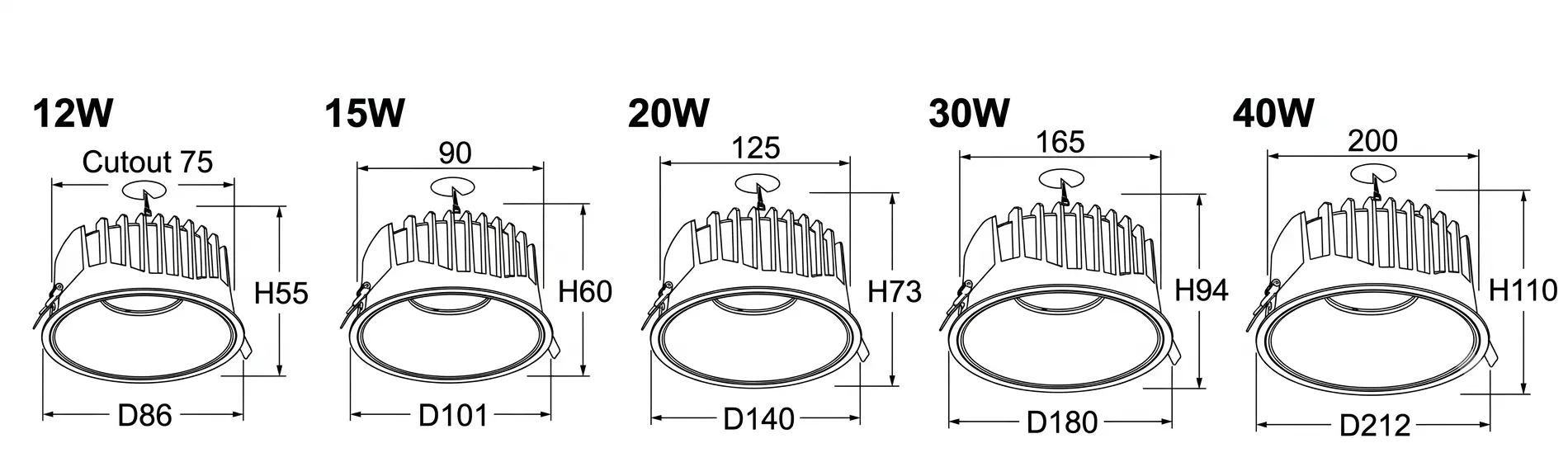

| Product size | Φ86*55mm | Φ101*60mm | Φ140*73mm | Φ180*94mm | Φ212*110mm |
| Cut hole size | 75mm | 90mm | 125mm | 165mm | 200mm |
| Input Voltage | AC220-240V 50/60Hz | ||||
| LED Type | Citizen/Luminus/Cree COB | ||||
| Power Supply | Tridonic / Osram / Philips / Boke | ||||
| Efficacy | 90-100 LM/W | ||||
| Beam Angle | 24/38/50/60° | ||||
| CCT (K) | 2700/3000K/4000K/5000K/5700K | ||||
| CRI | Ra80/Ra90/Ra97 | ||||
| PF | >0.9 | ||||
| SDCM | <3 | ||||
| UGR | <19 | ||||
| Material | Die-Casting Aluminum | ||||
| THD | <15 | ||||
| IP Rate | IP20 | ||||
| Input Voltage Shock | <380VAC | ||||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | ||||
| Switching Cycles | >100,000 switching cycles | ||||
| Withstand VoItage | 1/P-0/P:3750VAC | ||||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | ||||
| Life-time | Nominal life-time up to 100,000H | ||||
| Operating Temperature | -20~50°C | ||||
| Operating Humidity | 5-85% RH, non-condensing | ||||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | ||||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||||
| Warranty | 5 Years | ||||
Applications
- Retail Stores
High CRI lighting enhances product colors while the anti-glare design creates a more comfortable shopping environment.
- Hotels & Hospitality
Provides warm, elegant lighting for guest rooms, corridors, restaurants, and hotel lobbies.
- Museums & Art Galleries
Multiple beam angles and CRI97 accurately illuminate artwork without causing distracting glare.
- Offices & Commercial Buildings
Delivers comfortable, uniform lighting for offices, meeting rooms, reception areas, and public spaces.
Faqs
-
Q.What is the main advantage of the Bucking Series?
A.Its deep anti-glare reflector significantly reduces glare while providing comfortable, high-quality illumination.
-
Q.What wattages are available?
A.The series includes 12W, 15W, 20W, 30W, and 40W models for different lighting applications.
-
Q.Which beam angle should I select?
A.15° is ideal for accent lighting, 24° for display lighting, 38° for general commercial lighting, and 60° for wide-area illumination.
-
Q.Is CRI97 available?
A.Yes. The Bucking Series offers CRI80, CRI90, and CRI97 to meet different color rendering requirements.
-
Q.What color temperatures are supported?
A.2700K, 3000K, 3500K, 4000K, and 5000K are available to suit various commercial environments.
-
Q.Where is this recessed downlight commonly used?
A.It is widely used in retail stores, hotels, offices, museums, galleries, restaurants, shopping malls, and premium residential projects.
-
Q.Does the product have international certifications?
A.Yes. It is certified with CE, CB, ENEC, SAA, and RoHS for international commercial projects.
-
Q.What housing material is used?
A.The fixture features a die-cast aluminum housing for excellent heat dissipation and long-term reliability.
