Cct Wattage Selectable Dimmable Zoomable Led Track Light 25W-35W
Product Code: PS-TL25-35W-I93Z
Certificate:
25/30/35W
Power
80/90Ra
CRI
110lm/w
Lumen Efficiency
Citizen / Luminus / Cree
LED Chip
Tridonic / Osram / Philips
LED Driver
Specification Table
| Model | PS-TL25-35WI93Z |
| Power | 25W – 30W – 35W (Selectable via Dip Switch) |

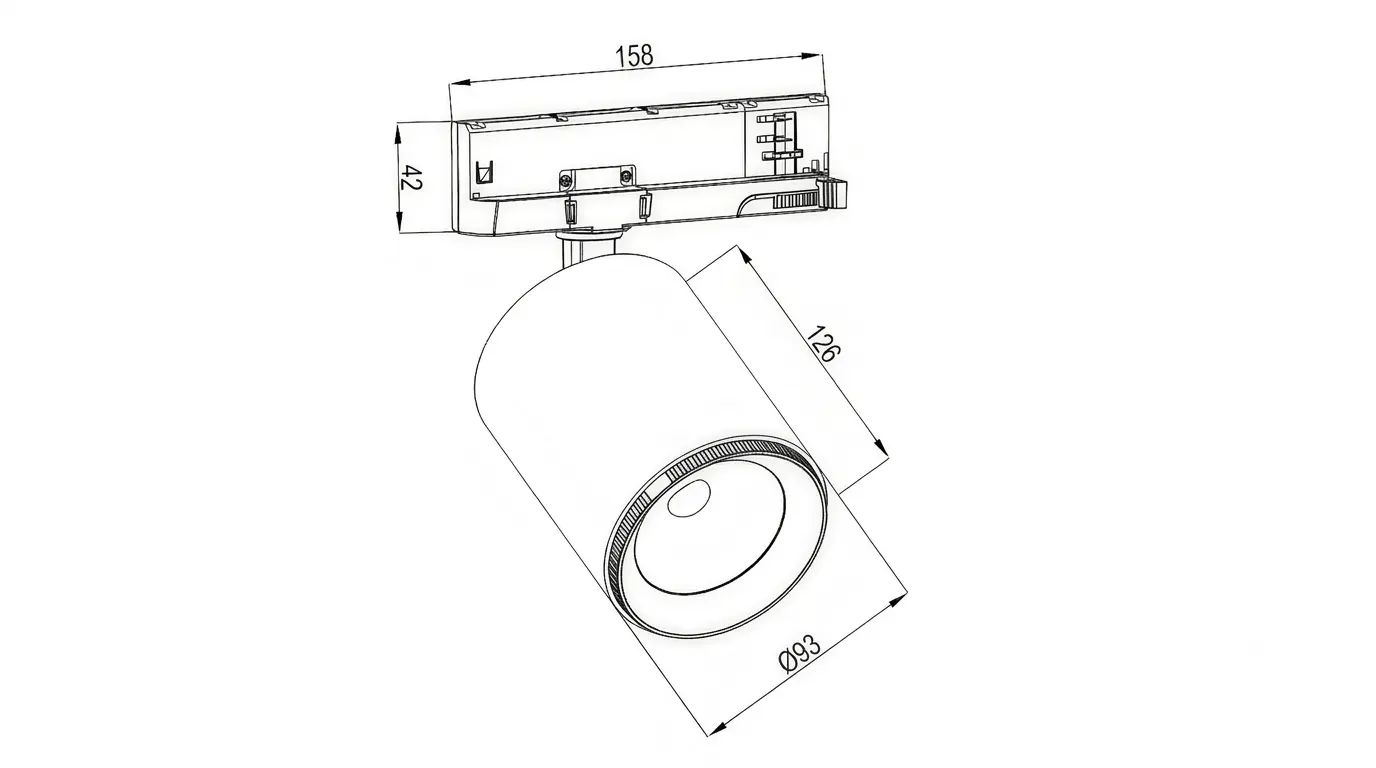

| Product size(mm) | D93*H115mm |
| Input Voltage | AC220-240V 50/60Hz |
| LED Type | Citizen/Luminus/Cree COB |
| Power Supply | Tridonic / Osram / Philips / Boke |
| Efficacy(lm/W) | 100-110LM/W |
| Beam Angle | 15-45° |
| CCT (K) | 2700K / 3000K / 4000K (Selectable via Dip Switch) |
| CRI | Ra80/Ra90/Ra97 |
| PF | >0.9 |
| SDCM | <3 |
| UGR | <19 |
| Track Adapt | 2/3/4/6wire |
| Material | Die-Casting Aluminum |
| THD | <15 |
| IP Rate | IP20 |
| Input Voltage Shock | <380VAC |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) |
| Switching Cycles | >100,000 switching cycles |
| Withstand VoItage | 1/P-0/P:3750VAC |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) |
| Life-time | Nominal life-time up to 100,000H |
| Operating Temperature | -20~50°C |
| Operating Humidity | 5-85% RH, non-condensing |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing |
| Dimming | Non-dimming |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 5 Years |
| QTY/CTN Size | 12PCS / 590*50*330 mm |
| N.W.(KG/carton) | 15.6kg |
| Carton Size(mm) | 420*320*310mm |
| N.W. / G.W. | 10.6 KG / 12.6 KG |
Applications
-
Fashion Boutiques & High-End Retail Stores: The high CRI 90+ and tunable 15°-45° beam angle make it easy to focus light on mannequin displays or featured clothing racks, accurately rendering fabric textures and true colors to drive sales.
-
Car Showrooms & 4S Dealerships: Utilizing low-glare UGR} < 19 optics, the Gope track light provides powerful, uniform illumination that highlights metallic vehicle curves and paint finishes without creating harsh unwanted reflections.
-
Supermarkets & Commercial Malls: Flexible power selection (25W–35W) allows tailored light levels across different aisle spaces, while high-efficacy lighting reduces long-term operating costs in large commercial venues.
-
Modern Offices & Meeting Rooms: Comfortable, flicker-free light with low glare UGR} < 19 creates an eye-friendly environment, improving focus and reducing visual fatigue during long working hours.
Faqs
-
Q.How do I change the wattage and color temperature (CCT) on the light?
A.This track light features built-in DIP switches on the fixture housing. You can easily select your desired wattage (25W, 30W, or 35W) and CCT (2700K, 3000K, or 4000K) by toggling the switch prior to installation or during setup.
-
Q.How does the zoomable beam angle function work?
A.The beam angle can be manually adjusted from 15°(spotlight) to 45° (floodlight) by smoothly rotating the front lens collar, allowing you to customize the beam spread on demand without tools or extra lenses.
-
Q.Is this track light compatible with my existing track system?
A.This fixture comes standard with a universal 4-wire 3-phase track adapter, making it fully compatible with most standard commercial 3-phase track rails available on the market.
-
Q.Which dimming protocols are supported for smart lighting systems?
A.Depending on your project requirements, the Gope series supports various control methods including standard On-Off, Triac (Phase-cut), 0-10V, DALI-2, and wireless Bluetooth (BLE) controls.
-
Q.What warranty is provided with this track light?
A.Powerstar provides a comprehensive 5-year guarantee, ensuring long-term reliable performance for your commercial lighting projects.
