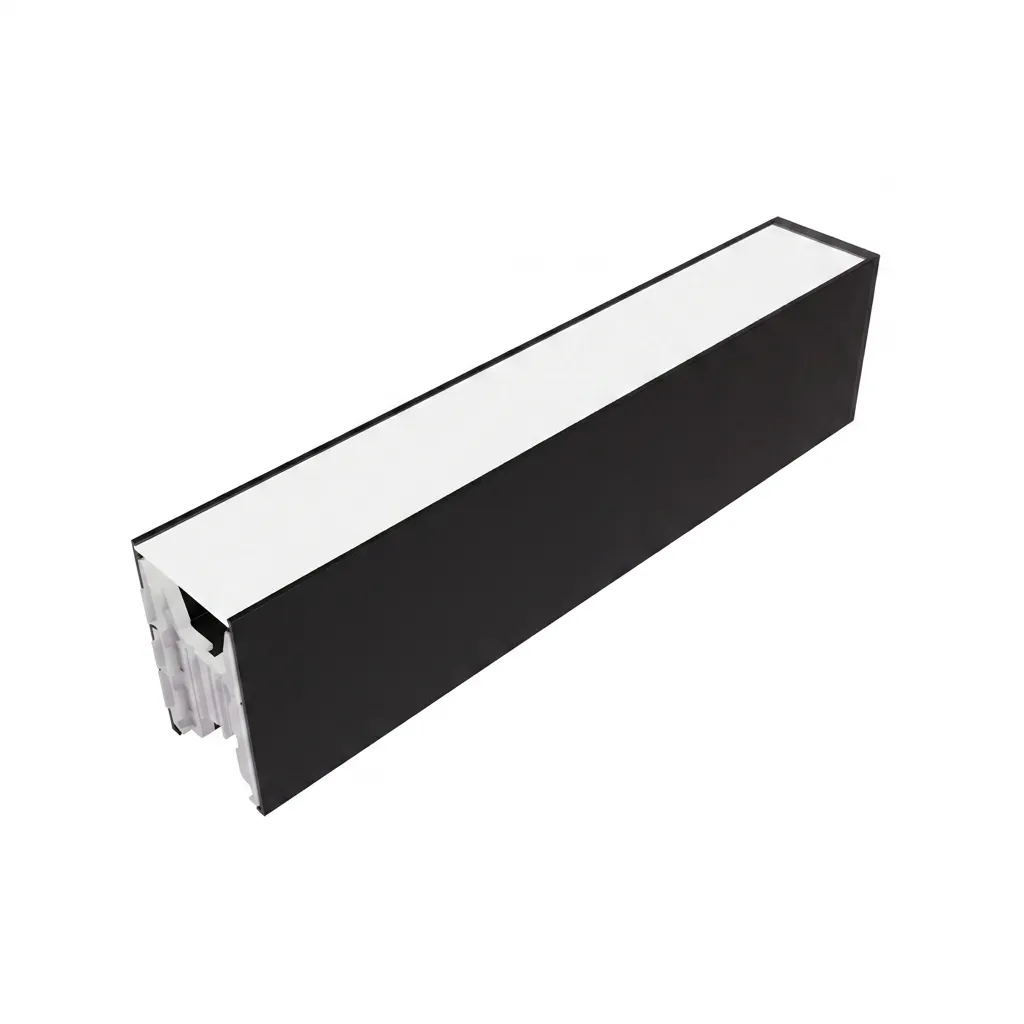

Customized Curved Linear Lighting for Shopping Mall Commercial Area
Product Code: PS-LL40-50W-5075S
Certificate:
Add To Quote
15-30W/M
Power
83/92Ra
CRI
110-140 lm/W
Lumen Efficiency
Lumileds/Osram SMD 2835
LED Chip
Osram / Tridonic / BOKE
LED Driver
Specification Table
| Model | PS-LL15-30WM-5075S | |
| Power / Meter | 15-30W / M | |
| Product Size (mm) | W50*H70 mm; Length to be Customized | |
| Input Voltage | AC 220-240V 50/60 Hz | |
| LED Type | Lumileds/Osram SMD 2835 | |
| Power Supply | Osram / Tridonic / BOKE | |
| Efficacy (lm/W) | 110-140 LM/W | |
| Beam Angle | 120° | |
| CCT (K) | 3000/4000/5700 K (DIP Adjustable) | |
| CRI | Ra83/92 | |
| PF | >0.9 | |
| SDCM | <5 | |
| UGR | <22 | |
| Material | Die-Casting Aluminum | |
| THD | <15 | |
| Input Voltage Shock | <380V AC | |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | |
| Switching Cycles | >100,000 switching cycles | |
| Withstand VoItage | 1/P-0/P:3750VAC | |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | |
| Life-time | Nominal life-time up to 100,000H | |
| Operating Temperature | -20~50°C | |
| Operating Humidity | 5-85% RH, non-condensing | |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | |
| IP Rate | IP20 | |
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |
| Warranty | 5 Years | |
Applications

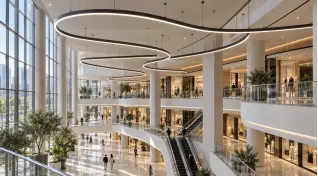

Shopping Mall & Retail Space
Customized curves can follow circulation paths, display zones, and architectural layouts, helping guide customer movement while adding a strong visual identity to retail environments.
Commercial Lobby & Public Area
Large-scale curved lighting installations can become part of the architectural design, creating continuous visual flow in atriums, corridors, waiting areas, and public spaces.
Corridor & Circulation Area
Continuous curved lighting can naturally follow pathways and architectural circulation routes, providing both functional illumination and clear visual guidance.
Office & Collaborative Space
Smooth curved lighting layouts can soften rigid office interiors and create a more comfortable, modern atmosphere in open offices, meeting areas, and collaborative spaces.
Faqs
-
Q.Can Customized Curved Linear Lighting be made according to project drawings?
A.Yes. We can customize the radius, length, shape, and dimensions according to CAD drawings and project requirements.
-
Q.What shapes can Customized Curved Linear Lighting create?

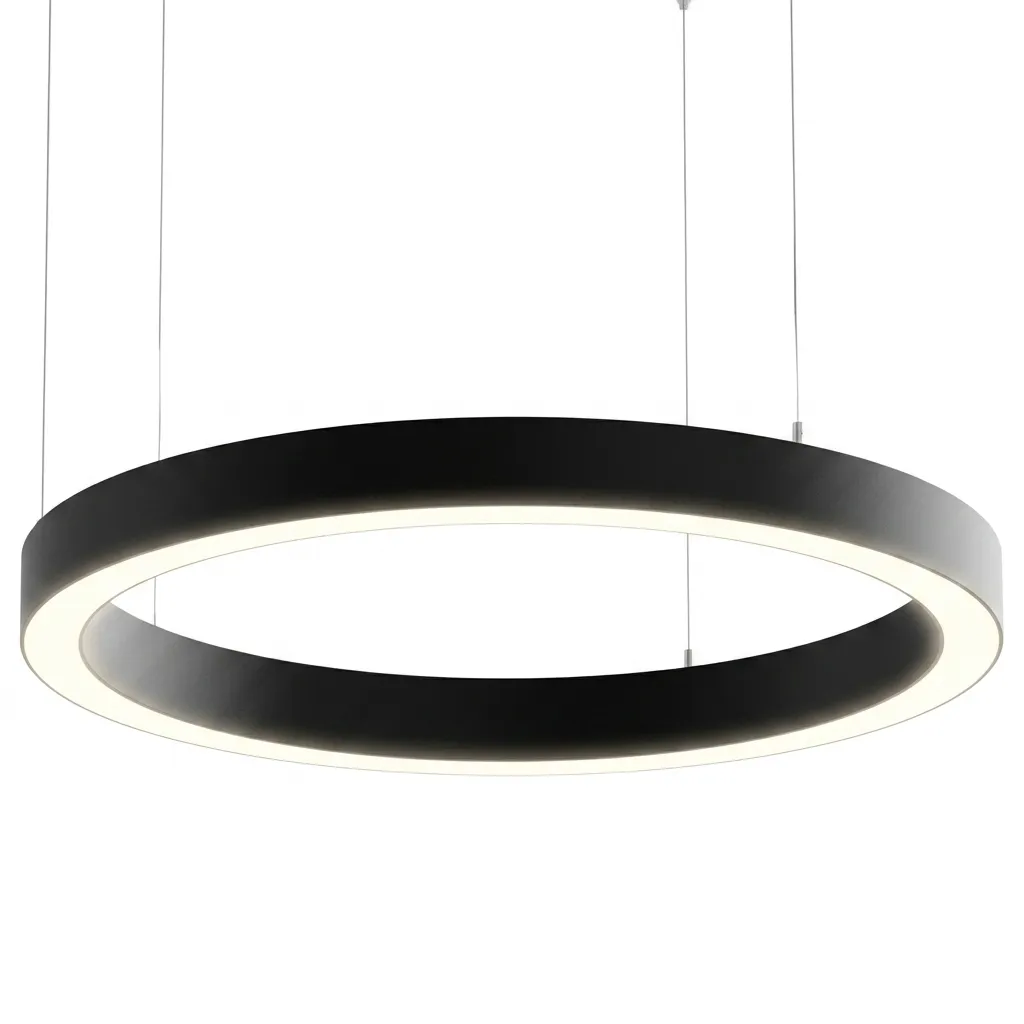

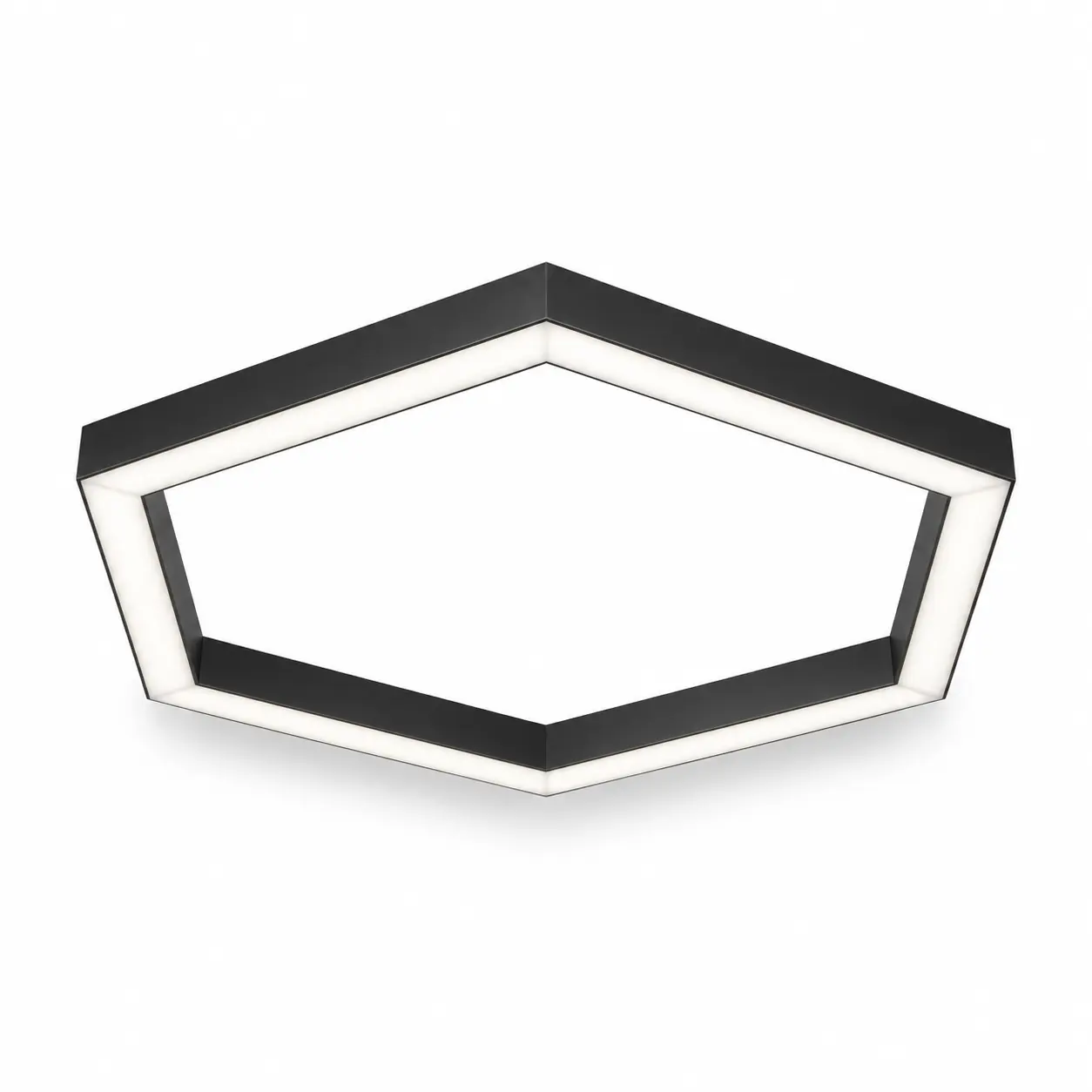

A.It can create circles, arcs, S-curves, waves, loops, and other customized freeform lighting designs.
-
Q.Can curved linear lights achieve seamless continuous lighting?
A.Yes. Optimized connectors help maintain smooth illumination between sections while reducing visible gaps and dark areas.
-
Q.What mounting options are available?
A.Pendant and surface-mounted options are available to suit different ceiling structures and project conditions.
-
Q.What color options are available?
A.The housing is available in both black and white finishes to match different interior styles and project designs.
-
Q.What control options can be provided?
A.Available options can include ON/OFF, DALI, 0–10V dimming, and other project-specific lighting control solutions.
-
Q.Is customized curved linear lighting suitable for large commercial projects?
A.The lighting system can be divided into numbered sections, making transportation, assembly, positioning, and on-site installation easier.
-
Q.Can the curved linear lighting be customized for different project sizes?
A.Yes. Fixture lengths, bending radii, and overall layouts can be customized to match different architectural spaces and installation requirements.
