External Driver Track Linear Light for Commercial Lighting 40W/50W/60W
Product Code: PS-TL-40/50/60W-L46
Certificate:
Add To Quote
40W / 50W/ 60W
Power
83/92Ra
CRI
IP20
IP Rating
60°/90°
Beam Angle
220~240v
Voltage
Specification Table
| Model | PS-TL-40/50/60W-L46 |
| Power | 40W / 50W / 60W |

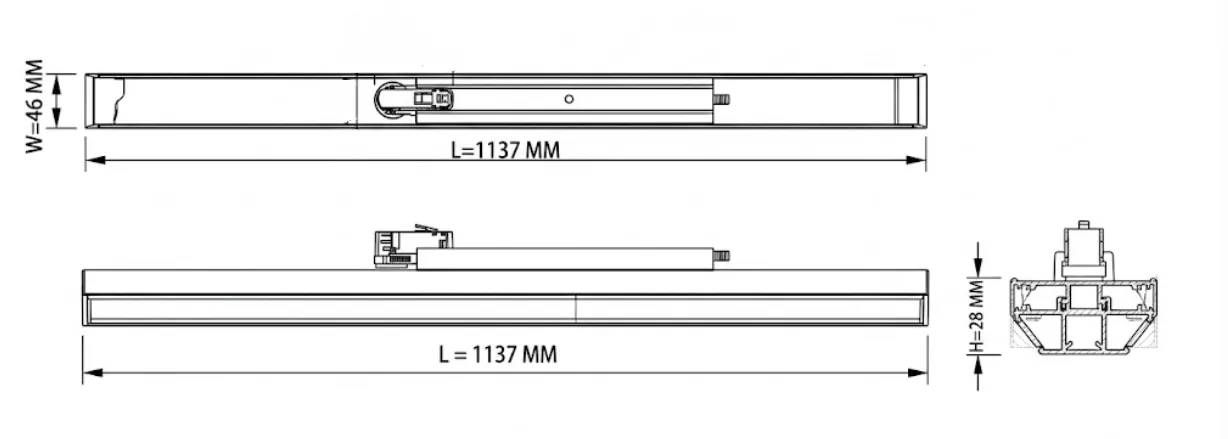

| Product size(mm) | L1137*W46*H28 MM |
| Input Voltage | AC220-240V 50/60Hz |
| LED Type | SMD 2835 |
| Power Supply | Tridonic / Osram / Philips / Boke |
| Efficacy(lm/W) | 100- 110 LM/W |
| Beam Angle | 60° /90° |
| CCT (K) | 2700 / 3000K / 3500K / 4000K / 5000K |
| CRI | Ra83 / Ra92 |
| PF | >0.9 |
| SDCM | <3 |
| UGR | <19 |
| Track Adapt | 2/3/4/6wire |
| Material | Die-Casting Aluminum |
| THD | <15 |
| IP Rate | IP20 |
| Input Voltage Shock | <380VAC |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) |
| Switching Cycles | >100,000 switching cycles |
| Withstand VoItage | 1/P-0/P: 3750VAC |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) |
| Life-time | Nominal life-time up to 100,000H |
| Operating Temperature | -20~50°C |
| Operating Humidity | 5-85% RH, non-condensing |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing |
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 5 Years |
| QTY / CTN Size | 8 PCS / 1210*320*220 MM |
| N.W. / G.W. | 16 KG / 18.5 KG |
Applications
- Supermarkets
Provide bright, uniform lighting for aisles and merchandise while reducing energy consumption.
- Fashion Retail Stores
Deliver accurate color rendering and low glare to enhance product presentation and customer experience.
- Office & Meeting Rooms
Create comfortable, flicker-free lighting that improves visual comfort and workplace productivity.
- Car Showrooms
Produce powerful, uniform illumination that highlights vehicle finishes and showroom displays.
Faqs
-
Q.Why does this track linear light use an external driver?
A.The external driver separates heat from the LED module, improving thermal performance, extending product lifespan, and ensuring stable operation at higher wattages.
-
Q.Which dimming systems are supported?
A.The fixture supports On-Off, 0-10V, Triac, DALI, and BLE, making it suitable for both conventional and smart lighting projects.
-
Q.Is this fixture compatible with standard track systems?
A.Yes. It is compatible with most 3-circuit track systems, including Powergear and Global adapters.
-
Q.What CRI options are available?
A.Standard options include CRI 80 and CRI 90, with CRI 97 available for applications requiring superior color accuracy.
-
Q.Which beam angles can I choose?
A.The luminaire is available with 60° and 90° beam angles to suit different lighting layouts and ceiling heights.
-
Q.What applications is this product best suited for?
A.It is ideal for supermarkets, shopping malls, fashion stores, offices, exhibition halls, galleries, and automotive showrooms requiring high-quality commercial lighting.
