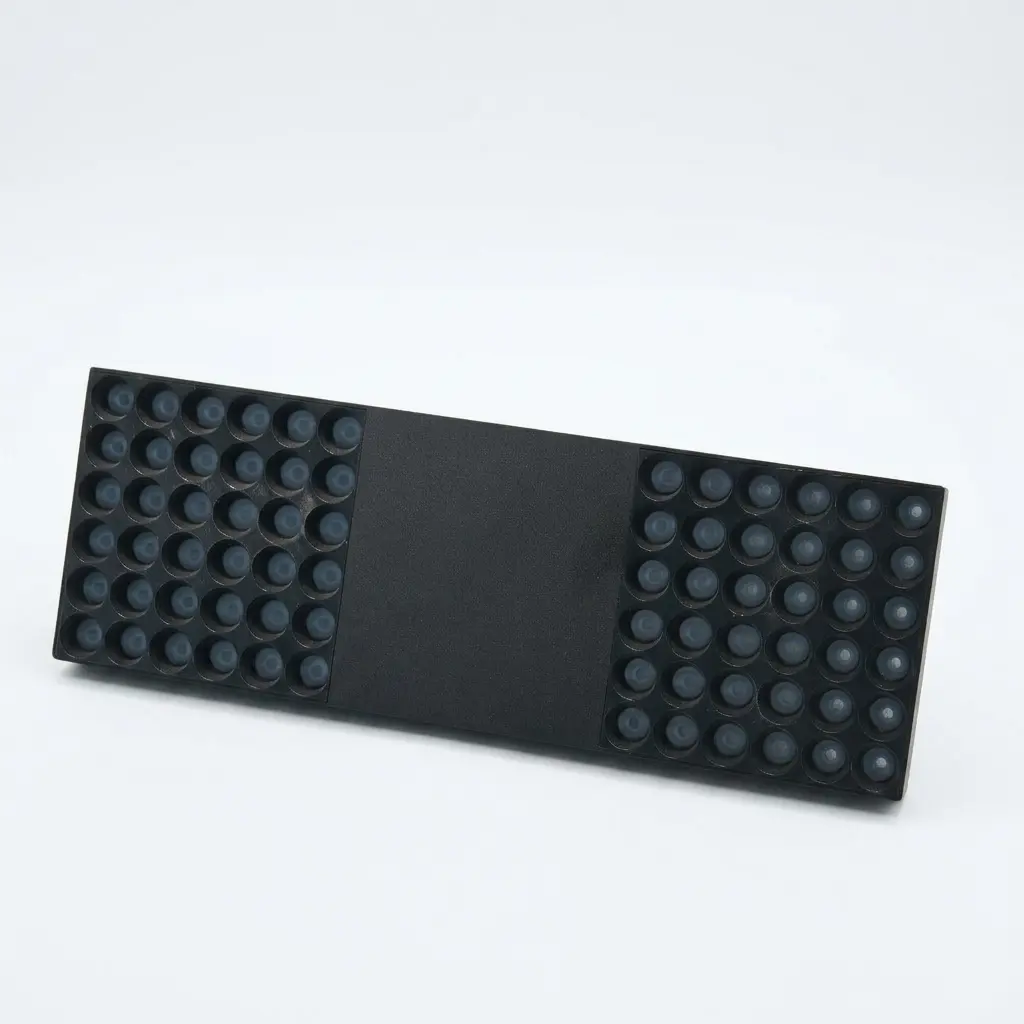

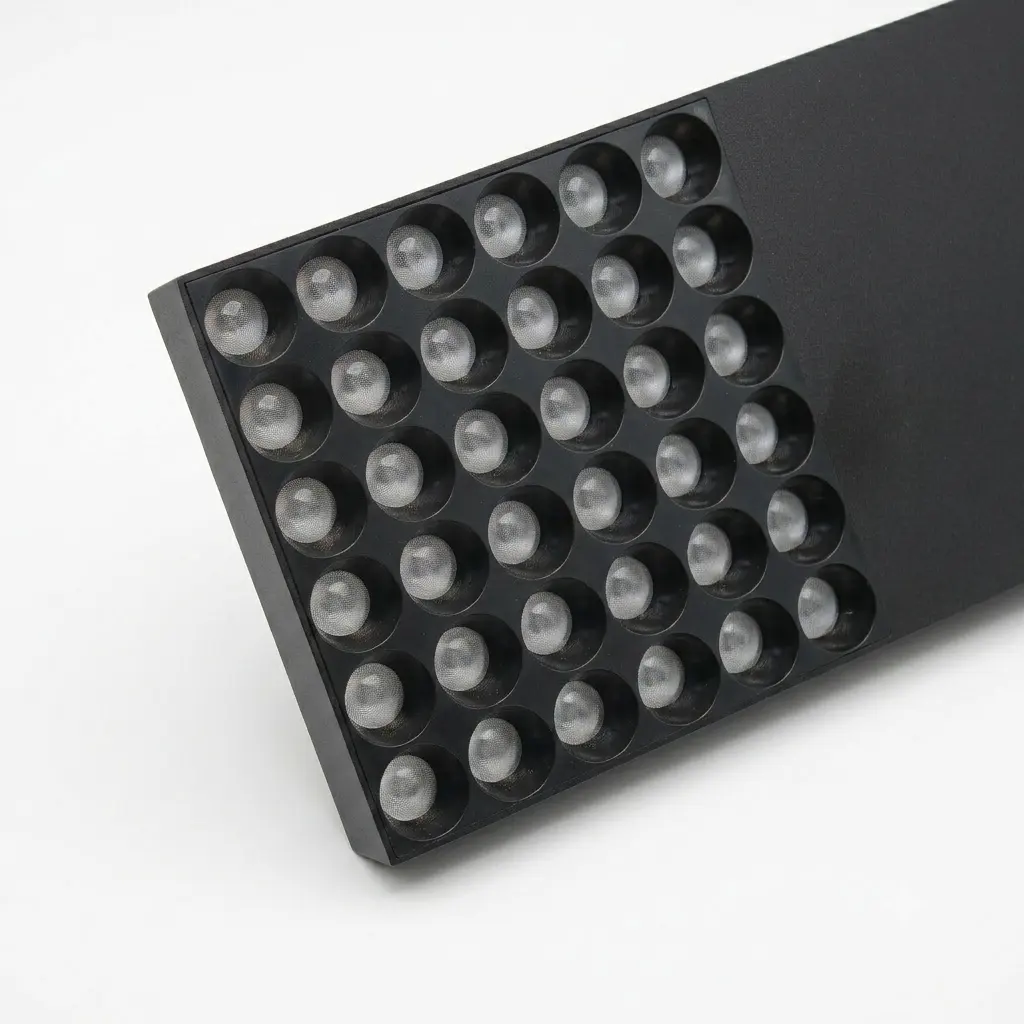

Led Track Panel Light for Display Lighting With Anti-glare Optics
Product Code: PS-TL20/30/40W P120G
Certificate:
20/30/40W
Power
83/92Ra
CRI
100-120lm/w
Lumen Efficiency
Lumileds/Osram SMD 2835
LED Chip
Osram / Tridonic / BOKE
LED Driver
Specification Table
| Model | PS-TL30/40/50/60W-P120G |
| Power | 30/40/50/60W |
| Product size(mm) | 93mm*125mm*575mm |
| Input Voltage | AC220-240V 50/60Hz |
| LED Type | Lumileds/Osram SMD 2835 |
| Power Supply | Osram / Tridonic / BOKE |
| Efficacy(lm/W) | 100-120LM/W |
| Beam Angle | 24° |
| CCT (K) | 2700/3000K/3500K/4000K/5000K |
| CRI | Ra85/Ra93 |
| PF | >0.9 |
| SDCM | <3 |
| UGR | <15 |
| Track Adapt | 2/3/4/6wire |
| Material | Die-Casting Aluminum |
| THD | <15 |
| IP Rate | IP20 |
| Input Voltage Shock | <380VAC |
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) |
| Switching Cycles | >100,000 switching cycles |
| Withstand VoItage | 1/P-0/P:3750VAC |
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) |
| Life-time | Nominal life-time up to 100,000H |
| Operating Temperature | -20~50°C |
| Operating Humidity | 5-85% RH, non-condensing |
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing |
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming |
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick |
| Warranty | 5 Years |
| QTY / CTN Size | 9 PCS / 635*314*324 MM |
| N.W. / G.W. | 15 KG / 18 KG |
Applications
- Retail Display Lighting
Highlight featured products with high CRI lighting and comfortable glare control.
- Supermarkets
Provide uniform illumination that improves product visibility and enhances customer experience.
- Museums & Art Galleries
Reveal the true colors and fine details of artwork with precision lighting.
- Commercial Showrooms
Create premium display environments that showcase products with clarity and visual impact.
FAQ
-
Q.Why is this light suitable for display lighting?
A.Its high CRI, anti-glare optics, and focused light distribution help products appear brighter, more natural, and visually attractive.
-
Q.Does it support intelligent lighting control?
A.Yes. It is compatible with DALI, 0-10V, Triac, and standard On-Off control systems.
-

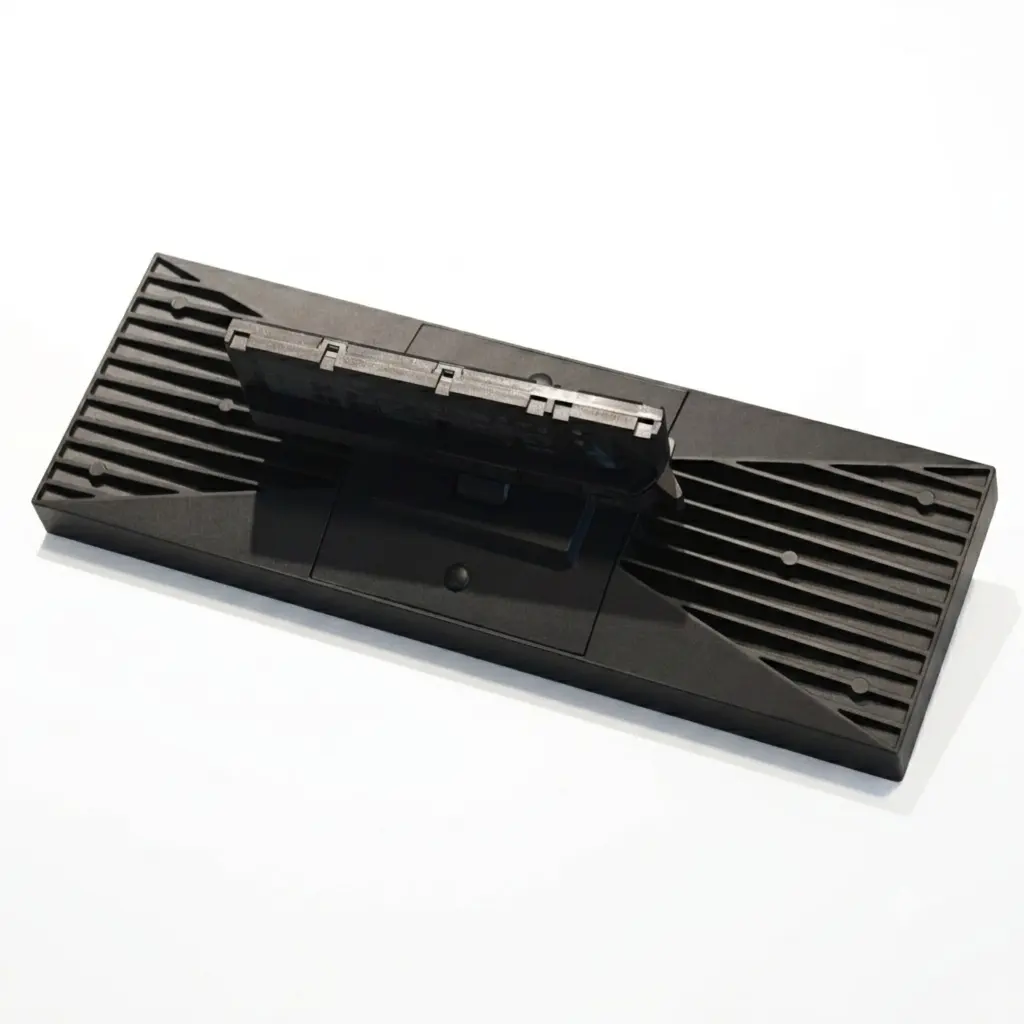

Q.Which track systems are supported?
A.The fixture is available with both 1-phase and 3-phase track adapters to match most commercial installations.
-
Q.Which industries commonly use this fixture?
A.It is widely used in retail stores, supermarkets, museums, galleries, boutiques, exhibition halls, and commercial showrooms.
-
Q.What makes this fixture reliable for commercial projects?
A.It uses premium Lumileds or Osram LEDs, high-quality drivers, durable aluminum housing, international certifications, and includes a 5-year warranty.
