Zoomable Anti Glare Led Downlight for Commercial Lighting Projects
Product Code: PS-DL7/12/15/20/30W-C39
Certificate:
7-30W
Power
80/90/97Ra
CRI
90-100lm/w
Lumen Efficiency
Citizen / Luminus / Cree
LED Chip
Tridonic / Osram / Philips
LED Driver
Specification Table
| Model | PS-DL7WC39 | PS-DL12WC39 | PS-DL15WC39 | PS-DL20WC39 | PS-DL30WC39 | ||||
| Power | 7W | 12W | 15W | 20W | 30W | ||||

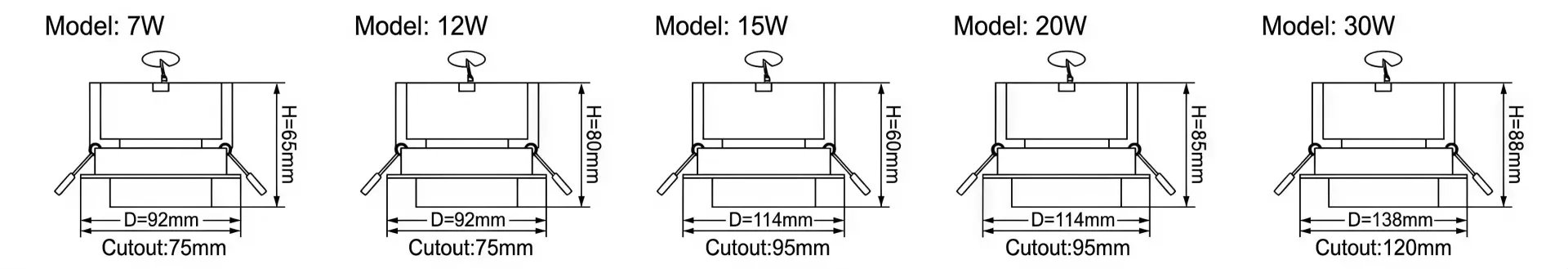

| Product size(mm) | D92*H65mm | D92*H80mm | D114*H60mm | D114*H85mm | D138*H88mm | ||||
| Input Voltage | AC220-240V 50/60Hz | ||||||||
| LED Type | Citizen/Luminus/Cree COB | ||||||||
| Power Supply | Tridonic / Osram / Philips / Boke | ||||||||
| Efficacy(lm/W) | 90-100 LM/W | ||||||||
| Beam Angle | 15-60° (Zoomable) | ||||||||
| CCT (K) | 2700K / 3000K / 3500K / 4000K / 5000K | ||||||||
| CRI | Ra80/Ra90/Ra97 | ||||||||
| PF | >0.9 | ||||||||
| SDCM | <3 | ||||||||
| UGR | <19 | ||||||||
| Material | Die-Casting Aluminum | ||||||||
| THD | <15 | ||||||||
| IP Rate | IP20 | ||||||||
| Input Voltage Shock | <380VAC | ||||||||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | ||||||||
| Switching Cycles | >100,000 switching cycles | ||||||||
| Withstand VoItage | 1/P-0/P:3750VAC | ||||||||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | ||||||||
| Life-time | Nominal life-time up to 100,000H | ||||||||
| Operating Temperature | -20~50°C | ||||||||
| Operating Humidity | 5-85% RH, non-condensing | ||||||||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | ||||||||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||||||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||||||||
| Warranty | 5 Years | ||||||||
| Q’TY(PCS)/carton | 27pcs | 24pcs | 24pcs | 18pcs | 18pcs | ||||
| N.W.(KG/carton) | 13.5kg | 14.9kg | 15kg | 15.2kg | 17.8kg | ||||
| Carton Size(mm) | 370*370*340mm | 460*430*330mm | 490*360*380mm | 490*360*400mm | 550*400*400mm | ||||
| G.W.(KG/carton) | 15.5kg | 16.9kg | 17kg | 17.2kg | 19.8kg | ||||
Applications
- Hotels & Hospitality
Create comfortable guest rooms, corridors, and hotel lobbies with low-glare lighting and adjustable beam control.
- Retail Stores & Shopping Malls
Highlight merchandise with narrow beams or provide uniform ambient lighting using the zoomable optical system.
- Offices & Commercial Buildings
Improve workplace comfort with glare-free illumination for offices, meeting rooms, and reception areas.
- Museums & Galleries
Combine high CRI with adjustable beam angles to accurately illuminate artwork, exhibits, and display collections.
Faqs
-
Q.What is a Zoomable Anti Glare LED Downlight?
A.Yes. Our products are covered by a 3-5 year warraAIt is a recessed LED downlight with an adjustable beam angle and deep anti-glare reflector, allowing one fixture to provide both accent and general lighting.nty.
-
Q.What beam angles are available?
A.The Myrna Series supports continuous adjustment from 15° to 60°, providing maximum flexibility for different lighting applications.
-
Q.Why choose an anti-glare downlight?
A.The deep recessed reflector reduces direct glare, improves visual comfort, and creates a cleaner architectural ceiling appearance.
-
Q.Which wattage should I select?
A.7W–12W: Hotel rooms, bedrooms, corridors. 15W–20W: Offices, retail stores, restaurants. 30W: Shopping malls, exhibition halls, airports, and high-ceiling spaces.
-
Q.Which CRI option is best?
A.CRI80 suits standard commercial lighting, CRI90 is recommended for retail and hospitality, while CRI97 is ideal for museums, galleries, and luxury displays.
-
Q.Is this downlight suitable for commercial projects?
A.Yes. It is designed specifically for commercial and architectural lighting projects and is certified with CE, CB, RoHS, SAA, and CCC for international markets.
