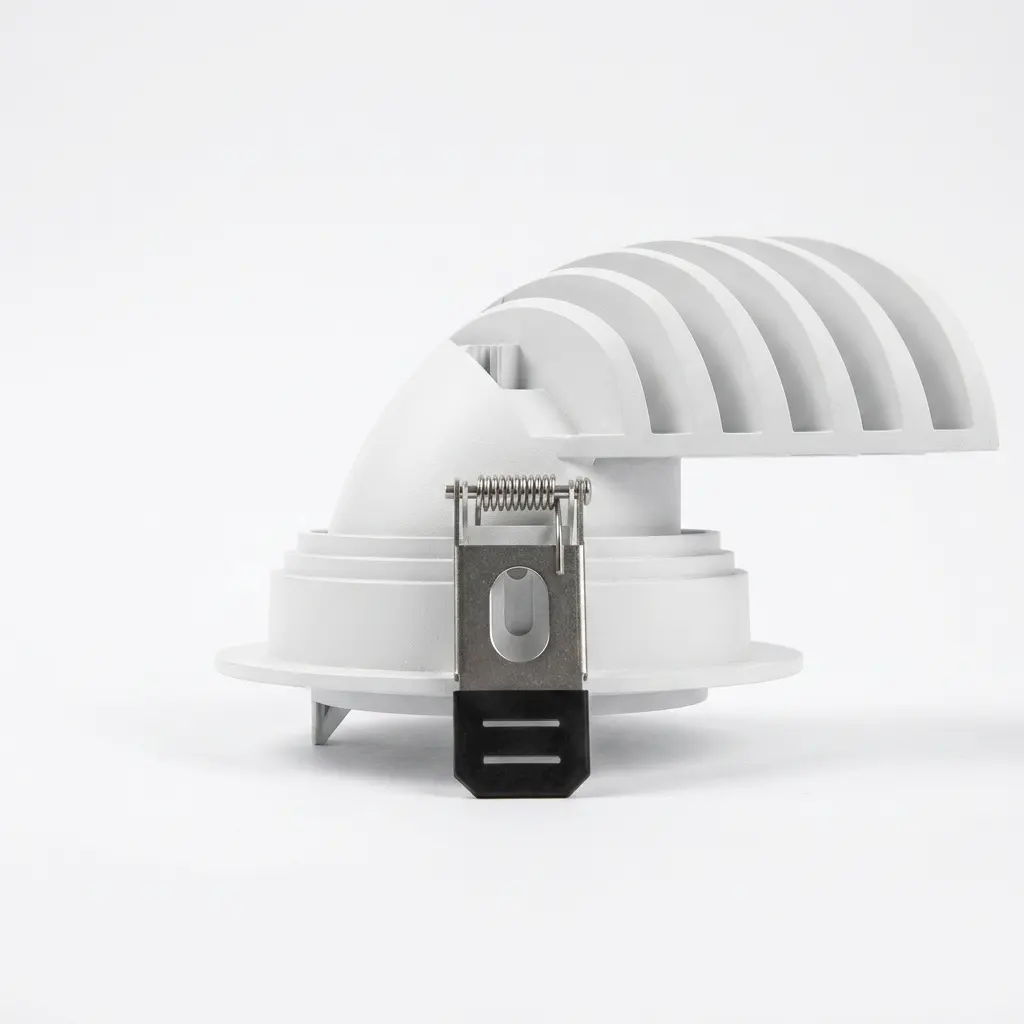

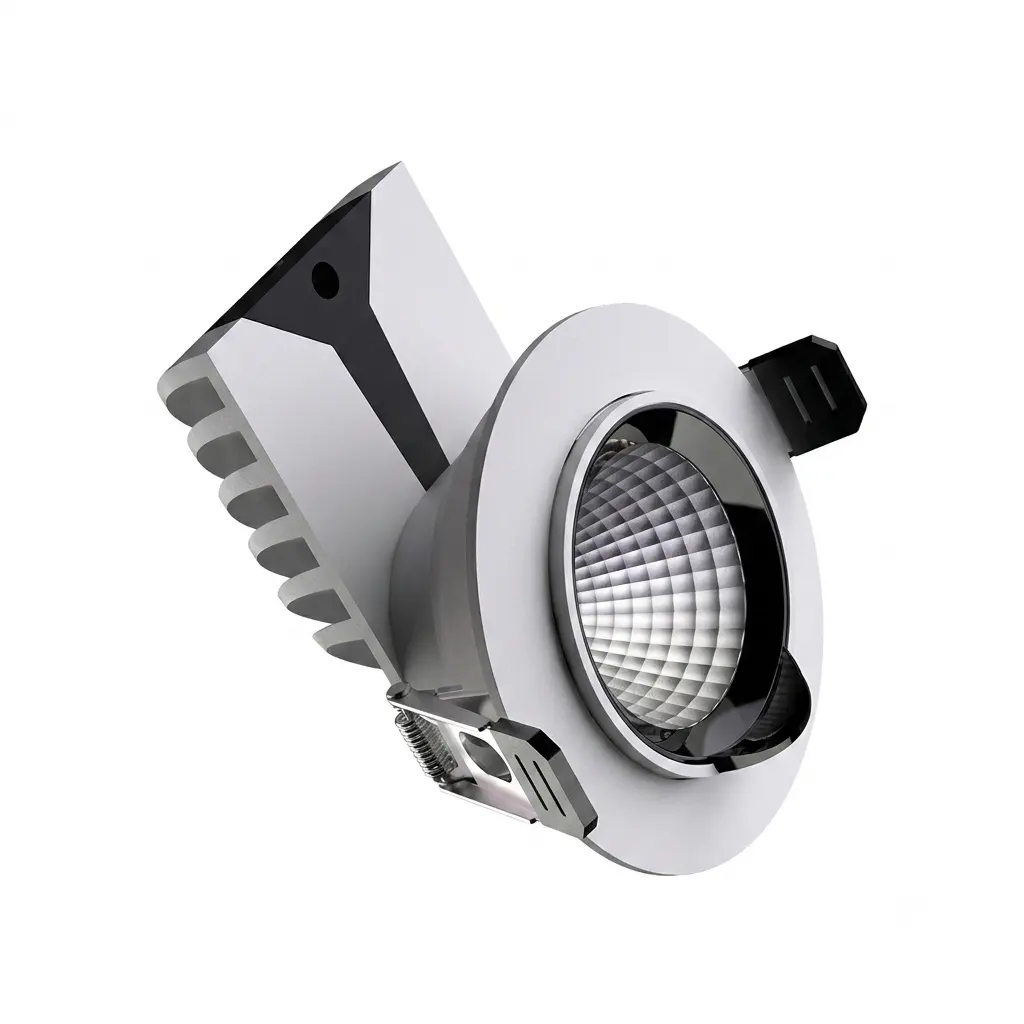

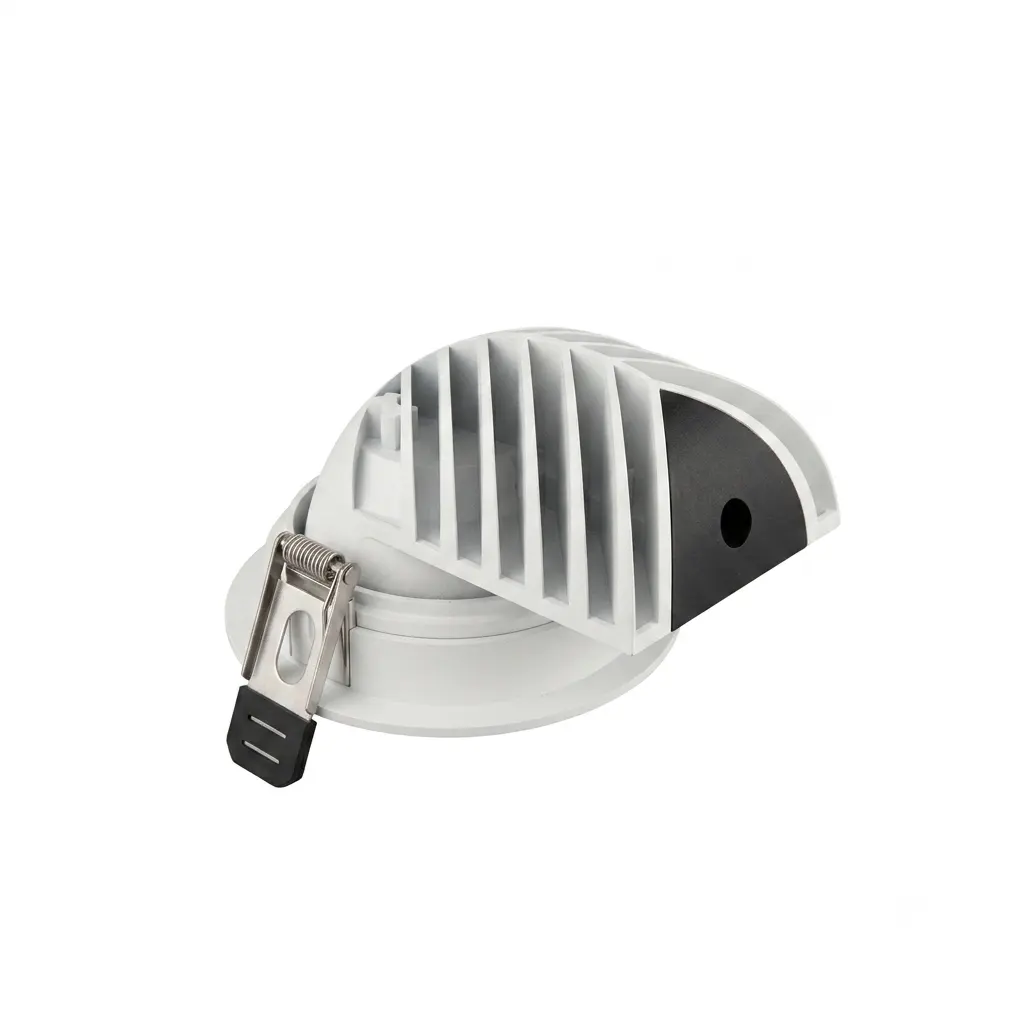

Pull Out Gimbal Led Downlight for Precision Accent Lighting
Product Code: PS-GDL12/20/30W-C37
Certificate:
12/20/30 W
Power
80/90/97Ra
CRI
90-100lm/w
Lumen Efficiency
Citizen / Luminus / Cree
LED Chip
Osram / Tridonic / BOKE
Driver
Specification Table
| Model | PS-GDL12WC37 | PS-GDL20WC37 | PS-GDL30WC37 |
| Power | 12W | 20W | 30W |

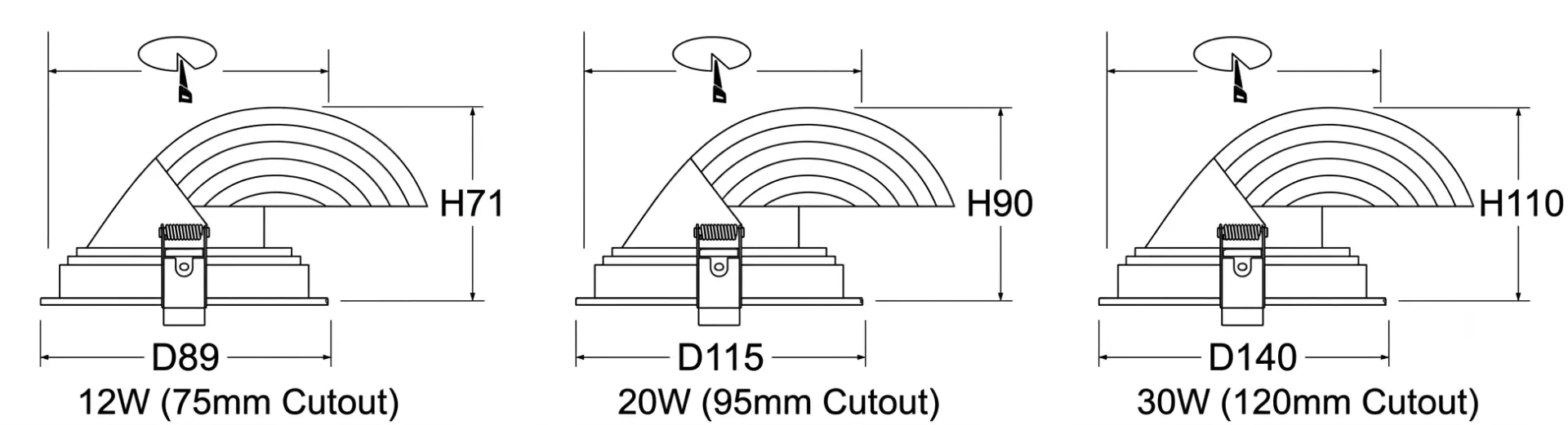

| Product size(mm) | D89*H71mm | D115*H90mm | D140*H110mm |
| Cut-out(mm) | 75 mm | 95 mm | 120 mm |
| Input Voltage | AC220-240V 50/60Hz | ||
| LED Type | Citizen/Luminus/Cree COB | ||
| Power Supply | Tridonic / Osram / Philips / Boke | ||
| Efficacy(lm/W) | 90-100 LM/W | ||
| Beam Angle | 15/24/38° | ||
| CCT (K) | 2700K / 3000K / 3500K / 4000K / 5000K | ||
| CRI | 80 / 90 / 97Ra | ||
| PF | >0.9 | ||
| SDCM | <3 | ||
| UGR | <19 | ||
| Material | Die-Casting Aluminum | ||
| THD | <15 | ||
| IP Rate | IP20 | ||
| Input Voltage Shock | <380VAC | ||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | ||
| Switching Cycles | >100,000 switching cycles | ||
| Withstand VoItage | 1/P-0/P:3750VAC | ||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | ||
| Life-time | Nominal life-time up to 100,000H | ||
| Operating Temperature | -20~50°C | ||
| Operating Humidity | 5-85% RH, non-condensing | ||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | ||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | ||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | ||
| Warranty | 5 Years | ||
| Q’TY(PCS)/carton | 24pcs | 18pcs | 12pcs |
| N.W.(KG/carton) | 15.8kg | 17.8kg | 19kg |
| Carton Size(mm) | 520*225*400mm | 430*300*505mm | 560*385*420mm |
| G.W.(KG/carton) | 17.8kg | 19.8kg | 21kg |
Applications
- Retail Stores
Highlight featured products, mannequins, and display shelves with precise adjustable lighting.
- Hotels & Hospitality
Create warm, comfortable accent lighting in lobbies, guest rooms, corridors, and lounges.
- Museums & Galleries
Illuminate artwork and exhibits with high CRI lighting that preserves true colors and fine details.
- Automotive Showrooms
Direct focused lighting onto vehicles to emphasize body lines, paint finishes, and premium features.
Faqs
-
Q.Can the lamp head be adjusted after installation?
A.Yes. The pull-out gimbal design allows the lamp head to tilt and rotate for accurate beam positioning without moving the fixture.
-
Q.Which beam angle is best for accent lighting?
A.A 15° or 24° beam angle is recommended for highlighting artwork, products, displays, and architectural details.
-
Q.Is this downlight suitable for retail projects?
A.Yes. It is specifically designed for retail stores, boutiques, galleries, museums, hotels, restaurants, and other commercial environments.
-
Q.What CRI options are available?
A.The fixture offers CRI 80, CRI 90, and optional CRI 97 for applications requiring exceptional color accuracy.
-
Q.What ceiling heights are suitable?
A.12W is ideal for ceilings around 2.6–3.2 m, 20W suits 3.2–4.5 m, and 30W performs well in spaces above 4.5 m.
-
Q.What certifications does the product have?
A.The Run Series is certified with CE, CB, ENEC, SAA, CCC, ISO, and TÜV Rheinland for international commercial projects.
