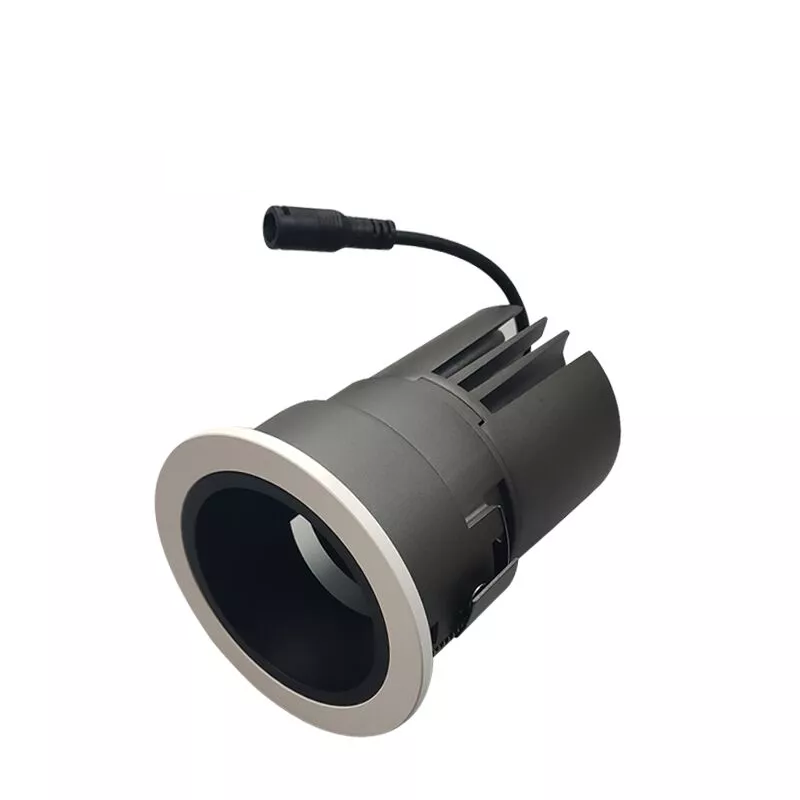

Anti Glare Gimbal Led Downlight with IP65 for Precision Accent Lighting
Product Code: PS-DL3-30W-C52
Certificate:
3-30 W
Power
80/90/97Ra
CRI
90-100lm/w
Lumen Efficiency
Citizen / Luminus / Cree
LED Chip
Tridonic / Osram / Philips
LED Driver
Specification Table

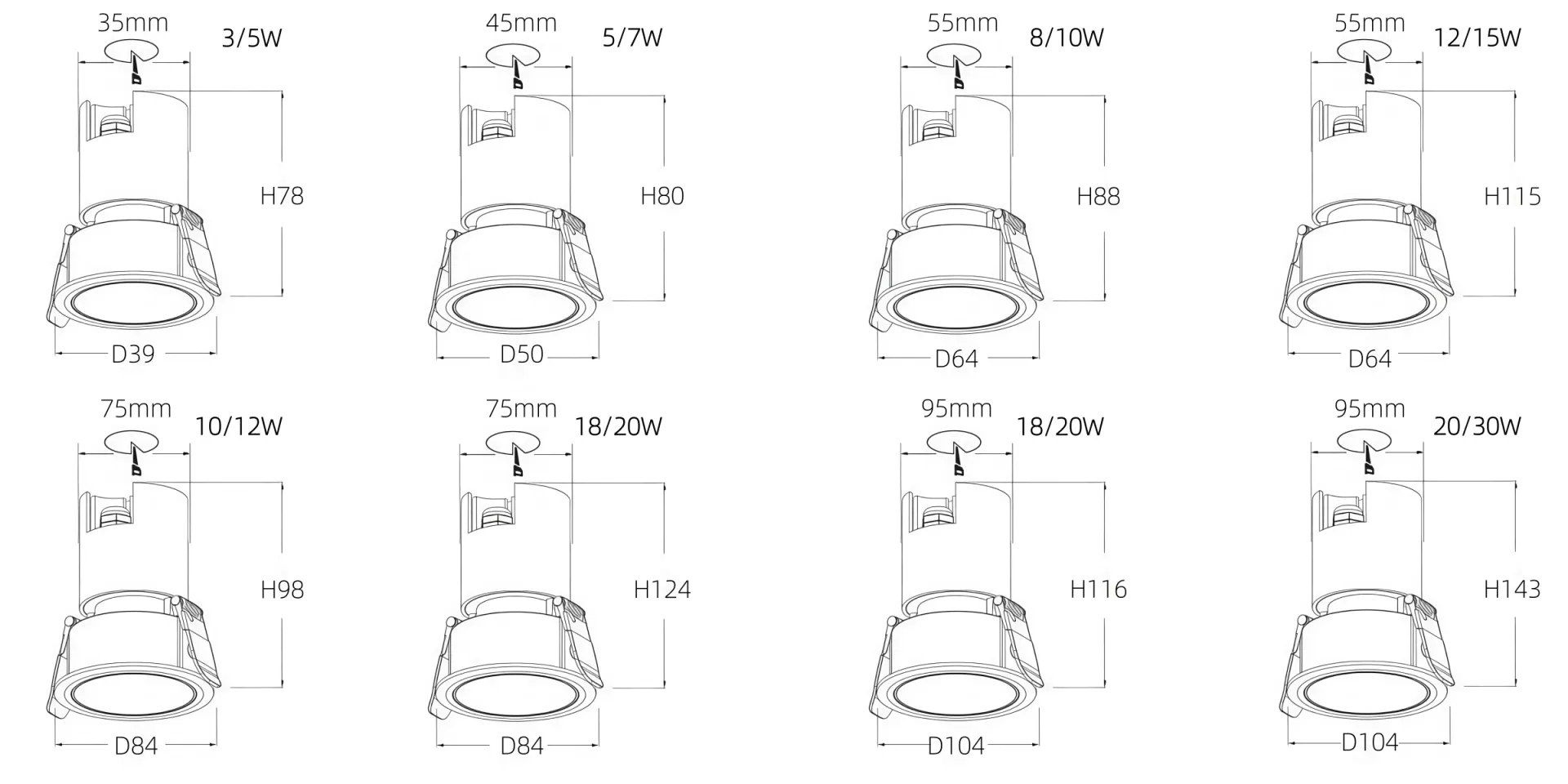

| Model | PS-DL3/5WC52 | PS-DL5/7WC52 | PS-DL8/10WC52 | PS-DL10/12WC52 | PS-DL12/15WC52 | PS-DL18/20WC52 | PS-DL18/20WC52 | PS-DL24/30WC52 | ||
| Power | 3/5W | 5/7W | 8/10W | 10/12W | 12/15W | 18/20W | 18/20W | 24/30W | ||
| Product size(mm) | Φ39*78mm | Φ50*80mm | Φ64*88mm | Φ84*98mm | Φ64*115mm | Φ84*124mm | Φ104*116mm | Φ104*143mm | ||
| Cut-out | 35mm | 45mm | 55mm | 55mm | 75mm | 75mm | 95mm | 95mm | ||
| Input Voltage | AC220-240V 50/60Hz | |||||||||
| LED Type | Citizen/Luminus/Cree COB | |||||||||
| Power Supply | Tridonic / Osram / Philips / Boke | |||||||||
| Efficacy(lm/W) | 90- 100LM/W | |||||||||
| Beam Angle | 10° / 15° / 24° / 38° / 40° / 55° | |||||||||
| CCT (K) | 2700K / 3000K / 3500K / 4000K / 5000K | |||||||||
| CRI | Ra80/Ra90/Ra97 | |||||||||
| PF | >0.9 | |||||||||
| SDCM | <3 | |||||||||
| UGR | <19 | |||||||||
| Material | Die-Casting Aluminum | |||||||||
| THD | <15 | |||||||||
| IP Rate | IP65 | |||||||||
| Input Voltage Shock | <380VAC | |||||||||
| Start/Switchover/Turn off | <0.5s(AC start),<0.5s(DCstart),<0.3s(AC/DC switchover),<0.5s(Turn off) | |||||||||
| Switching Cycles | >100,000 switching cycles | |||||||||
| Withstand VoItage | 1/P-0/P:3750VAC | |||||||||
| Mainssurge Capability | L-N:2KV(90%/270°, 5 times each with an interval of 60s) | |||||||||
| Life-time | Nominal life-time up to 100,000H | |||||||||
| Operating Temperature | -20~50°C | |||||||||
| Operating Humidity | 5-85% RH, non-condensing | |||||||||
| Storage Temp./Humidity | -40~80°C, 5-85% RH, non-condensing | |||||||||
| Dimming | Non-dimming (Default) /1-10V / Dali/BLE dimming | |||||||||
| Certificate | CE/RoHS/CB/TUV/SAA/C-Tick | |||||||||
| Warranty | 5 Years | |||||||||
Applications
- Retail Stores
Highlight merchandise with adjustable beam control and high CRI lighting that attracts customer attention.
- Hotels & Hospitality
Provide comfortable, low-glare lighting for guest rooms, corridors, lobbies, bathrooms, and reception areas.
- Museums & Art Galleries
Accurately illuminate artwork and exhibits with narrow beam angles and superior color rendering.
- Luxury Residential Spaces
Create elegant accent lighting for living rooms, dining areas, kitchens, bathrooms, and display cabinets.
Faqs
-
Q.Can the gimbal head be adjusted after installation?
A.Yes. The lamp head can be adjusted at any time to direct light exactly where it is needed.
-
Q.Is this downlight suitable for bathrooms?
A.Yes. The IP65 rating protects the fixture from water and dust, making it suitable for humid environments.
-
Q.Which beam angle is best for accent lighting?
A.Beam angles of 10° or 15° are ideal for highlighting artwork, displays, and architectural features.
-
Q.Why should I choose CRI 97Ra?
A.CRI 97Ra delivers excellent color accuracy. It is perfect for luxury retail, galleries, museums, and restaurants.
-
Q.What reflector colors are available?
A.Black, white, silver, gold, and rose gold reflectors are available to match different interior designs.
-
Q.What applications is this downlight designed for?
A.It is ideal for retail stores, hotels, museums, galleries, restaurants, offices, and premium residential projects.
